2018-2024 Toyota Navigation Map Update Process TSB

Toyota has issued Technical Service Bulletin T-SB-0001-26 to provide a comprehensive guide for updating the Premium Audio Navigation System in various 2018-2024 Toyota vehicles. This bulletin details the steps required to update map data, points of interest, and the system software using a specialized USB flash drive. This Toyota navigation map update ensures your system is current and functional.

Why this matters

Keeping your vehicle's navigation system up-to-date ensures you have the latest road information, points of interest, and system enhancements. An accurate and current navigation system improves driving convenience and can help you find the most efficient routes. This Toyota navigation map update process is crucial for optimal performance of your vehicle's infotainment system.

Supersession Notice

This bulletin, T-SB-0001-26, supersedes Service Bulletin No. T-SB-0106-22. The information in the previous bulletin is now obsolete, and any printed versions should be discarded. Notably, the 'Required Tools & Equipment' section has been updated in this new bulletin.

Warranty Information

This procedure is listed as "Not Applicable to Warranty" under OP CODE N/A. Owners should be aware that this update process typically falls outside standard warranty coverage.

Required Tools and Parts

Performing the Toyota navigation map update requires specific tools and parts:

• NAV ACN Card V.20.00: Part Number 86271-HDD09-00. This Activation Card Number (ACN) is often required for Dynamic Navigation Updates, particularly if your subscription has expired or is expiring soon. ACNs are provided in a pamphlet available through the normal parts ordering system.
• USB Drive Navigation Update – AWTEC: Special Service Tool (SST) Part Number TLAW-SD017-25F. This is an essential USB flash drive containing the map update data. Note that some documentation figures also reference TLAW-SD017-24F-.

Additional SSTs may be ordered by calling 1-800-368-6787 or by visiting the Home – Service Resources – Toyota Tools and Equipment Program. Map data is released once each year through the shipment of an SST USB flash drive to each dealer. The SST MUST be stored in the SST cabinet to ensure it can be easily found.

Understanding Navigation Updates

There are two primary types of navigation updates covered by this bulletin:

1. Dynamic Navigation Update: This update extends dynamic map services for two years and includes the embedded navigation update. It typically requires the purchase of an Activation Card Number (ACN) if your subscription has expired or is expiring within 90 days.
2. Embedded Navigation Update: This update applies the latest map data without extending dynamic map services. It does not require an ACN if the dynamic subscription is still active and has more than 90 days remaining, or if the customer only wants the embedded map update without extending dynamic services.

General Update Process Overview

The Toyota navigation map update process involves several key steps, whether performing a Dynamic or Embedded update:

1. Firmware Update: Before installing map data, any available firmware updates for the selected model and model year must be completed via TIS (Toyota Information System).
2. Ignition Cycle: The vehicle's ignition must be cycled to the ON position (Engine/Hybrid/EV system OFF). For vehicles without a Smart Key, turn the ignition key to ON. For vehicles with a Smart Key, press the Engine Start/Stop switch twice with the brake pedal released.
3. Check Map Data: Access the 'Map Data' screen on the navigation head unit to record the old map date (e.g., "Map version: 05-67-50 [2016-12-0]") and check the expiration date of the dynamic subscription (e.g., "Expiration date: //****").
4. License Key Generation: Log into TIS and use the Navigation Update Wizard to generate a license key. This requires entering vehicle information, the map update ID (e.g., "Map update ID: 1702-1716-1910-1266" or "1102110281948734"), and potentially an ACN.
5. USB Drive Insertion: Insert the SST USB flash drive into the vehicle's USB port, typically located under the navigation head unit, in the center console/armrest, or glove box.
6. Initiate Update: Select 'Update Map' on the Map Data screen and enter the generated license key. The head unit software will update first, followed by the navigation map data.
7. Verification: Once the update is complete, remove the USB flash drive and verify navigation operation.

Detailed Dynamic Navigation Update Procedure

This procedure is for customers who wish to extend dynamic map services for two years or whose subscription has expired/is expiring within 90 days. It typically requires an ACN.

1. Prepare for Update: Ensure any available firmware updates are completed via TIS. Cycle the ignition ON as described above.

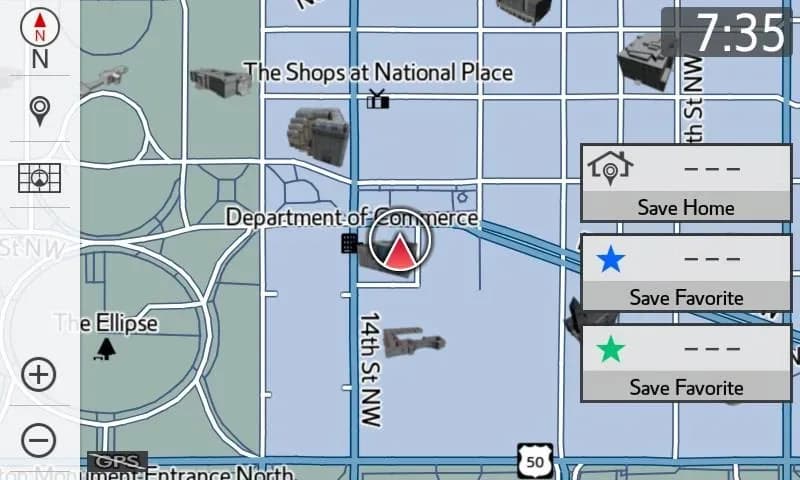

2. Access Map Information: Select the "Map" button on the navigation head unit, then the "Map Options" icon, and finally "Map Data". Record the old map date and check the expiration date. If the expiration date is not visible on the head unit, log into TIS, go to "Service Lane – Vehicle One-View", input the VIN, select "Lookup", and then click the "Telematics tab" to record the subscriber's expiration date.
3. Record Map Update ID: Select "Legal Info" on the head unit and record the "Map update ID" (e.g., 1702-1716-1910-1266).
4. Generate License Key via TIS: Log into TIS and access the "Navigation Update Wizard" (TIS tab > Diagnostics tab > Navigation tab). Select "AWTEC" as the navigation manufacturer. Enter the vehicle's VIN, the head unit expiration date, and the ACN (if required). Then, input the correct USB part number (e.g., TLAW-SD017-25F), the map update ID (without hyphens), the old map date (YYYYMMD format), the repair order number, and the expiration date. Confirm all details and select "Submit" to generate the license key. It is recommended to print this page.
5. Perform In-Vehicle Update: Insert the SST USB flash drive into the vehicle's USB port. On the head unit, select "Update Map" from the Map Data screen, then "YES" when prompted. Enter the generated license key (e.g., "9653-1378") and select "OK".
6. Software and Map Data Copy: The head unit software will update first, displaying "New map software is being copied." This process takes approximately 10 minutes. The system will then prompt to cycle the ignition OFF, then ON. After the head unit software update, the navigation map data will begin to copy automatically, displaying "Map data is being copied." This process takes approximately 45 minutes.
7. Final Steps: When prompted with "Map update complete. Please remove the update media.", remove the USB flash drive from the vehicle's USB port. Verify navigation operation.

Detailed Embedded Navigation Update Procedure

This procedure is for customers who want to update map data without extending dynamic services, typically when the dynamic subscription is still active and has more than 90 days remaining.

1. Prepare for Update: Ensure any available firmware updates are completed via TIS. Cycle the ignition ON as described above.
2. Access Map Information: Select the "Map" button on the navigation head unit, then the "Map Options" icon, and finally "Map Data". Record the old map date and expiration date.
3. Record Map Update ID: Select "Legal Info" on the head unit and record the "Map update ID".
4. Generate License Key via TIS: Log into TIS and access the "Navigation Update Wizard". Select "AWTEC" as the navigation manufacturer. Enter the vehicle's VIN and head unit expiration date. An ACN is NOT required for this type of update. Input the correct USB part number, the map update ID (without hyphens), the old map date (YYYYMMD format), the repair order number, and the expiration date. Confirm all details and select "Submit" to generate the license key. It is recommended to print this page.
5. Perform In-Vehicle Update: Insert the SST USB flash drive into the vehicle's USB port. On the head unit, select "Update Map" from the Map Data screen, then "YES" when prompted. Enter the generated license key and select "OK".
6. Software and Map Data Copy: The head unit software will update first, displaying "New map software is being copied." This process takes approximately 10 minutes. The system will then prompt to cycle the ignition OFF, then ON. After the head unit software update, the navigation map data will begin to copy automatically, displaying "Map data is being copied." This process takes approximately 45 minutes.
7. Final Steps: When prompted with "Map update complete. Please remove the update media.", remove the USB flash drive from the vehicle's USB port. Verify navigation operation.

Important Warnings for Owners

• Do NOT remove the update media from the vehicle or turn off the vehicle during the head unit software update or map data copying process. Interrupting the process could lead to an incomplete update or system malfunction.
• If any navigation data is entered incorrectly during the license key generation, the update will NOT complete successfully, and it is possible a NEW ACN will be required.

Source: NHTSA T-SB-0001-26
