2021-2025 Toyota Water Pump Leak Inspection TSB

Toyota has released Technical Service Bulletin T-SB-0103-20, Revision 1, dated June 19, 2024, to address non-electric water pump leak inspection and diagnostic procedures for a wide range of 2021-2025 Toyota vehicles. This bulletin, which supersedes previous versions, offers critical guidance for identifying and resolving water pump issues, particularly for owners experiencing a suspected Toyota Camry water pump leak.

This service bulletin is essential for ensuring proper diagnosis and preventing unnecessary water pump replacements. It clarifies the distinction between minor, temporary coolant residue and an active leak that requires repair.

Symptoms

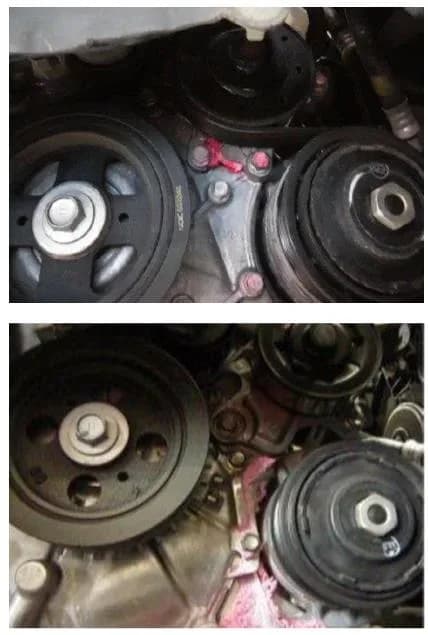

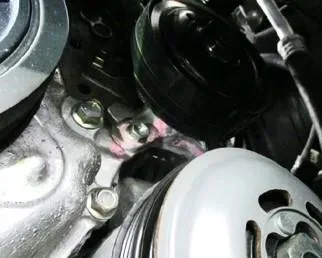

Owners might notice coolant residue or drips around the water pump area. The key is to differentiate between a temporary condition and an active leak. A temporary leak might appear as dry coolant residue, while an active leak will show wet coolant residue or actual drips.

Diagnosis / Trigger Conditions

Diagnosing a water pump leak involves a careful inspection to determine if the leak is temporary or active. The TSB outlines a specific procedure for technicians:

1. Initial Inspection: Confirm there are no leaks from other areas of the cooling system. If other leaks are present, they must be addressed first.
2. Coolant Level Check: Verify if the coolant level is below the “low” indicator on the reservoir and if the water pump appears to be actively leaking.
3. Pulley/Bearing Check: Assess the water pump pulley/bearing for excessive free play or if it does not turn smoothly.

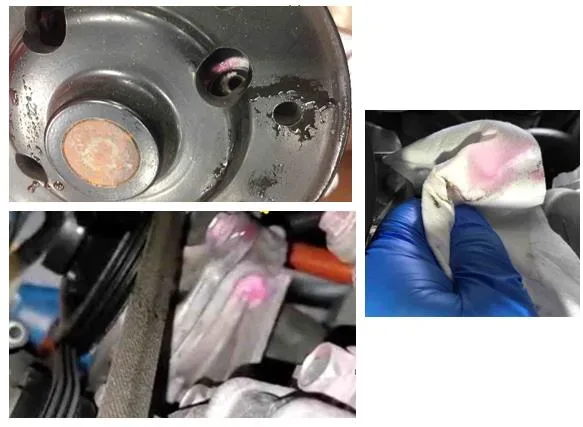

4. Paper Towel Test: This is a crucial step to distinguish between temporary and active leaks. A dry paper towel should be applied to any coolant deposits around the water pump. If the paper towel remains dry, the leak was temporary, and the water pump does not need replacement. If the paper towel becomes wet with coolant, the leak is active, and the water pump should be replaced.

Important Warnings

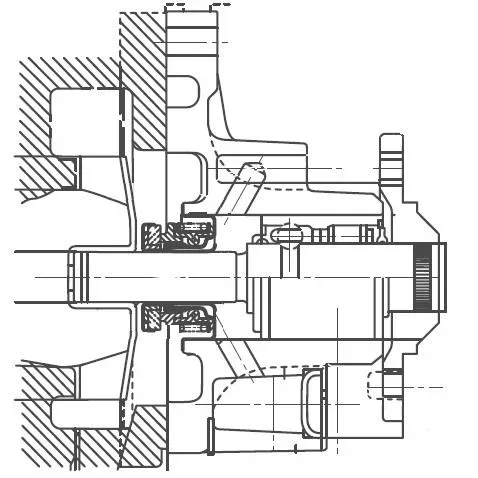

Toyota explicitly states that water pump replacement is NOT necessary for a temporary leak condition. A small amount of engine coolant is discharged to cool and lubricate the mechanical seal's sliding surface, which then evaporates, leaving dry residue. This condition, referred to as "Temporary Leak - Dry Coolant Residue," does not warrant replacement. The water pump should only be replaced for an "Active Leak Leak - Wet Coolant Residue/Drips."

If debris becomes lodged in the mechanical seal, it can create a temporary gap allowing coolant to bypass the seal. This condition is also temporary and will resolve once the debris clears, so replacement is not needed at that point.

Repair Procedure Summary

The repair procedure focuses on accurate diagnosis before any component replacement. After confirming the water pump is actively leaking, the technician will replace the water pump. The bulletin refers to the applicable model and model year Repair Manual for detailed replacement instructions. If no active leak is found, the technician will confirm the coolant level, adjust it if necessary, and return the vehicle to the customer. It is also noted that any coolant residue from the engine and surrounding areas should be thoroughly cleaned.

Owner Action

If you notice any signs of a coolant leak or a suspected Toyota Camry water pump leak, it is recommended to have your vehicle inspected by an authorized Toyota service center. They will perform the diagnostic steps outlined in T-SB-0103-20 to accurately determine the nature of the leak and if a repair is required. This will ensure that your vehicle receives the correct service and avoids unnecessary part replacements.

NHTSA ID: 11005061
