2020-2021 Audi Driver Assist Malfunctions TSB 2063502/4

Audi has released Technical Service Bulletin (TSB) 2063502/4 to address various Audi driver assist malfunctions affecting certain 2020-2021 models. This TSB, dated January 6, 2022, supersedes TSB Group 91 number 21-43 dated October 20, 2021. The bulletin provides a software update to optimize multiple driver assist features and resolve associated issues.

This TSB has undergone several revisions:

• Revision 4: Updated Step 2 C of the service procedure.
• Revision 3 (October 21, 2021): Revised service instructions to include warning messages.
• Revision 2 (September 3, 2021): Revised header to include VIN breaks and updated condition notes.

Symptoms

Owners may experience the following symptoms related to Audi driver assist malfunctions:

• Lane Change Assist/Intersection Assist: The system may sporadically stop working. One of the following messages may be displayed in the instrument cluster:
  • "Intersection assist: fault. Please contact service."
  • "Side assist and exit warning system: fault. Please contact service.”
  • "Rear cross-traffic assist: fault. Please contact service."
  • "Audi pre sense: fault. Please contact service.”
• Traffic Sign Recognition: The traffic sign based speed limit settings are not permanently stored and are lost with every ignition cycle.
• Adaptive Cruise Assist (ACA): In vehicles with steel suspension, ACA may disengage or lose calibration when towing a trailer or using a bike rack.

Fault Codes / DTCs

Technicians may find the following Diagnostic Trouble Codes (DTCs) stored in the vehicle's control modules:

Code	Description	Module(s)	Symptom Code(s)
B200FF9	Internal malfunction	Front corner radar control modules (J1088/J1089)	1311089
B200FF9	Internal malfunction	Lane change assist control modules (J769/J770)	1311057, 1311058, 1311059, 1311060

Technical Background

This software update optimizes multiple driver assist features. The update will affect the following control modules:

• Driver assist systems control module, J1121 (address word 00A5)
• Adaptive cruise control module, J428 (address word 0013)
• Lane change assist control module, J769/J770 (address words 003C/00CF)
• Front left/front right radar sensor control module for object detection, J1088/J1089 (address words 00DB/00DC)
• Control module for laser distance control, J1122 (address word 00CD)
• Airbag control module, J234 (address word 0015)

Diagnosis / Trigger Conditions

These issues are typically diagnosed by the customer reporting the specific warning messages or system behaviors. For Adaptive Cruise Assist, the fault may be triggered or become apparent during towing or when a bike rack is attached. The TSB also notes that other customer concerns may not always generate a DTC.

Important Warnings

Owners and technicians should be aware of several critical instructions and warnings related to these Audi driver assist malfunctions:

• Specific B200FF9 Exclusion: This TSB does NOT apply to DTC B200FF9 if it is stored in the driver assist systems control module, J1121 (address word 00A5). For that specific condition, refer to PSS 2061489: PSS 90 Pre sense malfunction/driver assist systems sporadically inop, DTC B200FF9 is stored in the driver assist module.
• Pre-Update Requirements: All outstanding campaigns must be completed prior to running this update. Please familiarize yourself with all steps of this update before proceeding.
• Risk of Bricking Control Module: If any warning messages are displayed in the instrument cluster, those have to be addressed prior to updating the vehicle. Running the update with active instrument cluster warning messages may brick the driver assist control module, J1211 (address word 00A5).
• Event Data Recorder (EDR) Backup: Federal law requires the airbag's Event Data Recorder (EDR) to be backed up prior to running the update in this TSB. This is required only for MY20 Audi e-tron quattro and Audi e-tron Sportback. For all other vehicles, skip to Step 4 of the procedure.
• Third-Party Modifications: The dealership/workshop, Audi of America, and/or Audi AG are not liable for third-party modifications, such as undocumented retrofits, non-genuine accessories, or any other modification not approved by Audi of America that might be rendered inoperable by this update.
• Update Method: Always start the update out of ODIS. Do NOT perform the update via the red engineering menu (method 2) unless you have been given prior approval from TAC.
• Customer Personalization Settings: This update includes multiple control modules. Certain customer personalization settings might be reset to factory settings by this update.

Repair Procedure Summary

The repair involves a software update using an ODIS Tester and specific SVM codes. The approximate time to complete the update is 60-120 minutes, including 50-110 minutes for the software update and 10 minutes for the SVM work.

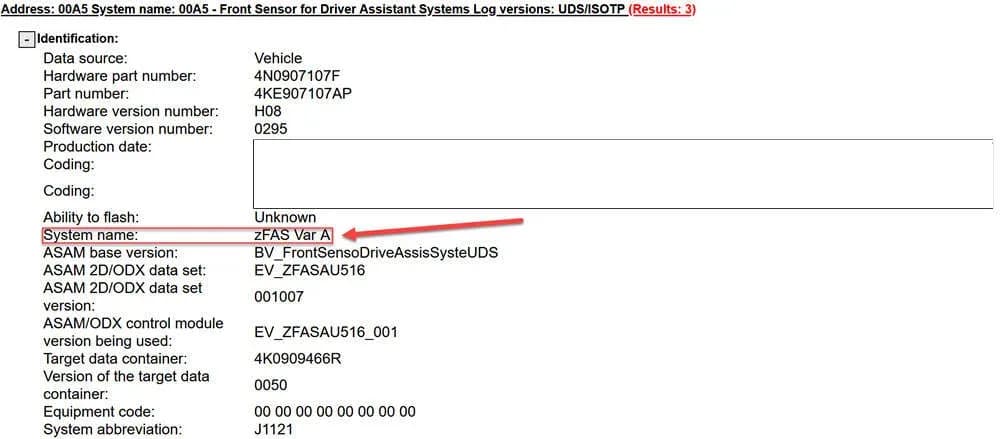

1. Determine Control Module Designation: Use ODIS to determine the driver assist systems control module (zFAS), J1121 (address word 00A5) system designation.
2. Select Required SD Cards/USB-C Drive: Based on the zFAS system designation, select the appropriate media:
   • zFAS Var A: No SD Card is required.
   • MY20 Audi e-tron quattro and Audi e-tron sportback (zFAS Var B/C): SD Card P/N 4N0906961AR is required.
   • All other vehicles (zFAS Var B/C): USB-C drive P/N 4N1906961 is required. An SD Card can be used if the vehicle has a built-in SD Card reader.
3. Customer Consent & EDR Backup: Have the customer sign the declaration of consent (available in TSB attachments) and upload a picture/scan to DOC-IT. For MY20 Audi e-tron quattro and Audi e-tron Sportback, back up the airbag's Event Data Recorder (EDR).
4. Run ODIS Test Program: In ODIS, run the test program "J234 – Technical Service Bulletin (TSB) 2061023" via "Choose self-test" >> 0015 – Airbag – J234 >> 0015 – Technical Service Bulletin (TSB). Ensure the diagnostic session results are uploaded to GFF Paperless.
5. Update Peripheral Control Modules: Update the peripheral control modules using SVM code FASISKD5A001. This update takes approximately 20-30 minutes.
6. Exit Flash Context: Exit the flash context in ODIS to enable subsequent steps.
7. Update zFAS Application Software: Update the zFAS application software using SVM Code FASISKD5A002. This update takes about 30 minutes.
8. Perform Bus Sleep Cycle: After the update, allow the vehicle to perform a bus sleep cycle by:
   • Exiting the flash context.
   • Switching the vehicle's ignition off.
   • Removing the battery charger and diagnostic interface dongle.
   • Closing the hood, trunk, and all doors, then locking the vehicle.
   • Waiting approximately six minutes without handling the vehicle.

Required Tools and Parts

To perform this update, technicians will need:

• ODIS Tester
• Appropriate SVM codes (FASISKD5A001, FASISKD5A002)
• For MY20 Audi e-tron quattro, Audi e-tron sportback quattro (zFAS Var B/C): SD Card P/N 4N0906961AR (Quantity: 01, Shop tool)
• For A6, A7, A8, Q7, Q8, MY21 Audi e-tron (zFAS Var B/C): USB-C drive P/N 4N1906961 (Quantity: 01, Shop tool)

Warranty Information

• Claim Type: 110 up to 48 Months/50,000 Miles.
• Service Number: 9093
• Damage Code: 0039
• Labor Operations:
  • Software Update (Includes checking for DTCs): 0151 0000 (Time stated on the diagnostic protocol, Max 200 TU)
  • Diagnostic Time: GFF (No allowance, 0 TU)
  • Road test prior to the service procedure: No allowance (0 TU)
  • Road test after the service procedure: 0121 0004 (10 TU)
• Claim Comment: As per TSB #2063502/4

All warranty claims must adhere to the Audi Warranty Policies and Procedures Manual.

Additional Information

Several other Technical Service Bulletins are necessary to complete this procedure or provide related context:

• TSB 2011732, 00 Software Version Management (SVM), operating instructions.
• TSB 2056558, 91 MIB2+ Software Update Instructions (for MY20 Audi e-tron quattro and Audi e-tron sportback).
• TSB 2047812, 00 SD Creator: how to set up and use the SD Creator for obtaining vehicle software updates via the MirrorServer.
• TSB 2060523, 91 MIB3 Software Update Instructions (for all other vehicles).
• TSB 2062601, 90 DTC U110100 is stored in the driver assistance systems control module.

Source: NHTSA ID 10206350
