2021 Audi Virtual Cockpit Display Fault TSB 2078439/2

Symptoms

Owners of 2021 Audi A6, A7, A8, Q7, and Q8 vehicles may experience issues with the virtual cockpit display. These symptoms include the display going completely black, which can occur intermittently or permanently. Another common symptom is the appearance of the message "Instrument cluster: fault" on the virtual cockpit display.

In some cases, a more detailed message, "Instrument cluster: fault. Limited warning messages. Please contact workshop," may appear. This can be accompanied by various warning lamps on the status line, such as those for the brake, anti-lock brake system, steering, and other safety systems.

Fault Codes / DTCs

When diagnosing a 2021 Audi Q8 virtual cockpit fault, technicians may find specific diagnostic trouble codes (DTCs) stored in the vehicle's system. These codes help pinpoint the underlying cause of the display issues.

Code	Description	Diagnostic Address
B200049	Control module faulty Internal electrical malfunction	0017 - Instrument cluster
B200049	Control module faulty, static/active, symptom 10485833	0017 - Instrument cluster

Diagnosis / Trigger Conditions

To diagnose the 2021 Audi Q8 virtual cockpit fault, technicians will first attempt to reproduce the customer's reported condition. The presence of the event memory entry "B200049 – Control module faulty, static/active, symptom 10485833" logged under diagnostic address 0017 of the Audi virtual cockpit is a key indicator for both types of complaints.

It's also noted that for Complaint 2, which involves the "Instrument cluster: fault. Limited warning messages. Please contact workshop" message, a prior field campaign (90VC) might have been performed. This campaign included a software update for the Audi virtual cockpit, but the current issue is identified as a hardware problem.

Important Warnings

• The repair kit designed for the Audi A6, A7, Q7, and Q8 (part number 4K0 998 790) is NOT compatible with the repair kit for the Audi A8 (part number 4N0 998 790). It is critical for technicians to order and use the correct part number specific to the affected vehicle model. Failure to do so will prevent proper repair.
• All repair work on the Audi virtual cockpit must be conducted in an environment protected against electrostatic discharge (ESD). This requires the use of an earthed ESD workplace mat, an ESD wrist strap, and nitrile gloves to prevent damage to sensitive electronic components.
• If the Audi virtual cockpit continues to malfunction or if the DTC B200049 is still logged after the repair, technicians must recheck and correct the steps performed to replace the flexible films, ensuring they are correctly inserted into their connectors.

Repair Procedure Summary

Audi Technical Service Bulletin 2078439/2 details the steps to resolve the 2021 Audi Q8 virtual cockpit fault, which stems from a hardware issue involving flexible films within the unit. The repair process is intricate and requires specialized tools and an ESD-protected environment.

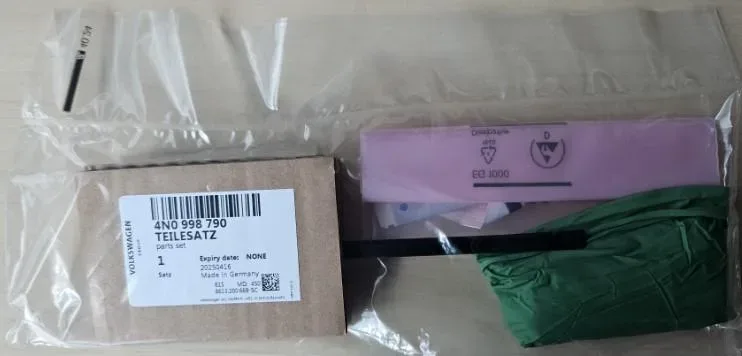

First, the virtual cockpit must be carefully removed from the vehicle and prepared for disassembly. Technicians must ensure they have the correct repair kit: part number 4K0 998 790 for Audi A6, A7, Q7, and Q8 models, or part number 4N0 998 790 for the Audi A8. Before beginning, an ESD-protected workspace must be set up, including an earthed mat, wrist strap, and nitrile gloves, to prevent damage from static electricity.

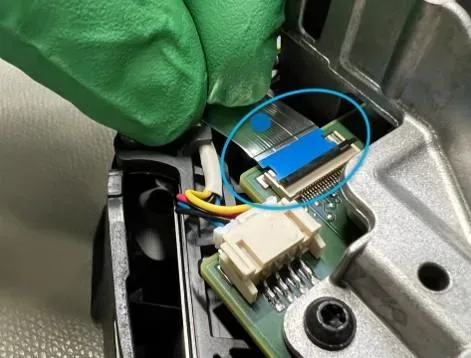

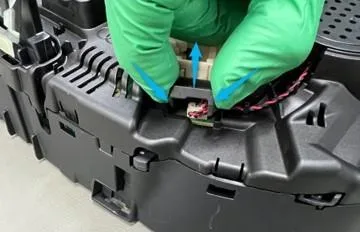

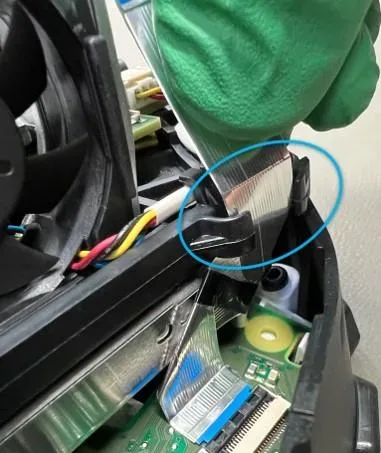

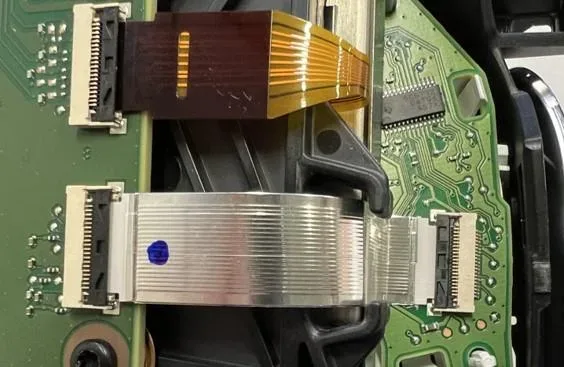

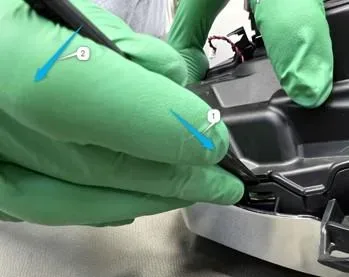

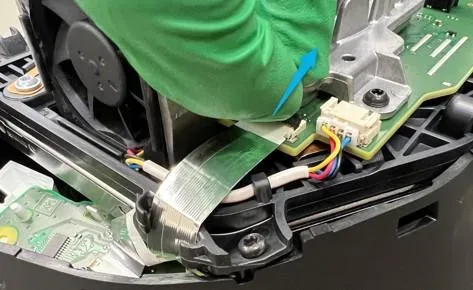

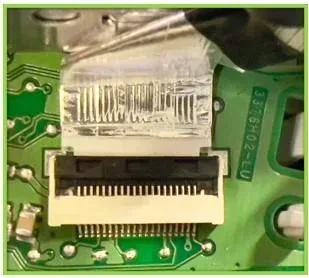

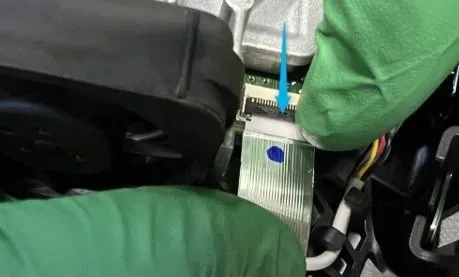

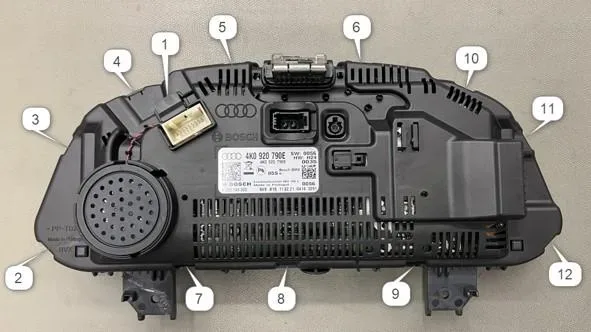

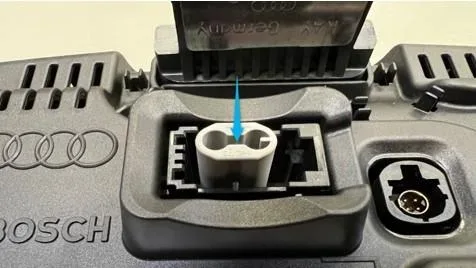

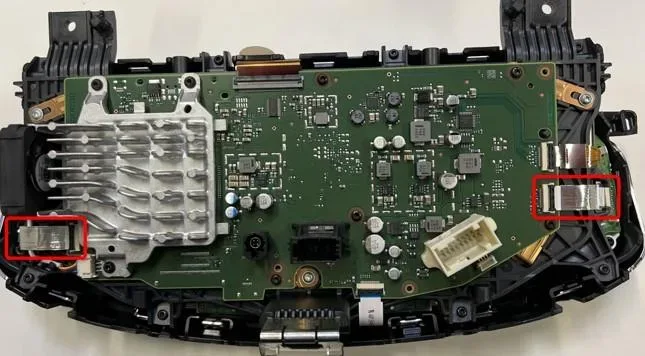

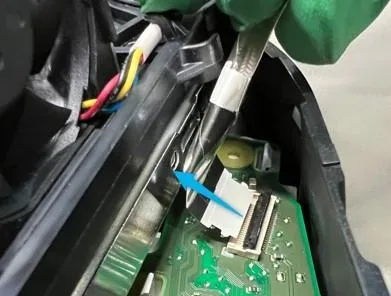

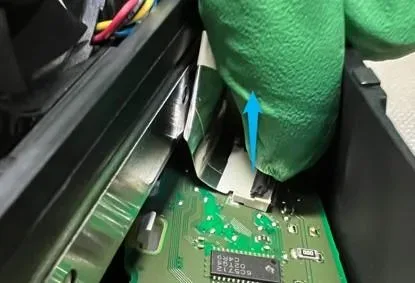

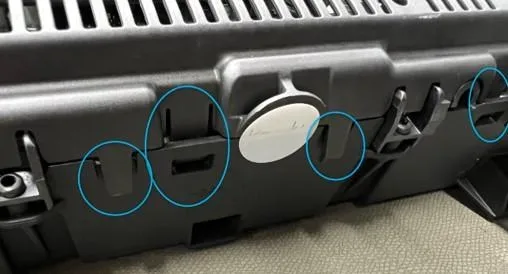

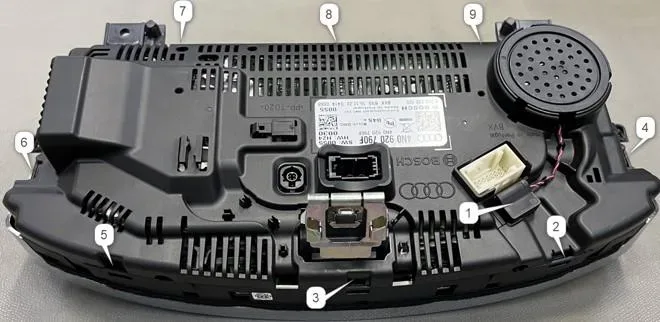

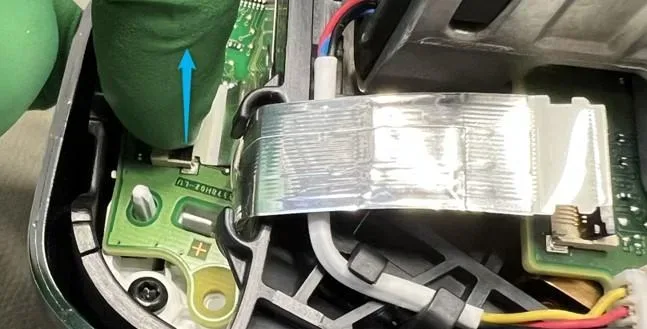

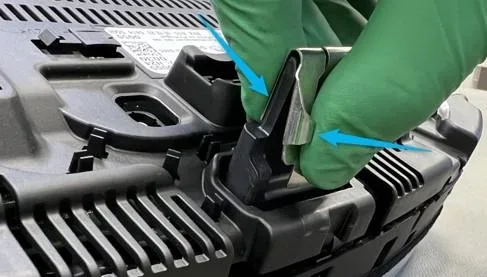

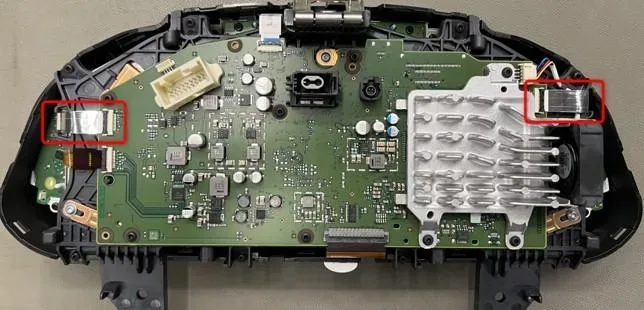

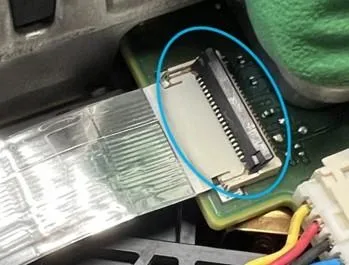

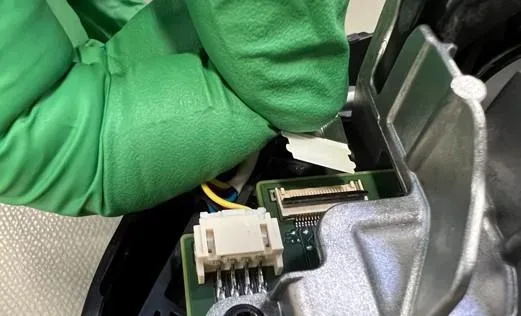

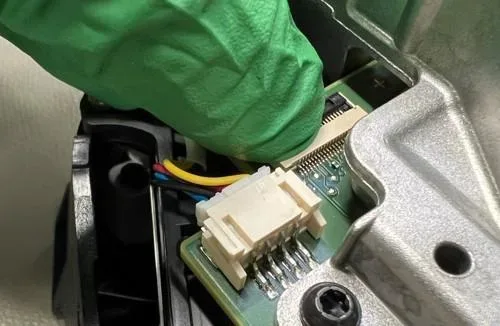

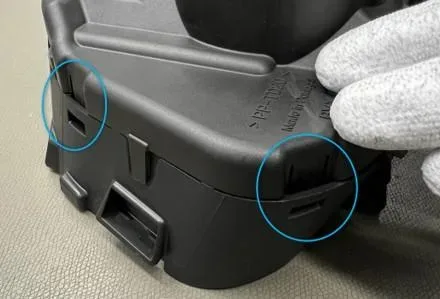

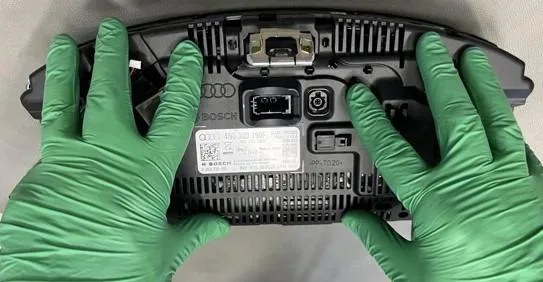

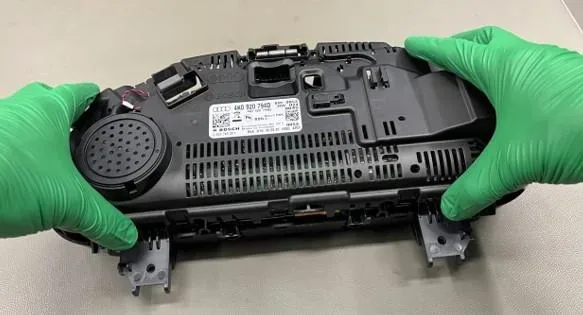

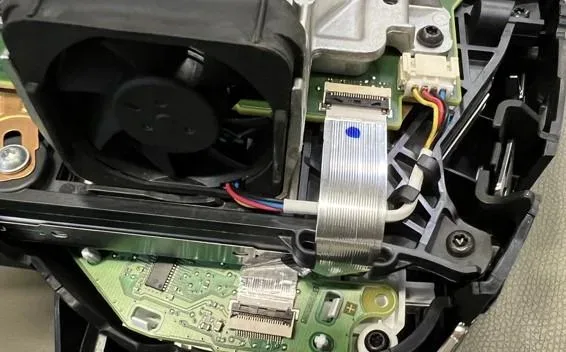

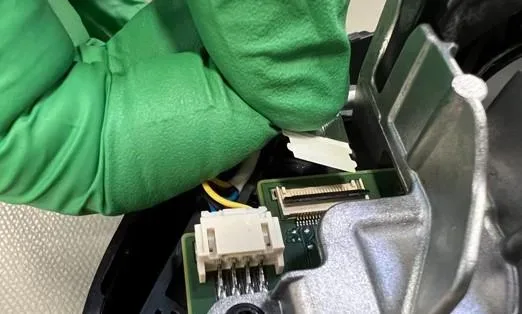

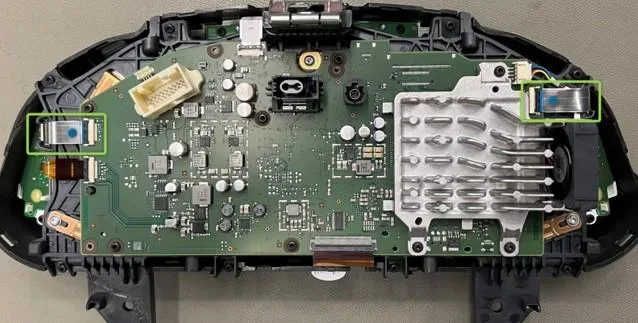

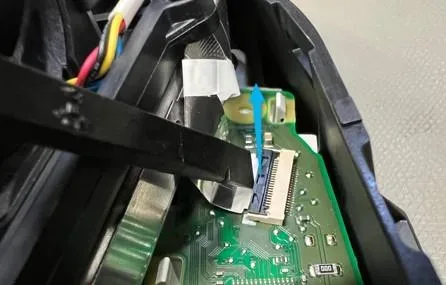

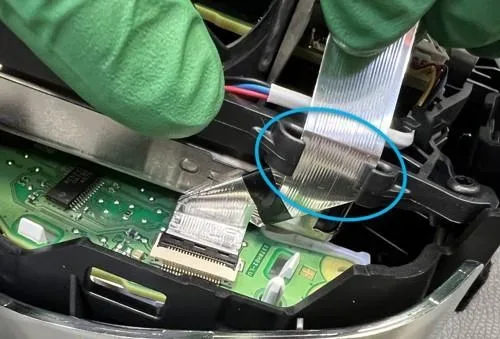

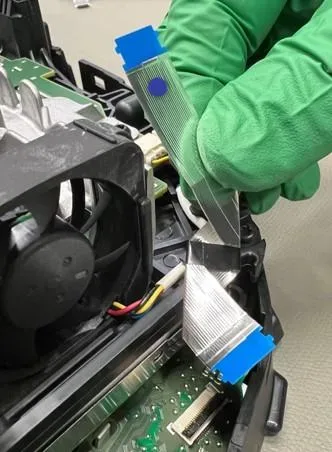

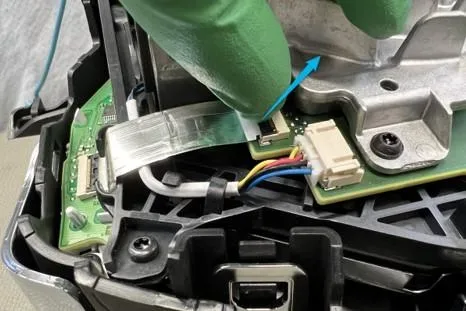

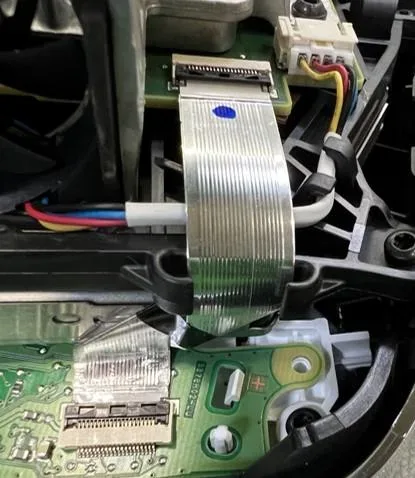

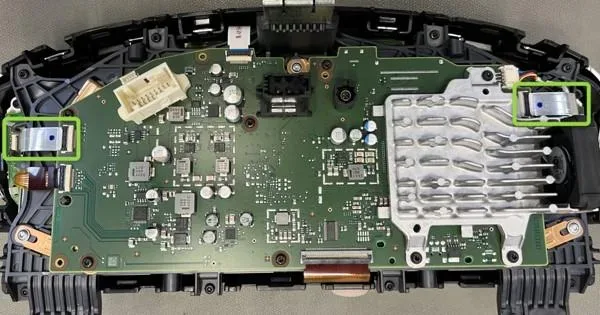

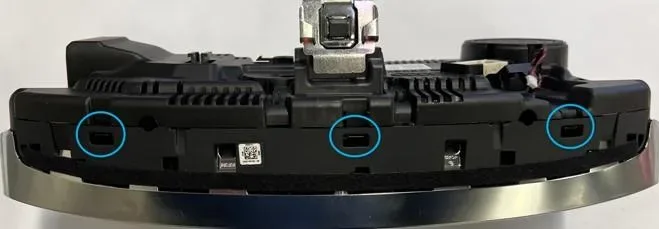

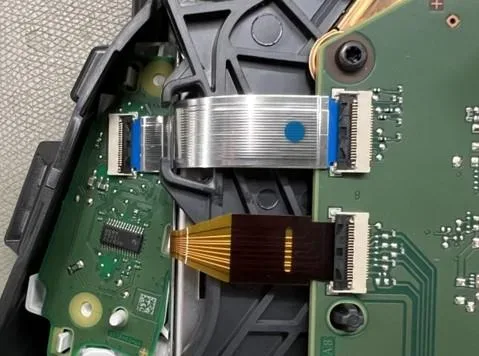

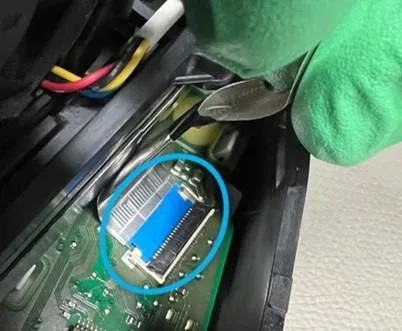

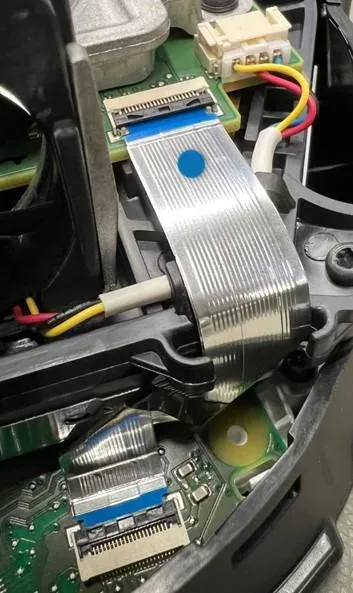

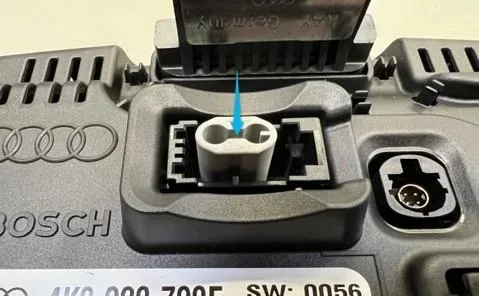

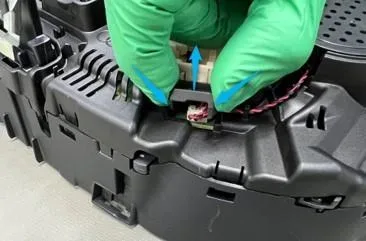

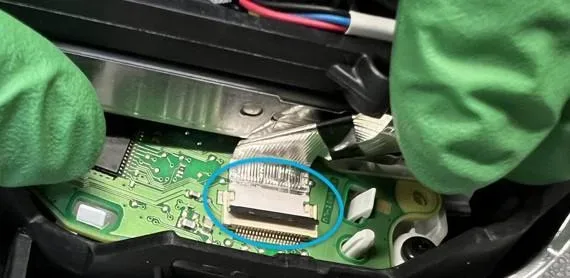

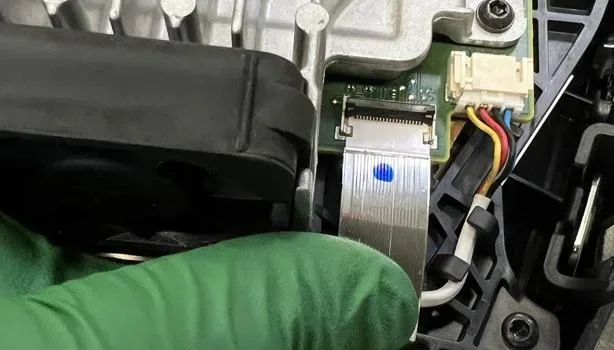

Once the virtual cockpit is out, a MOST protective connector is installed on the fiber optic cable socket to shield it from dirt. The back cover is then meticulously removed by releasing several catches and clips, including the loudspeaker connector cap. With the unit open, the two faulty flexible films are identified and detached by opening their retaining tabs. These films, which typically have white contact surfaces, are replaced with new, optimized versions identifiable by blue contact surfaces. Precise insertion and secure locking of the new films into their connectors are crucial for proper function.

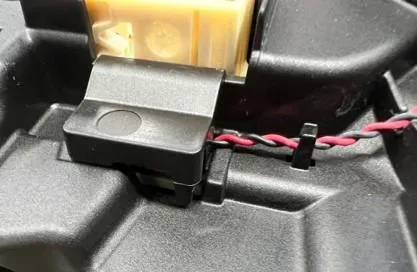

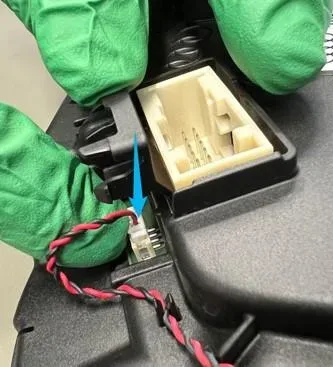

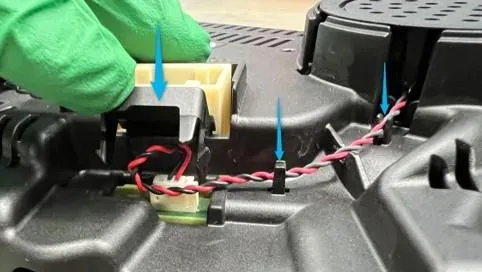

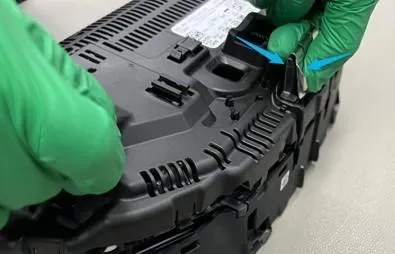

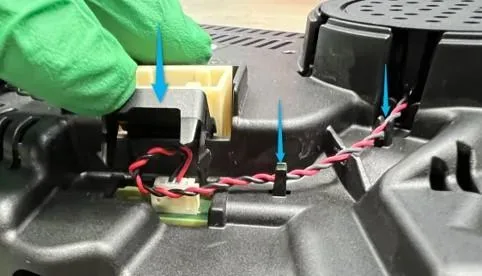

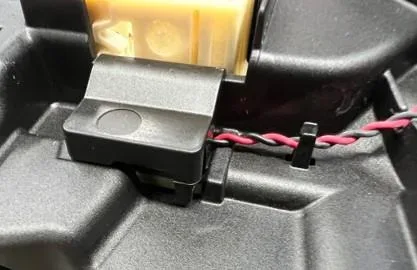

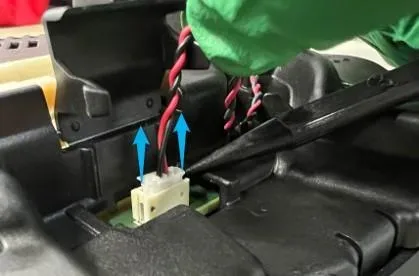

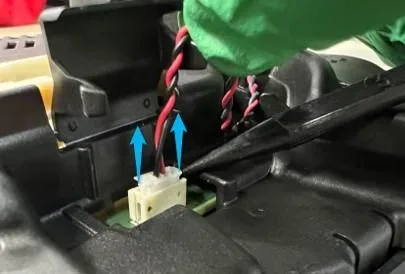

After replacing the films, the virtual cockpit is reassembled. The back cover is refitted, ensuring all catches are securely engaged, and the loudspeaker connector is reattached with its cable correctly routed. Finally, the repaired virtual cockpit is reinstalled in the vehicle. A functional check is performed using an ODIS tester with Audi brand version 2025.06 00 or higher. This check verifies the operation of turn signals, fuel gauge, coolant temperature, battery charge level (for hybrid models), and overall display functionality. It's essential that no "Instrument cluster: fault" messages or DTC B200049 entries remain in diagnostic address 0017, confirming the successful resolution of the 2021 Audi Q8 virtual cockpit fault.

Required Tools or Parts

To perform the repair described in TSB 2078439/2, specific parts and tools are necessary:

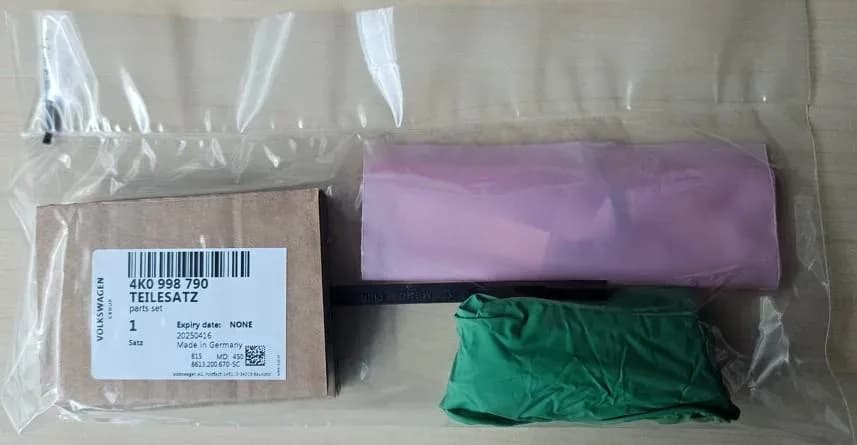

• Repair kit for Audi A6, A7, Q7, Q8: Part number 4K0 998 790
• Repair kit for Audi A8: Part number 4N0 998 790
• Earthed ESD workplace mat: Such as VAS 6613
• ESD wrist strap
• Nitrile gloves
• MOST protective connector
• Assembly tool: This tool is included within the repair kit.
• ODIS tester: Must be running Audi brand version 2025.06 00 or higher for diagnostic functions.

Owner Action

If your 2021 Audi A6, A7, A8, Q7, or Q8 is experiencing a black virtual cockpit display or showing the "Instrument cluster: fault" message, it indicates a potential 2021 Audi Q8 virtual cockpit fault. This issue, often linked to DTC B200049, requires a specialized repair involving the replacement of internal flexible films.

It is recommended to contact an authorized Audi service center to address this problem. When you visit the dealership, you can reference Technical Service Bulletin 2078439/2. The repair procedure involves specific tools and an electrostatic discharge (ESD)-protected environment, making it a task best handled by qualified technicians.

FAQs

1. Q: What does the DTC B200049 mean for my Audi's virtual cockpit? A: DTC B200049, "Control module faulty Internal electrical malfunction," indicates a hardware issue within the 0017 - Instrument cluster control unit, specifically related to the flexible films that connect components within the virtual cockpit.
2. Q: Will my 2021 Audi Q8 virtual cockpit fault be covered under warranty? A: Audi Technical Service Bulletin 2078439/2 notes that if the vehicle is outside of any warranty, this TSB is informational only. You should consult your Audi dealer to determine warranty coverage for the virtual cockpit fault.
3. Q: Are the repair kits for all affected Audi models the same? A: No, the repair kits are not universally compatible. The repair kit for the Audi A6, A7, Q7, and Q8 is part number 4K0 998 790, while the kit for the Audi A8 is part number 4N0 998 790. It is critical to use the correct kit for your specific model.
4. Q: What are the common symptoms of the 2021 Audi Q8 virtual cockpit fault? A: Common symptoms include the virtual cockpit display being completely black, or displaying error messages such as "Instrument cluster: fault" or "Instrument cluster: fault. Limited warning messages. Please contact workshop," often accompanied by various warning lamps.
5. Q: What is the significance of campaign 90VC mentioned in the TSB? A: Campaign 90VC was a prior software update for the Audi virtual cockpit. While it addressed some issues, the current TSB 2078439/2 indicates that the display problems, including the 2021 Audi Q8 virtual cockpit fault, are now identified as a hardware issue requiring flexible film replacement, even if 90VC was performed.
