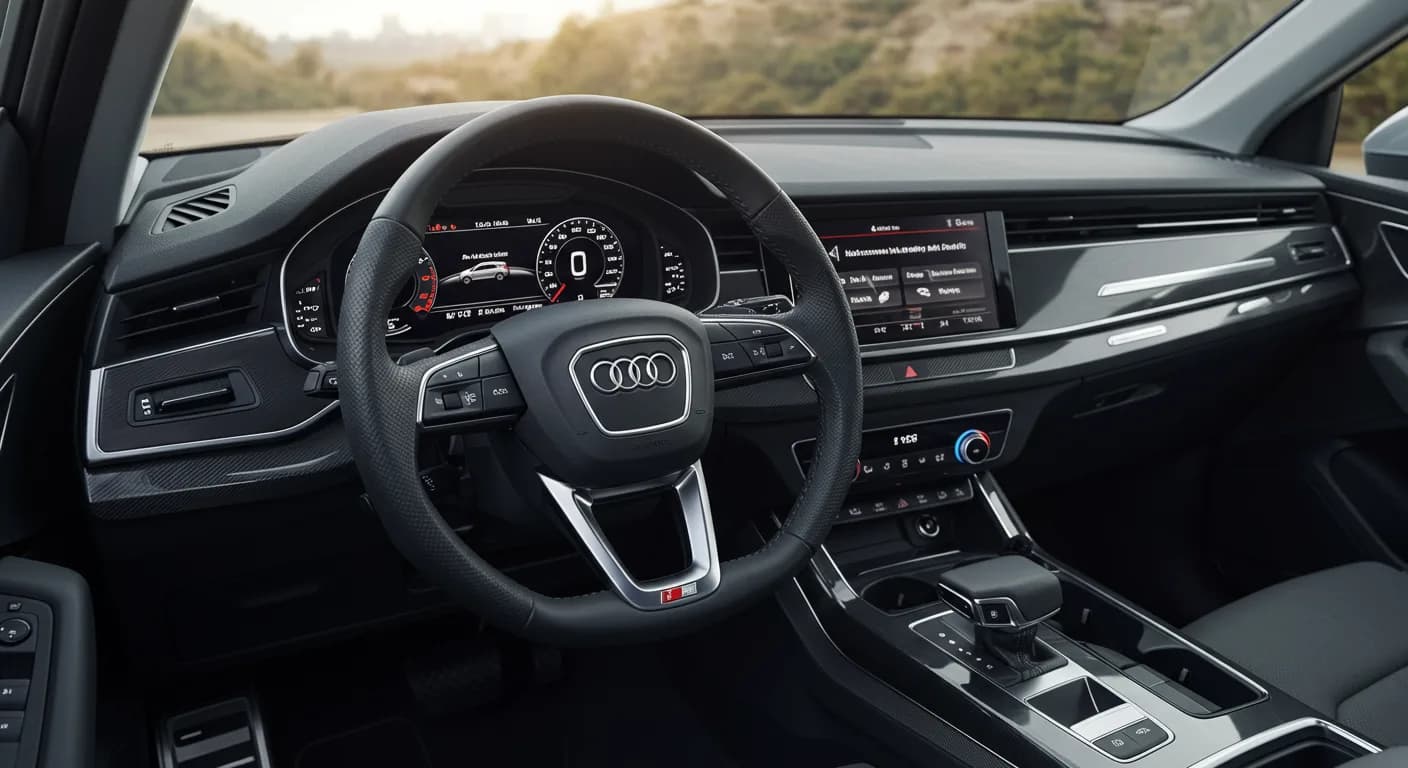

2021-2025 Audi Instrument Cluster Fault DTC B200049

Audi has issued Technical Service Bulletin (TSB) 90 24 21 2068380/5 to address an Audi instrument cluster fault B200049 that can result in a black screen or warning messages in the virtual cockpit. This TSB, dated August 29, 2024, is Revision 5 of the bulletin and supersedes TSB Group 90 number 24-01 dated June 5, 2024, for reasons including updated customer statements, warranty information, and service procedures. It applies to various 2021-2025 Audi models equipped with the virtual cockpit, including the A6, A7, A8, Q7, Q8, and their performance variants.

Symptoms

Owners of affected Audi vehicles may experience one of two primary symptoms related to the instrument cluster:

• The instrument cluster display shows the message: “Instrument cluster: fault. Limited warning messages. Please contact workshop”.
• The Audi Virtual cockpit remains black when the vehicle is started.

Fault Codes / DTCs

When these symptoms occur, technicians will typically find the following Diagnostic Trouble Code (DTC) stored in the Instrument Cluster control module -J285- (diagnostic address 0017):

• DTC B200049: Control module faulty static/active, with symptom code 10485833.

This DTC indicates a fault within the instrument cluster's control module itself, pointing to a hardware problem.

Diagnosis and Trigger Conditions

The root cause of the Audi instrument cluster fault B200049 is a hardware issue within the Audi virtual cockpit, stemming from a discrepancy in the production process. Optimized instrument cluster hardware has been produced as of August 1, 2024.

To determine if this TSB applies, a technician must first identify the production date of the instrument cluster. This is done by performing the following steps using a diagnostic tool:

1. Access the vehicle's Self Diagnosis function and select diagnostic address 17.
2. From the control module OBD drop-down menu, select "Identification."
3. Click on "show expanded identification."
4. Expand the "Fazit identification" section and document the "Day of manufacture."

If the instrument cluster's production date is before August 1, 2024, then this TSB applies, and the instrument cluster will need replacement.

Repair Procedure Summary

If the instrument cluster's production date falls before August 1, 2024, the repair involves replacing the instrument cluster. This replacement must be performed according to the detailed instructions provided in the ELSA repair manual.

Required Parts and Tools

Technicians should always consult their Parts Department and/or ETKA for the latest information and parts bulletins. The primary parts required for this repair include:

• Instrument Cluster: Quantity 01
• Fasteners, Bolts, Nuts, and Screws: As needed per the Repair Manual

Warranty Information

Warranty claims for this issue are processed under specific codes. The Service Number is 9025, and the Damage Code is 0040. Labor operations include "Remove and replace dash panel insert" (Labor Operation 9025 XXXX) and "Self-diagnosis (document production date)" (Labor Operation 0129 0050). The Diagnostic Time is GFF (0150 0060).

It is important to note that if the vehicle is outside of any applicable warranty, this Technical Service Bulletin is for informational purposes only. All warranty claims must adhere to the Audi Warranty Policies and Procedures Manual and are subject to review or audit by Audi Warranty.

Important Warnings

Owners should be aware that if their vehicle is no longer under warranty, the repair described in this bulletin, including the replacement of the instrument cluster, will not be covered by Audi. In such cases, the owner would be responsible for the cost of diagnosis and repair.

NHTSA ID: 10258079
