2021-2022 Audi SOS Malfunction Warning TSB

Owners of various 2021-2022 Audi models may encounter an "SOS malfunction warning" displayed in the instrument cluster. This issue is detailed in Technical Service Bulletin (TSB) 91 22 49 2059528/7, which supersedes TSB Group 91 number 22-28 dated September 23, 2022.

Symptoms

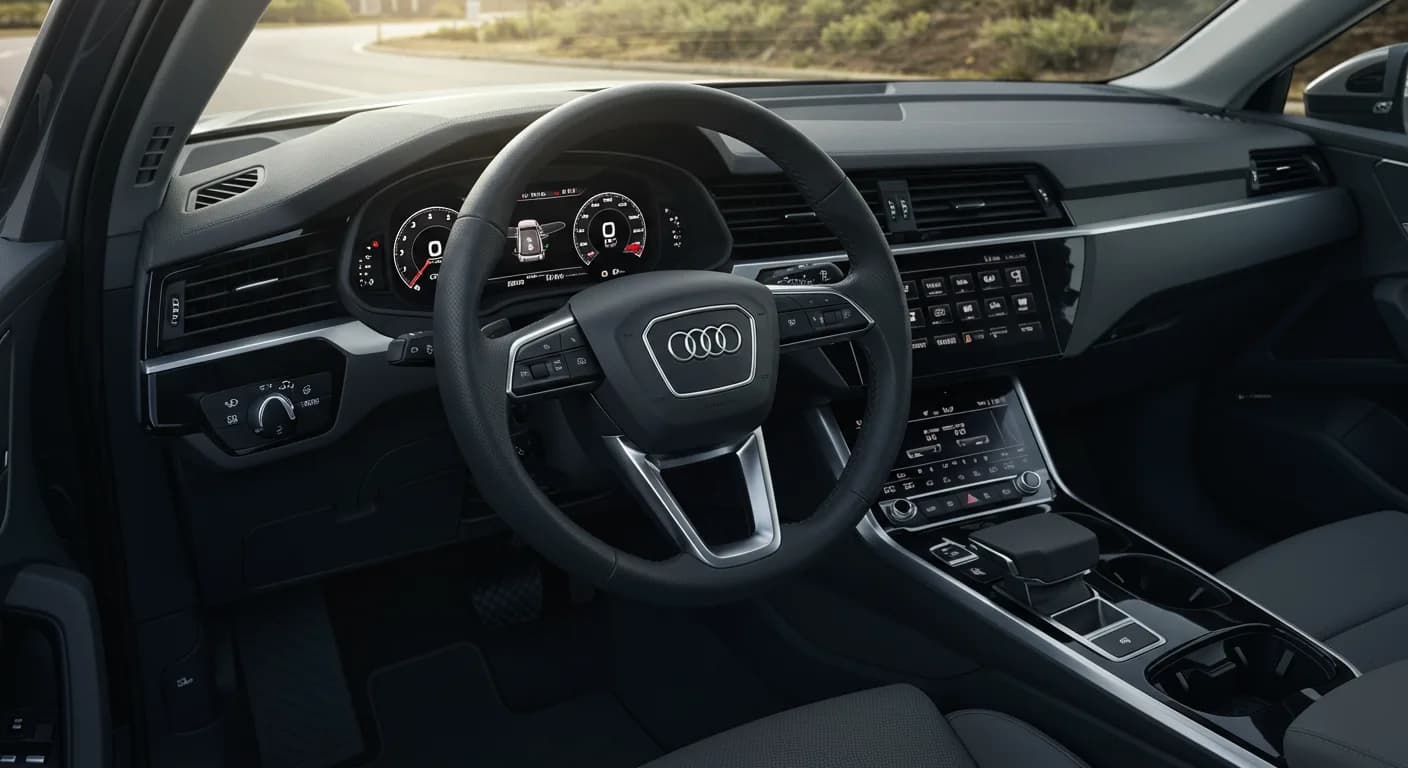

The primary symptom owners will notice is an "SOS malfunction warning" message appearing in the instrument cluster. This warning indicates a problem with the vehicle's emergency call system.

Fault Codes / DTCs

When diagnosing the "Audi SOS malfunction warning", technicians may find the following Diagnostic Trouble Codes (DTCs) stored in the telematics control module (J949, address word 0075):

Code	Description	Symptom Code
B200096	Ctrl. Module Faulty	131077
B200000	Ctrl. Module Faulty	131096

Diagnosis / Trigger Conditions

These DTCs, B200096 and B200000, can be erroneously stored in the telematics control module, also known as the ConBox. This often occurs when the vehicle is removed from transport mode. Additionally, DTC B200000 can appear if a software update to the ConBox was aborted or incomplete.

Repair Procedure Summary

To resolve the "Audi SOS malfunction warning", technicians should follow a specific diagnostic and repair process:

1. ODIS Version Check: Ensure the most current version of the ODIS diagnostic software is being used.
2. Diagnostic Function Run: Execute the ODIS function "J949 – Control Module for Emergency Call Module and Communication Unit, check control module" for the J949 unit. This function can be found in ODIS by navigating to: Select Selftest > Body > Electrical Equipment > 01-On board diagnostic capable system > 0075 – Control Module for Emergency Call Module and Communication Unit -J949- > 0075 – Electrical components.
3. Module Replacement: If the diagnostic procedure fails to clear the fault, the telematics control module (J949) should be replaced.
4. Software Update Verification: If DTC B200000 is present and the ConBox was recently updated, technicians must confirm the update was successful by checking the ConBox's software version. If there's a discrepancy, the software update should be rerun before proceeding with steps 1-3.

Required Tools or Parts

For this repair, the following parts may be required:

• Telematics Control Module: Quantity 01. Refer to ETKA for the specific part number.
• Fasteners, Bolts, Nuts, and Screws: As needed per the repair manual. Refer to ETKA/ELSA for details.

Important Warnings for Owners and Technicians

• Warranty Claims: Claims for replaced parts will not be reimbursed if the test plan from step 2 (running the diagnostic function) was not attempted before replacing the telematics control module.
• Software Update: If your vehicle's ConBox was recently updated and you are experiencing the "Audi SOS malfunction warning" with DTC B200000, it is crucial to ensure the software update was completed successfully. An incomplete update can cause this fault.

Owner Action

If you are experiencing an "Audi SOS malfunction warning" in your 2021-2022 Audi, it is recommended to schedule an appointment with an authorized Audi service center. They have the necessary diagnostic tools and updated procedures to address this specific issue. This repair is typically covered under warranty for vehicles up to 48 months/50,000 miles or for CPO (Certified Pre-Owned) vehicles, provided the diagnostic steps are followed correctly.

Warranty Information

This TSB outlines specific warranty claim types and labor operations:

• Claim Type: 110 (for vehicles up to 48 Months/50,000 Miles) or G10 (for CPO Covered Vehicles).
• Service Number: 9145
• Damage Code: 0039
• Labor Operations: Remove + Reinstall Telematics Control Module (if needed), with operation code 9170 XXXX. Diagnostic time is GFF 0150 0000.

Road tests before and after the service procedure are listed with
