2014-2023 Nissan Infotainment Software Update TSB

Nissan has issued Technical Service Bulletin (TSB) NTB23-018D to address various infotainment software issues across a wide range of its 2014-2023 vehicle lineup. This comprehensive bulletin provides technicians with detailed instructions for checking current software versions and performing necessary updates to the AV Control Unit, aiming to improve system stability and resolve reported 'bug' fixes. This Nissan infotainment software update is critical for maintaining optimal performance.

This TSB is crucial for ensuring optimal performance of your vehicle's infotainment system. It outlines specific procedures for different vehicle configurations, ensuring that the correct software is installed using specialized tools and methods.

Symptoms

Owners may experience general infotainment issues, which are broad software-related concerns. The software updates detailed in this TSB are designed to provide stability improvements and 'bug' fixes, indicating that various minor glitches or performance inconsistencies could be resolved by applying the update. If you are experiencing any issues with your Nissan's infotainment system, a Nissan infotainment software update may be necessary.

Important Warnings for Owners

Nissan emphasizes several critical warnings to ensure the software update process is performed correctly and to prevent potential damage or issues:

• USB Drive Usage: Do not use any USB drive other than the special tool USB drive J-52727-1 (new tool number NI-52727-1) for the update procedure. The update software must be the only file on the USB drive.
• Hardware vs. Software: If the customer is experiencing a software related concern, refer to TSB NTB21-038 first to verify if the customer concern is a hardware or software related issue.
• Existing Software Version: Do not update the AV Control Unit if the current version number is listed as the latest software version in the vehicle-specific tables within the bulletin.
• Correct Software Package: To avoid damage to the vehicle, ensure the correct infotainment update-software package is selected. Failure to select the correct infotainment update-software package may result in needing to replace the AV Control Unit.
• During Update:
  • Do not turn the ignition OFF during the update process.
  • Do not remove the USB drive during the update to the vehicle until instructed to. If removed prior to the success screen being displayed, the AV Control Unit may be damaged.

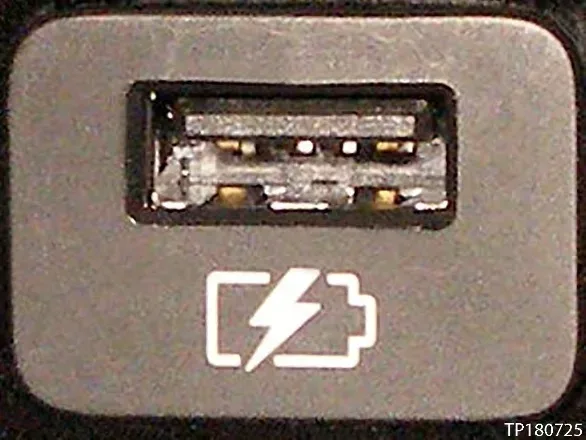

  • Do not insert the USB drive into a charging port. If used, the update software and/or USB drive may become damaged. Only insert the USB drive in a designated USB media port. Charging ports are marked in the vehicle with a 'lightning bolt' symbol.
  • If the status message "Update Failed!" is displayed, with the direction to "Insert update media" while a countdown from 60 is displayed, or if the AV Control Unit continuously reboots (restarts), insert the USB drive and then skip to step 47 on page 58 (for Install 1).
  • Do not remove the USB drive during the update process, especially when the screen displays "Do not remove the USB drive during this process."
• Post-Update Reboot: The system will not reboot until the USB drive is removed after a successful update.
• Reboot Procedure: Steps 55-62 (for Install 2) must be completed. If they are not completed, the update may become corrupted.
• Door Closure: Ensure that all doors remain closed during the 5-minute wait period required for some updates. If a door is opened during this period, the update may not complete, and the AV Control Unit may become inoperable.
• Bluetooth Pairing: If post-update Bluetooth re-pairing steps (step 98 for Install 5) are not completed, the phone may no longer connect with the vehicle while attempting to pair the phone to the vehicle.

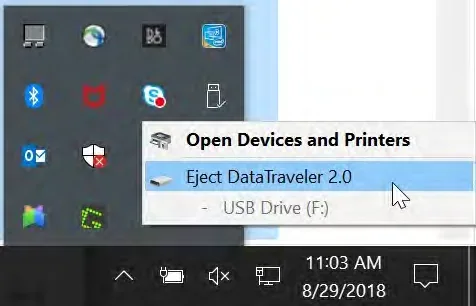

• USB Removal from PC: Follow the steps to safely remove the USB drive from the CONSULT PC. If not followed, the USB drive may corrupt the infotainment update-software.

Software Update Process Overview

The Nissan infotainment software update process involves two main stages: checking the current software version and then installing the update if necessary. Due to the variety of infotainment systems across Nissan's extensive model range, the TSB provides several specific procedures for both checking and installing the software.

Software Version Check Procedures

There are six different software version check procedures (SW Check 1 through SW Check 6), each tailored to a specific infotainment system type. These procedures guide technicians on how to access the system's hidden menus to identify the installed software version. The bulletin notes that due to differences in software versions, the figures may not match exactly to the images on the AV Control Unit.

SW Check 1

This procedure applies to specific models and years, often those without navigation systems. It involves:

1. Turning the audio system OFF.

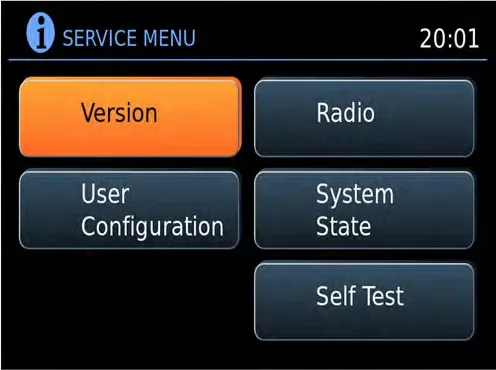

2. Accessing the "SERVICE MENU" by pushing and holding the APPS button, then turning the TUNE-SCROLL knob counterclockwise three or more clicks, then clockwise three or more clicks, repeating this pattern until the "SERVICE MENU" screen is displayed.
3. Selecting "Version" from the menu.
4. Confirming the current Software version. If it's not the latest version listed in the vehicle table, the technician proceeds to download the update software from ASIST.

SW Check 2

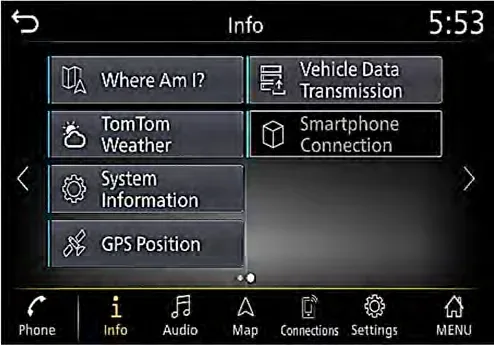

This procedure is used for systems where the "Info" icon is present and involves:

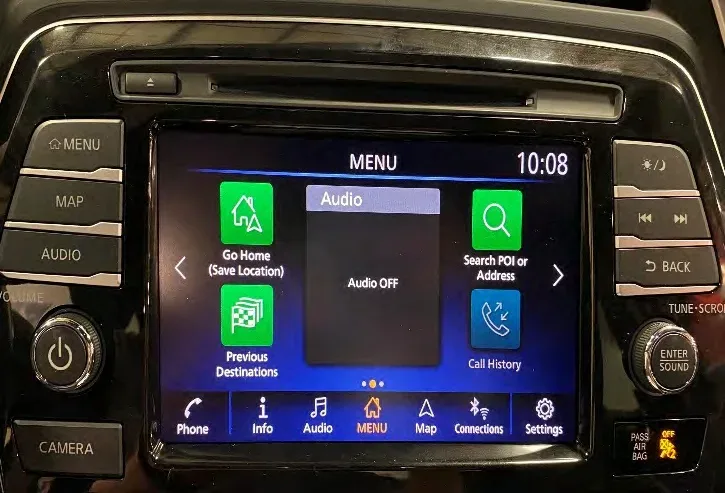

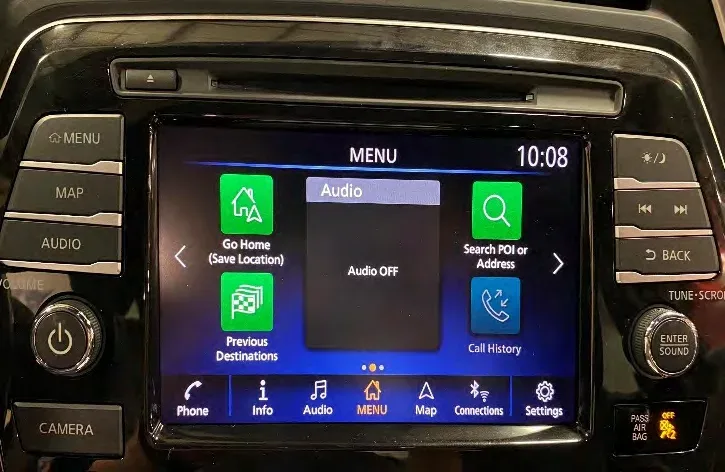

1. Pushing the MENU button.

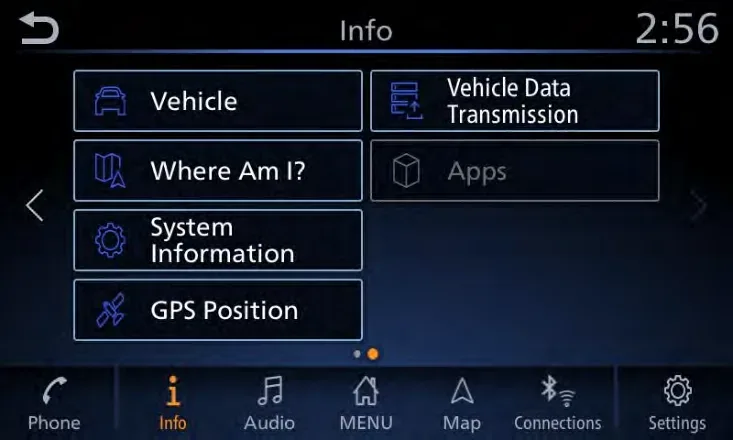

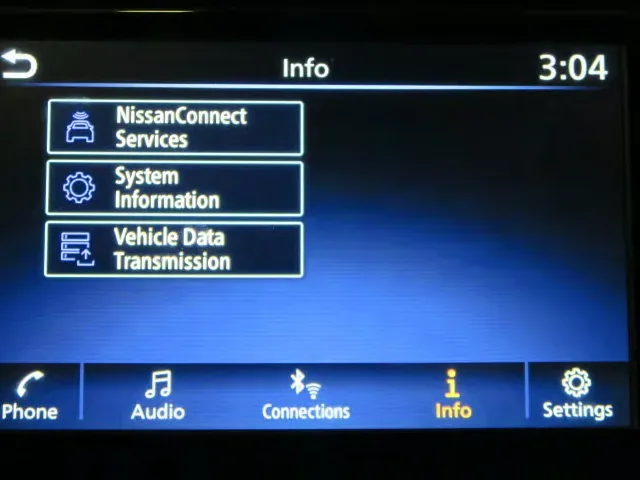

2. Selecting the "Info" icon. If the "Info" icon does not appear, this bulletin does not apply.

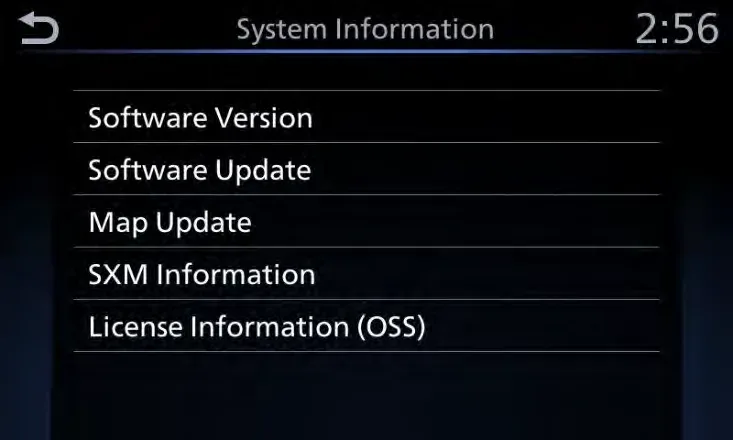

3. Selecting "System Information."
4. Selecting "Software Version."
5. Confirming the current Software Version. If it's not the latest, the update software is downloaded from ASIST.

SW Check 3

This check is for systems that require accessing a "System Diagnostic Menu" and involves:

1. Turning the ignition ON.
2. Turning the audio system OFF.

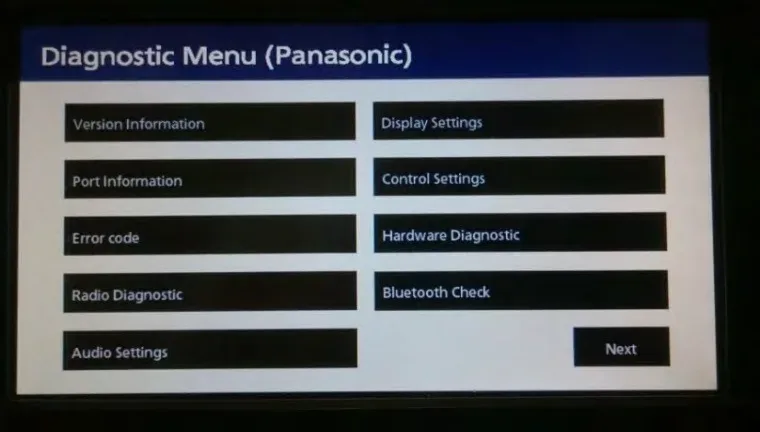

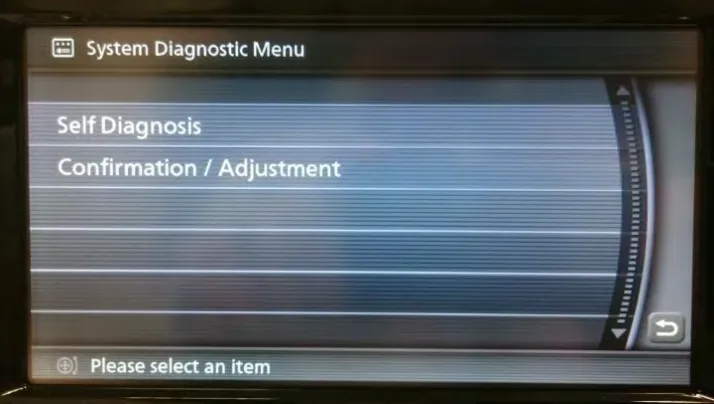

3. Accessing the "System Diagnostic Menu" by pressing and holding the MENU button, then turning the VOLUME knob forty (40) or more clicks in either direction until the menu is displayed.

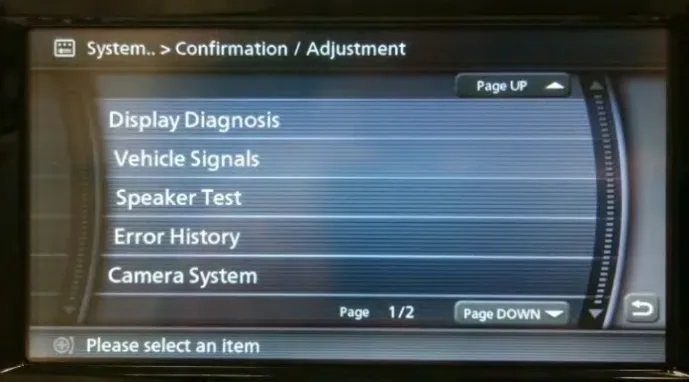

4. Selecting "Confirmation / Adjustment."

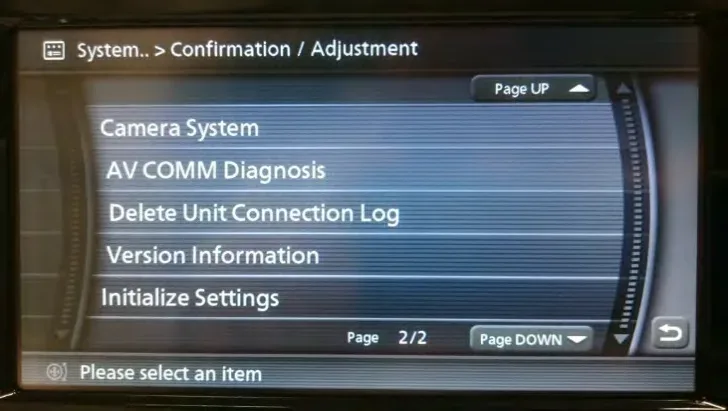

5. Selecting "Page DOWN" to navigate.

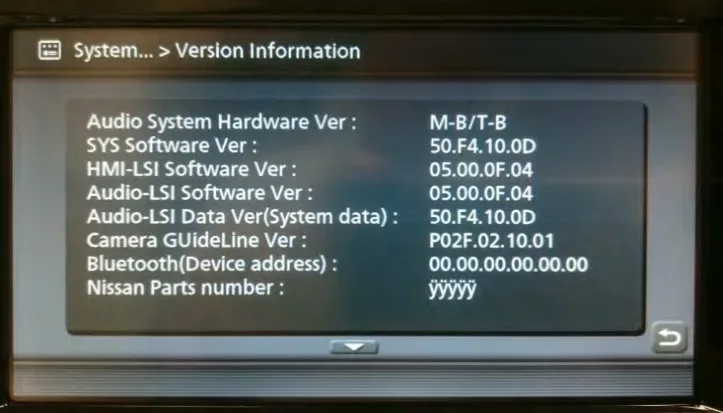

6. Selecting "Version Information."
7. Confirming the current "SYS Software Ver." This procedure notes that the infotainment update-software may require two update files: "UPDATE FILE #1" (LD001) which is the same for all models, and "UPDATE FILE #2" which varies by model and model year.

SW Check 4

This procedure typically applies to newer systems with a different menu layout:

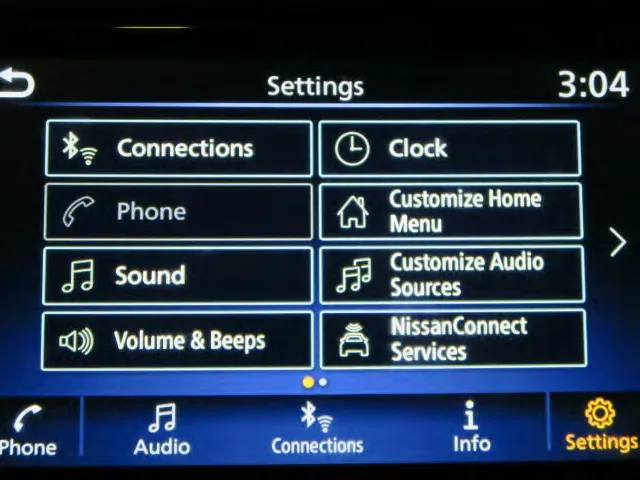

1. Selecting "Settings" from the lower right-hand corner of the AV Control Unit display.
2. Selecting "Info."

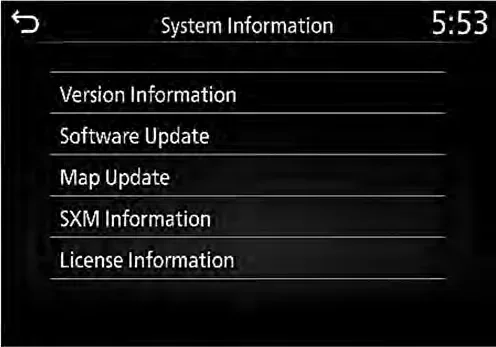

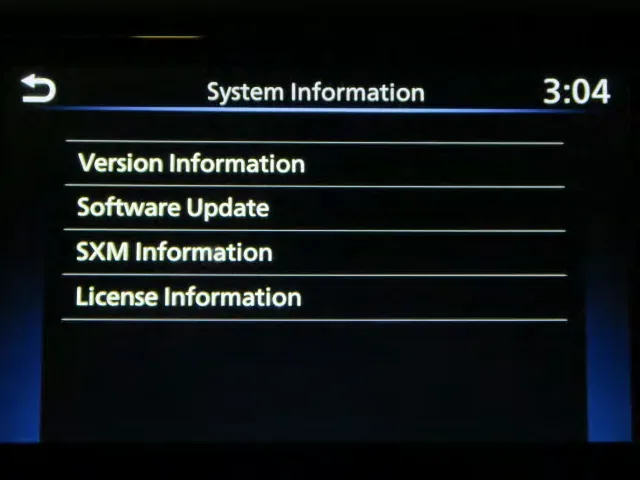

3. Selecting "System Information."

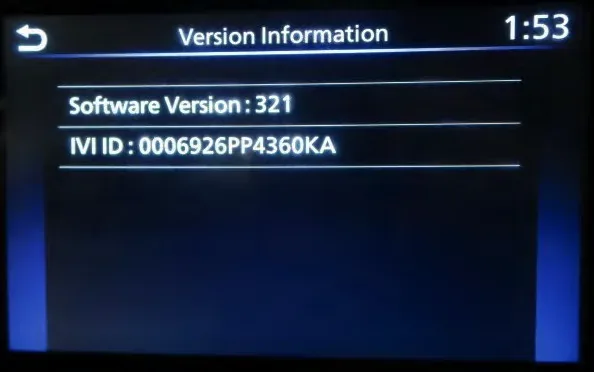

4. Selecting "Version Information."
5. Confirming the current Software Version against the vehicle table.

SW Check 5

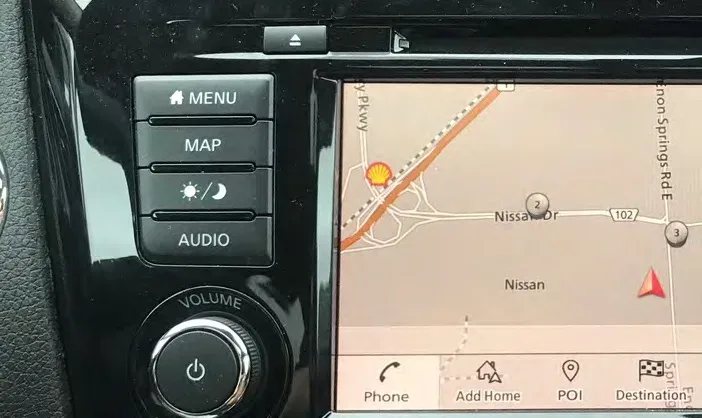

This check involves a specific knob manipulation to enter the diagnostic menu:

1. While holding the MENU button down, turning the tune knob left-right-left.

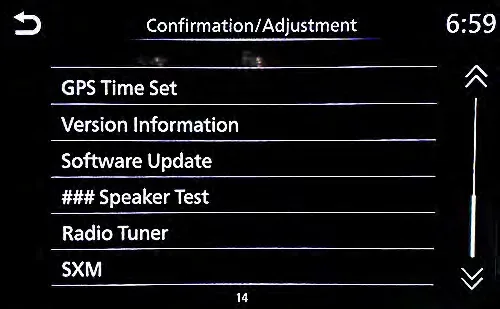

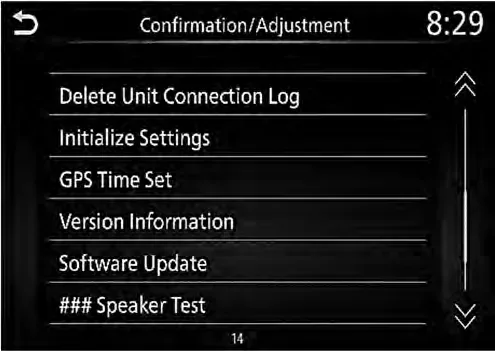

2. Selecting "Confirmation/Adjustment."

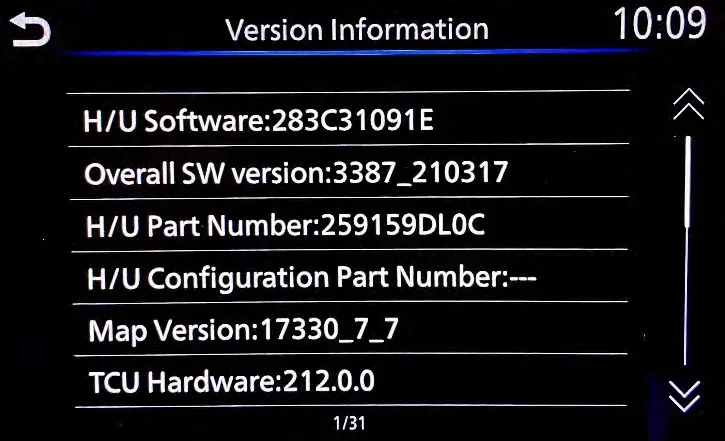

3. Selecting "Version Information."
4. Confirming the current "Overall SW version" and other software identifiers like "H/U Software," "H/U Part Number," and "Map Version."

SW Check 6

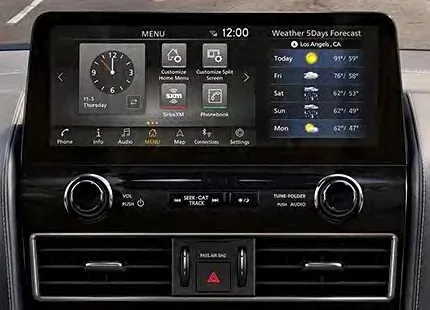

This procedure is similar to SW Check 4 but starts from the main MENU (Home) screen:

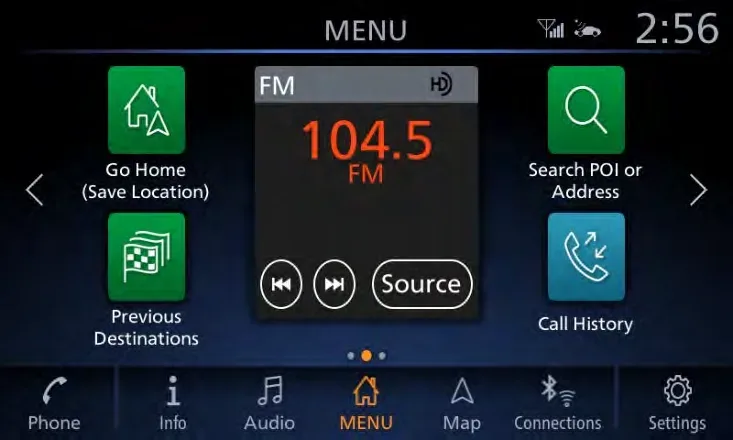

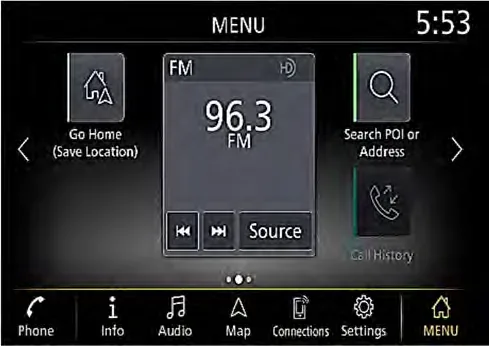

1. Starting from the MENU (Home) screen, selecting "Info."
2. Selecting "System Information."
3. Selecting "Version Information."

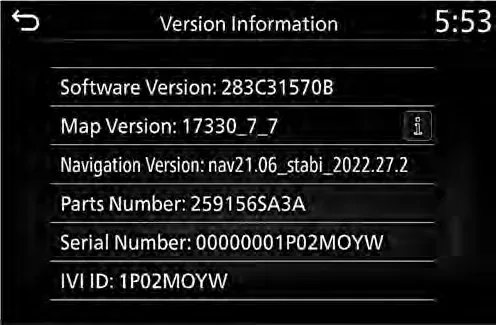

4. Confirming the current Software Version, Map Version, Navigation Version, Parts Number, Serial Number, and IVI ID.

Software Installation Procedures

Similarly, there are five different software installation procedures (Install 1 through Install 5), each designed for a particular infotainment system. These procedures detail the steps required to apply the Nissan infotainment software update using a special USB drive.

Install 1

This procedure is for systems that require a single software update file and involves:

1. Connecting a battery maintainer or smart charger set to reflash mode.
2. Setting the parking brake.
3. Cycling the ignition to ON, engine OFF.
4. Turning ON the hazard warning lamps, which must remain ON until the update is complete.
5. Writing down radio settings.
6. Turning the audio system OFF.

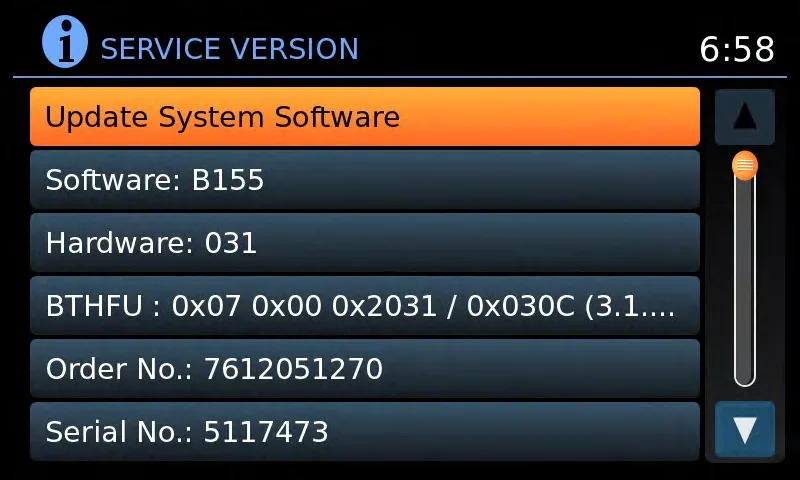

7. Accessing the "SERVICE MENU" (same as SW Check 1).
8. Selecting "Version."
9. Selecting "Update System Software."

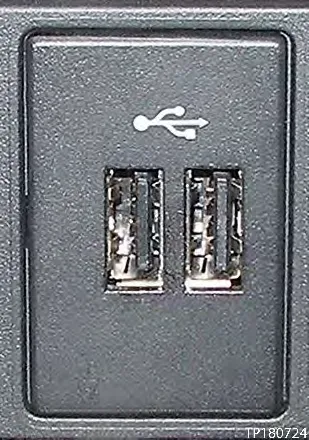

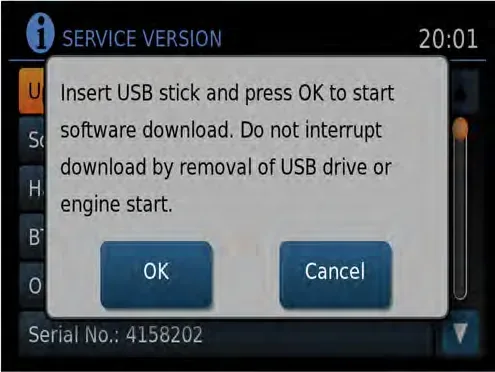

10. Inserting the USB drive into the AV Control Unit's USB port and selecting OK.

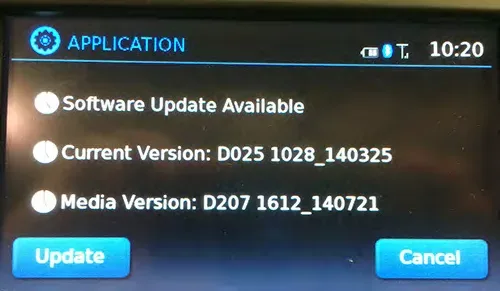

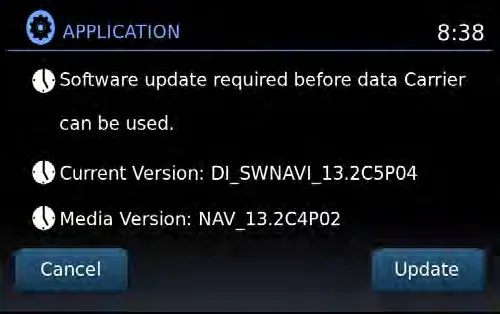

11. Confirming that the "Current Version" and "Media Version" are different, then selecting "Update." The screen will go black for up to 1 minute.

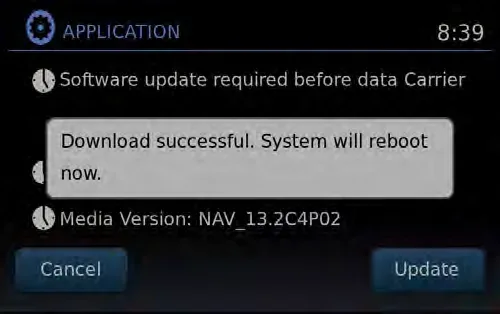

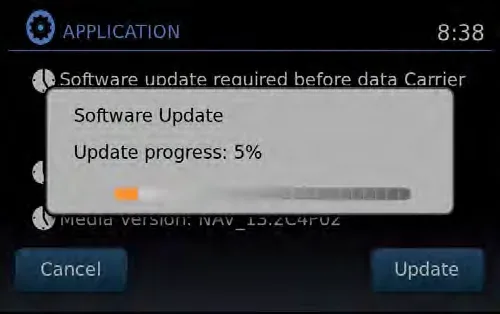

12. Waiting for the update to complete (up to 35 minutes), observing messages like "copying 1/100."

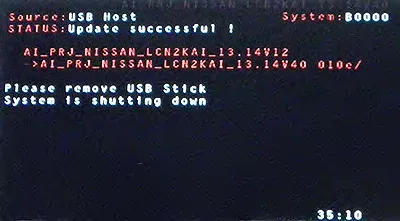

13. Once "STATUS: Update successful !" is displayed, removing the USB drive. The system will restart.

Install 2

This procedure is for systems that also require a single software update file but with different interaction steps:

1. Setting the parking brake.
2. Starting the engine and waiting 60 seconds for the system to load (engine needs to idle to retain battery charge).

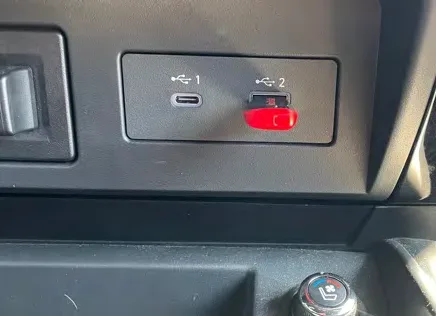

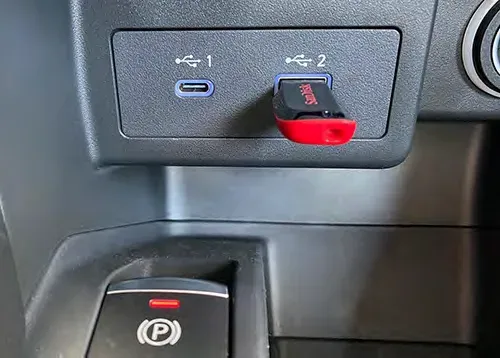

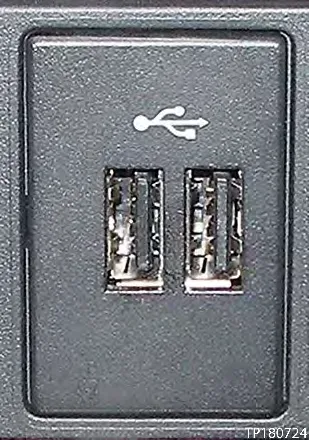

3. Inserting the USB drive into the vehicle's USB media port (not a charging port).

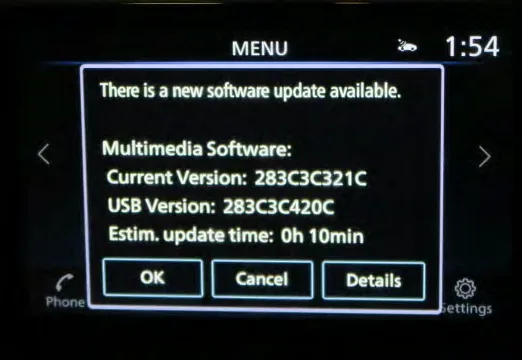

4. Waiting 10-30 seconds for the "There is a new software update available" screen to appear, then selecting OK.

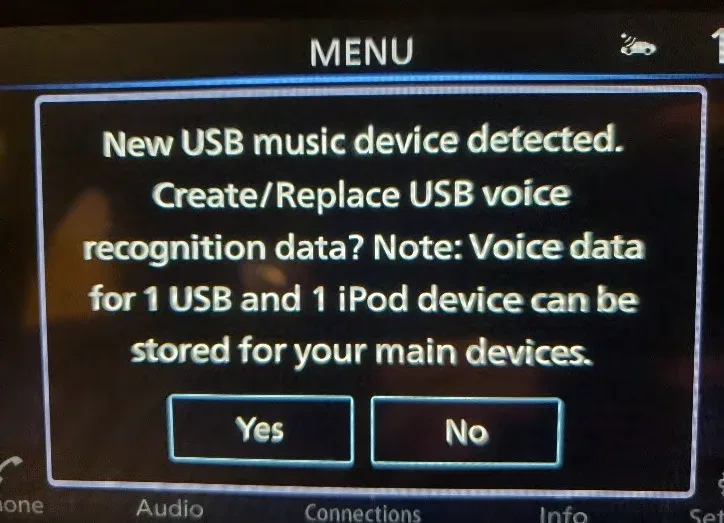

5. If a "New USB music device detected. Create/Replace USB voice recognition data?" screen appears, selecting No.

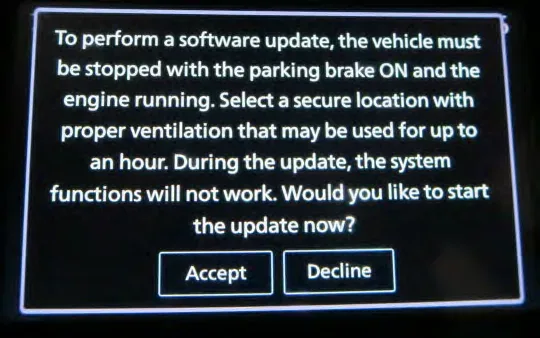

6. Reviewing software update requirements (e.g., "To perform a software update, the vehicle must be stopped with the parking brake ON and the engine running.") and selecting "Accept" to start reprogramming.

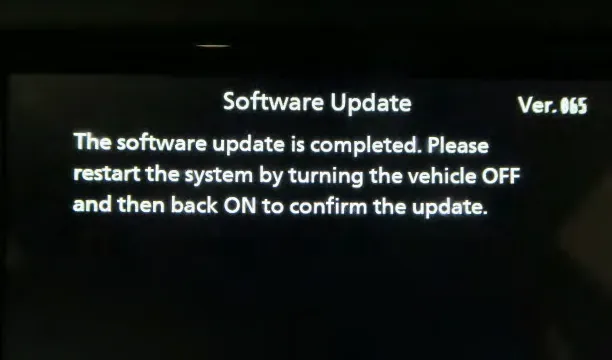

7. When "The software update is completed. Please restart the system..." is displayed, removing the USB drive.
8. Turning the ignition OFF, opening and closing the driver door, then restarting the engine.

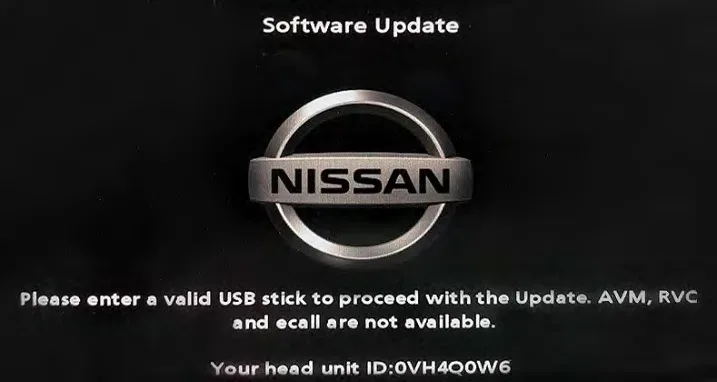

9. Allowing the system to boot up (approx. 30 seconds) until the Nissan logo is displayed.
10. Fully rebooting the infotainment system twice by repeating steps 57-61 (open/close door, wait 5 min, turn ignition ON/OFF) for a total of two cycles.

Install 3

This procedure is for systems requiring two update files (LD001 first, then a second file) and includes a factory initialization:

1. Turning ON hazard warning lamps and ignition, then audio system.
2. Writing down radio settings, then turning audio system OFF.
3. Inserting the USB drive with the first update file (LD001) into the USB media port.
4. Selecting "Yes" to begin reprogramming. Reprogramming takes 5-10 minutes. The unit will reboot and return to the main MENU screen.
5. Removing the USB drive.
6. Loading the second update file onto the USB drive (referring to step 19 on page 49).
7. Repeating steps 63-70 to apply the second update file.
8. Performing AV Control Unit initialization: Press and hold Menu, then Audio, then Seek right three times. Select "Next." Press "Factory Cold Start" (on second page of menu), then select "Yes" to confirm memory elimination. Initialization is complete after reboot.
9. Turning OFF hazard warning lamps.
10. Restoring radio presets and clock setting.
11. Instructing the customer to delete/erase the car from their phone's Bluetooth menu and re-pair the phone.

Install 4

This procedure is similar to Install 2 but with slightly different screen prompts:

1. Setting the parking brake.
2. Starting the engine and waiting 60 seconds (engine idle required).
3. Inserting the USB drive into the USB media port.
4. Waiting 10-30 seconds for the "There is a new software update available" screen, then selecting OK.
5. If a "New USB music device detected. Create/Replace USB voice recognition data?" screen appears, selecting No.
6. Reviewing software update requirements (e.g., "To perform a software update, the vehicle must be stopped with the parking brake ON and the engine running.") and selecting "Accept" to start reprogramming.
7. When "The software update is completed. Please restart the system..." is displayed, removing the USB drive.
8. Turning the ignition OFF, opening and closing the driver door, then restarting the engine.
9. Allowing the system to boot up (approx. 30 seconds) until the Nissan logo is displayed.

Install 5

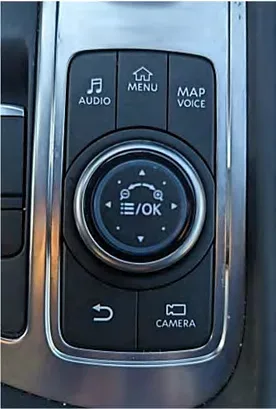

This procedure is for systems with an IT Commander and also includes a factory initialization:

1. Setting the parking brake.
2. Starting the engine and waiting 60 seconds (engine idle required).
3. Inserting the USB drive into the USB media port.

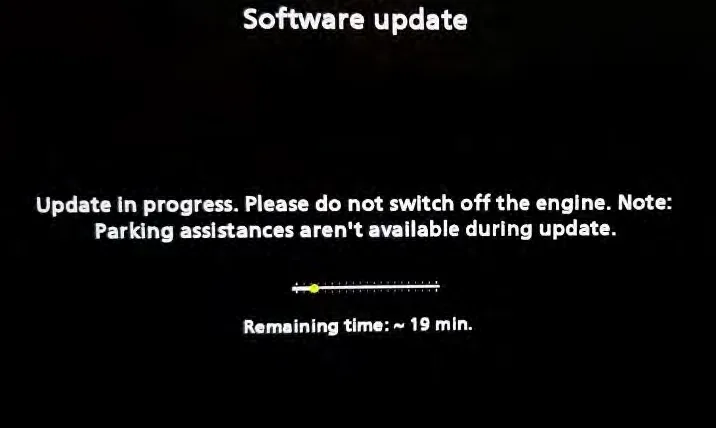

4. Waiting for the update to complete (20-30 minutes), following on-screen instructions (e.g., "Update in progress. Please do not switch off the engine. Note: Parking assistances aren't available during update.").

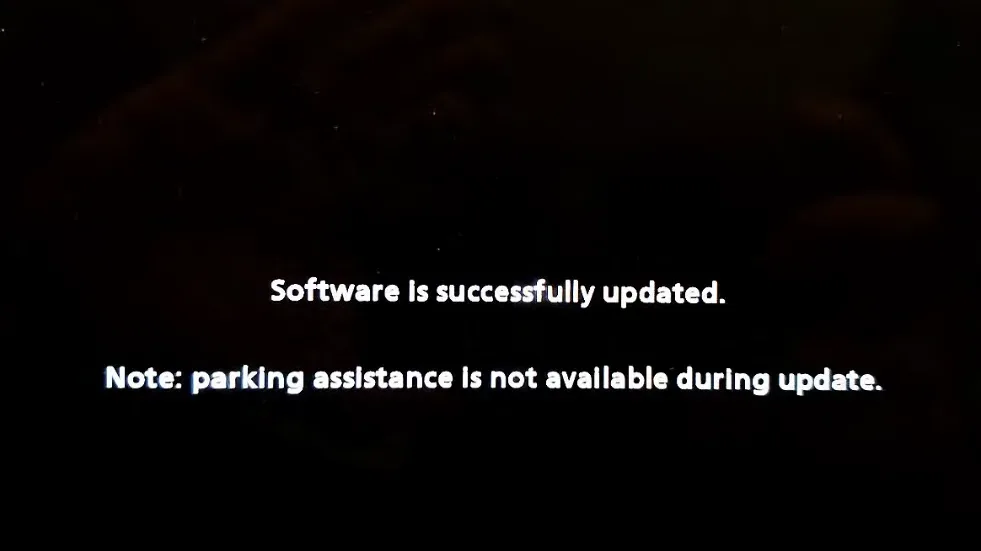

5. Once "Software is successfully updated. Note: parking assistance is not available during update." is displayed, removing the USB drive. The system will reboot.
6. Reinitializing the AV Control Unit: Press and hold the MENU button on the IT Commander and turn the AV Control Unit volume knob left-right-left at the same time.
7. Selecting "Confirmation/Adjustment."
8. Selecting "Initialize Settings."
9. Selecting "User Data Initialization."

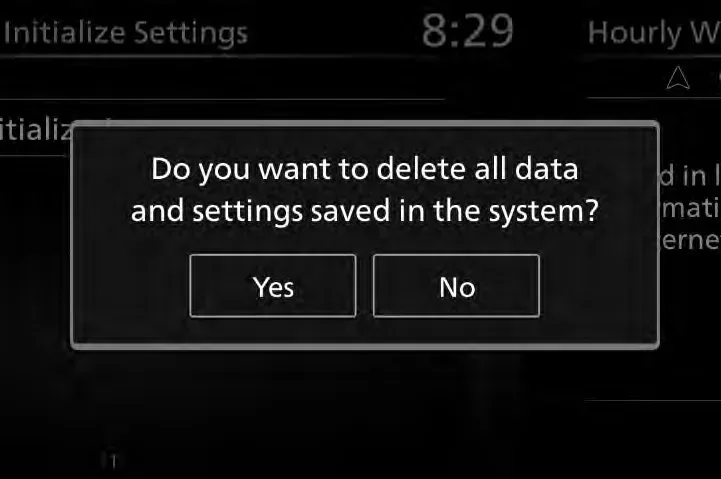

10. Selecting "Yes" for "Do you want to delete all data and settings saved in the system?" and "Yes" for "Restore to factory settings. Are you sure?"
11. Instructing the customer to delete/erase the car from their phone's Bluetooth menu and re-pair the phone.

Required Tools or Parts

Performing this Nissan infotainment software update requires specific tools and software packages:

• Special Tool USB Drive: J-52727-1 (new tool number NI-52727-1). This is a proprietary USB drive shipped to dealers, and additional units can be purchased from Tech-Mate (www.techmatetools.com or 1-833-397-3493). The update-software must be the only file on the USB drive.
• Infotainment Update Software: Various software packages are specified depending on the vehicle model and year. Examples include:
  • LD001, LD005, LD004
  • IVI003, IVI4620, IVI354, IVI830, IVI5172, IVI5328
  • AIVI21_550_D41, AIVI21_550_ZE1, AIVI21_3195, AIVI20_845
  • AIVI31_5188, AIVI31_5192

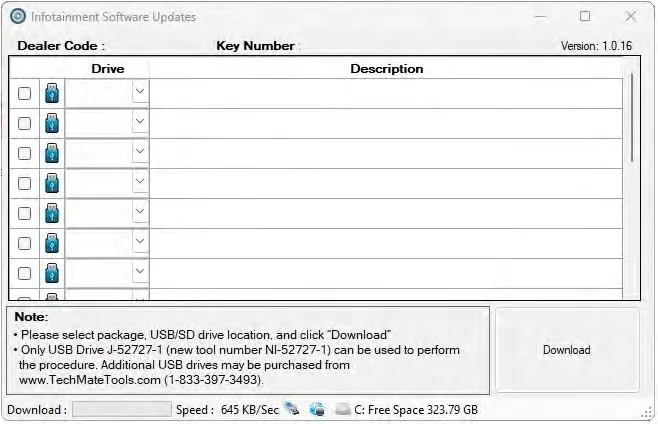

These software packages are downloaded from ASIST (Nissan's Automotive Service Information System) to the special tool USB drive. The download process involves connecting the CONSULT PC to the internet, ensuring ASIST is synchronized, inserting the USB drive, opening ASIST, selecting "Specialty Tools" then "Infotainment Software Updates," choosing the correct software package, and initiating the download. The download is estimated to take 10-15 minutes. The USB drive must be safely removed from the PC after download to prevent corruption.

New Features After Update

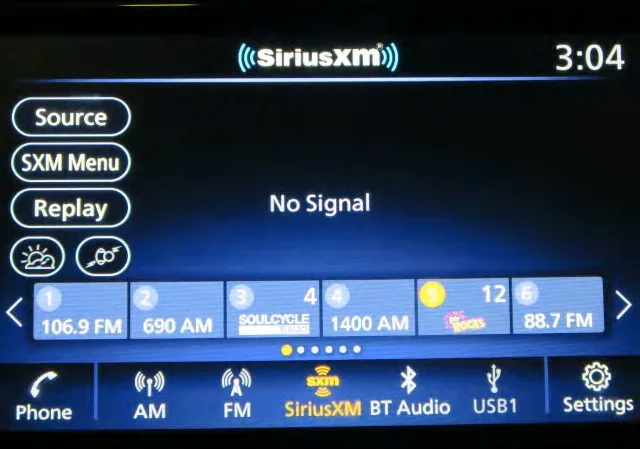

Some updates introduce new features, such as "SXM Smart Favorites." This feature allows users to designate presets within SXM1, SXM2, and SXM3 bands as Smart Favorites. When a Smart Favorite preset is selected, the current track on that station will play from the beginning of the song. Programming involves pressing the SXM button, touching "Setup," then "Tune Start" to activate, and finally "Add Preset." Smart Favorites will only function after the audio unit has been on for a few minutes, and Tune Start is supported for music channels only.

The "Replay Screen" feature is also enhanced, allowing users to replay, skip, pause, or rewind the currently aired track. The system may display messages like "At the End" if no further skip back is possible, or "Live" to indicate the difference from play time to live audio.

Claims Information

Technicians use specific claim identifiers and codes for warranty submissions related to this service bulletin. The following table outlines the CLAIM IDENTIFIER, DESCRIPTION, OP CODE (Operation Code), SYM (Symptom Code), DIA (Diagnosis Code), and FRT (Flat Rate Time) for performing the software check and update of the AV Control Unit:

CLAIM IDENTIFIER	DESCRIPTION	OP CODE	SYM	DIA	FRT
CL1	Perform Software Check and Update the AV Control Unit	QX42AA			0.4
CL2	Perform Software Check and Update the AV Control Unit	RX4SAA			0.3
CL3	Perform Software Check and Update the AV Control Unit	RX8MAA			0.3
CL4	Perform Software Check and Update the AV Control Unit	RX05AA	ZE	32	0.5
CL5	Perform Software Check and Update the AV Control Unit	RXB7AA			0.3
CL6	Perform Software Check and Update the AV Control Unit	RX5AAA			0.3
CL7	Perform Software Check and Update the AV Control Unit	RX0LAA			0.3

Amendment History

This TSB has undergone several revisions to include additional models, software package numbers, and procedural updates:

• March 8, 2023 (NTB23-018): Original bulletin published.
• March 10, 2023 (NTB23-018A): Infotainment Update-Software package numbers updated on pages 10, 15, 32, and 33.
• March 21, 2023 (NTB23-018B): Updated 2023 Altima column on page 5 and Infotainment Update-Software package numbers updated on page 13.
• April 12, 2023 (NTB23-018C): Changes made to the vehicle tables on pages 5, 8, 15, 17, 29, 30, and 34. Software Version Update Confirmation procedures removed.
• August 1, 2023 (NTB23-018D): Changes made to the vehicle tables on pages 7, 26, and 29.

Owner Action

If your Nissan vehicle is experiencing infotainment issues, or if you wish to ensure your system has the latest stability improvements and bug fixes, contact your authorized Nissan dealer. They will be able to perform the necessary software version check and apply the relevant Nissan infotainment software update as outlined in TSB NTB23-018D.

This bulletin is intended for use by qualified technicians. Do not attempt to perform these procedures yourself, as improper execution could damage the AV Control Unit.

NHTSA ID: 10242141
