2024-2025 Jeep Wrangler Multiple Systems Fault TSB 23-033-25

Important Market Information

Technical Service Bulletin (TSB) 23-033-25 is a comprehensive service action designed to address a wide array of potential issues in certain 2024-2025 Jeep Wrangler vehicles. While the document's market applicability section includes a checkbox for North America, a clarifying note explicitly states, "This bulletin applies to India & Asia Pacific markets." Additionally, NHTSA metadata for this document indicates it is not applicable to vehicles built for the US market. Owners should verify their vehicle's applicability with a dealership.

Symptoms

Owners of affected 2024-2025 Jeep Wrangler vehicles may experience a Malfunction Indicator Lamp (MIL) illumination on the dashboard. This often accompanies a range of electrical and mechanical issues, indicating a Jeep Wrangler multiple systems fault. Specific symptoms include:

• Electrical/Infotainment:
  • "Android Auto not working" or disconnecting.
  • "Radio screen is black for one to two seconds while driving and then returns to normal operation."
  • "USB port not working."
  • "Radio control on steering wheel malfunctions or has a delay in response."
• Mechanical/Structural:
  • "Transfer Case Control Module (TCCM) wiring incorrectly routed."
  • "Noise from the front axle."
  • "Decals on the left and right fenders are peeling off."
  • "Right hand side speaker not working or exhibits a rattle noise."
  • "Interior rearview mirror delaminating."
  • "Tailgate glass damper mounting is peeling off or has come off."
  • "Abnormal noise from chain tensioner."
• Warning Messages:
  • A "Shifter inspection required" message may appear on the Instrument Panel Cluster (IPC).

Fault Codes / DTCs

Customers experiencing a Malfunction Indicator Lamp (MIL) illumination will likely have one or more of the following Diagnostic Trouble Codes (DTCs) stored in their vehicle's system. These codes indicate a Jeep Wrangler multiple systems fault and guide technicians in diagnosis.

| Code | Description | Module / Condition | |:----------|:--------------------------------------------------------------------------|:-------------------------------------------------|: | U11E3-00 | Lost Communication With ESM | TCM On DPT CAN | | B15A1-00 | Media Port 1 Connection | | | U11C2 | Lost Transmission Message | | | U11E4-00 | CAN Communication Messages Missing | | | U120C | Lost Brake Booster Signal | | | U1216-00 | Lost Communication With DASM | | | U121E-00 | Lost Communication With Steering Wheel Cruise Control Switch | | | U1267-00 | No Valid Data From ESM | On CAN-C Or CAN-DPT | | U12A8 | Lost Communication With Master Cylinder Pressure Sensor | | | U1465-00 | Implausible Driver Shift Request Signal Received | | | U1466-00 | Implausible Driver Shift Request Signal Received | On DPT CAN | | U1515-87 | Steering Column Lock Secret Code - Missing Message | | | U1517-87 | Body Controller Secret Code - Missing Message | | | B2206-00 | Current VIN Missing/Mismatch | | | B2225-00 | Steering Column Module Internal | SCM | | C1252-92 | Vacuum Pump Control Circuit - Performance Or Incorrect Operation | | | P0607-00 | ECU Internal Performance | | | P1DD2-00 | Torque Request Signal From TCM Denied | | | U0100-00 | Lost Communication With ECM/PCM | | | U0101-00 | Lost Communication With TCM | | | U0102-00 | Lost Communication With Transfer Case Control Module/AWD | | | U0103-00 | Lost Communication With Electric Gear Shift Module | | | U0121-00 | Lost Communication With Anti-lock Brake System (ABS) Control Module | | | U0125 | Lost Communication With Dynamics Sensor | | | U0129-00 | Lost Communication With Brake System Control Module | | | U0140-00 | Lost Communication With Body Control Module | | | U0151-00 | Lost Communication With Occupant Restraint Controller | ORC | | U0155-00 | Lost Communication With Cluster/CCN | | | U0159-00 | Lost Communication With Parking Assist Control Module | | | U017E | Lost Communication With Seatbelt Sensor 1 | | | U0212-00 | Lost Communication With Steering Column Control Module | | | U0213-00 | Lost Communication With Interior Mirror Control Module "A" | | | U0415-00 | Implausible Data Received From ABS | | | U0418-86 | Implausible Data Received From Brake System Control Module 1 - Signal Invalid | | | U0422-00 | Implausible Data Received From Body Control Module | | | U110A-00 | Lost Communication With SCM-CAN-C | | | U110C | Lost Fuel Level Message | | | U110E | Lost Ambient Temperature Message | | | U1110-00 | Lost Vehicle Speed Message | | | U1120 | Lost Wheel Distance Message | | | U113E-00 | Lost Communication With Intelligent Battery Sensor | | | U114C-00 | Lost Communication With PRNDL Display | | | U115F-00 | Lost Communication With Driver Presence Detection Module | | | U1175-00 | Lost Ignition Status Message | | | U1186 | Lost Communication With Adaptive Cruise Control Module | | | U1199 | Lost Hood Ajar Switch Voltage Message | | | U11B9-00 | Lost Communication With RF Hub | | | U11BC | Lost Brake Switch Message | | | U11BF | Lost Brake Pedal Position Message | | | P2453-00 | Differential Pressure Sensor A Circuit Range/Performance | | | P245F-00 | Diesel Particulate Filter Pressure Sensor "B" Circuit | | | C140A-11 | Transfer Case Motor Control | |

Diagnosis

Diagnosis for a Jeep Wrangler multiple systems fault requires the use of a Scan Tool (wiTECH) and access to the appropriate Diagnostic Procedures in DealerCONNECT/Service Library. Technicians must verify that all related systems are functioning as designed. If DTCs or symptoms other than those listed in TSB 23-033-25 are present, they should be recorded and repaired before proceeding with this bulletin. If a customer's VIN is listed in VIP or the RSU VIN list, the repair should be performed. If any vehicle not on the VIN list exhibits the customer symptoms, the repair procedure should still be followed.

Repair Procedure Summary

This bulletin, also known as Rapid Service Update (RSU) 25-199, outlines a comprehensive diagnostic and repair tree for various symptoms. The repair process involves multiple inspection steps and potential component replacements or adjustments:

1. Android Auto / Radio Screen Issues: If "Android Auto not working" or the "radio screen is black for one to two seconds while driving and then returns to normal operation," first remove and reconnect the radio wire harness connector. If this resolves the issue, no further action is needed for this symptom. If not, the radio should be replaced.

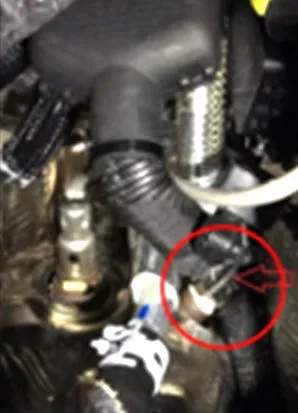

2. Steering Transfer Motor / Wiring Pinch (DTC C140A-11): If the steering transfer motor sets DTC C140A-11 or the wiring harness is incorrectly routed with a pinch (as shown in Figures 1 and 2 of the TSB), inspect the wiring harness routing. If pinched, replace the steering transfer motor and reroute the wiring harness.
3. Front Axle Noise / Vehicle Drifts: If the "front axle has noise while driving" or the vehicle "drifts to the left or right," a wheel alignment should be performed.
4. Tensioner Chain Noise: If there is "abnormal noise from chain tensioner," the tensioner chain should be replaced.

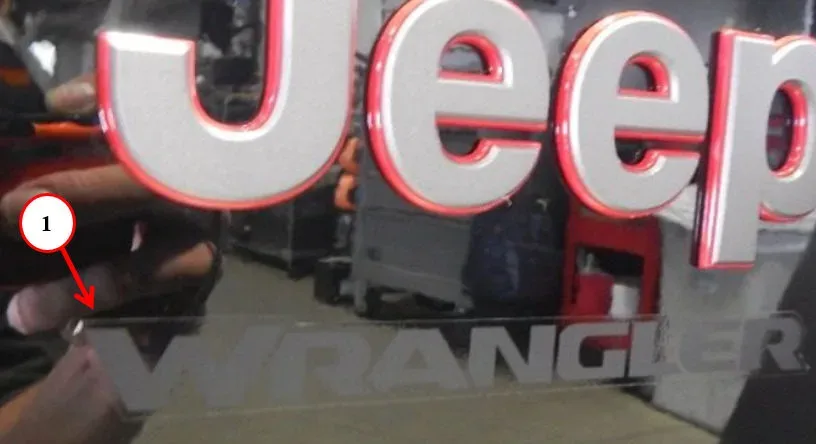

5. Peeling Decals: If the "Wrangler sticker decal is peeling off from either front fender" (Figure 3), peel off the old decal and replace it. The surface must be cleaned and dry before applying the new decal.
6. Speaker Malfunction: If the "right hand side door panel speaker not work or is making a rattle noise," the right side speaker should be replaced.
7. Steering Wheel Radio Control: If the "remote radio switch on the steering wheel" is not functioning, replace the remote radio switch.
8. USB Port Malfunction: If the "USB port not working," replace the USB hub.

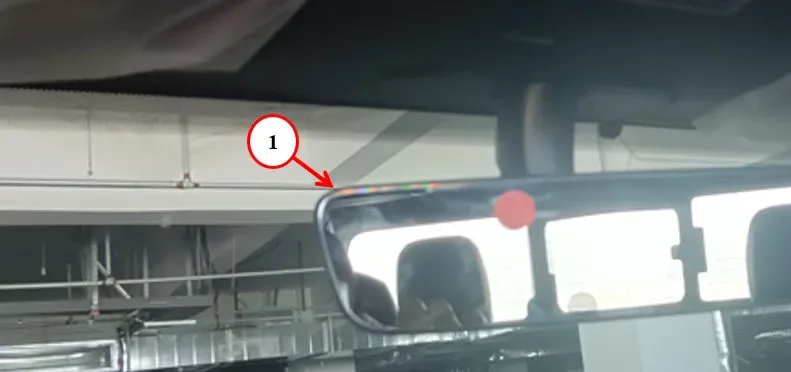

9. Rearview Mirror Delamination: If the "inside rear view mirror glass is peeling / delaminating" (Figure 4), replace the inside rearview mirror.

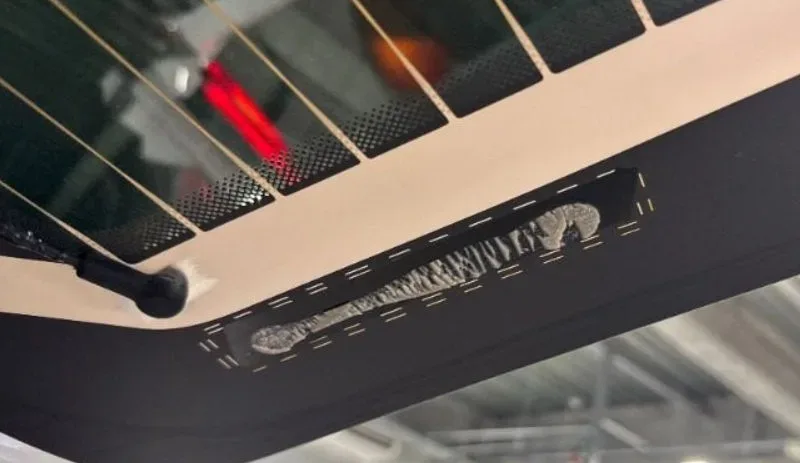

10. Liftgate Damper Issues: If the "liftgate glass damper mount is peeling or has come off" (Figure 5), replace the liftgate glass damper or, if necessary, the entire tailgate glass.
11. Shifter Inspection Required Message (DTCs U0103, U11E3, U1267, U114C): If the message "Shifter inspection required" appears on the Instrument Panel Cluster (IPC) along with DTCs U0103, U11E3, U1267, or U114C, replace the gear shift assembly bezel indicator.
12. Differential Pressure Sensor (DTC P2453 or P245F): If the MIL is illuminated and DTC P2453 or P245F are set, indicating a differential pressure sensor issue, refer to applicable published technical service bulletins for detailed repair procedures.

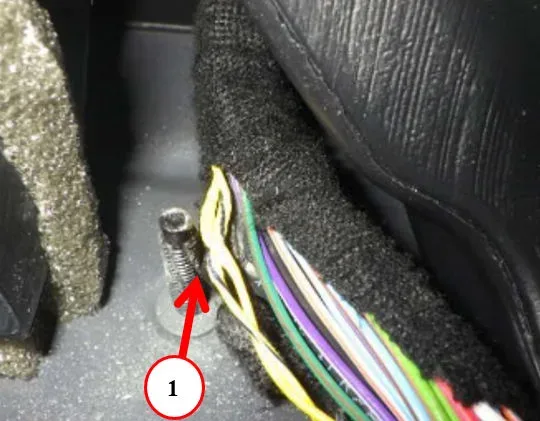

13. Engine Not Starting / Wiring Harness Fouling: If a wide range of DTCs (including B15A1-00, B2206-00, B2225-00, C1252-92, P0607-00, U0001-00, U0002-00, U0100-00, U0101, U0102, U0103, U0121, U0125, U0129, U0140, U0151, U0155, U0159-00, U017E, U0212-00, U0213-00, U0415-00, U0418, U0422-00, U110A, U110C, U110E, U1110, U1120, U113E, U1141, U114C, U115F, U1175, U1186, U1199, U11B9-00, U11BC, U11BF, U11C2, U11E4-00, U120C, U1216-00, U121E-00, U1267-00, U12A8, U1465-00, U1466-00, U1515-87 or U1517-87) are present along with the engine not starting, remove the gear shift lever bezel to access the instrument panel wire harness. Inspect the harness routing for fouling with a stud (Figure 6). If fouling is found, wrap the wires with Tesa tape and reroute the harness, or replace the wiring harness if necessary. Finally, clear all DTCs.

Required Tools and Parts

Special Tools:

• wiTECH or equivalent diagnostic scan tool.

Key Replacement Parts (as needed):

• Transfer Case Control Module: Part numbers 68534760AE, 68534761AE (Order by VIN).
• Tensioner, Chain, Primary: Part number 05281548AB.
• Decal, Front Fender, Wrangler: Part number 6DZ06RXFAA (for both left and right sides).
• Speaker, 3.5": Part number 68223392AA.
• Speaker Assembly, Front: Part number 68302007AC.
• Switch, Radio Control, Left: Part number 68349664AA.
• USB Port, Media Hub: Part number 68505684AA.
• Mirror, Inside Rear View: Part number 68297611AB.
• Backlite: Part number 68282135AL.
• Indicator (Gear Shift Assembly Bezel): Part number 68282185AE.
• Wiring, Instrument Panel: Part number 68598323AD.
• Antifreeze, Coolant, Gallon: Part number 68163848GB.
• Engine Oil: Part number 68218950GA.
• Radio: Part number NPN (Order direct from supplier).

Warranty Information

All repairs performed under TSB 23-033-25 (RSU 25-199) are reimbursable within the provisions of the vehicle's warranty. The inspection Labor Operation (LOP) 23-41-01-9D, for "Multiple Systems - All Inspections," can be claimed one time only for this RSU. Other specific labor operations and their associated times include:

Labor Operation No.	Labor Description	Skill Category	Labor Time (Hrs.)
23-41-01-9D	Multiple Systems - All Inspections		0.5
23-41-01-9E	Radio - Replace	Electrical and Body Systems	0.6
23-41-01-9F	Motor Actuator, Transfer Case Shifter Motor - Test and Replace	Transmission and Transfer Case	0.4
23-41-01-9G	Perform Wheel Alignment	Chassis	1.1
23-41-01-9H	Decal - Replace - One	Electrical and Body Systems	0.2
23-41-01-9J	Decal - Replace - Both	Engine Repair and Performance	0.4
23-41-01-9I	Tensioner Timing Belt/Chain - Test Drive and Replace	Engine Repair and Performance	3.9
23-41-01-9L	Speaker - Replace	Electrical and Body Systems	1.2
23-41-01-9M	Hub Media Center, SD/USB/AUX Port - Test and Replace	Electrical and Body Systems	0.5
23-41-01-9N	Interior Rearview Mirror - Replace	Electrical and Body Systems	0.3
23-41-01-9O	Backlite Glass Liftgate Movable - Replace	Electrical and Body Systems	0.3
23-41-01-9P	Switch Radio Control, Steering Wheel Mounted - Test and Replace	Electrical and Body Systems	0.3
23-41-01-9Q	Wiring Harness, Instrument Panel Jumper - Test, Repair and/Or Replace	Electrical and Body Systems	0.8
23-41-01-9R	Differential Pressure Sensor	Electrical and Body Systems	0.3
23-41-01-9K	Indicator/Bezel, Gear Shifter Replacement	Electrical and Body Systems	0.2

Important Warnings

This bulletin is provided as technical information only and does not authorize repair. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise, without written permission of FCA US LLC.

NHTSA ID Number: 10250669 OEM TSB ID: 23-033-25
