2024 Jeep Wrangler Dome Light Inoperative DTC B1751-11

Owners of the 2024 Jeep Wrangler may encounter problems with their interior dome lights, which can either fail to illuminate or remain constantly on. This specific issue is detailed in Stellantis STAR Online Publication S2408000107, a manufacturer communication providing guidance for technicians. The root cause is frequently a damaged wiring harness located under the passenger lower B-Pillar trim panel, near the rear seats.

Symptoms

If you own a 2024 Jeep Wrangler, you might observe that your vehicle's dome light is inoperative or stays on. This can be an intermittent problem or a constant malfunction, affecting the interior lighting system. This condition is often accompanied by a specific fault code stored in the vehicle's Body Control Module (BCM).

Fault Codes / DTCs

When a diagnostic scan tool is used on an affected vehicle, technicians may find the following diagnostic trouble code (DTC) stored in the Body Control Module (BCM):

• B1751-11: "Courtesy Lamp Control - Circuit Short To Ground Set In The BCM"

This code directly points to an electrical short circuit within the courtesy lamp control system.

Diagnosis

Diagnosing the "Jeep Wrangler dome light" issue involves a systematic approach to identify the source of the electrical short. Technicians should begin by accessing the male/body harness side of the XY315 inline connector. This connector is typically found behind the driver's kick panel.

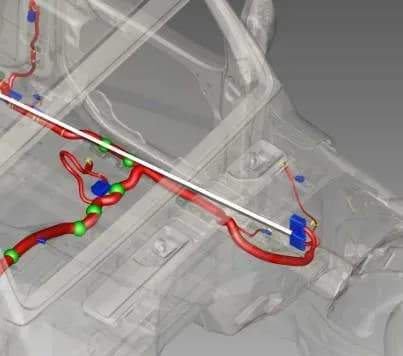

Using a Digital Multimeter, technicians will check for a short to voltage or ground on specific pins within this connector. These include pin 29, which controls the M11 Courtesy Lamps Driver, and pin 40, which controls the M27 Reading Lamps Driver. If a short circuit is detected during this test, the next step is to remove the passenger lower B-Pillar trim panel. This allows for a thorough inspection of the wiring harness in that area. The damage is often caused by an incorrectly positioned fastener or harness during assembly, leading to chafing or pinching of the wires.

Repair Procedure Summary

Once the damaged wiring harness is located, the repair procedure involves either repairing the existing harness or, if the damage is extensive, replacing it entirely. Standard repair procedures for automotive wiring harnesses should be followed to ensure a durable and safe fix.

A critical step during reassembly is to ensure that all fasteners and trim panels are positioned correctly. This prevents future damage to the wiring harness from reoccurring due to improper installation or contact with sharp edges. After the repair is completed and the vehicle is reassembled, a verification step is necessary.

Verification

Following the repair, technicians must verify that the dome lamps operate normally. This confirms that the electrical short has been resolved and the interior lighting system is functioning as intended.

Important Warnings

This manufacturer communication, STAR Online Publication S2408000107, serves as a record of past experiences and does not authorize warranty repairs. It provides guidance based on known issues but does not offer a definitive conclusion about every vehicle's specific problem. Technicians are responsible for determining the appropriate course of action for each individual case. Owners should be aware that this document is for informational purposes for repair professionals.

Owner Action

If your 2024 Jeep Wrangler is experiencing issues with the dome light being inoperative or remaining on, especially if accompanied by the B1751-11 fault code, it is recommended to have your vehicle inspected by a qualified service technician. They can perform the necessary diagnostic steps outlined in STAR Online Publication S2408000107 to identify and rectify the wiring harness damage.

---

Source: NHTSA ID: 11008148
