2024-2025 BMW i4/i5/i7/iX Rear Axle Failure

Symptoms of Rear Axle Failure

Owners of affected 2024-2025 BMW i4, i5, i7, and iX vehicles may experience critical issues related to the rear axle. The primary symptom is the vehicle no longer moving when put into gear. Additionally, drivers might notice a loud noise emanating from the HEAT (Highly Integrated Electric Drivetrain Topology) or the rear axles.

Cause of the Problem

The root cause of this issue is a failure of the rear axle shaft. This failure typically occurs at the splined section of the axle within the differential of the HEAT unit. It has been observed to happen during spirited driving conditions.

Important Warnings for Inspection and Repair

BMW Service Information Bulletin SIB 33 01 24 emphasizes a crucial step during the inspection process. If there is any damage or signs of overheating, such as discoloration, or if pieces of the axle cannot be removed from the differential, the entire HEAT unit and both axles will need to be replaced. This extensive repair requires specific Technical Campaign (TC) approval from BMW.

Repair Procedure Summary

The repair process for the 2025 BMW i5 rear axle failure, as detailed in SIB 33 01 24, involves a thorough inspection and subsequent replacement of either the axle shafts or the entire electric drive unit, depending on the damage severity.

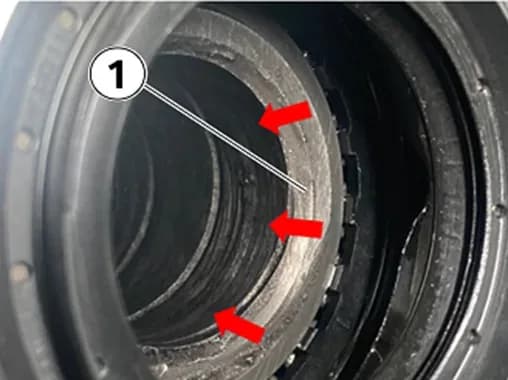

First, technicians must inspect the electric drive unit on both sides for damage. An endoscope is recommended for examining the right side of the unit. This inspection includes checking the parallel key spline in the differential for damage, especially on the side where a driven shaft might be broken. Technicians also need to verify if any fragments of the broken driven shaft remain within the differential. Furthermore, the plain bearing seats on both sides of the differential must be checked for discoloration due to high heat, chips, and seizing marks.

If the surface areas and splines in the differential show no damage after inspection, only both rear axles need to be replaced. Specific repair instructions vary by model:

• For i20 models, refer to Repair Instruction 33 21 000 for removing and installing/replacing the left or right output shaft.
• For G26 models (i4 Gran Coupe), use Repair Instructions 33 21 011 for replacing the left output shaft and 33 12 012 for replacing the right output shaft.
• For G60 (i5 Sedan) and G70 (i7 Sedan) models, follow Repair Instruction 33 21 006 for removing and installing/replacing the left or right output shaft.

If damage is found during the inspection, such as severe overheating, chips, or seizing marks on the plain bearing seats, the entire electric drive unit (HEAT) must be replaced. This is a more extensive repair, guided by Repair Instruction 12 35 531, which details the complete replacement of the rear highly integrated electric drive topology. For HEAT unit replacement, a TSARA TeileClearing case must be submitted for approval, including necessary pictures for documentation.

Required Tools or Parts

Technicians will need to obtain specific part numbers for the repair. These can be confirmed by entering the vehicle's chassis number into BMW's ETK or AIR systems, which account for specific equipment and options. An endoscope is recommended for the detailed inspection of the electric drive unit, particularly on the right side.

Owner Action

If you experience symptoms such as your 2025 BMW i5 no longer moving when in gear or hearing loud noises from the rear axle, it is crucial to contact your authorized BMW dealer immediately. Repairs addressing a verified defect in materials and/or workmanship, with the required TC approval, are covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks. Your dealer will follow the diagnostic and repair procedures outlined in Service Information Bulletin SIB 33 01 24 to address the rear axle failure.

---

Source: NHTSA ID: 11005225
