2021-2024 Audi 48V Battery Charging Issue P0A7D00

Symptoms

Owners of 2021-2024 Audi vehicles may experience a condition where the 48V battery is in a low voltage protection state. This means the battery will not accept a charge when connected to a charger.

This issue is typically identified by the presence of a specific diagnostic trouble code (DTC) stored in the vehicle's system. If you encounter an Audi e-tron P0A7D00 fault, this TSB provides the necessary guidance.

Fault Codes / DTCs

The primary diagnostic trouble code associated with this issue is:

Code	Description
P0A7D00	Hybrid/EV Battery Pack State of Charge Low

Another related DTC, P0B2900, indicates a defective battery or deep discharge and is important for determining if battery replacement is necessary.

Technical Background

When the 48V battery's state of charge (SoC) drops below a certain threshold, internal protection relays within the battery open. This action is designed to safeguard the internal cells from falling below their safe minimum voltage limit.

These protection relays will remain open until a specific adaptation channel is properly set within the battery management system. If the 48V battery's SoC is between 5% and 15%, it can be charged via the 12V system using a manual procedure.

Important Warnings

Audi has issued several critical warnings regarding this 48V battery condition:

• Do Not Replace Battery: "48V Batteries must not be replaced and instead need to be recharged in such a case. Claims for erroneously replaced 48V batteries may be debited."
• 12V Battery SoC: "The 48V battery cannot be charged if the SoC of the 12V battery is above 60%! If necessary, drain the 12V battery to a SoC between 40% and 60% by switching on the ignition for approx. 20 minutes (longer if necessary)."
• Charger Connection: "The negative cable of the 12V charger must not be directly attached to the negative terminal post of the 12V battery. For the battery management system to read the incoming charge, the negative cable of the battery charger must be attached to the vehicle chassis, or jump-start ground post."
• Battery Replacement Conditions: "The 48V battery must only be replaced if a DTC regarding a defective Battery or deep discharge (P0B2900) is stored. Batteries replaced for merely a low charge (between 5% and 15%) may be debited."
• Charging Time: "Charging the 48V battery takes significantly longer in comparison to charging the 12V battery. Under optimal conditions, you should plan to have the charger active for a minimum of two hours."

Diagnosis and Trigger Conditions

Before attempting to charge the 48V battery, specific preconditions must be met:

• The 48V battery's State of Charge (SoC) must be between 5% and 15%.
• The 12V battery's SoC must be between 40% and 60%. The 12V battery SoC can be verified using ODIS GFF in the Data Bus On Board Diagnostic Interface control unit -J533- (address word 0019).

Several actions can cause the 48V battery's protection relay adaptation to clear, which would prevent charging until reset. These include opening or closing a door, hood, or trunk, turning the ignition on or off, removing the diagnostic interface from the OBD2 port, running additional test plans, or removing the key from inside the vehicle.

Repair Procedure Summary

To resolve the Audi e-tron P0A7D00 issue and reactivate the 48V battery, technicians should follow these steps:

1. Connect an approved 12V charger with a minimum continuous output of 100 amps to the vehicle's 12V system. Ensure the negative cable is connected to the vehicle chassis or jump-start ground post, not directly to the 12V battery's negative terminal.
2. Turn off all non-essential electrical consumers in the vehicle.
3. Using ODIS GFF, run the test plan titled "0021 – Close charging contactor." This sets the adaptation for the protection relay to close. It is crucial not to exit the test plan until the adaptation is complete.

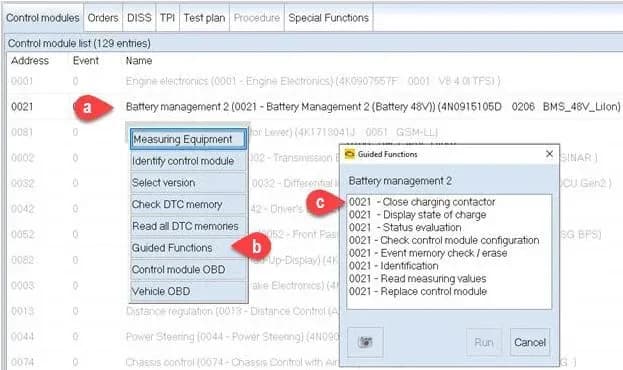

4. Accessing the test plan involves right-clicking on "0021 - Battery Management 2," selecting "Guided Functions," and then choosing "0021 – close charging contactor."
5. An automatic ignition cycle will occur, and a clicking noise should be audible, indicating that the battery contactors have closed.

Required Tools or Parts

To perform this repair, an approved 12V charger with a minimum continuous output of 100 amps is required.

Warranty Information

For warranty claims related to this procedure, please use service number/damage code 2704/0040 according to existing Audi Warranty guidelines.

Revision History

This Technical Service Bulletin, 2067906/4, is the fourth revision. It supersedes previous versions, including Group 27 number 23-60 dated September 11, 2023, and an earlier revision from March 27, 2023. Revisions have included updates to the service procedure, technical background, preconditions, notes, and warranty information.

---

Source: NHTSA ID 10244476
