2021-2023 Audi A6/A7/A8 Steering Column DTC B14BF01

Audi has released Technical Service Bulletin (TSB) 2062288/5 to address a specific concern affecting the electric steering column adjustment in certain 2021-2023 Audi A6, A7, and A8 vehicles. Owners may experience the electric steering column adjustment not functioning correctly, which can be accompanied by a specific diagnostic trouble code.

This bulletin, identified as Transaction No. 2062288/5, was released for publishing on August 2, 2025, and has undergone several revisions, with Revision 5 being the latest. It supersedes previous revisions, including Revision 4 (August 23, 2023) and Revision 3 (May 14, 2021), which updated models, warranty information, and condition statements.

Symptoms

Owners of affected vehicles may notice that the electric steering column adjustment is not working, specifically in the vertical direction. This can manifest as the steering column exhibiting a "functionality -> no function" state, an "operation sequence incorrect," or the column "cannot be switched on/activated."

Fault Codes / DTCs

When diagnosing this issue, technicians may find the following Diagnostic Trouble Code (DTC) stored in the electronic central control module (BCM 1), J519 (address word 0009):

Diagnostic Address	Diagnostic Trouble Code	Fault Symptom	Storage State
0009 - Electronic central electric	B14BF01: Steering column vertical adjustment motor Electrical malfunction	Intermittent
0009 - Electronic central electric	B14BF01: Steering column vertical adjustment motor Electrical malfunction	Static

This DTC B14BF01 indicates an electrical malfunction in the steering column vertical adjustment motor.

Diagnosis / Trigger Conditions

Diagnosis typically begins with a customer complaint that the electric steering column adjustment is not working. Workshop findings often confirm that the customer's statement can be reproduced. In some cases, no DTC may be stored, but if one is present, it will be the B14BF01 code with symptom code 66145.

Repair Procedure Summary

The root cause of this issue is identified as a software problem. The repair involves updating the steering column control module, J866, and performing a physical adjustment procedure. This process is outlined in TSB 2062288/5 and requires following instructions from TSB 2011732: 00 Software Version Management (SVM), operating instructions.

1. Software Update: Update the steering column control module, J866, using SVM action code 649S001. This update applies to models with Old Software Part Numbers 80A907705A (version 0100/0200) or 80A907705 (version 0080/0100), updating them to New Software Part Number 80A907705A (version 0210).

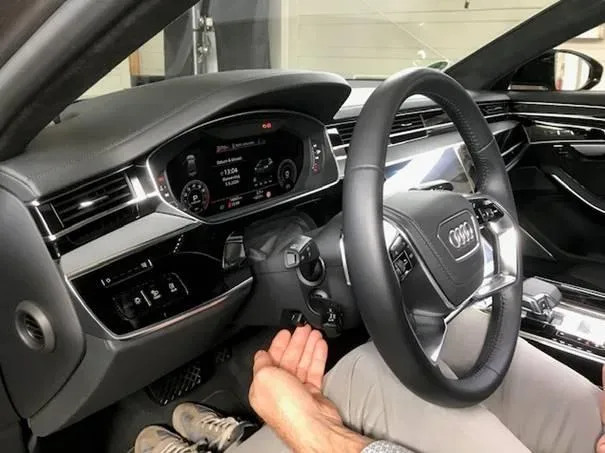

2. Restore Steering Column Function: To restore the electric steering column adjustment, an occupant must get into the vehicle and use their knees to push the steering wheel upward with approximately 40 kg (88 lbs) of force. Simultaneously, the steering column adjustment switch must be pressed upwards in the vertical adjustment direction.
3. Clear Adjustment Unit: The electric steering column adjustment must then be cleared by performing up to 50 adjustment cycles in the vertical direction. This step requires the use of a special tool kit.

Required Tools or Parts

To perform the adjustment cycles and clear the steering column unit, technicians will need:

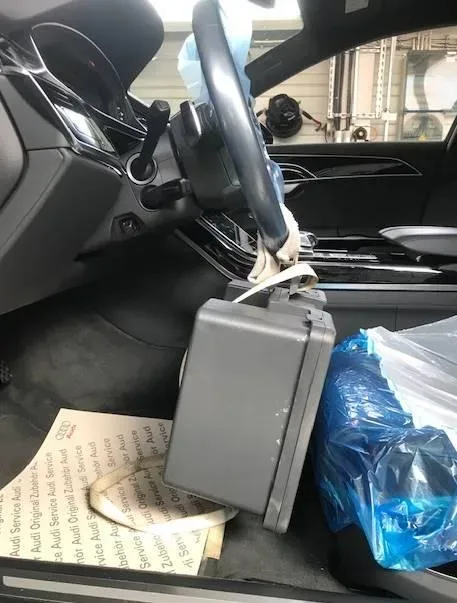

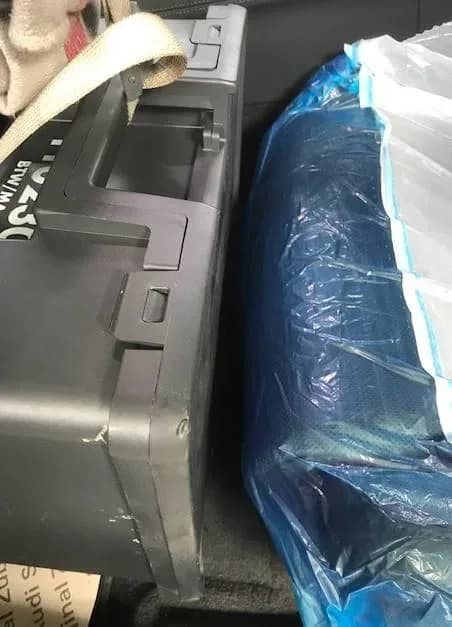

• Tool Kit T10230: This assembly tool weighs approximately 9 kg (20 lbs) and is necessary to simulate the required weight for the adjustment process. If the tool kit T10230 is not available in the workshop, technicians are advised to look for a similar weight toolbox.

Important Warnings

• Tool Kit T10230 Alternative: If the tool kit T10230 is not available in the workshop, look for a similar weight toolbox to ensure the procedure can be completed correctly.

Owner Action

If your 2021-2023 Audi A6, A7, or A8 is experiencing issues with the electric steering column adjustment not working, or if you suspect a DTC B14BF01, it is recommended to schedule an appointment with an authorized Audi service center. They will be able to diagnose the issue and perform the necessary software update and physical adjustment as per TSB 2062288/5.

Warranty Information

For vehicles within warranty, this Technical Service Bulletin is informational only. Warranty claims related to this repair must be submitted in accordance with the Audi Warranty Policies and Procedures Manual. The Service Number for this procedure is 4823, with a Damage Code of 0040. Labor operations include Software Update (0151 0000), Charge Battery (2706 8950), and Check and adjust steering column (4823 0599).

NHTSA ID: 11022635
