2021-2024 Audi Steering Squeak TSB 48 23 43 2055733/4

Symptoms

Owners of affected 2021-2024 Audi vehicles may notice an Audi steering squeak emanating from the steering column. This squeaking noise is particularly apparent when steering slowly. The sound may also become louder at higher temperatures or after longer driving periods, indicating a potential issue with the intermediate steering shaft.

Technical Background

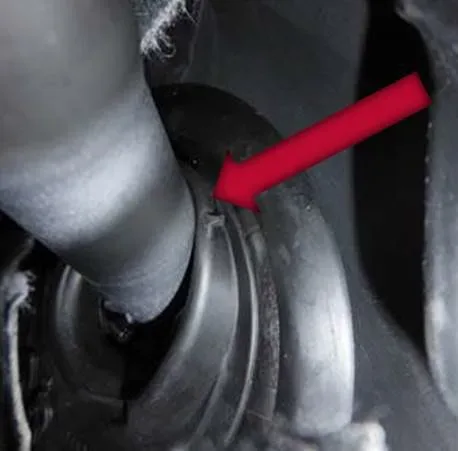

Audi's Technical Service Bulletin 48 23 43 2055733/4 explains that the squeaking noise originates from the rubber boot of the intermediate steering shaft. Specifically, the noise is caused by the sealing sleeve (also known as the sealing lip) where the steering shaft rests on its cone. This condition is attributed to incorrect positioning of the sealing sleeve in the bulkhead, combined with unfavorable manufacturing tolerances of the components involved.

Repair Procedure Summary

To address the Audi steering squeak, technicians should follow a specific repair procedure outlined in TSB 48 23 43 2055733/4. This involves accessing the steering intermediate shaft and its associated components. The general steps are:

1. Disconnect the intermediate steering shaft from the steering column.
2. Loosen the rubber sealing sleeve and then push it upwards as far as possible. Once repositioned, the sleeve is retightened.
3. Reinstall the steering intermediate shaft to the steering column, using new bolts for secure attachment.

For comprehensive repair instructions, technicians are directed to refer to Elsa at Repair Manual, Chassis >> 48 Steering >> Steering Column >> Steering Intermediate Shaft, Removing and Installing.

Important Warnings

It is crucial to note that there is a significant risk of accident due to an absence of traction if the steering intermediate shaft is installed incorrectly. Technicians must pay close attention to the installation position and follow all installation instructions precisely to ensure vehicle safety and proper function.

Required Parts and Tools

The repair procedure outlined in TSB 48 23 43 2055733/4 requires specific fasteners. Technicians should consult ETKA (Audi's electronic parts catalog) and the relevant Repair Manual for the necessary part numbers for fasteners, bolts, nuts, and screws.

Warranty Information

This repair for the Audi steering squeak is covered under warranty for vehicles up to 48 months or 50,000 miles. For Certified Pre-Owned (CPO) vehicles, the claim type is G10, and owner verification is required. All warranty claims must adhere to the Audi Warranty Policies and Procedures Manual and are subject to review or audit by Audi Warranty.

Bulletin History

This Technical Service Bulletin, 48 23 43 2055733/4, dated June 29, 2023, supersedes an earlier bulletin, Group 48 number 22-31, dated April 28, 2022. Previous revisions of the bulletin included updates to the header and added model years.

NHTSA ID: 10238318 ```
