2019-2026 Audi Virtual Cockpit Display Distorted TSB

Audi has released Technical Service Bulletin (TSB) 2065960/5 to address concerns regarding distorted or broken virtual cockpit displays in various models from 2019 to 2026. This TSB, last revised on May 7, 2025, provides crucial information for technicians and owners about the nature and cause of these display issues, particularly for vehicles like the Audi e-tron virtual cockpit distorted display.

Symptoms of a Distorted Virtual Cockpit Display

Owners may observe a range of issues with their Audi virtual cockpit display. These complaints often include:

• The display "gives incorrect reading"
• "Pixel malfunction in display"
• General "appearance, surface" issues
• The display appearing "damaged"
• "Functionality -> faulty" operation
• "Functionality -> misfire" or intermittent operation
• The display being "partially out of order" or having "no function"
• "Operation sequence incorrect"

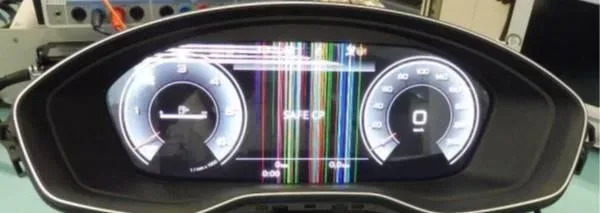

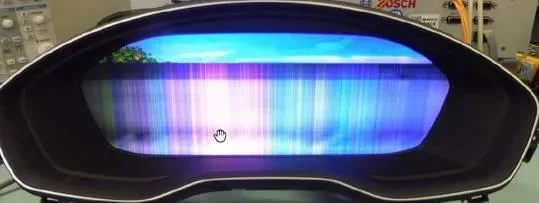

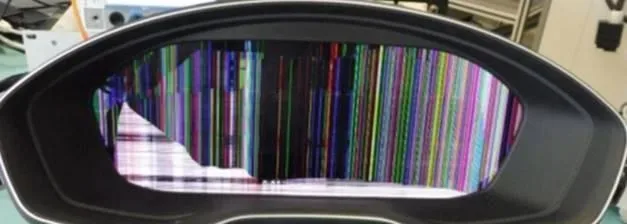

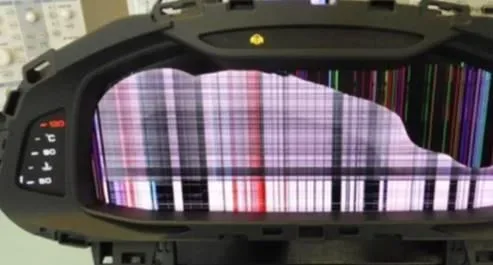

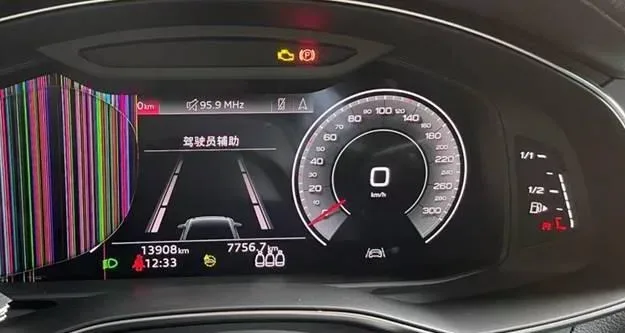

These symptoms collectively describe a visually impaired or non-functional instrument cluster display, often characterized by cracks, lines, or dead pixels as shown in the TSB's accompanying images.

Diagnosis and Cause of the Issue

Extensive analysis has determined that the primary cause of the Audi virtual cockpit distorted display is external force applied to the display layer beneath the uppermost protective film. This force can be exerted directly on the screen or the display housing. While the transparent top film may not be broken, it might show witness marks such as fingerprints, scratches, or polishing marks where the force was applied.

Common scenarios leading to this external force include:

• Improper cleaning of the virtual cockpit.
• Repair work performed on the dash panel.
• An accident involving the vehicle.
• A user incorrectly assuming the virtual cockpit has touchscreen functionality and applying pressure.

It is important to note that the damage, such as fatigue cracking in the lower display layer, may not be immediately visible after the initial force is applied. Symptoms of an Audi e-tron virtual cockpit distorted display can sometimes manifest after several hundred miles of driving.

Important Warranty Information

Audi's TSB 2065960/5 clarifies that if a vehicle has an odometer reading of over 600 miles, material and/or production issues are ruled out as the source of the complaint. Consequently, warranty claims for vehicles with over 600 miles will not be reimbursed by warranty. This damage is considered to be due to outside influence and is explicitly not covered by any Audi Warranty. Owners should be aware of this policy when seeking resolution for a distorted or broken virtual cockpit display.

Owner Action

If you are experiencing issues with your Audi virtual cockpit display, such as distortion or breakage, and suspect it might be related to external force, it is important to understand the warranty implications outlined in TSB 2065960/5. Given that warranty coverage is typically denied for vehicles over 600 miles with this issue, owners should consider their options for repair or replacement, which would likely be an out-of-pocket expense. For specific virtual cockpit configurations, technicians may refer to PR numbers such as 7J3, 9S8, or 9S9.
