2024 Tesla Model 3 Rattling Air Vent Fix TSB

Some 2024 Tesla Model 3 vehicles, specifically those built at the Fremont factory, may develop a rattling noise originating from the driver and/or front passenger instrument panel air vent. This issue is most noticeable when the face-level air vents are directed to straight ahead air flow. Tesla has released Service Bulletin SB-24-14-001 R1 to provide guidance for technicians on diagnosing and correcting this condition.

This bulletin, SB-24-14-001 R1, is a revised version that supersedes the original SB-24-14-001 dated August 29, 2024. The updated revision includes changes to the air vent inspection steps.

Symptoms

Owners may observe a distinct rattling noise emanating from the instrument panel air vents. This noise typically occurs when the vehicle's face-level air vents are set to direct air straight ahead. If you hear a rattling noise, it indicates your Tesla Model 3 rattling air vent issue may be present.

Diagnosis / Trigger Conditions

To diagnose the rattling noise, a technician will first confirm the customer complaint. The diagnostic procedure involves a test drive where the climate control system is manipulated to reproduce the noise.

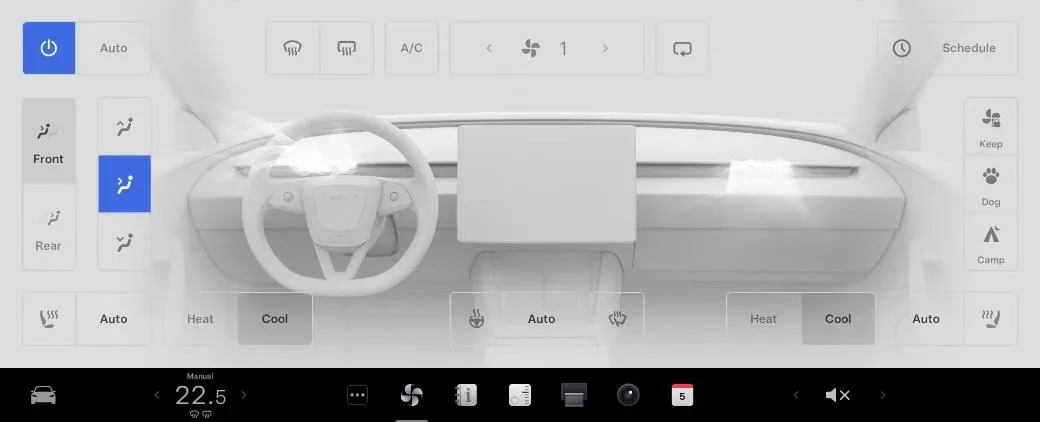

1. The technician will access the main climate controls screen via the touchscreen.

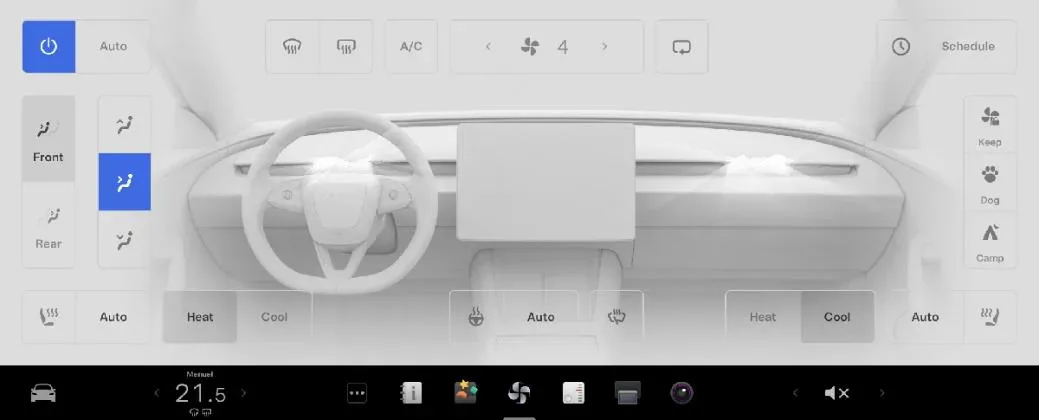

2. Air flow will be set to face-level vents, directed to a centered and straight-ahead position.
3. The climate system will then be turned off.

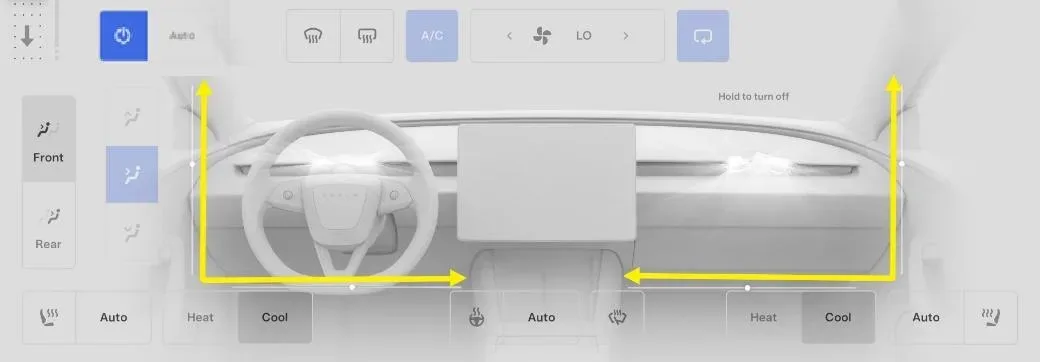

4. During a test drive, if a rattling noise is detected, the technician will adjust the air flow direction to the outboard sides of the vehicle, then turn off climate control.
5. This process is repeated, moving the air flow back to the center/upward position, and then again with air flow directed completely downward.
6. The technician will compare the rattling noise levels across these different air flow settings.

If the rattling noise persists regardless of air flow adjustments, further diagnosis beyond this bulletin is required. However, if the noise diminishes when the air flow is adjusted, the bulletin applies, and the affected air vent(s) will be replaced.

Correction Codes and Times

Tesla uses specific correction codes for tracking this repair. The time allocated for each procedure varies based on the diagnostic outcome:

Correction Code	Description	Time (hours)
SB-24-14-001	Not Applicable	0.00
S022414001	Inspect Instrument Panel Air Vents; Symptoms Not Found	0.30
S032414001	Inspect And Replace Driver Instrument Panel Air Vent	1.44
S042414001	Inspect And Replace Front Passenger Instrument Panel Air Vent	1.44
S052414001	Inspect And Replace Driver And Front Passenger Instrument Panel Air Vents	1.50

Repair Procedure Summary

If the diagnostic steps confirm that the rattling noise is caused by the air vent(s) and diminishes with air flow adjustment, the affected component will be replaced. The specific vent(s) to be replaced depend on where the noise is localized:

• If the rattling noise is only from the driver side air vent, the driver instrument panel air vent will be replaced using correction code S032414001.
• If the rattling noise is only from the front passenger side air vent, the front passenger instrument panel air vent will be replaced using correction code S042414001.
• If the rattling noise is present from both the driver and front passenger air vents, both will be replaced using correction code S052414001.

For detailed instructions on replacing the instrument panel air vent, technicians are directed to Service Manual procedure 1405030052. The procedure for the front passenger air vent is similar to that for the driver side.

Required Parts

The following parts may be required for the repair of the Tesla Model 3 rattling air vent:

• 1774505-05-E: IP, AIR, VENT, DRIVER, ASY (Quantity: 1)
• 1774506-05-E: IP, AIR, VENT, PASSENGER, ASY (Quantity: 1)

These part numbers were current at the time of publication. Technicians should refer to the Parts Catalog for the latest revisions.

Important Warnings

It is important to note that this repair, as outlined in Service Bulletin SB-24-14-001 R1, cannot be performed by Mobile Service. Owners will need to schedule an appointment at a Tesla Service Center for this issue.

Owner Action

If you own a 2024 Tesla Model 3 and are experiencing a rattling noise from your instrument panel air vents, especially when the air flow is directed straight ahead, you should schedule a service appointment with a Tesla Service Center. Be prepared to describe the conditions under which the Tesla Model 3 rattling air vent noise occurs to assist the technicians in their diagnosis.

---

Source: NHTSA ID: 11009773
