2021-2023 Nissan Drive Shaft Boot Leak Service Information

Nissan Technical Service Bulletin (TSB) NTB22-101 provides crucial information for technicians regarding drive shaft (axle shaft) boot service on various 2021-2023 Nissan vehicles. This bulletin specifically addresses instances where a drive shaft boot is found to be leaking grease.

The primary goal of this TSB is to guide proper repair procedures, ensuring that technicians replace only the necessary components and avoid costly, unnecessary part replacements. Owners of affected vehicles should be aware of this guidance when seeking service for a Nissan drive shaft boot leak.

Symptoms

The main symptom covered by this TSB is a drive shaft (axle shaft) boot that is leaking grease. It is important to note that this bulletin applies specifically when there is no abnormal noise or obvious CV Joint risk due to water intrusion or complete grease loss. If these additional symptoms are present, further diagnostic steps beyond this TSB may be required.

Important Warnings

This TSB includes critical warnings for technicians and, by extension, for vehicle owners:

• Avoid Unnecessary Axle Replacement: The bulletin explicitly states, "If the complete axle (drive shaft) is replaced when only a new boot is required, the over-repair may be charged back to the dealer." This means that if only the boot is faulty and a repair kit is available, replacing the entire axle is considered an incorrect and potentially chargeable repair. This protects owners from being upsold on a more expensive repair than necessary.

• Prevent Drive Shaft Thread Damage: Technicians are advised, "When servicing vehicles with staked axle nuts, refer to NTB21-013 to prevent Drive Shaft thread damage." This instruction highlights a specific technical detail that, if overlooked, could lead to additional damage during the repair process. Owners should ensure their service center is aware of all relevant technical bulletins.

Repair Procedure Summary

When a 2021-2023 Nissan drive shaft boot leak is identified, technicians should follow a specific procedure:

1. Check for Repair Kit Availability: The first step is to determine if a REPAIR KIT-DUST BOOT (CV Joint Boot Kit) is available for the specific vehicle being serviced. This kit contains the necessary components to replace the leaking boot.
2. Boot Kit Installation: If the repair kit is available, technicians are instructed not to replace the entire axle. Instead, they must install the new boot kit by following the detailed procedure outlined in the Electronic Service Manual (ESM). The relevant section in the ESM is: "TRANSMISSION & DRIVELINE > FRONT AXLE > REMOVAL AND INSTALLATION > FRONT DRIVE SHAFT BOOT."
3. Further Diagnostics: If a REPAIR KIT-DUST BOOT (CV Joint Boot Kit) is not available for the vehicle, technicians should refer to the ESM for further diagnostic information to determine the appropriate course of action.

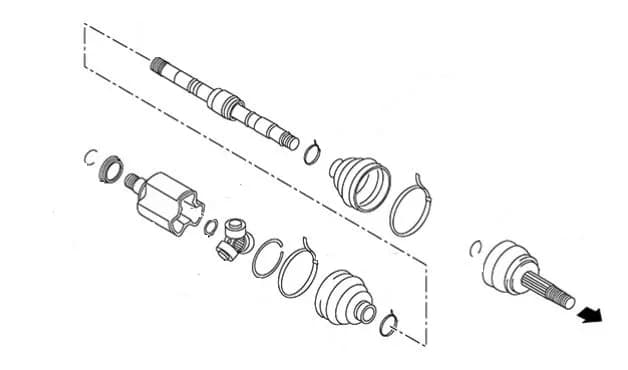

Figure 1 in the TSB illustrates a driver (LH) side axle, showing the outer and inner boot components, with the passenger (RH) side axle being similar in construction.

Required Parts

The primary part required for this repair is the REPAIR KIT-DUST BOOT (CV Joint Boot Kit). The specific part number for this kit must be determined by referencing the Electronic Parts Catalog (EPC) and using the VIN (Vehicle Identification Number) of the vehicle being repaired. This ensures the correct kit is ordered and installed for the particular Nissan model.

Owner Action

If you notice grease leaking from a drive shaft boot on your 2021-2023 Nissan, it is recommended to contact your authorized Nissan dealership. Inform them of the symptom and mention Nissan TSB NTB22-101. This will help ensure that the technicians follow the correct repair procedure, potentially saving you from an unnecessary full axle replacement if only the boot needs attention. Ensure that the repair adheres to the guidelines to address the Nissan drive shaft boot leak effectively.

Source: NHTSA ID 10227268
