2022-2025 Jeep Compass / Renegade Fuel Injector Leak TSB

Important Warning: Market Applicability

This Technical Service Bulletin (TSB) 14-009-25 REV. B specifically applies to vehicles sold in the South America market. This bulletin is not applicable to vehicles built for the U.S. market. Owners in other regions should consult their local dealership or service center for region-specific information.

Symptoms of a Fuel Injector Leak

Owners of affected 2022-2025 Jeep Compass and Renegade vehicles may experience several noticeable symptoms indicating a potential fuel injector leak. The most common sign is a Malfunction Indicator Lamp (MIL) illumination on the dashboard. Beyond the warning light, drivers might also observe:

• Unstable idle
• Abnormal engine noise

These symptoms are often accompanied by specific diagnostic trouble codes (DTCs) stored in the vehicle's computer system.

Fault Codes / DTCs

When a fuel injector leak is present, the vehicle's diagnostic system may record one or more of the following DTCs:

Code	Description
P0087-00	Fuel Line Pressure Sensor - Bank 1 - Pressure Below Limit
P0300-00	Multiple Cylinder Misfire
P0301-00	Cylinder 1 Misfire
P0302-00	Cylinder 2 Misfire
P0303-00	Cylinder 3 Misfire
P0304-00	Cylinder 4 Misfire
P006C-00	Air Pressure and Temperature Sensor - Correlation

Diagnosis and Trigger Conditions

To accurately diagnose a Jeep Compass fuel injector leak, technicians will follow a specific procedure. After confirming the customer's reported symptoms, the primary diagnostic step involves verifying a fuel injector leak using an endoscope. This process includes:

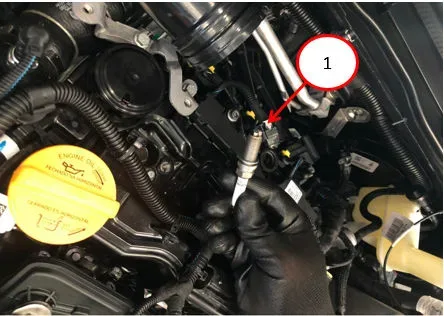

1. Removing the spark plugs to gain access. Detailed service procedures for spark plug removal and reinstallation are available in DealerCONNECT/Service Library under Service Info> 5510D10 – Velas de ignição – Remoção e Recolocação.

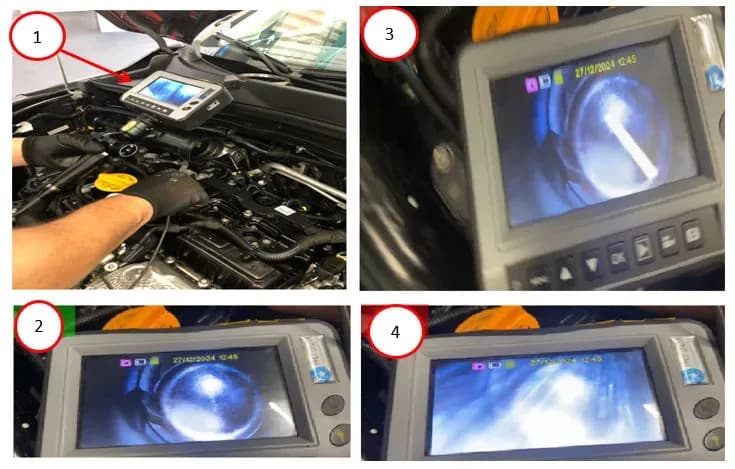

2. Using an endoscope (special tool EQ-10353143) to visually inspect all injectors. With assistance, the ignition key is turned on (without starting the vehicle) and held for one minute per injector to observe for leaks.

Repair Procedure Summary

Once a Jeep Compass fuel injector leak is confirmed, the repair procedure outlined in TSB 14-009-25 REV. B involves replacing the defective fuel injectors and the associated high-pressure tube. The number of injectors replaced depends on the diagnosis:

• If only one injector is defective, one injector and the high-pressure tube are replaced.
• If two injectors are defective, two injectors and the high-pressure tube are replaced.
• If three or all four injectors are defective, all four defective injectors and the high-pressure tube are replaced.

Technicians will refer to detailed service procedures in DealerCONNECT/Service Library under Service Info> 1056F60 - Tubo Coletor de Combustível Único - Completo de Eletroinjetor Remoção/Recolocação for the replacement process. After the replacement, all stored diagnostic trouble codes (DTCs) must be cleared from the vehicle's system.

Required Tools or Parts

For this repair, specific parts and special tools are necessary:

• Special Tools:
  • wiTECH or Equivalent diagnostic tool
  • Endoscope (Reference No: EQ-10353143)
• Spare Parts:
  • Fuel Injectors (Part No: 68670417AA / 46355952 - EMEA)
  • Pipe (Ramp/High Pressure Pump) (Part No: 68440665AA / 46341585 - EMEA)

Warranty Information

This repair, as described in TSB 14-009-25 REV. B, is reimbursable within the provisions of the vehicle's warranty. Owners should contact their authorized Jeep dealer for specific warranty coverage details.

Superseded Bulletin

This bulletin supersedes Technical Service Bulletin (TSB) 14-090-25 REV. A, which was issued on April 26, 2025. The current TSB includes additional model years, an updated build date, revised labor operation codes (LOPs), and updated spare parts information.

NHTSA ID: 11025501
