2025-2026 BMW Wheel Bolt Installation Difficulty TSB

BMW has released Service Information Bulletin (SIB) 36 02 25 to address a manufacturing issue affecting various 2025-2026 BMW models. This bulletin details why owners might experience difficulty removing or installing wheel bolts in the wheel bearing hub.

The core problem, identified as "DIFFICULT TO REMOVE/INSTALL WHEEL BOLTS IN THE WHEEL BEARING HUB," stems from an excess application of wax during the factory assembly process. This wax can cause the wheel bearing and brake disc to be incorrectly aligned, or not concentric, making the wheel bolts stick or jam.

Symptoms

Owners may notice that wheel bolts are unusually hard to remove or install. This difficulty arises because the wheel bearing and brake disc are not perfectly concentric. The presence of too much wax applied from the factory can also lead to the brake disc twisting, which further complicates wheel service.

Cause of the Problem

The root cause of the difficult wheel bolts is an excessive amount of wax applied to the wheel assembly during manufacturing. This wax interferes with the proper alignment of the wheel bearing and brake disc, making them non-concentric. When technicians attempt to remove or install wheel bolts, this misalignment creates resistance.

Important Warnings for Owners

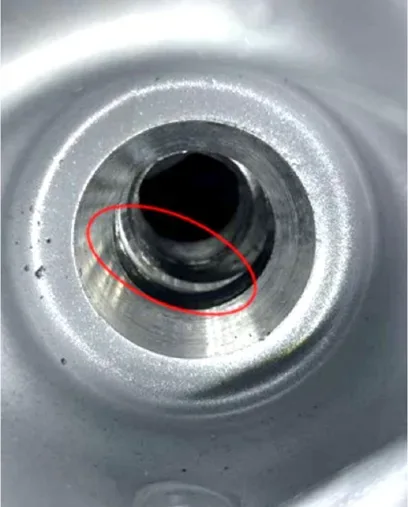

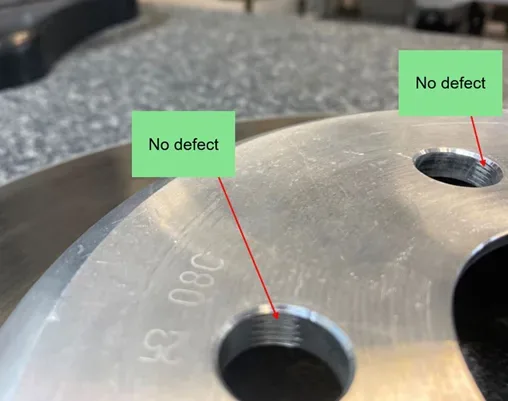

BMW advises against replacing the brake disc solely due to impressions from wheel bolt threads in the brake disc wheel bolt hole. This will not resolve the underlying issue of misalignment caused by excess wax. Additionally, the diagnosis work time flat rate code 00 58 500 is not claimable under warranty.

Repair Procedure Summary

The repair outlined in SIB 36 02 25 focuses on thoroughly cleaning the affected components. First, the applicable brake discs must be removed following the repair manual. Technicians must then inspect the wheel bolts and wheel bearing hub for any damage, replacing them if necessary.

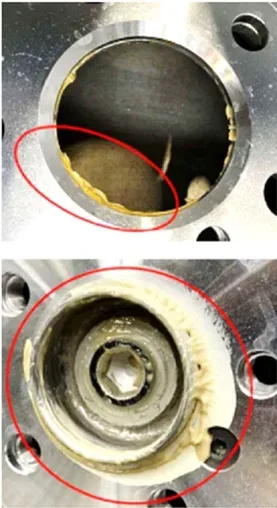

All excess wax must be meticulously removed from the wheel assembly, wheel bolts, wheel contact surface, brake disc chamber, and wheel bearing hub. This cleaning is performed using a universal brake cleaner, such as BMW G Non-chlorinated Brake Part Cleaner (P/N 83 19 2 451 315 or 83 19 2 451 316).

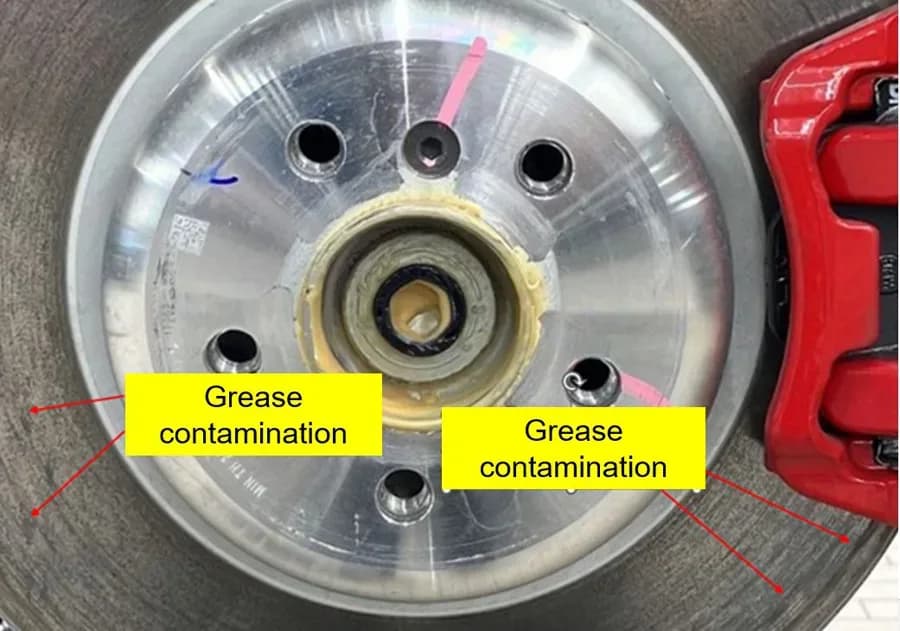

To ensure proper alignment during reassembly, two wheel lug bolts should be installed by hand across from each other before tightening the brake disc holding bolt. This allows for visual confirmation that the disc is concentric with the hub. If the brake disc shows grease contamination, it and the brake pads must be replaced. Finally, the wheel centering in the rim and front wheel hubs should be lightly greased with brake pad paste (P/N 83 12 2 296 187) to prevent corrosion.

Required Tools or Parts

To perform this repair, specific materials are required:

• BMW G Non-chlorinated Brake Part Cleaner (DN = 15 oz) 45% VOC: Part Number 83 19 2 451 315 (Sublet as needed)
• BMW G Non-chlorinated Brake Part Cleaner (DN = 15 oz) 10% VOC: Part Number 83 19 2 451 316 (Sublet as needed)
• Brake Pad Paste 5 mL/0.169 fl. oz: Part Number 83 12 2 296 187 (Quantity: 2)

Other parts that may be needed, depending on inspection, include wheel bolts, wheel hub with bearing, brake discs, and asbestos-free brake pad repair kits. These can be determined by referring to ETK or AIR using the vehicle's VIN or chassis number.

Claim Information for Dealers

For warranty claims related to the
