2024 BMW X-Series Panoramic Sunroof Leaks, Noise TSB

BMW has released Service Information Bulletin (SIB) 54 11 19 (Revision 7, dated September 2024) to address a range of common complaints related to the panoramic sunroof system in several 2024 BMW X-Series Sports Activity Vehicles. This bulletin supersedes the previous version dated January 2024 and serves as a vital diagnostic resource for technicians troubleshooting issues such as water leaks, wind noise, static noise, and various operational noises originating from the roof area. Owners experiencing 2024 BMW X5 panoramic sunroof issues should be aware of this bulletin.

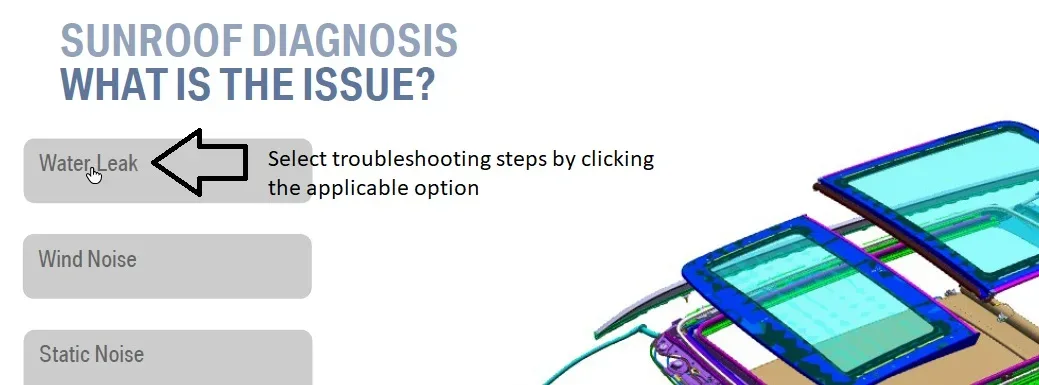

This bulletin and its accompanying attachments offer a single, unified diagnostic guide for all known panoramic sunroof problems, many of which have already undergone quality improvement measures. The document details over 30 potential causes for these issues, providing specific repair instructions and references to guide technicians through the diagnostic and repair process.

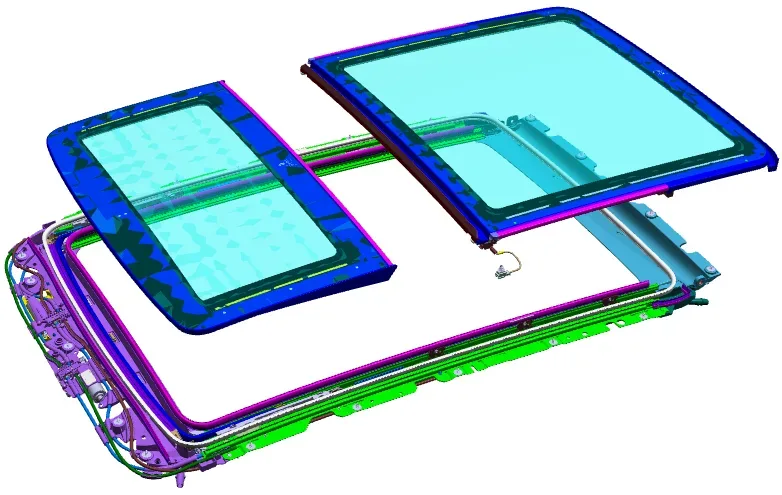

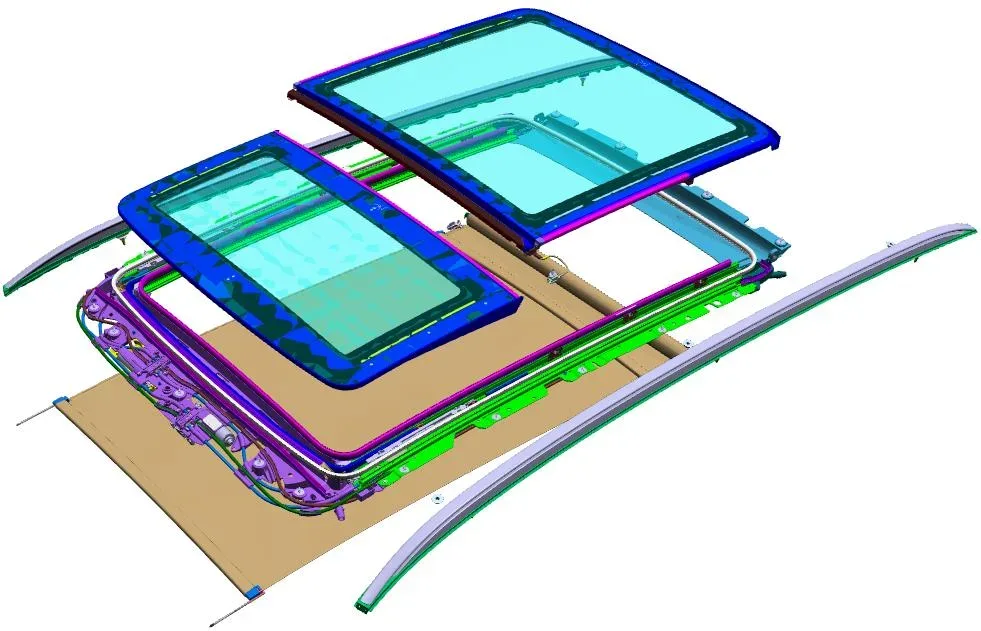

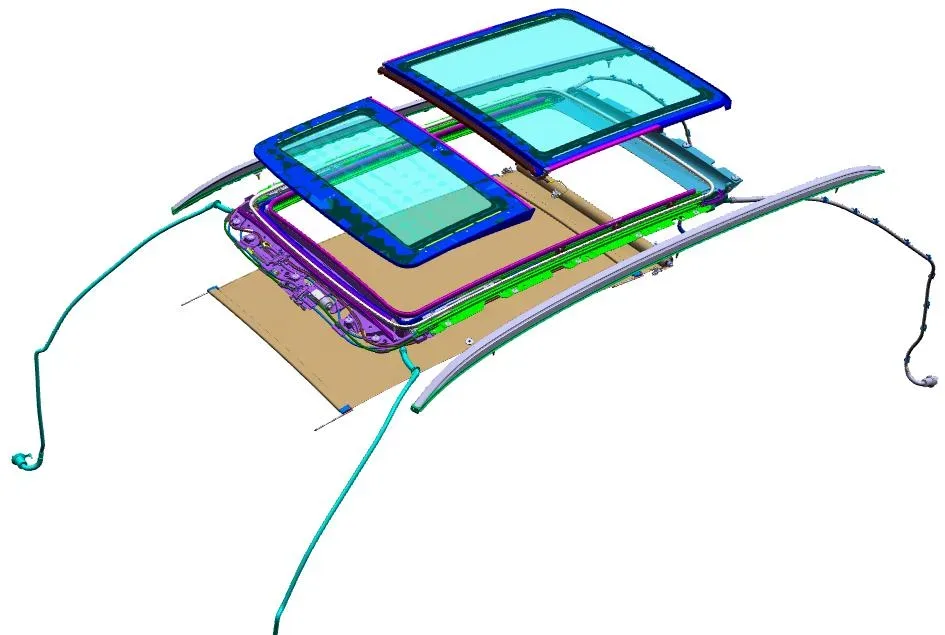

Symptoms and Potential Causes

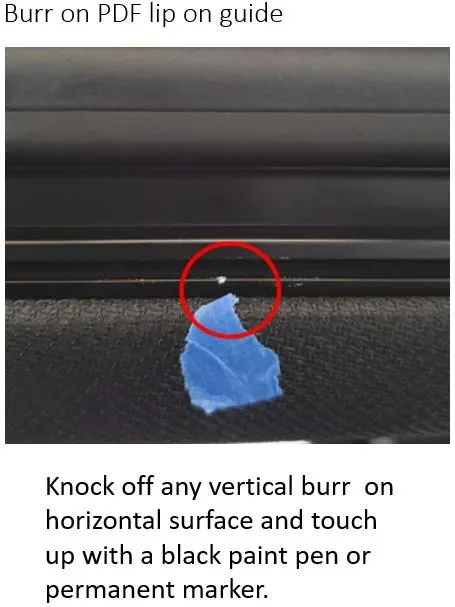

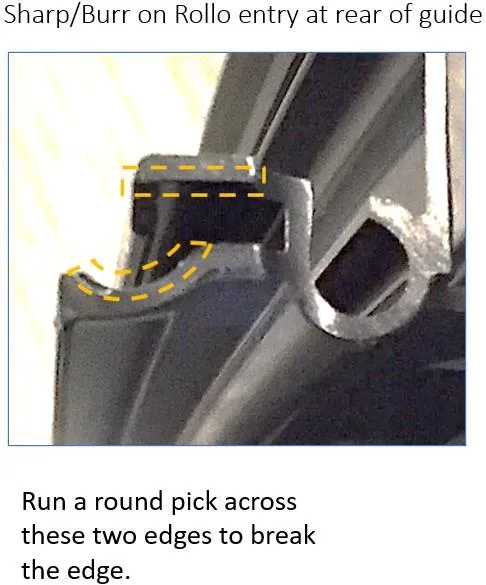

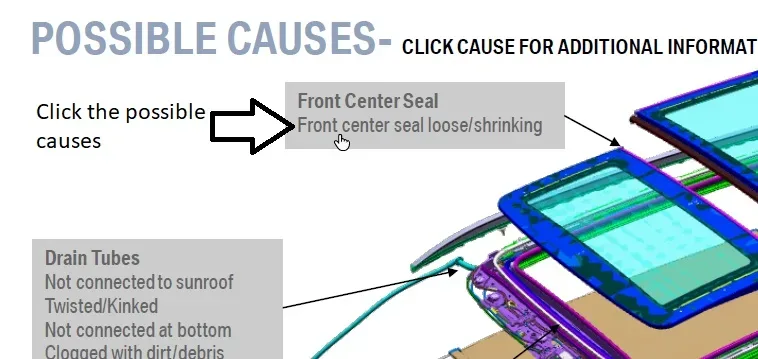

The SIB categorizes panoramic sunroof complaints into four main types: water leaks, wind noise, static noise, and function noise. Each category has multiple potential causes and corresponding diagnostic and repair steps.

Water Leaks

Water entry into the vehicle from the sunroof area can manifest in various ways, including leaks near the trunk or front carpets. Common causes for water leaks include:

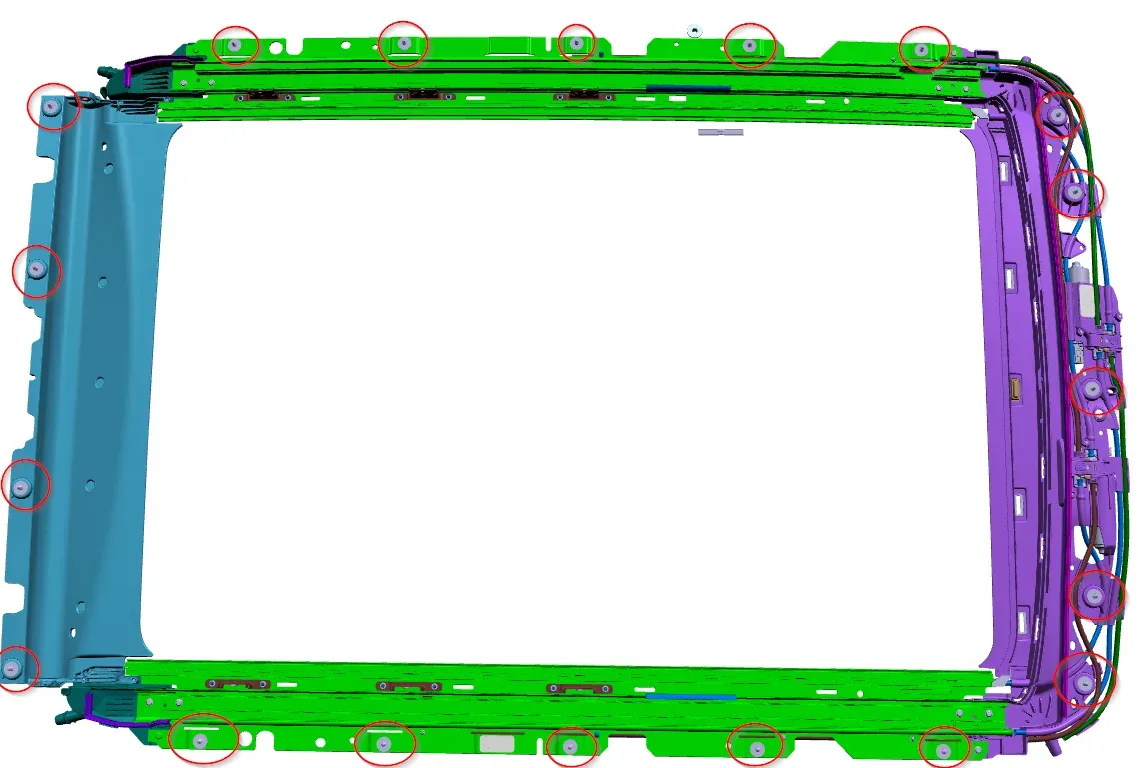

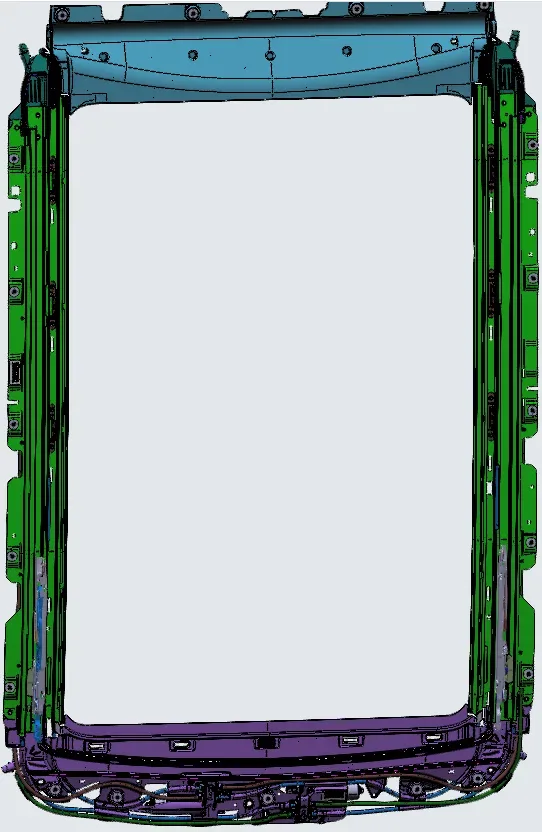

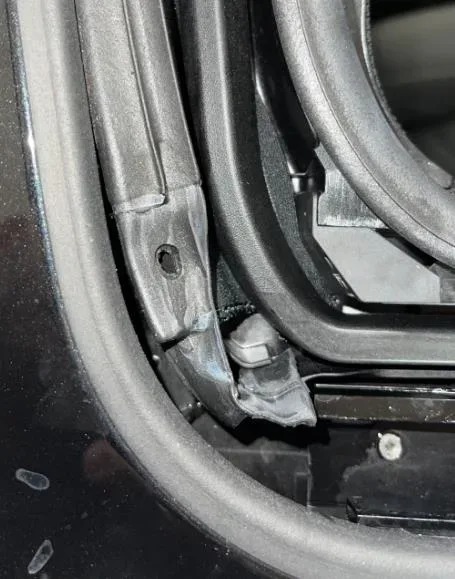

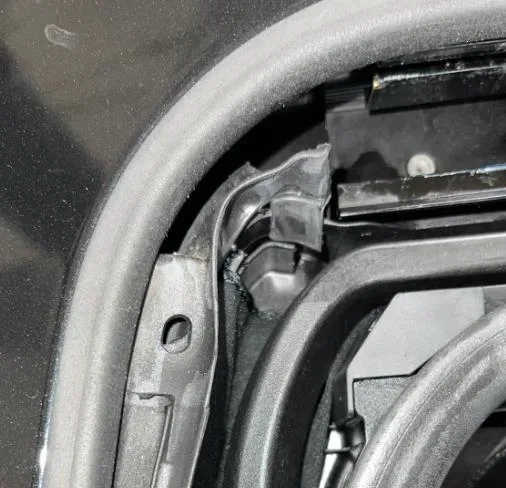

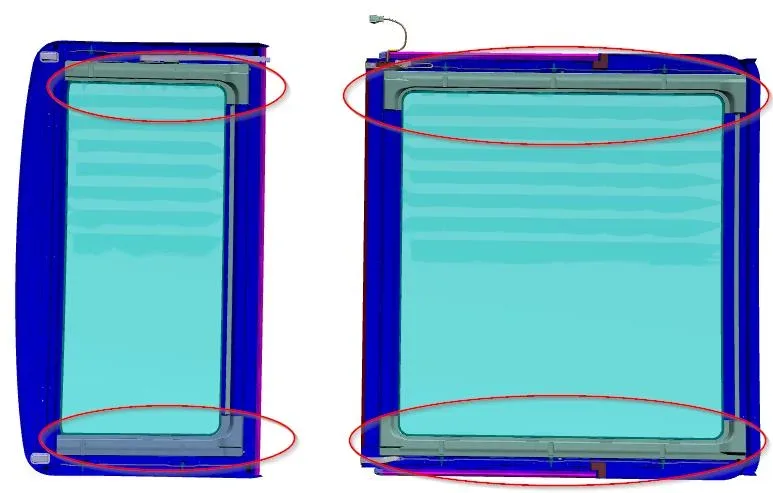

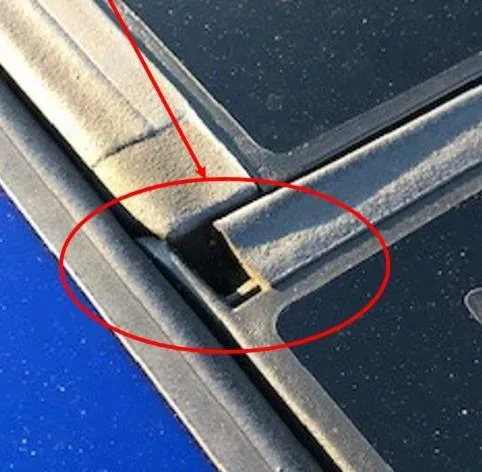

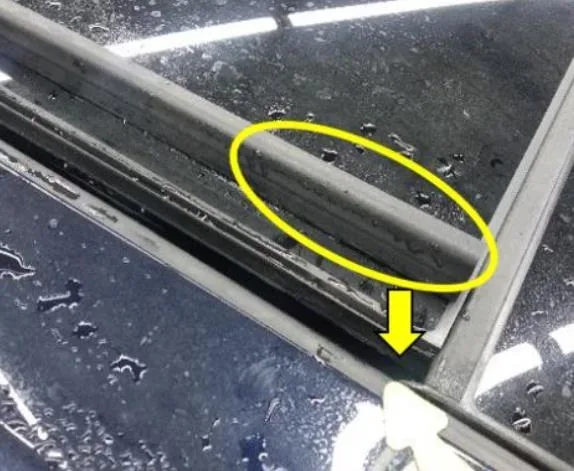

• Front Center Seal Loose/Shrinking: If the front center seal is loose or shrunken, excessive water can enter through the sunroof seals. Technicians are instructed to look for gaps and replace the seal following ISTA/AIR instructions REP 54 13 052, also referencing B54 04 21.

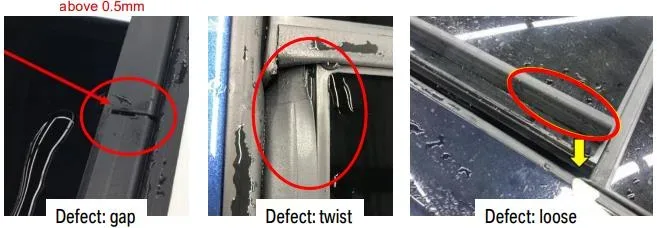

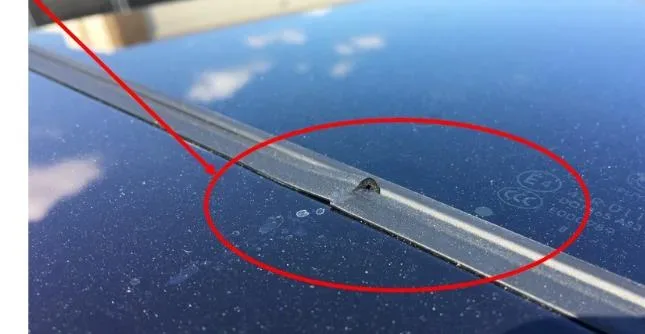

• Side Seal Loose/Shrinking: Similar to the front center seal, a loose or shrunken side seal can lead to water intrusion. Repair involves inspecting for gaps or twists and replacing the seal as per ISTA/AIR instructions REP 54 13 050.
• Body Seal Not Attached: If the sunroof perimeter body seal is detached or improperly installed, water can enter. Technicians will check if the seal is flush and replace it if damaged, following ISTA/AIR instructions REP 54 13 055.

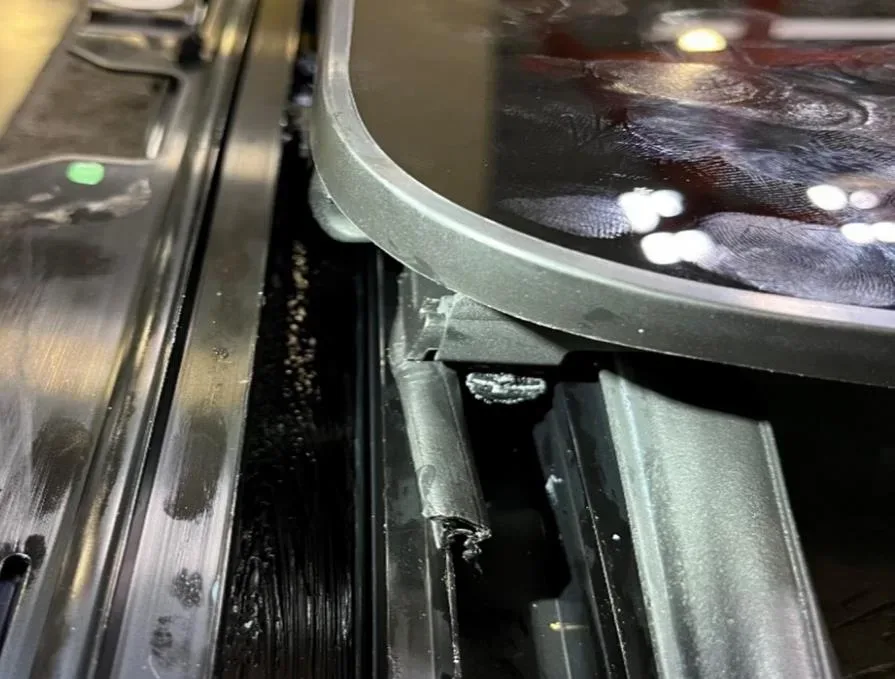

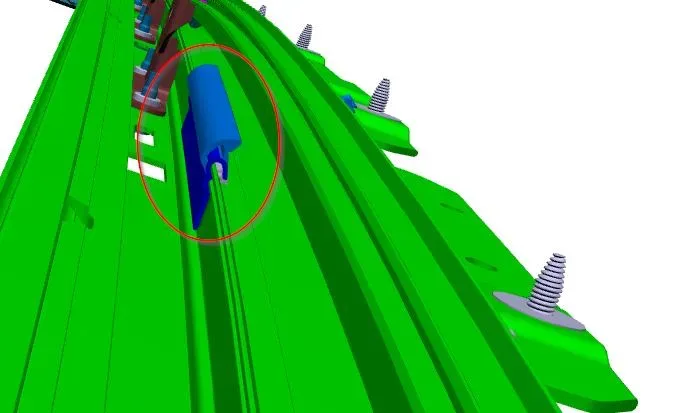

• Dyko Foam/Seal Water Intrusion: Water leaks near the middle drain channel can occur if the Dyko foam or seal is incorrectly positioned. Technicians must check and correct the position of the seal/foam, referring to SIB 54 01 23. A critical warning notes that if no foam/seal is present, it is NOT the root cause of a water leak, and replacing the frame for this reason is incorrect.

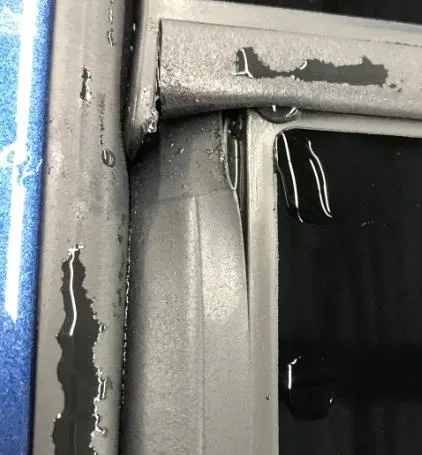

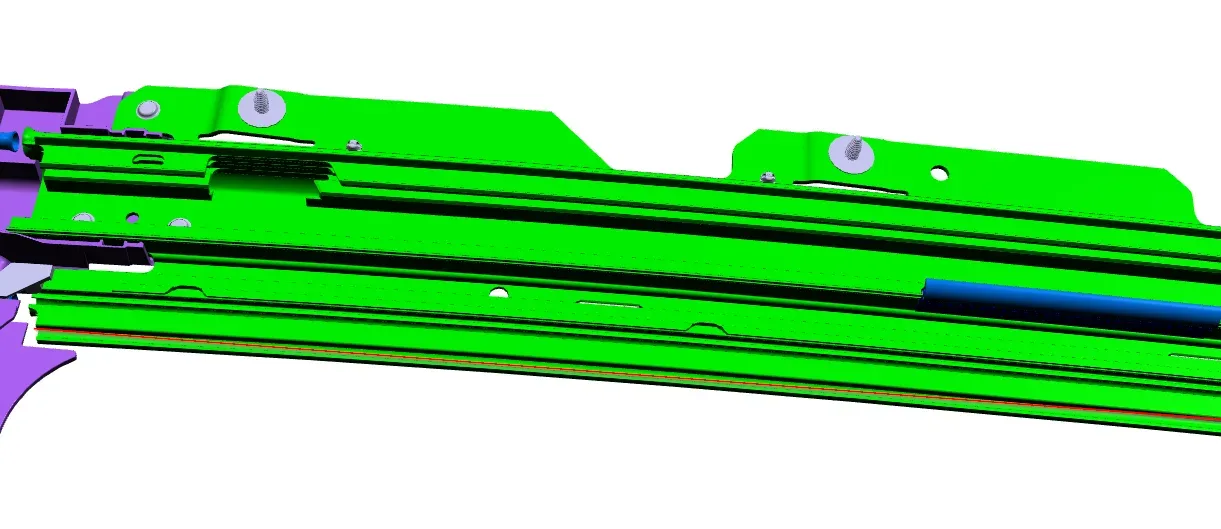

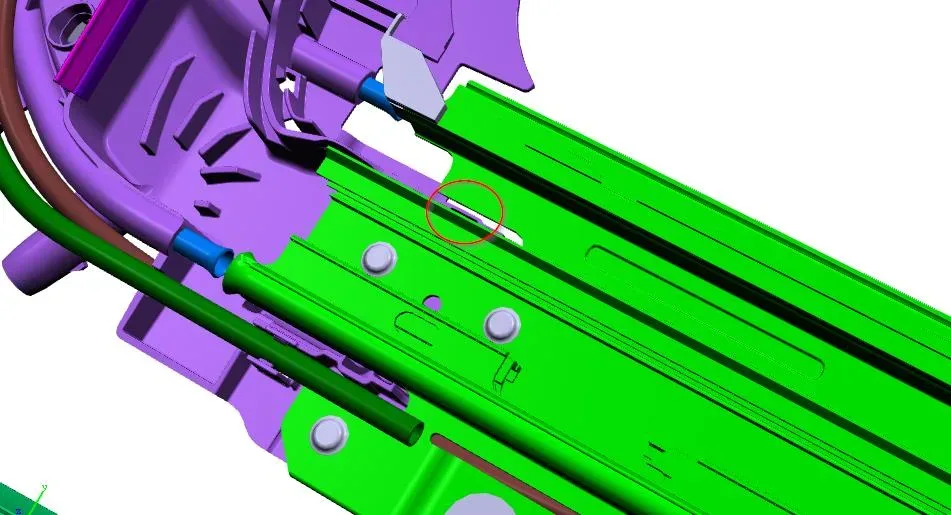

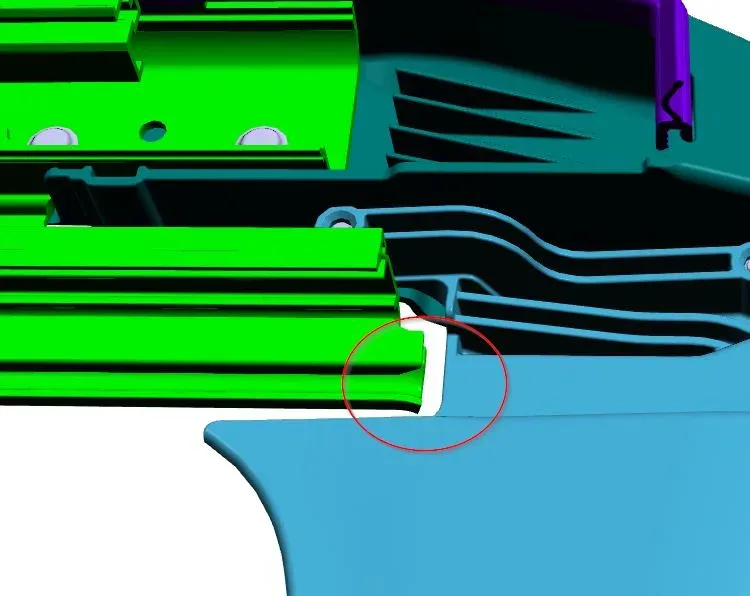

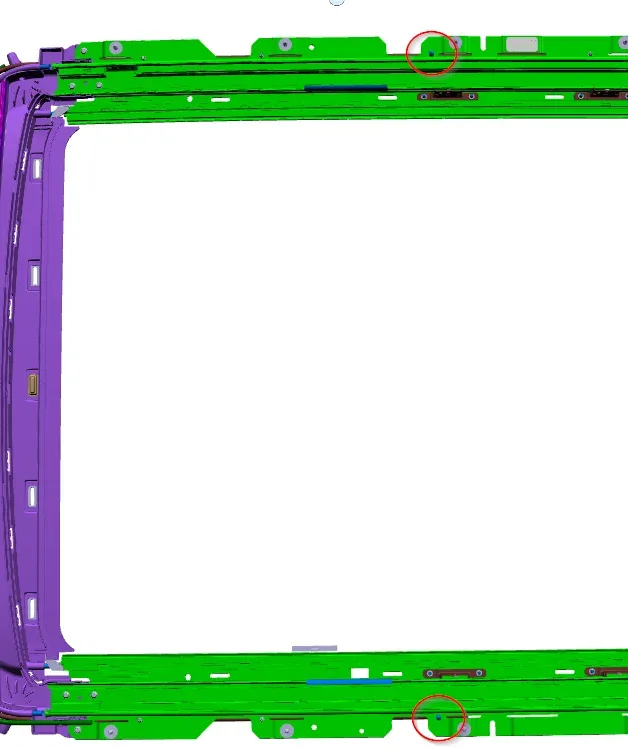

• Missing Butyl Between Side Guides and Beam: A water leak running between the front/rear beam and side guide may indicate missing butyl sealer. Technicians must first ensure all other water management components (seals, drains) are checked and proper water testing procedures are followed, specifically DO NOT OVERFLOW THE SEALED TRACK. If necessary, the frame may need replacement according to ISTA/AIR instructions REP 54 13 261.

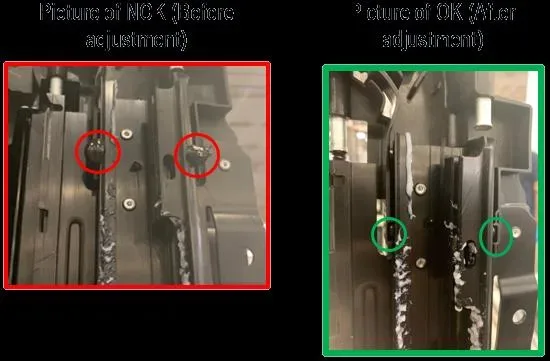

• Glass Panel Misalignment: Front/rear glass panels not aligned in X, Y, or Z can allow water to enter the perimeter of the glass or between panels. Adjustments to both sunroof glass panels are performed according to ISTA/AIR instructions REP 54 13 002.

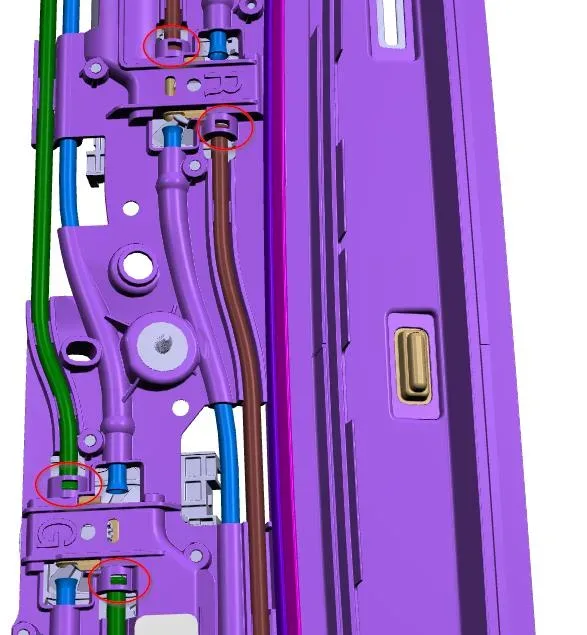

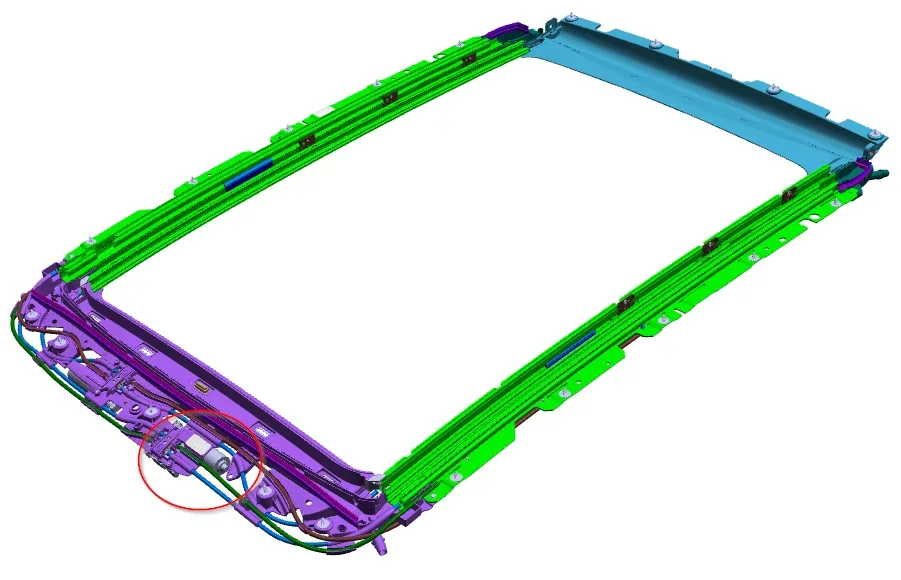

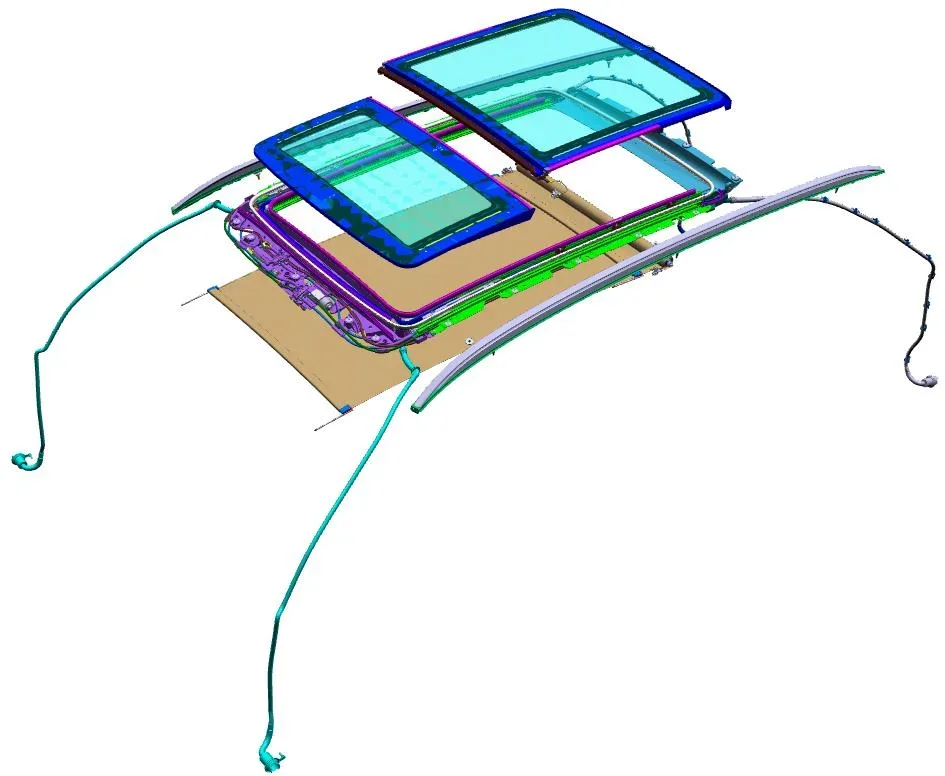

• Drain Tube Issues: Several problems with the drain tubes can cause water leaks:

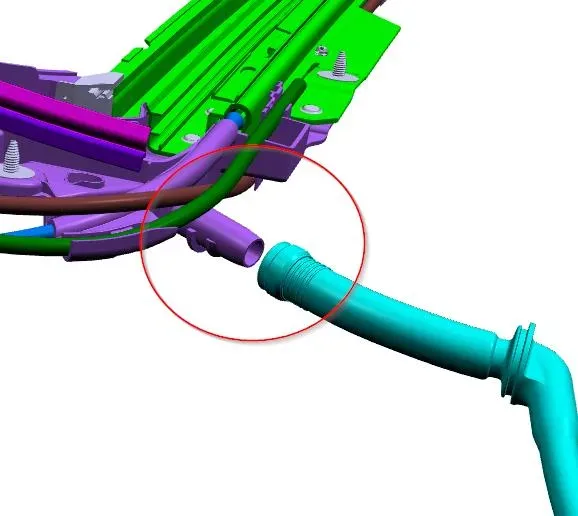

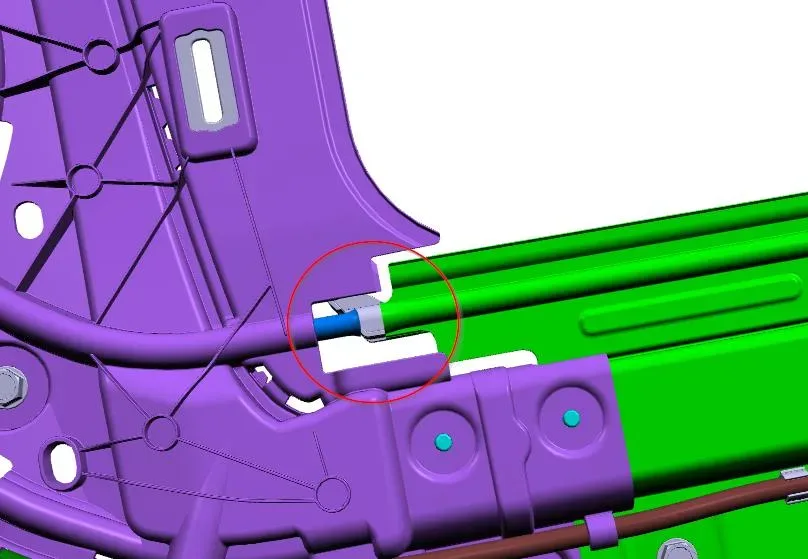

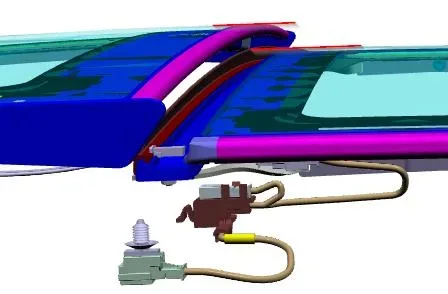

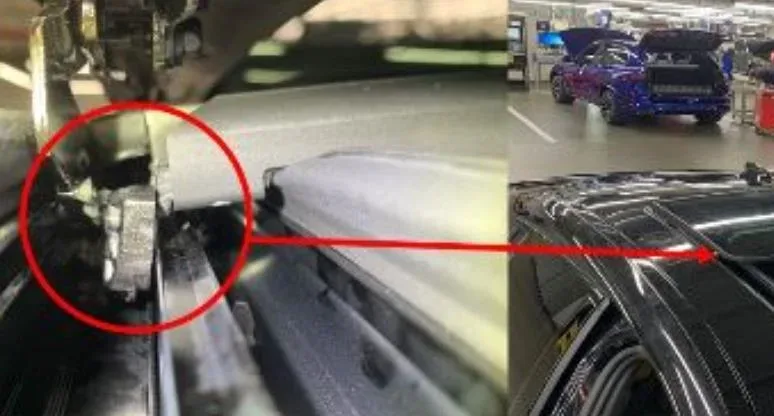

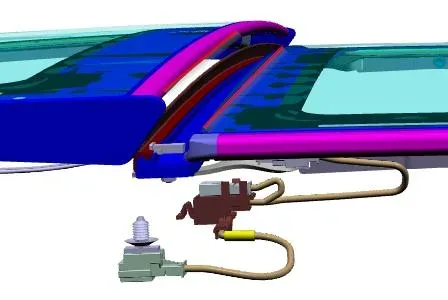

  • Not Connected at Top: Drain tubes not properly connected at the sunroof frame can lead to leaks near the trunk or front carpets. Reconnection is required.

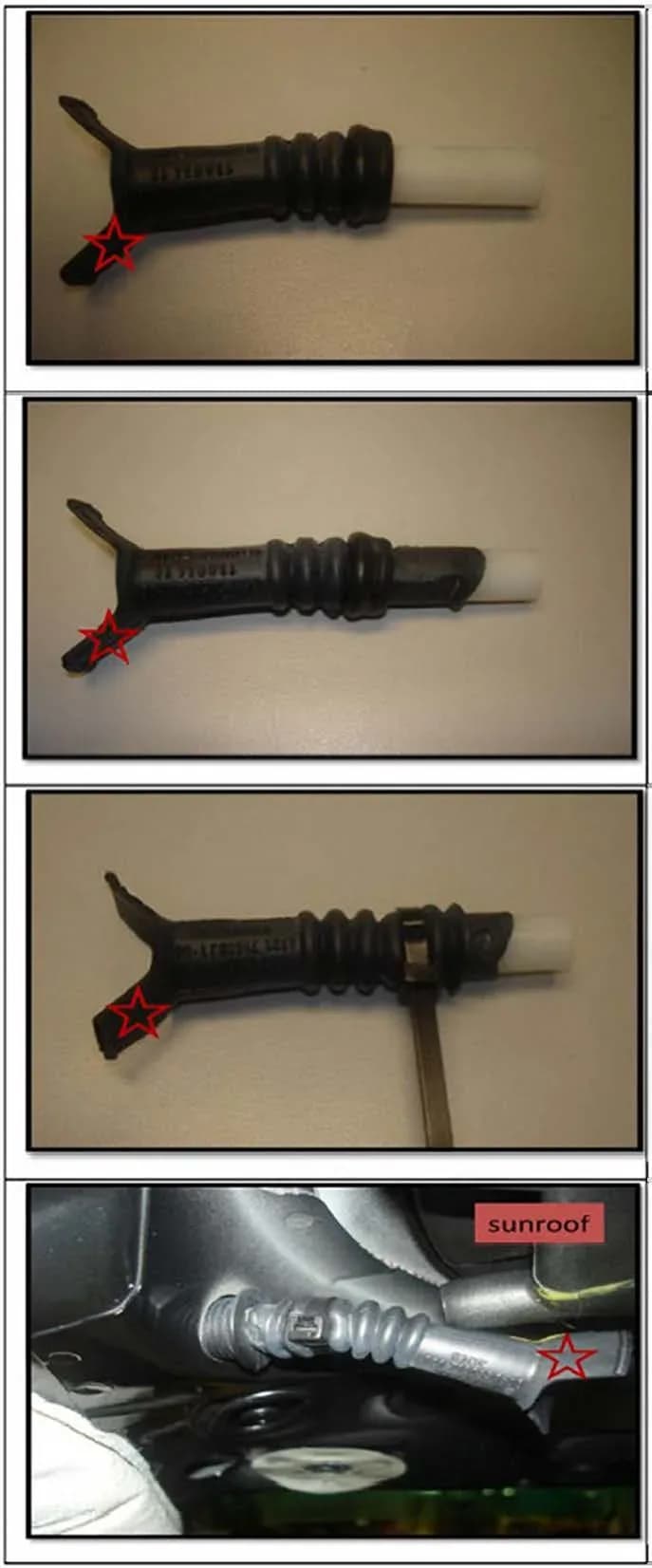

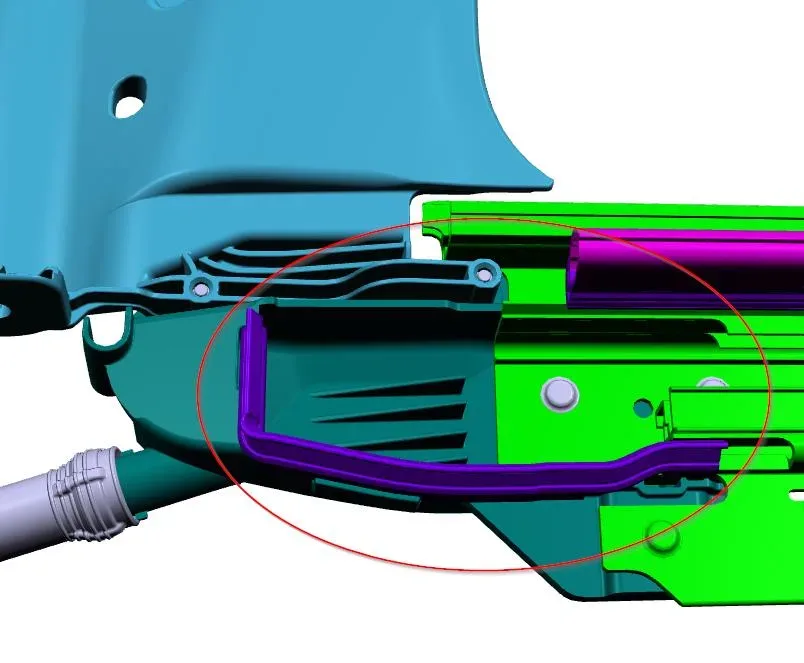

  • Twisted/Kinked: Twisted or kinked front drain tubes are a common issue, causing leaks near the front or rear carpets. Technicians must reposition the hose to remove kinks, potentially referring to B54 11 19 Attachment 1 for repair instructions. This is highlighted as a common issue requiring thorough investigation.

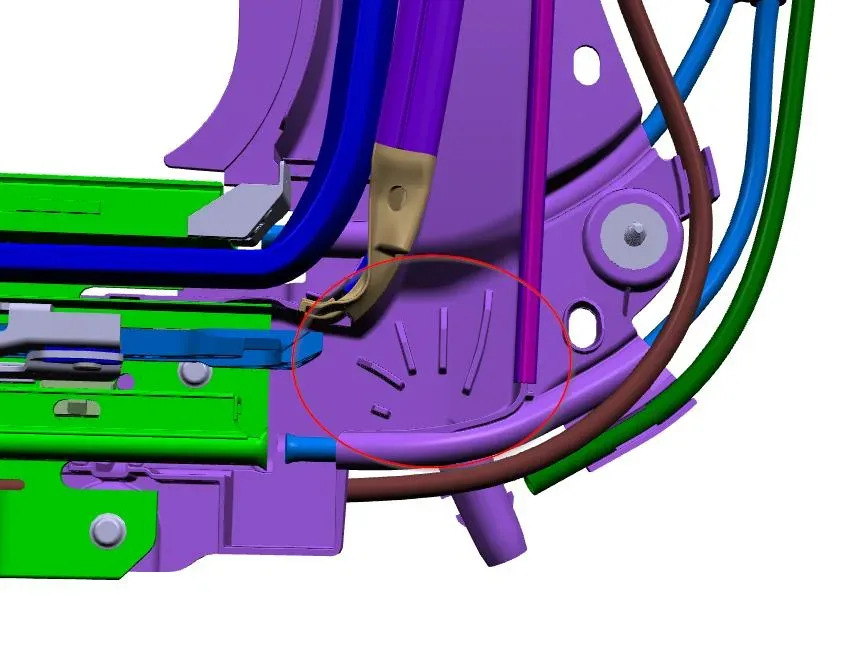

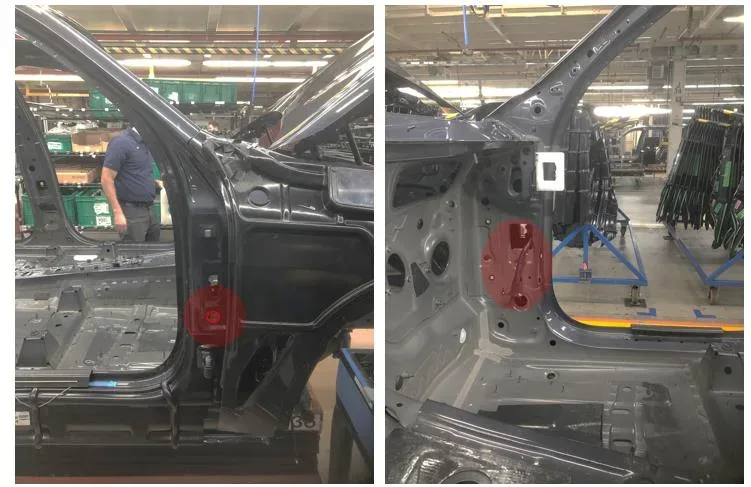

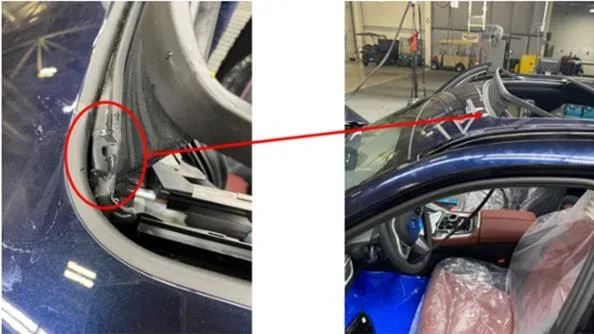

  • Not Connected at Bottom: Drain tubes not properly connected at the A-pillar or D-pillar at the bottom can also cause leaks. The drain grommet must be correctly seated.
  • Clogged (Dirt/Debris): Clogged drain tubes can cause water to leak onto the carpets. After checking for twists/kinks, technicians will gently blow air through the tube to clear debris. If a clog cannot be cleared, a TSARA case must be submitted.
• Aero Acoustic Seal Issues:
  • Not Installed/Stuck: An incorrectly installed or deformed aero-acoustic seal can cause front water leaks. The seal must be properly seated or replaced, along with the body seal, according to ISTA/AIR instructions REP 54 13 055.
  • Vent/Drain Holes Blocked: Flash or blockage at the front vent/drain holes of the aero-acoustic seal can also cause front water leaks. If blocked, the aero-acoustic seal must be replaced.
• Rear Beam Dyko Seal Not Installed: Water ingress in the trunk area may occur if the rear beam seal is not installed or properly seated. The frame may need replacement as per ISTA/AIR instructions REP 54 13 261.

Wind Noise

Excessive noise entry into the vehicle while driving, particularly at speeds around 30 mph or 50 kph, can be caused by:

• Front Center Seal Loose/Shrinking: Gaps in the front center seal can cause wind noise. Repair involves replacing the seal according to ISTA/AIR instructions REP 54 13 052, referencing B54 04 21.

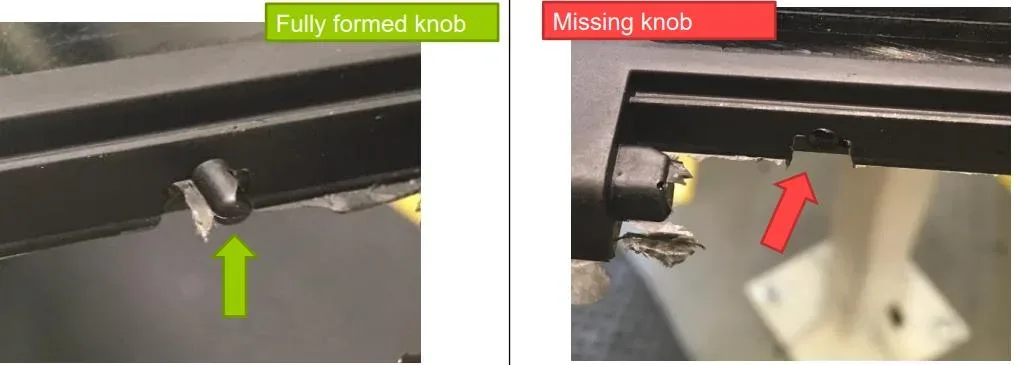

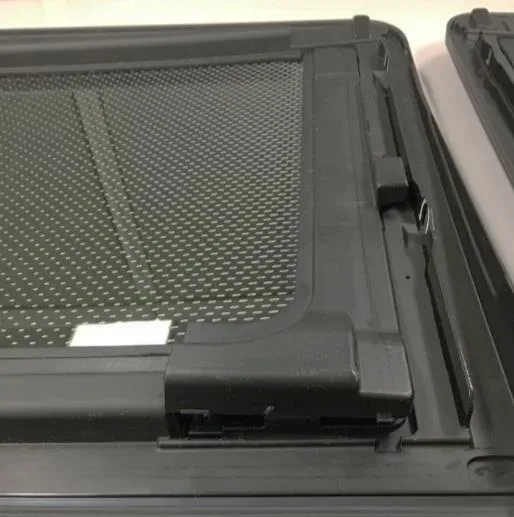

• Side Seal Loose/Shrinking: Gaps or twists in the side seal can also lead to wind noise. Replacement of the seal is guided by ISTA/AIR instructions REP 54 13 050. If a knob or locking feature is missing on the rear glass panel, the panel itself must be replaced.
• Body Seal Not Attached: A detached or improperly installed body seal can contribute to wind noise. Technicians will check for flushness and replace damaged seals as per ISTA/AIR instructions REP 54 13 055.

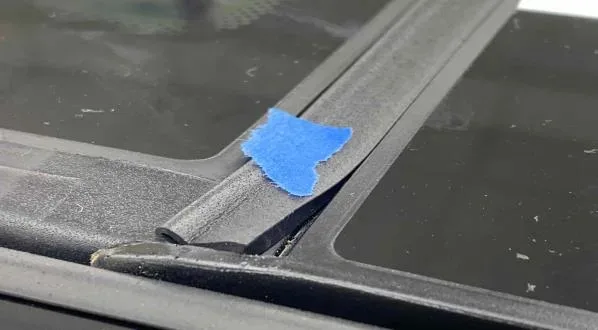

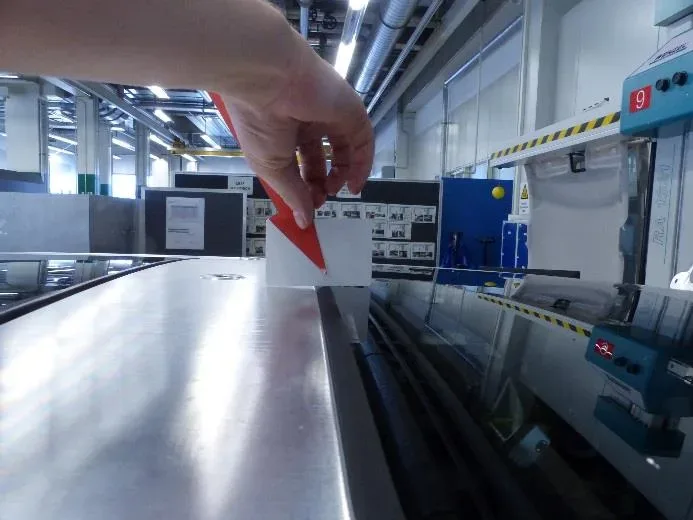

• Glass Not Flush: Rushing wind noise from the center of the glass indicates the glass panels are not flush. Technicians can use tape to isolate the noise and then adjust both sunroof glass panels according to ISTA/AIR instructions REP 54 13 002.

Static Noise

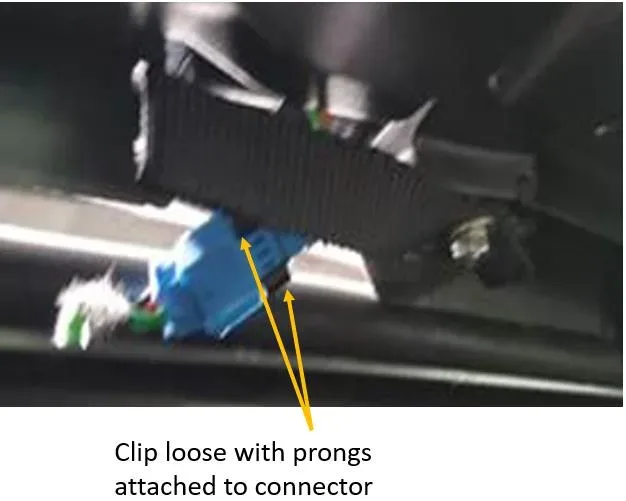

Noises heard while driving, especially over rough road surfaces, are classified as static noise. These can include rattling, tapping, humming, or crackling sounds.

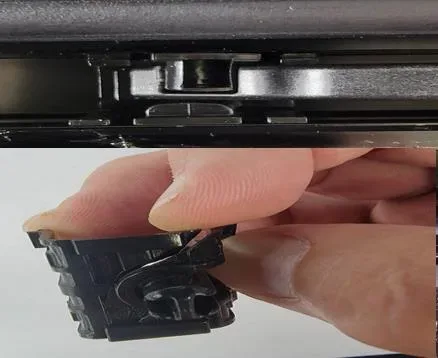

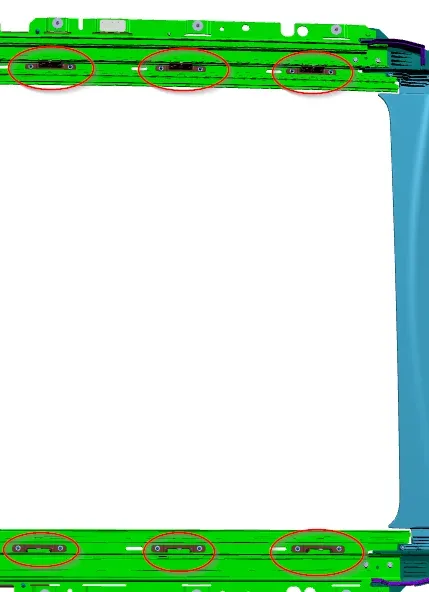

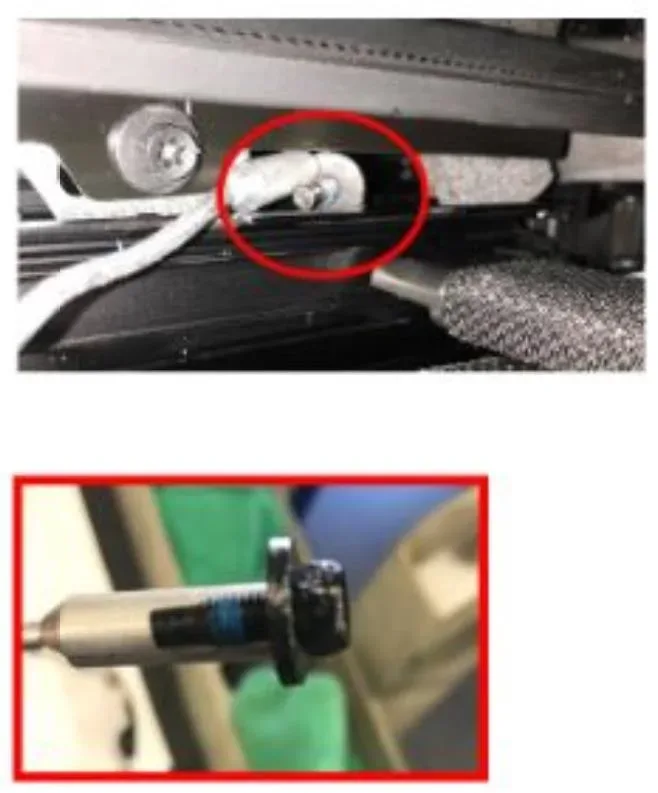

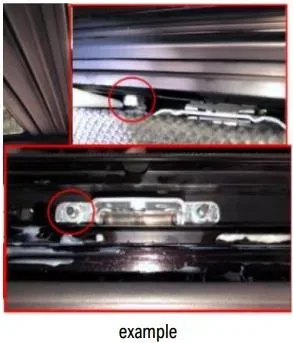

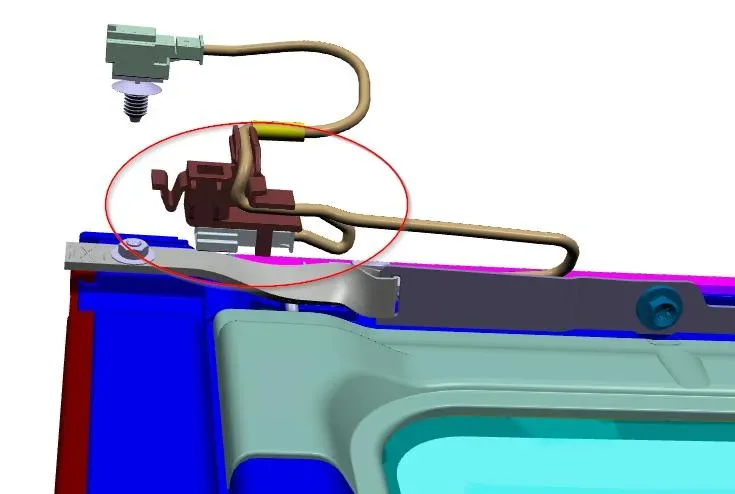

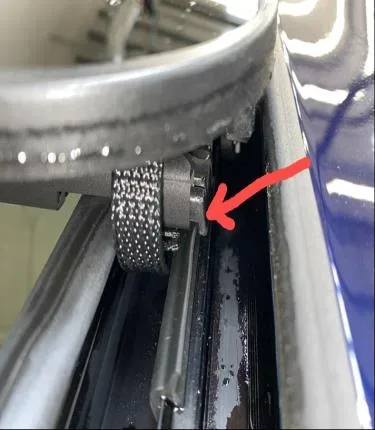

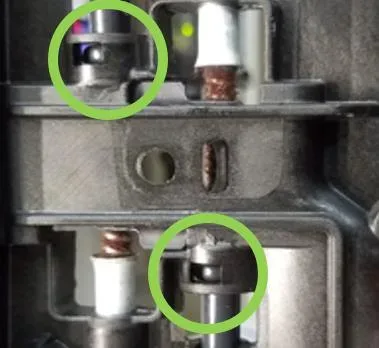

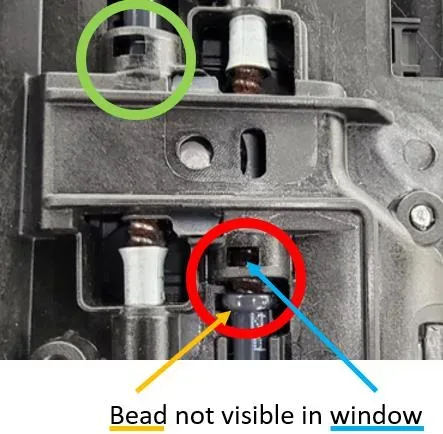

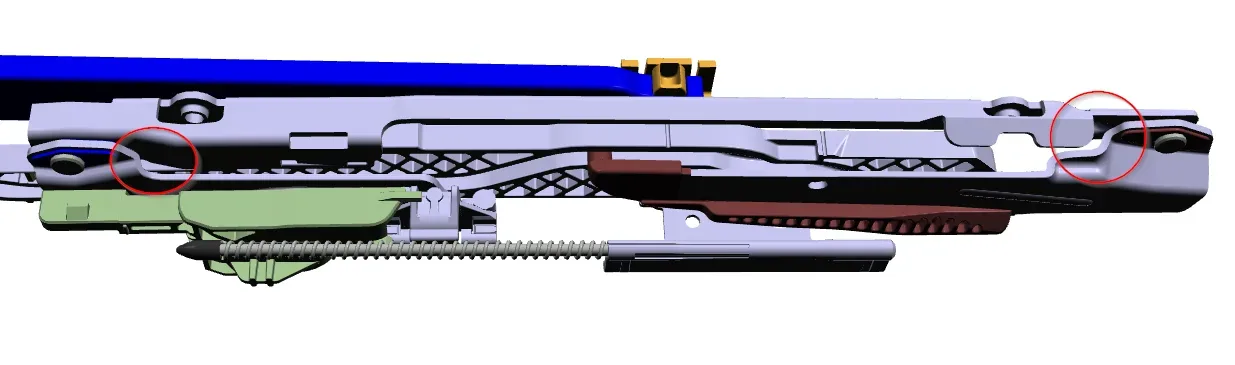

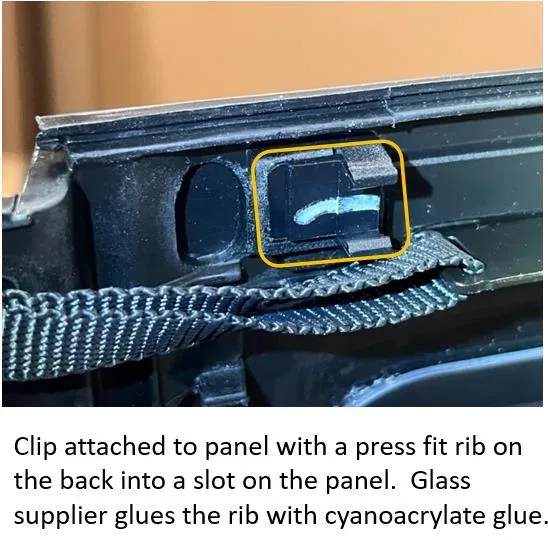

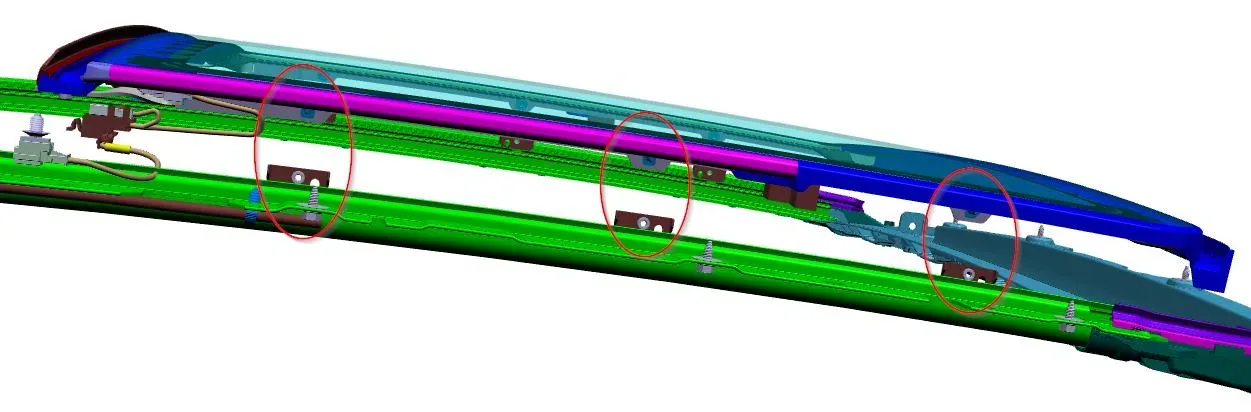

• Rear Glass Bracket Loose: Metallic noise heard over rough roads can be due to loose rear glass brackets. Technicians inspect bracket screws (bracket to frame) for cross-threading or excess thread lock. Screws are re-torqued to 6.1 Nm or replaced if damaged. If screws cannot be tightened, the frame may need replacement.

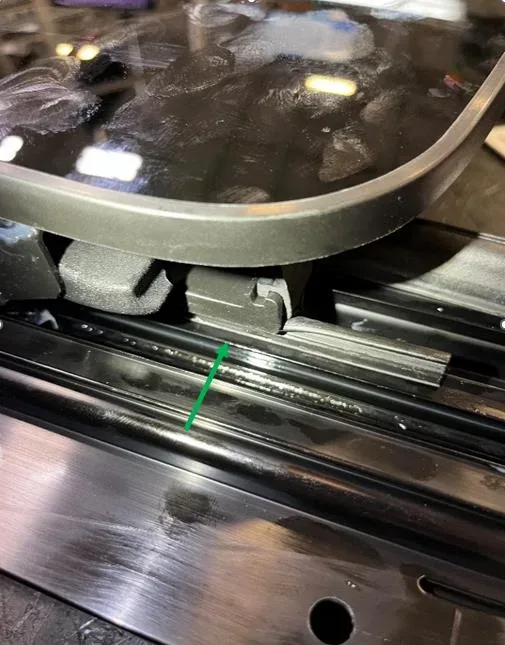

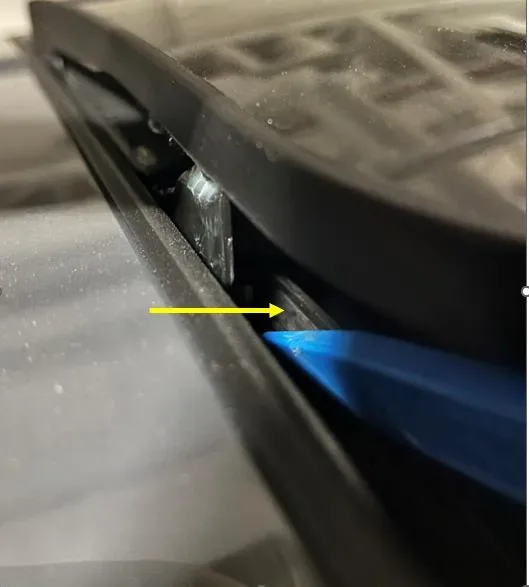

• Acoustic Seal Loose: A rattle or groaning noise that stops with upward pressure on the glass suggests interference between the sunroof glass and the acoustic seal. The repair involves slightly lowering the glass (within specification) to increase pressure on the seal. It's important to note that this seal does NOT cause water leaks.

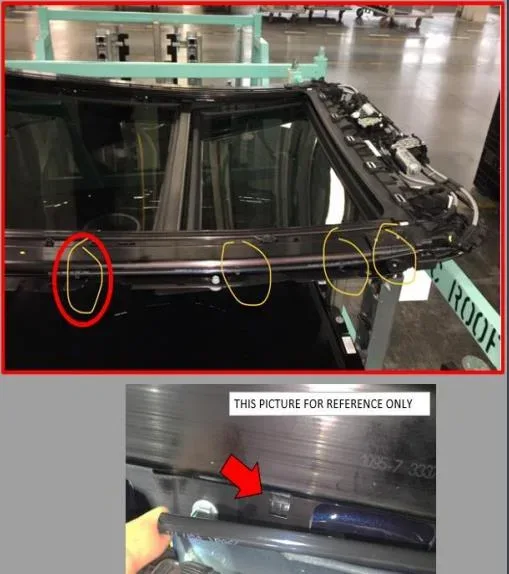

• Extra Screw: A metallic
