2025 BMW 5 Series Harness Damage Service Action

BMW has released Service Information Bulletin SIB 64 04 25 (Revision 2, replacing SI B64 04 25 dated April 2025) concerning potential wiring harness damage in certain 2025 BMW vehicles. This service action addresses a specific problem that can arise during routine maintenance, particularly when replacing the cabin air nanofilter.

The bulletin highlights that the wiring harness can be damaged if it is pinched during the re-installation of the cabin air nanofilter's plastic cover. This damage can lead to various fault codes related to the vehicle's air flap and temperature sensor systems, impacting climate control functionality.

Symptoms

Owners of affected 2025 BMW 5 Series, 7 Series, and M5 vehicles may experience issues related to the climate control system. These problems are typically indicated by specific fault codes stored in the Body Control Processor (BCP). The core problem, the 2025 BMW 530i harness damage, can manifest through these diagnostic trouble codes.

Fault Codes / DTCs

The following fault codes may be stored in the BCP if the wiring harness has been damaged:

Code	Description
80114D	Stepper motor: Unexpected error in Driving Cycle
801168	Temperature sensor ventilation left or ventilation: short to ground
80116A	Temperature sensor ventilation right: short to ground
80116B	Temperature sensor ventilation right: short to plus or open circuit
80116C	Temperature sensor footwell left or footwell: short to ground
80116D	Temperature sensor footwell left or footwell: short to plus or open circuit
80116E	Temperature sensor footwell right: short to ground
80116F	Temperature sensor footwell right: short to plus or open circuit
80435B	Stepper motors: short-circuit by mass

Diagnosis and Trigger Conditions

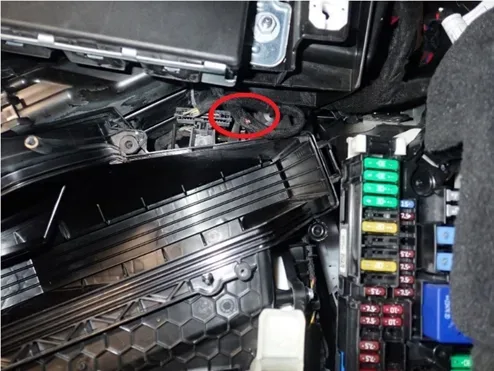

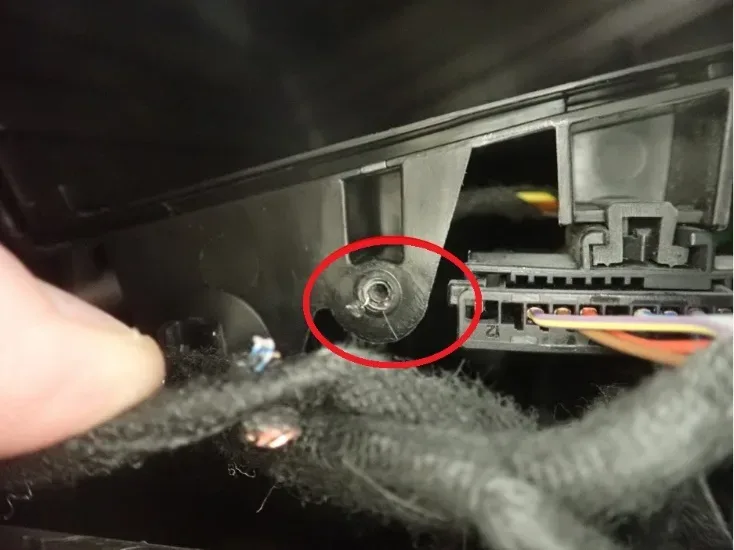

The root cause of these issues is the potential for the vehicle's wiring harness to be damaged. This occurs specifically when technicians are servicing the cabin air microparticle nanofilter and re-installing its retaining screws and plastic cover. Improper routing or securing of the harness can cause it to be pinched, leading to abrasion and subsequent electrical faults.

To prevent this 2025 BMW 530i harness damage, a new retention strap will be installed on the wiring harness during the next cabin air filter service.

Repair Procedure Summary

The repair procedure outlined in BMW Service Information Bulletin SIB 64 04 25 involves several key steps to prevent and address wiring harness damage:

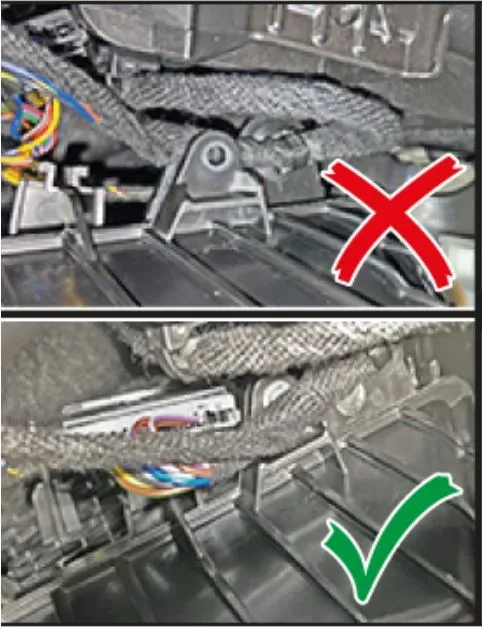

1. Harness Inspection and Routing: When changing the cabin air nanofilter, technicians must carefully check the wiring harness routing before fastening the plastic cover. This process follows Repair Instructions REP 64 31 010.

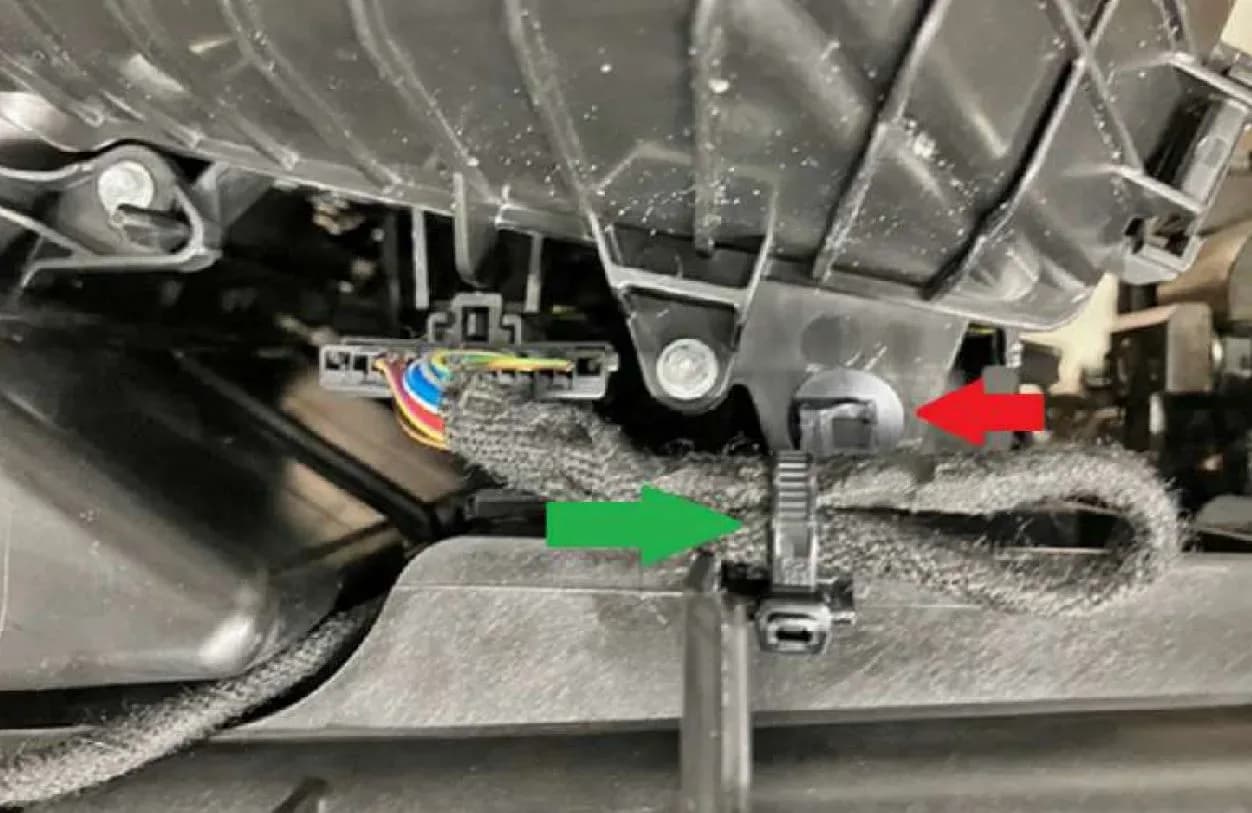

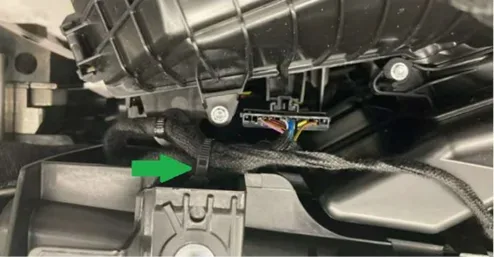

2. Harness Retainer Installation: A new harness retainer with a cable strap is installed on the Instrument Panel wiring harness to secure it and prevent pinching.
3. Original Retainer Disconnection: The original harness retainer must be disconnected from the harness to provide strain relief, though it can remain clipped into the vehicle.

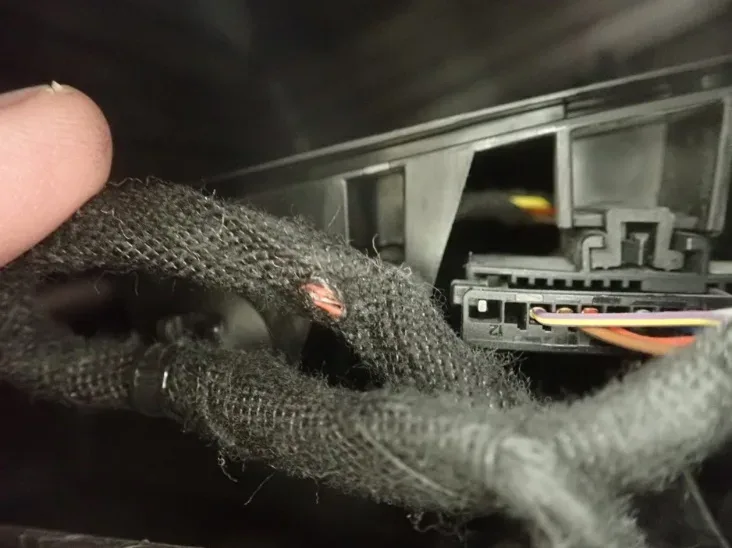

4. Damage Repair: If the wiring harness has already sustained damage during a previous cabin air filter cover installation, the damaged section of the harness must be repaired.

Required Parts

To perform this service action, the following part is required:

Part Number	Description	Quantity
61 13 9 200 225	Cable Strap with Bracket	1

Reimbursement for this service action, identified by defect code 0061270900 and labor operation 00 78 779, will be processed via normal claim entry utilizing the specified work package information.

What Owners Should Know

BMW is not directly notifying owners about this service action. Instead, the procedure outlined in SIB 64 04 25 will be performed on all affected vehicles during their next visit to the dealership for cabin air filter service, provided the campaign shows a status of "Open."

Owners can verify if their 2025 BMW 5 Series, 7 Series, or M5 vehicle requires this campaign by checking its status in systems like AIR, AWP, Campaign Summary, or through a Warranty Vehicle Inquiry. The repair for the 2025 BMW 530i harness damage will be completed free of charge under warranty.

Source: NHTSA ID 11020926
