2021-2026 Audi High Beam Assist C12B3FD Fault

Symptoms

Owners of 2021-2026 Audi vehicles may experience issues with their high beam assist or traffic sign detection systems. This typically manifests as a warning message appearing in the instrument cluster, often shortly after the vehicle is started. The exact messages you might see include:

• "High beam assist currently not available. Camera view restricted because of environmental factors."
• "Traffic sign detection: currently not available. Camera view restricted because of environmental factors."

These messages indicate that the system's camera view is obstructed, preventing proper operation of these driver assistance features. If you encounter the Audi High Beam Assist C12B3FD fault, it's usually related to these conditions.

Fault Codes / DTCs

For most affected Audi vehicles, the issue is accompanied by a specific Diagnostic Trouble Code (DTC) stored in the front camera for the driver assist systems control module (J1121, address word 00A5). However, for Audi A3 models, a DTC may not be stored even if the messages appear.

Code	Description	Symptom Code
C12B3FD	Front camera for driver assist systems - temporary view restriction	221284

Technical Background

The front camera, a critical component of the driver assist systems, relies on an unobstructed view to function correctly. If the camera detects a visibility restriction for more than 77 seconds, the DTC C12B3FD with symptom code 221284 is logged. This restriction can be caused by environmental factors such as fog, ice, or dirt on the windshield in front of the camera. The Audi High Beam Assist C12B3FD fault is directly tied to this visibility issue.

To prevent fogging and ensure clear visibility, the front camera is equipped with a heating element located under its cover. This heating element activates automatically after the engine starts at low temperatures, when restricted visibility is detected, or if there's a risk of the glass fogging up.

Once visibility is restored, the warning message typically disappears, and the driver assist systems become fully available again. The DTC C12B3FD will then be logged as a sporadic fault.

What Owners Should Know

If you experience the "High beam assist currently not available" or "Traffic sign detection: currently not available" messages, it's often due to a temporary obstruction of the front camera. Here's what you can do:

1. Inspect the Camera Area: When the message appears, visually inspect the area of the windshield in front of the front camera. Obstructions can occur on both the outside (e.g., dirt, snow, ice) and the inside (e.g., fogging) of the windshield.
2. Use Wipers: Often, simply activating your vehicle's wiper system can clear external obstructions and resolve the issue.
3. Clean the Windshield: Ensure the exterior of your windshield, especially the area around the camera, is clean and free of debris.

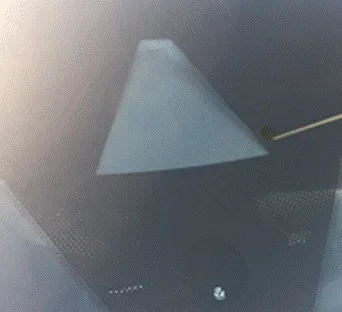

4. Address Internal Fogging: If the front camera regularly fogs up from the inside, removing its lens hood (if accessible) to clean and dry the viewing area can help. This is a task best performed by a qualified technician.

This TSB is informational, explaining the system's behavior rather than prescribing a complex repair. The issue is usually temporary and self-correcting once the obstruction is removed or cleared by the camera's heating element.

Warranty Information

This Technical Service Bulletin outlines specific warranty claim procedures for technicians when addressing the Audi High Beam Assist C12B3FD issue. The claim type is 110, applicable for vehicles up to 48 months or 50,000 miles. The service number is 9638, with a damage code of 0010.

Labor operations and their estimated time units (TU) include:

Labor Operation	Time Units (TU)
Remove and install camera for assistance systems (lens hood)	20 TU
Clean and dry windscreen	10 TU
Diagnostic Time (GFF)	Max 25 TU
Road test prior to service	0 TU
Road test after service	0 TU

All warranty claims must adhere to the Audi Warranty Policies and Procedures Manual and are subject to review.

Revision History

This Technical Service Bulletin has undergone several revisions to update its scope and details:

Revision	Date	Purpose
7	November 15, 2023	Revised header (Added MY 2025)
6	April 13, 2023	Revised header (Added MY 2024)
5	April 14, 2022	Revised header (Added MY 2023)

This bulletin supersedes Technical Service Bulletin Group 96 number 23-85 dated April 13, 2023.
