2023-2024 Audi Sunroof Not Operating DTC B154354

Symptoms

Owners of 2023-2024 Audi vehicles may experience issues where the panoramic sunroof glass panel or the sunroof rollershade fails to operate correctly with its switch. This can manifest as the sunroof or shade not opening, closing, or responding as expected. If you are experiencing an Audi e-tron sunroof not operating, this technical service bulletin provides guidance.

Fault Codes / DTCs

When the sunroof or shade fails to operate, specific Diagnostic Trouble Codes (DTCs) may be stored in the power sunroof control module, J245 (address word 00CA). These codes indicate a loss of basic settings or an implausible signal from the motor's Hall sensors.

Code	Description	Module
B154354	Sunroof No basic setting	J245 (00CA)
B157129	Hall sensor for sunroof motor, implausible signal	J245 (00CA)
B157529	Sunroof motor Hall sensor 2, implausible signal	J245 (00CA)
B157711	Hall sensor for sunroof motor supply, short circuit to ground	J245 (00CA)
B154454	Roof blind, no basic setting	J245 (00CA)
B157329	Hall sensor for roof blind motor, implausible signal	J245 (00CA)
B157629	Hall sensor 2 for roof blind motor, implausible signal	J245 (00CA)
B157811	Hall sensor for roof blind motor supply, short circuit to ground	J245 (00CA)

Diagnosis / Trigger Conditions

The sunroof glass panel drive motor (V1) or the sunroof shade drive motor (V260) may lose their end-stop adaptation or basic settings due to various factors. These can include a low battery condition, recent software updates, an extended loss of power to sunroof components, or other repairs that might have temporarily disconnected power. When these settings are lost, the system stores the aforementioned DTCs. This is a common reason for an Audi e-tron sunroof not operating.

Important Warnings

Before considering replacement of the sunroof glass panel drive motor V1 or the sunroof shade drive motor V260, technicians are advised to first attempt setting the basic settings on either drive motor. This procedure can often resolve the issue without requiring costly part replacements.

During the basic setting adaptation process, it is crucial not to release the switch from its fully pulled-down or pushed-forward position until the entire sequence is complete. Releasing the switch prematurely will cause the basic settings to fail, requiring the procedure to be repeated from the beginning with a fully closed sunroof or shade.

This Technical Service Bulletin (TSB 2054505/4) is informational only and is not applicable to any Audi warranty. Owners should be aware that this is a diagnostic and repair guide for technicians, not a warranty claim document.

Repair Procedure Summary

The repair involves performing a basic setting adaptation for the affected sunroof component. This procedure does not require special tools or parts, only careful execution.

1. For the Sunroof Glass Panel:

   • Ensure the sunroof panel is fully closed. If the one-touch function is inactive, you may need to hold the switch to close it.

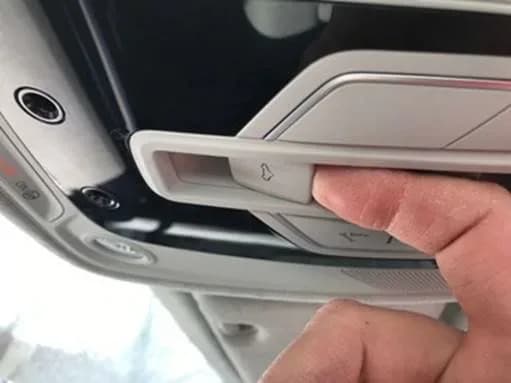

   • Once fully closed, pull the sunroof switch fully downward, past both detents, and hold it in this position (as shown in Figure 1 of the TSB).
   • After approximately 6-7 seconds, the sunroof panel will begin to move rearward to its stop, then fully forward until it is completely closed.
   • Crucially, do not release the switch until this entire sequence is finished. Releasing it early will cause the process to fail, and it must be restarted from a fully closed position.

2. For the Sunroof Shade:

   • Ensure the sunroof shade is fully closed. Similar to the sunroof panel, if the one-touch function is inactive, you may need to hold the switch to close it.
   • With the shade fully closed, push the sunroof shade switch fully forward, past both detents, and hold it in this position (as shown in Figure 2 of the TSB).
   • After approximately 6-7 seconds, the sunroof shade will begin to move rearward to its stop, then fully forward until it is completely closed.
   • Again, do not release the switch until this entire sequence is finished. Premature release will cause the process to fail, and it must be restarted from a fully closed position.

Owner Action

If your 2023-2024 Audi is experiencing an Audi e-tron sunroof not operating or its shade is malfunctioning, and you suspect a basic setting issue, it is recommended to visit an authorized Audi service center. While the procedure itself is straightforward, proper diagnosis and execution are key to resolving the problem. Technicians will use this TSB to correctly perform the basic setting adaptation.

---

Source: NHTSA ID: 10235502
