2021-2025 Audi Models Engine Control Module Software Update 53ZC

Why This Matters

Audi has identified that an optimized software version for the engine control unit is available to prevent certain conditions related to engine oil pressure. This proactive update, identified as 53ZC UPDATE (WARR EXT – U82), is designed to ensure the engine operates efficiently and reliably by maintaining optimal oil pressure.

This Audi ECM software update 53ZC is crucial for the long-term health of your vehicle's engine. It ensures that the engine control module (ECM) is running the most current and optimized software available from the manufacturer.

Important Warnings and Owner Advisories

Audi has issued several critical warnings and advisories regarding the Audi ECM software update 53ZC:

• Warranty Extension: Your vehicle must be within the U82 Warranty Extension parameters, which cover 8 years or 80,000 miles (129,000 km), whichever comes first.
• Vehicles in Dealer Inventory: The update procedure must be performed on applicable vehicles currently in dealer inventory prior to sale.
• Radiator Fan Safety: "Radiator Fan(s) may cycle ON high speed during the Update Process! There is a serious risk that personal injury may result if contact is made with spinning fan blades. Keep hands and all objects away from Radiator Fan(s) during Update Process!"
• Diagnostic Tool Usage: "DO NOT USE Guided Fault Finding (GFF) to perform this flash. Using GFF will cause the flash to take longer." Additionally, performing a software update using a Bluetooth or Wi-Fi connection significantly increases the risk of losing connection, which could damage the control module. The VAS Diagnostics Interface MUST ONLY be connected to the tester with a USB cable.
• Update Failure: "If the software update fails for any reason, ODIS feedback must be sent prior to further diagnosis. This ensures the failure/error is reported. Failure to do so may result in non-payment of consequential requests for additional time or parts."
• Vehicle Wash/Loaner: Dealers are instructed, "Do not claim wash/loaner under this action."

Revision History

This Technical Service Bulletin has undergone several revisions to ensure accuracy and expand its applicability:

• Revision 3 (March 20, 2026): Additional vehicles were added, and the affected vehicle chart was updated.
• Revision 2 (December 18, 2025): The technical background information was updated.
• Revision 1 (December 17, 2025): Original publication of the bulletin.

Repair Procedure Summary

The Audi ECM software update 53ZC involves updating the Engine Control Module software using the Software Version Management (SVM) system and the ODIS diagnostic software. The procedure requires specific conditions to be met to ensure a successful update and prevent damage to vehicle components:

1. Verify Eligibility: On the day of repair, technicians must check the ELSA Campaign/Action Information screen to confirm the vehicle shows the 53ZC code and its status is "open."
2. Prepare the Vehicle: All non-essential consumers (e.g., air conditioning, heater, lights, heated seats) must be switched off. The selector lever should be moved to the 'P' (Park) position.
3. Connect Power: A battery charger (VAS5908 or equivalent, rated at least 90A) must be connected to the vehicle battery and remain connected throughout the update. Battery voltage must stay above 12.5 volts to prevent control module damage.
4. Prepare Diagnostic Tester: Ensure the ODIS software on the diagnostic tester (VAS6150X/VAS6160X or equivalent) is completely up to date. Screen saver and power-saving settings must be disabled to prevent the tester from entering sleep mode during the update.
5. Connect Diagnostic Interface: The VAS Diagnostics Interface must be plugged into the tester using a USB cable. Bluetooth or Wi-Fi connections are not recommended due to the risk of connection loss and potential control module damage.

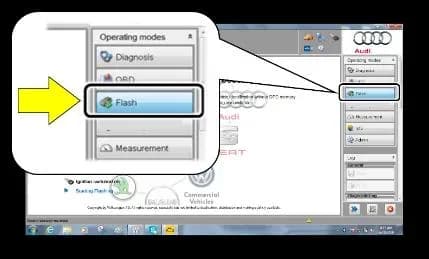

6. Perform Flash Update: Use the "FLASH" operating mode in ODIS. Select "SVM – Code Input" and enter the SVM code 53ZCA170. Follow the on-screen prompts to complete the software update.
7. Document Completion: Ensure the diagnostic log is sent to GFF Paperless after the update is finished.

Required Tools and Codes

Performing this Audi ECM software update 53ZC requires specific equipment and codes:

• Battery Tester/Charger: VAS5908 (or equivalent, with a current rating of at least 90A).
• Diagnostic Tester: VAS6150X/VAS6160X (or equivalent).
• SVM Code: 53ZCA170, used for initiating the software update.
• Service Number: 53ZC
• Damage Code: 0099
• Parts Vendor Code: 002
• Labor Operations: 0151 00 10 (Software update setup + battery charger) and 0151 00 60 (Software update GFF Operations).

Owner Action

If you own a 2021-2025 Audi model and are concerned about your engine's oil pressure optimization, you should contact an authorized Audi dealer. They can check if your vehicle is eligible for this Audi ECM software update 53ZC by verifying the 53ZC code in their ELSA system. This update is typically performed under warranty if your vehicle meets the U82 Warranty Extension parameters. Ensure to inquire about the specific details of the update and any associated conditions.

Source: NHTSA ID: 11030979
