2021-2022 Audi Parking Aid False Warnings TSB

Symptoms of Parking Aid Malfunction

Owners of 2021-2022 Audi vehicles may experience issues with their parking assistance system. The primary symptoms include:

• The parking aid sporadically warns of obstacles when none are present.
• The parking aid system is completely inoperative or provides a constant warning.

Diagnosis and Trigger Conditions

Several factors can cause your Audi e-tron false parking warnings. Technicians will first check for obvious external obstructions like aftermarket components, physical damage, excessive dirt, snow, or stickers on the sensors.

If no external issues are found, the diagnostic process involves checking the vehicle's fault memory. If a specific sensor is identified, a targeted test plan is followed. Otherwise, technicians examine Measured Value Blocks (MVBs) in the master control module (09, 76, or A5) to compare sensor response values. A value of 255 typically indicates no obstruction.

Common causes identified for these malfunctions include:

• Sensor Issues: Mechanical damage (stone chips, scratches), dirt, ice, foreign bodies, or foil adhered to the sensor.
• Bumper Damage: Damage to the bumpers that might indicate an accident or previous paintwork.
• Aftermarket Accessories: Non-Audi genuine accessories such as aftermarket towing bars, lowering kits, spoilers, air deflectors, or bumpers can interfere with sensor operation.
• License Plate Holders: Improperly installed front license plate holders (protrusion, bent corners, oversized) can obstruct sensors.

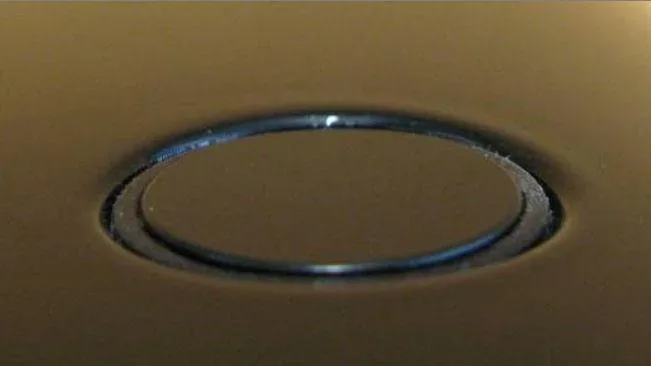

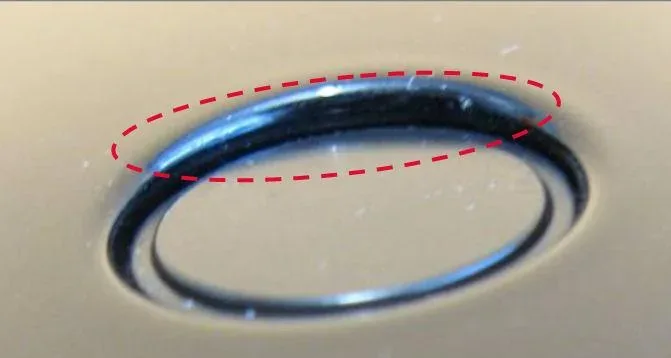

• Sensor Fitment: Sensors that are not snugly fitted, loose, or have incorrectly seated decoupling rings (folded or bulging). Sensors that are off-center in their mounting holes or not flush with the bumper (recessed or bulging).

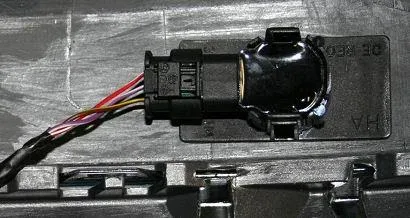

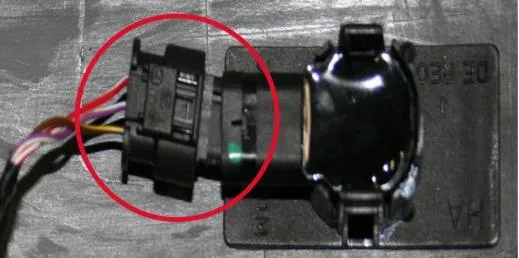

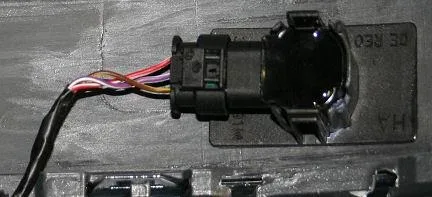

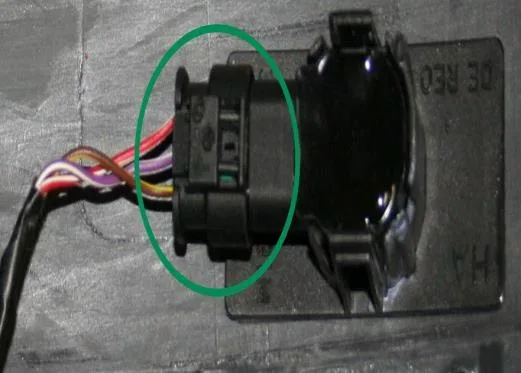

• Electrical Connections: Corrosion, water ingress, bent or pushed-back pins, or improper plug seal fit in the sensor connectors, socket box, control module, or sound generator.
• Wiring: Damaged or excessively tight cables within the bumper harness.

Repair Procedure Summary

Addressing the Audi e-tron false parking warnings involves a systematic diagnostic and repair process. Technicians will first rule out external obstructions and then proceed with a detailed inspection.

1. Initial Inspection: Verify the absence of aftermarket components, physical damage, or excessive dirt/snow/stickers on the parking aid sensors.
2. Fault Memory Check: Use diagnostic tools to check the vehicle's fault memory. If a specific sensor is flagged, follow the guided test plan.
3. MVB Analysis: If no specific sensor fault is found, check the Measured Value Blocks (MVBs) in the parking aid master module (09, 76, or A5) to assess sensor readings.
4. Physical Sensor Examination: Inspect parking sensors for mechanical damage, dirt, or bumper damage.
5. Accessory Check: Confirm no non-Audi Genuine Accessories are interfering with sensor operation.
6. License Plate Holder Inspection: For 8 and 12 channel systems, check the front license plate holder for proper installation and fit.

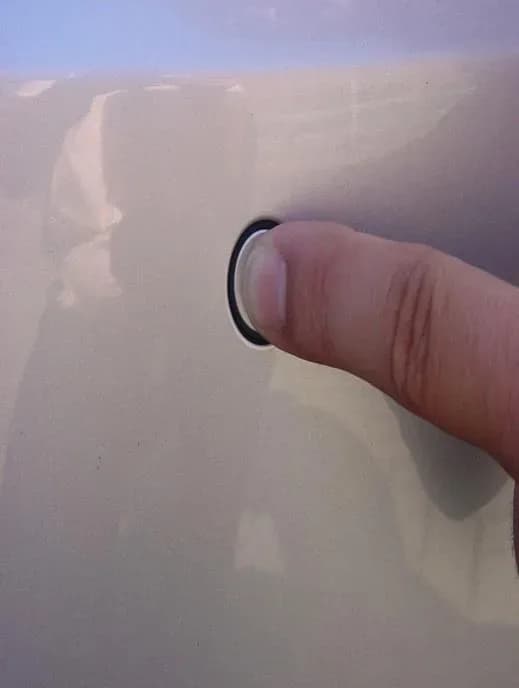

7. Sensor Fitment Correction: Pressure check sensors for a tight fit. If loose, or if the decoupling ring is folded/bulging, or if the sensor is off-center/not flush, the bumper may need to be removed to reinstall the sensor correctly.
8. Electrical System Check: If the issue persists, remove the bumper to inspect connectors on sensors, the socket box, the control module, and the sound generator for corrosion, water ingress, pin damage, or improper plug seal fit.
9. Wiring Inspection: Check bumper cables for damage or insufficient length. Repair damaged cables or correct routing for tight cables.
10. Final Re-evaluation: Re-evaluate the concern after any repairs. If the issue persists, affected parking aid sensors or control modules may be swapped to pinpoint the exact fault.
11. Customer Advisory: Inform the customer about environmental factors that can cause temporary parking aid warnings.

Required Tools or Parts

For cable repairs related to parking aid malfunctions, technicians may utilize the VAS Repair Kit 1978.

Owner Action

If your 2021-2022 Audi vehicle is experiencing Audi e-tron false parking warnings or other parking aid malfunctions, it is recommended to schedule an appointment with an authorized Audi service center. While cleaning sensors or addressing an incorrectly fitted license plate holder are typically not covered under warranty, repairs involving remounting parking assist sensors, replacing sensor brackets, or repairing system wiring may be covered under the standard warranty (up to 48 months/50,000 miles) or for Certified Pre-Owned (CPO) vehicles (Claim Type G10). If your vehicle is outside of warranty, this Technical Service Bulletin serves as an informational guide for diagnosis and repair.

NHTSA ID: 10186569
