2023 Kia Sportage AVNT Screen Flickering TSB

Symptoms

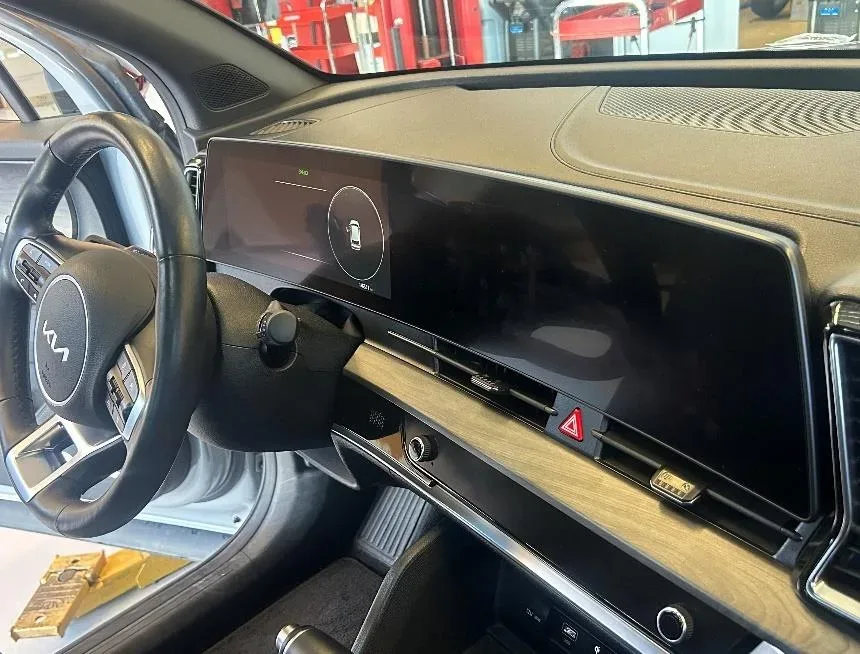

Owners of affected 2023 Kia Sportage (NQ5a) vehicles, produced from August 5, 2021, through May 25, 2023, may experience the Audio Video Navigation Telematics (AVNT) screen flickering 'ON/OFF'. This symptom indicates an intermittent connection issue with the head unit display.

Diagnosis / Trigger Conditions

The primary cause of the Kia Sportage AVNT screen flickering is an intermittent contact between the coaxial cable connector and the AVNT head unit. This connection issue leads to the display turning on and off sporadically, impacting the functionality of the AVNT system. The Technical Service Bulletin (TSB) provides a direct repair procedure to address this specific fault.

Repair Procedure Summary

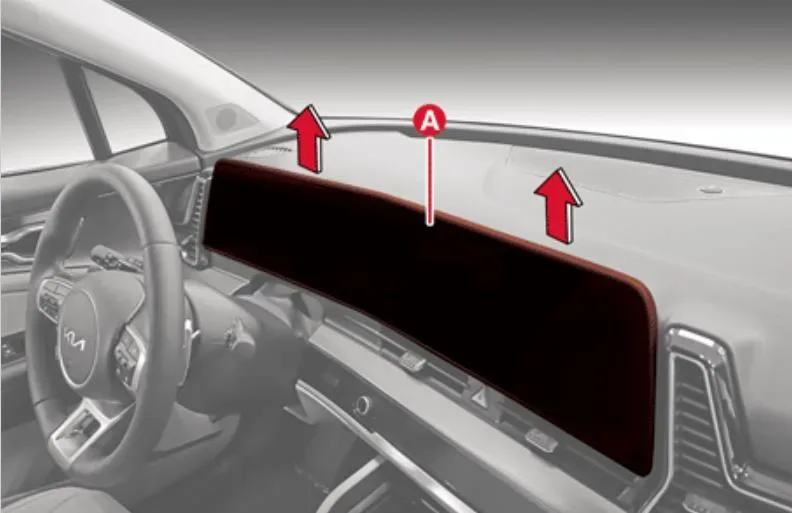

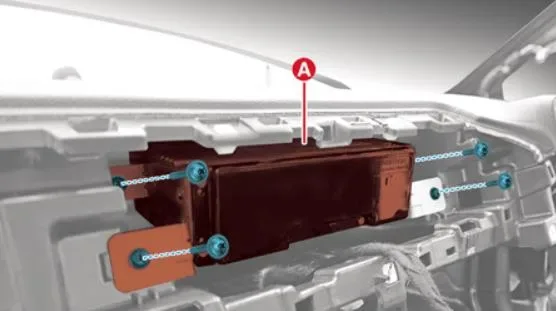

The repair procedure involves replacing the AVNT head unit coaxial cable. Technicians will begin by removing the instrument cluster, following the steps outlined in the KGIS Shop Manual for "Body Electrical System → Indicators and Gauges → Cluster → Removal and Installation." Next, the AVNT head unit is removed by loosening its four retaining screws. A crucial caution is to place a clean cloth or fender liner under the AVNT head unit to prevent any scratching or damage to its surface.

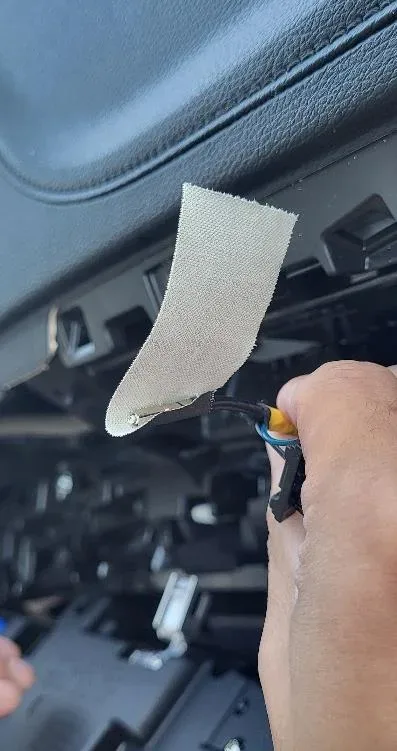

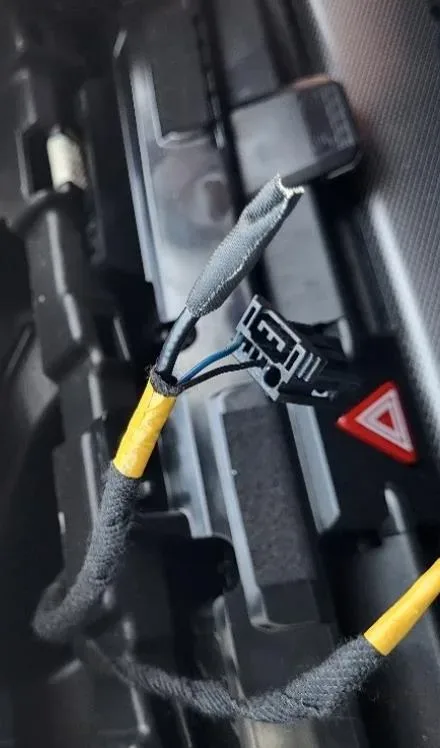

The existing coaxial cable connector (C) is then disconnected from the AVNT head unit. Using a wiring cutter, the end of the removed coaxial cable and connector is cut off and disposed of. It's important to note that only the coaxial cable connector needs to be disconnected at this stage. The cut end of the coaxial cable (D) is then wrapped with Tesa® tape and secured to the main harness.

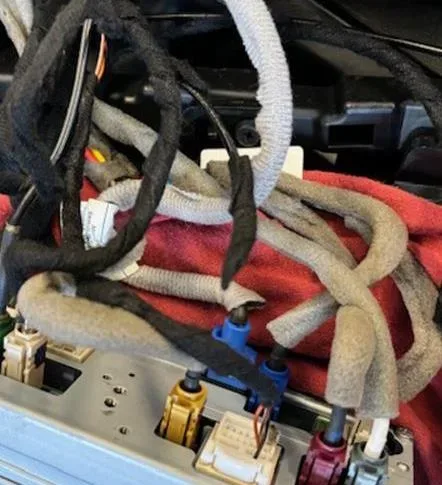

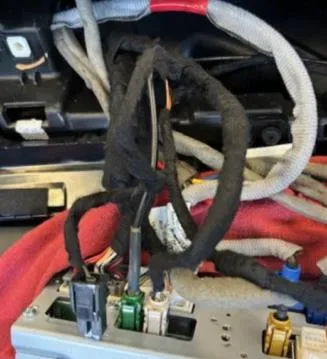

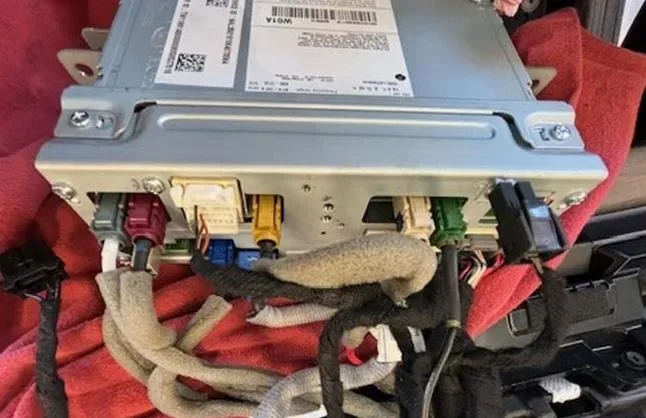

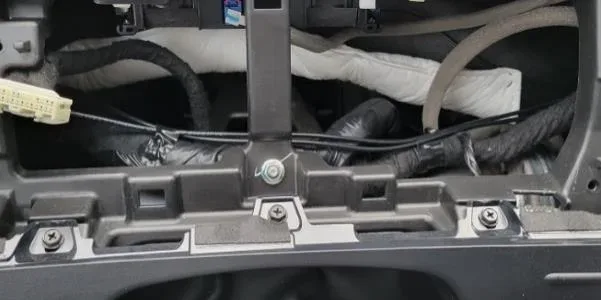

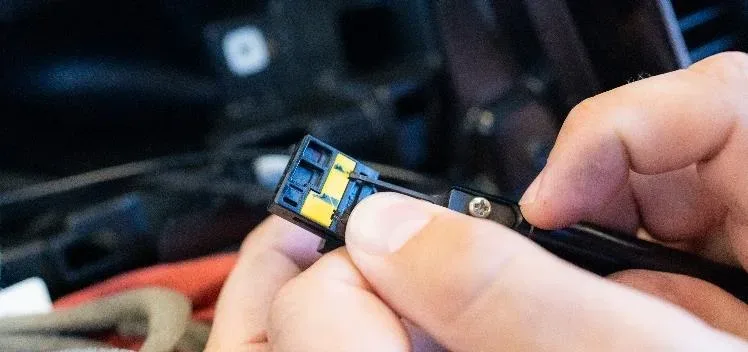

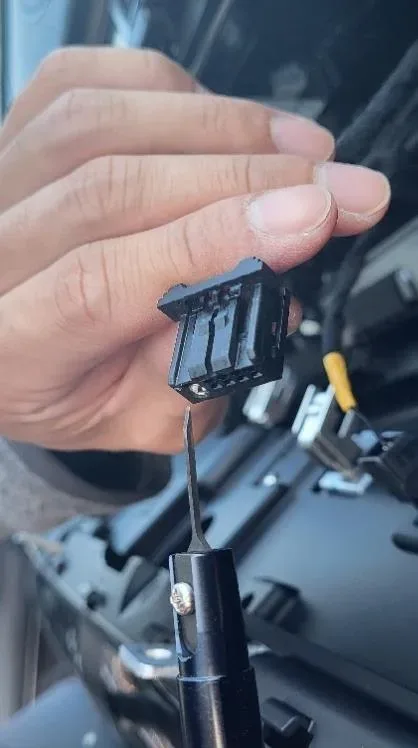

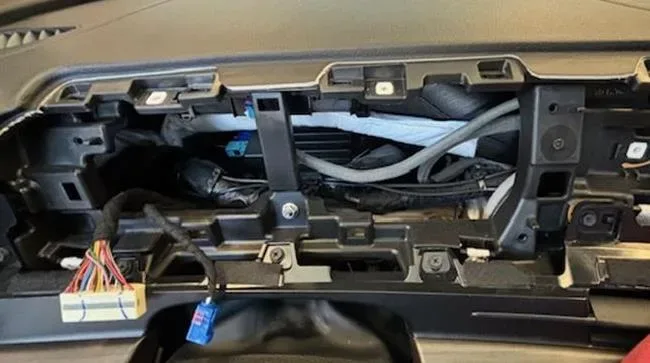

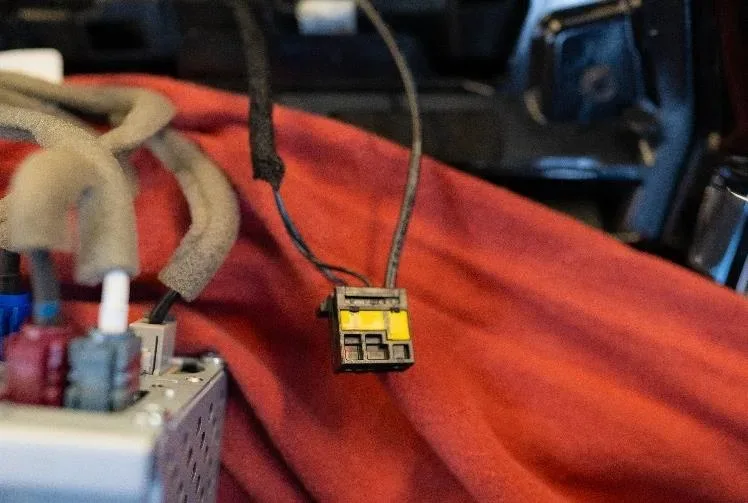

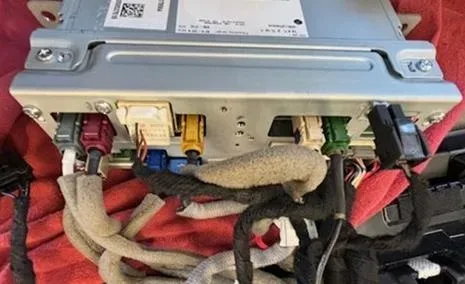

A new coaxial cable is then installed. The new coaxial cable connector (C) is connected to the back of the AVNT head unit (B). The new coaxial cable (D) is routed along the main harness inside the dash area and secured with three zip-ties. Using a pin removal tool, the yellow tab of the navigation monitor connector (M22) (F) is unlocked. The coaxial pin 5 (G) is separated from connector (F) using the pin removal tool, ensuring the tool is inserted in the correct orientation. The exposed pin is wrapped with Tesa® tape, but the pin itself does not need to be cut. Finally, the new coaxial cable pin (G) is inserted into pin 5 of the navigation monitor connector (M22) (F), and the locking tab is engaged. All removed parts are then reinstalled in reverse order, and normal operation of the AVNT system is confirmed.

Required Tools or Parts

To perform this repair, the following parts are required:

• Coaxial Cable: Part Number 911XO DW010FFF (Quantity: 1)
• Zip-ties: Locally sourced (Quantity: 3)
• Tesa® tape: Locally sourced (As needed)

Warranty Information

This repair is covered under warranty with the following details:

• N Code: M62
• C Code: ZZ3
• Claim Type: W (Warranty)
• Causal Part Number: 96220 DW200
• Repair Description: AVNT Coaxial Cable Replacement
• Labor Operation Code: 91100FO2
• Operation Time: 0.5 M/H (Man Hours)
• Replacement Part Number: 911XO DW010FFF
• Replacement Quantity: 1

For zip-ties and Tesa® tape, use sublet code 'X1' with a maximum allowed amount of $0.90 per vehicle. For information on substitute transportation policy, refer to the Service Policy and Procedures Manual (SPPM) 6.11 “Kia Substitute Transportation.”

Important Warnings for Owners and Technicians

This Technical Service Bulletin is a field fix repair program without customer notification that may be performed during the warranty period. Any dealer requesting to perform this repair outside the warranty period will require DPSM approval.

Technicians should note that the replacement part number 911XO DW010FFF requires a VIN entry for parts ordering. Do NOT order these parts for stocking purposes related to this TSB. Supply is very limited. Until supply stabilizes, please confirm part availability before scheduling customers. Be sure to expedite warranty claim filing.

Owner Action

If you experience the Kia Sportage AVNT screen flickering 'ON/OFF' in your 2023 Kia Sportage, you should contact your authorized Kia dealership. Explain the symptoms you are observing. Since this is a field fix without direct customer notification, it's important to proactively inform your dealer about the issue. The repair involves replacing the coaxial cable and should be covered under warranty if your vehicle is still within the warranty period.

---

Source: NHTSA ID: 11023278
