2024 BMW X5, X6, X7, XM Basic Central Platform Software Update

Symptoms

The core symptom addressed by Service Information Bulletin SIB 61 29 24 is an internal software error within the vehicle's Basic Central Platform (BCP). This error specifically prevents the correct storage of the Calibration Identification Number (CAL ID) and the Calibration Verification Number (CVN). These numbers are critical for identifying official BMW software and are generated with each programming session. While this issue may not present a direct, owner-visible symptom, it indicates an underlying problem with the vehicle's software integrity and verification processes, potentially impacting future software updates or diagnostics. This is the underlying issue for the 2024 BMW X5 BCP software error.

Cause

The root cause of this issue is identified as software errors in the Basic Central Platform (BCP). This internal software malfunction leads to the incorrect storage of critical calibration and verification data.

Important Warnings and Owner Information

BMW states that "A parts replacement will not provide solution" for this issue, indicating that only a software update can resolve the problem. Vehicles requiring this campaign, SIB 61 29 24, will show as "Open" when checked in BMW's internal systems such as AIR, AWP, Campaign Summary, or Warranty Vehicle Inquiry. Owners should check with their dealer to determine if their vehicle is affected.

Repair Procedure Summary

This Service Information Bulletin (Revision 1) replaces SI B61 29 24 dated November 2024. The correction involves programming and encoding the Basic Central Platform (BCP).

Preferred Method: Remote Software Update (RSU)

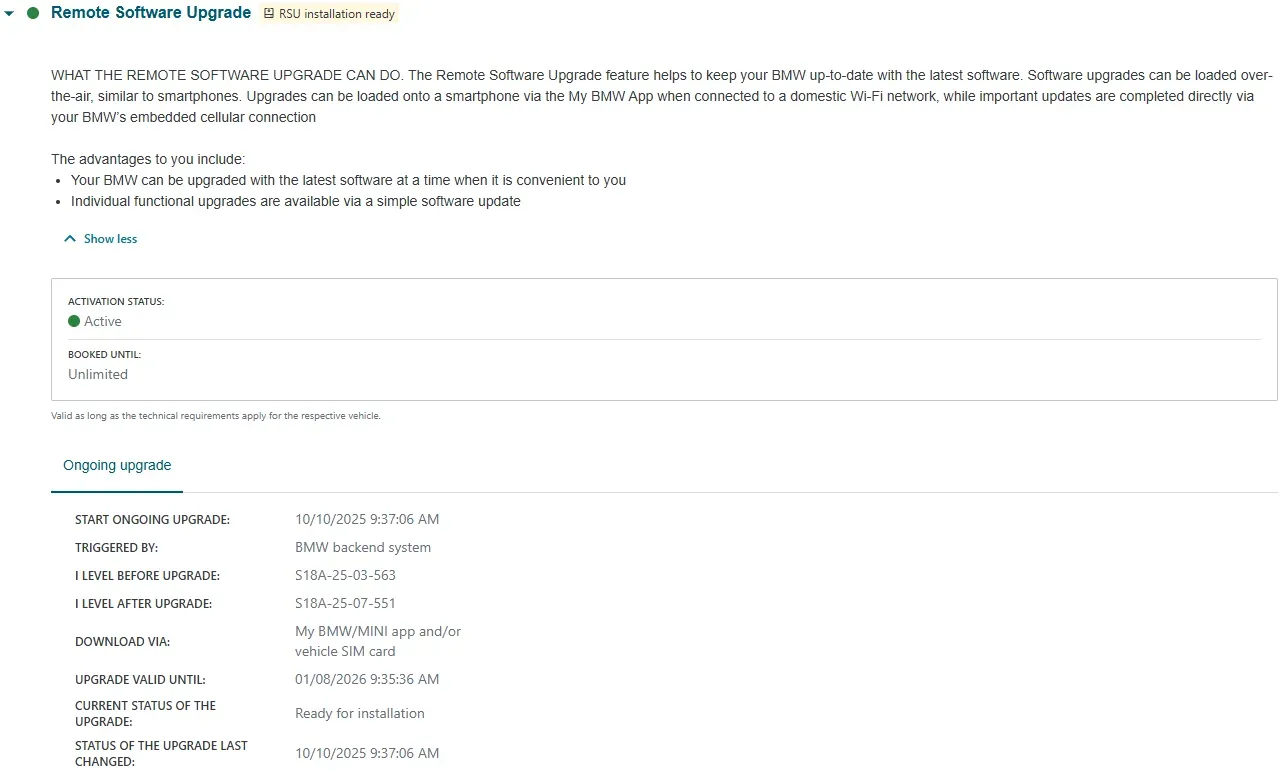

Performing a Remote Software Update (RSU) is the preferred method to address the 2024 BMW X5 BCP software error. Owners can check for available RSU offerings via their vehicle app or a BMW dealer can check through the Dealer Cockpit via the S-Gate portal or AWP. The process follows instructions outlined in SI B09 01 25. An example display shows "Remote Software Upgrade RSU installation ready".

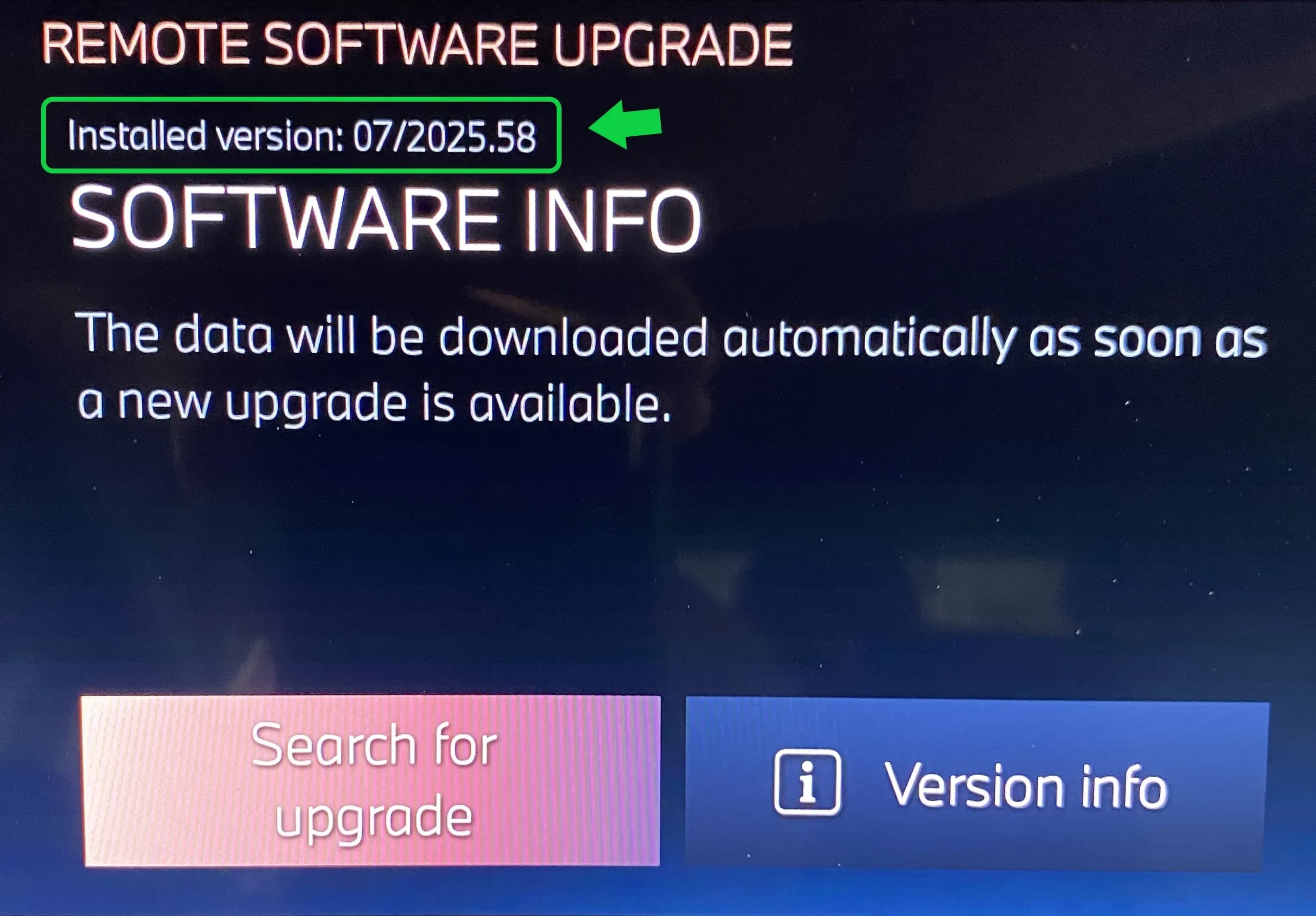

If the software version to be installed is S18A-24-11-525 (RSU version 11/2024.25) or higher, the RSU installation can be started in the vehicle. Owners should follow the instructions presented on the Central Information Display (CID). During installation, it is recommended to exit and lock the vehicle, ensuring no device is connected to the on-board diagnosis connector (e.g., ICOM). No further interaction is required once the software has been downloaded. After approximately 30 minutes, the RSU installation should be checked for success, verifying that S18A-24-11-525 or higher has been installed. The "RSU Installed version" will be displayed in the upper left corner of the CID, accessible via "System Settings" and "Remote Software Upgrade". If "Check Control messages (CCM)" are displayed after successful installation, the vehicle should be allowed to go to sleep before rechecking the I-level.

Alternative Method: Programming via ISTA

If the RSU method is not applicable (e.g., if the software version to be installed is lower than S18A-24-11-525), programming can be performed via ISTA. First, the vehicle's current integration level must be determined. For models F95, F96, G05, G06, G07, and G09, if the current integration level is S18A-24-07-555 or lower, the vehicle should be programmed using ISTA 4.50.1x or higher, released October 24, 2024. A vehicle test must be carried out, and fault memory deleted if required. It is crucial to "Always connect a BMW-approved battery charger/power supply (SI B04 23 10)" during this process. ISTA will automatically reprogram and code all programmable control modules that do not have the latest software.

Required Tools and Software

• Software: ISTA 4.50.1x or higher
• Software Version: Target integration level S18A-24-11-525 (RSU version 11/2024.25) or higher, or S18A-24-07-555 or lower for ISTA programming.
• Reference Bulletins: SI B09 01 25 (RSU procedure), SI B04 23 10 (battery charger/power supply).

Claim Information and Warranty

Reimbursement for this action is processed via normal claim entry. The programming and encoding procedure for SIB 61 29 24 may only be invoiced one time. Dealers should select one of the following open Technical Campaigns if applicable: 00 00 006, 00 00 556, 61 21 528, and 61 00 730. The specific Repair Code for this action is 0061950800, labeled as "Programming control units (BCP 24-11)" for models G05, G06, G07, G09, F95, and F96.

Labor operations and allowances for this service action include:

• Remote Software Update (RSU)
  • Work Package #5 (Plusposition): 00 78 919, "Remote software update", 2 FRU
  • Work Package #6 (Main work): 00 78 335, "Remote Software Upgrade performed", 3 FRU
• Vehicle Programming and Encoding (ISTA)
  • Work Package #1 (Plusposition): 00 77 749, "Program and encode the vehicle control units, includes carrying out vehicle test (00 00 556/61 21 528)", 8 FRU
  • Work Package #3 (Main work): 00 77 184, "Program and encode the vehicle control units, includes carrying out vehicle test (00 00 006/61 21 528)", 10 FRU
• Vehicle already at Specified Target Integration Level or Higher
  • Work Package #2 (Plusposition): 00 77 750, "Either in conjunction with another campaign/repair prior to or during this workshop visit (The RSU is excluded), the vehicle is already at the specified Target integration level or higher, no repair is necessary", 1 FRU
  • Work Package #4 (Main work): 00 77 185, "Either in conjunction with another campaign/repair prior to or during this workshop visit (The RSU is excluded), the vehicle is already at the specified Target integration level or higher, no repair is necessary", 1 FRU

Only one flat rate labor operation code can be used for claim submission, and only one Main work flat rate labor operation code can be claimed per workshop visit. Additional consequential repair work due to control module failures during reprogramming may also be claimed, following procedures outlined in SI B01 01 20 or B01 07 20 for documenting diagnosis work time.

NHTSA Source Citation

NHTSA ID: 10264177
