2024 Tesla Cybertruck Side Apron Seal Visibility TSB

Symptoms

Owners of certain 2024 Tesla Cybertruck vehicles may observe that the left-hand (LH) and/or right-hand (RH) side apron seal is visible. This visibility occurs through the gap between the frunk and the fender, which can be an aesthetic concern for vehicle owners.

Diagnosis and Trigger Conditions

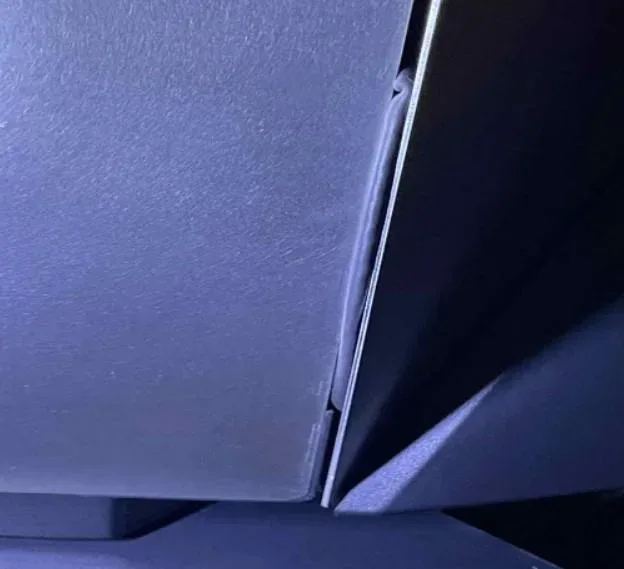

The condition is identified by a customer complaint regarding the visible Tesla Cybertruck side apron seal. The seal's presence in the frunk-to-fender gap is a direct visual indicator of the issue, as illustrated in the service bulletin's Figure 1.

Repair Procedure Summary

This repair involves the removal of the existing side apron seals and the installation of new clips to secure the area. The procedure is designed to be performed by trained professionals and can be completed by mobile service technicians where permitted.

1. Access the Area: Begin by opening the frunk of the Cybertruck to gain access to the side apron seals.

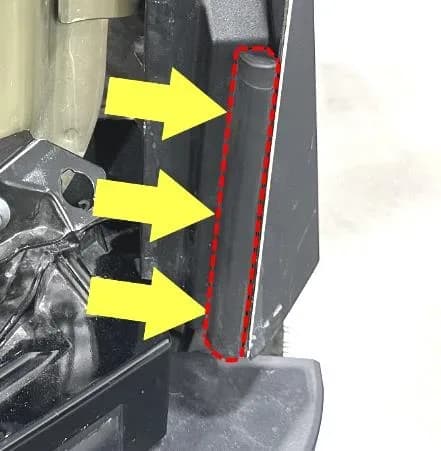

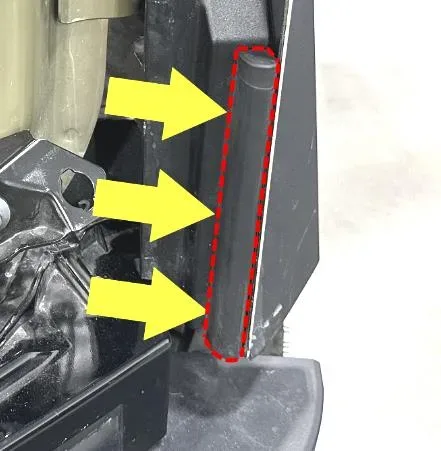

2. Remove Existing Seals: Using a pry tool, technicians will carefully release three clips that attach each side apron seal to the side apron assembly. Once released, the LH and RH seals are removed and discarded. Technicians are advised to use caution during this step to prevent damage to surrounding components.

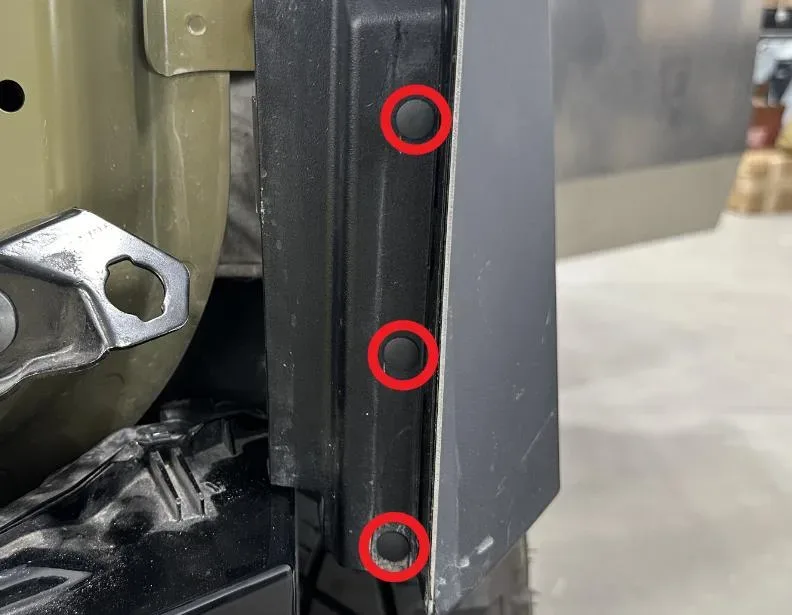

3. Install New Clips: Six new clips (part number 2067863-00-A) are then installed into the holes on both the LH and RH side apron assemblies. These holes were previously occupied by the removed seals, and the new clips ensure a secure and clean finish.
4. Finalize: After the clips are installed, the frunk is closed, completing the repair for the visible Tesla Cybertruck side apron seal.

Required Tools or Parts

To perform this correction, the following part is required:

• Part Number: 2067863-00-A
• Description: BRSH-CLIP,4.9,GR2.8-3.3,P66, [B]
• Quantity: 6

Important Warnings

Technicians must exercise caution when releasing the clips during the seal removal process. This is crucial to prevent any damage to surrounding vehicle components, ensuring the integrity of the vehicle's bodywork.

Owner Action

If you own a 2024 Tesla Cybertruck and notice the side apron seal visible through the frunk-to-fender gap, you should contact a Tesla Service Center. This issue is addressed by Service Bulletin SB-24-12-004, and the repair involves a straightforward procedure to remove the seals and install new clips. The repair time for removing the seals and installing clips is estimated at 0.06 hours.

NHTSA ID: 11001842
