2021-2022 Nissan Rogue Wiper Seal Leak TSB
Nissan Technical Bulletin NTB22-068 addresses water leaks from the rear wiper arm pivot seal on 2021-2022 Nissan Rogue (T33) vehicles. The bulletin describes confirming the leak with a water soak test and replacing the pivot seal.
Also applies to
- Nissan Rogue
- 2022
Nissan has issued Technical Bulletin NTB22-068 to address a common issue affecting 2021-2022 Nissan Rogue (T33) vehicles: water leaking from the rear wiper arm pivot seal. This bulletin, classified as BT22-007, provides technicians with the necessary steps to diagnose and repair this condition, ensuring proper sealing of the rear window wiper assembly.
Symptoms
Owners may notice water ingress around the rear window area. The primary symptom is when "Water is found to be leaking around the rear window wiper arm pivot seal" after a specific diagnostic test. This indicates a failure of the seal designed to prevent moisture from entering the vehicle's interior around the wiper arm's mounting point.
Diagnosis / Trigger Conditions
The condition is confirmed by performing a water soak test. If, during or after this test, water is observed leaking around the rear window wiper arm pivot seal, the vehicle is affected by this issue. This diagnostic step helps pinpoint the exact source of the leak to ensure the correct repair is performed.
Repair Procedure Summary

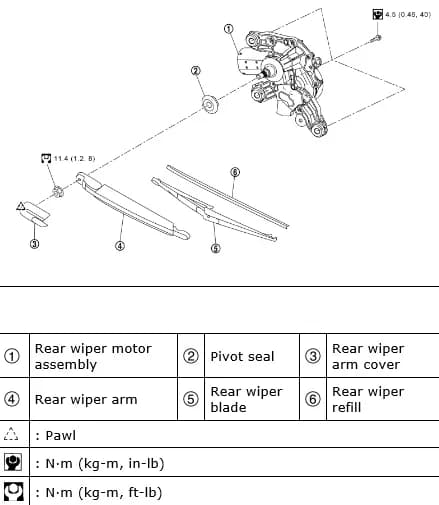

The recommended action to resolve the Nissan Rogue wiper seal leak is to replace the rear window wiper arm pivot seal. Technicians are instructed to refer to the Electronic Service Manual (ESM) for detailed instructions under the section: DRIVER CONTROLS > WIPER & WASHER > REMOVAL AND INSTALLATION > REAR WIPER > WIPER MOTOR. Figure 1 in the bulletin illustrates the rear wiper motor assembly, identifying the pivot seal as item #2, guiding technicians through the component's location and removal.
Required Parts
The specific part required for this repair is:
- SEAL - PIVOT: Part Number 28716-JE20A (Quantity: 1)
Claims Information
For warranty claims, technicians should submit a Primary Part (PP) type line claim. The Primary Failed Part (PFP) should be identified as the Pivot Seat (28716-*****). The operation codes for this repair are RH10AA (OP CODE), ZQ (SYM), and 53 (DIA), with the Flat Rate Time (FRT) determined by the current Nissan Warranty Flat Rate Manual.
Important Information for Owners
Nissan emphasizes that these bulletins are intended for use by qualified technicians, not for 'do-it-yourselfers.' The repair process requires specific tools, safety instructions, and technical knowledge to ensure proper completion. Owners should "DO NOT assume that it does. See your Nissan dealer to determine if this applies to your vehicle" if they suspect their 2021-2022 Nissan Rogue has a rear wiper seal leak.
Next Steps for Owners
If you own a 2021-2022 Nissan Rogue and suspect a water leak around your rear wiper arm, it is recommended to contact your authorized Nissan dealer. They can perform the necessary diagnostic water soak test and carry out the repair as outlined in Technical Bulletin NTB22-068, ensuring the issue is resolved correctly.
Source: NHTSA ID 10218971
Frequently Asked Questions
- What is the issue described in Nissan TSB NTB22-068?
- Nissan Technical Bulletin NTB22-068 addresses water leaking from the rear window wiper arm pivot seal on 2021-2022 Nissan Rogue (T33) vehicles.
- How can I confirm if my Nissan Rogue has this rear wiper seal leak?
- The issue is confirmed if water is found to be leaking around the rear window wiper arm pivot seal after performing a water soak test.
- What is the repair for the Nissan Rogue wiper seal leak?
- The repair involves replacing the rear window wiper arm pivot seal with part number 28716-JE20A, following the detailed service procedure outlined in the Electronic Service Manual (ESM).
- Is this a repair I can do myself?
- Nissan advises that their bulletins are intended for qualified technicians. It is recommended to have a Nissan dealer perform this repair to ensure it is done correctly and safely.
