What are the common signs of a water leak in a 2021-2022 Nissan Rogue?

The most common signs are a "Water leak is present at either top front corner of the windshield" or "Water stains are present on the headliner" or "Water stains are present on one or both interior front pillar garnish".

What is the fix for the Nissan Rogue water leak described in TSB NTB21-097A?

The repair involves removing the roof rails or side moldings, replacing specific plastic clips (part number 73857-6RR0A), and applying Loctite 5900 RTV Sealant to prevent further leaks.

Can I fix the water leak on my Nissan Rogue myself?

Nissan Technical Service Bulletin NTB21-097A explicitly states that these bulletins are for qualified technicians, not 'do-it-yourselfers'. It's recommended to have a Nissan dealer perform this repair to ensure it's done correctly and safely.

What parts are needed for the repair of the Nissan Rogue water leak?

The primary parts needed are two clips (part number 73857-6RR0A) and Loctite 5900 RTV Sealant (part number 999MPLT5900P), along with isopropyl alcohol for cleaning.

2021-2022 Nissan Rogue Windshield Water Leak TSB NTB21-097A

Owners of 2021-2022 Nissan Rogue vehicles may experience a Nissan Rogue water leak at the top front corners of the windshield. This issue, addressed by Nissan Technical Service Bulletin NTB21-097A, can lead to noticeable water stains inside the vehicle.

Symptoms

If you own a 2021-2022 Nissan Rogue with roof rails or roof side moldings, you might observe the following symptoms:

"Water leak is present at either top front corner of the windshield"
"Water stains are present on the headliner"
"Water stains are present on one or both interior front pillar garnish"

Diagnosis / Trigger Conditions

This condition applies to all 2021-2022 Nissan Rogue (T33) models equipped with roof rails or roof side moldings. The presence of water leaks or stains in the specified areas confirms the issue. The root cause is typically related to the leading plastic clips of the roof rails or moldings.

Important Warnings

Nissan emphasizes that this bulletin is intended for use by qualified technicians, not 'do-it-yourselfers'. Attempting this repair without proper training, equipment, and safety instructions could lead to further damage or injury. Always consult your Nissan dealer to determine if this bulletin applies to your specific vehicle.

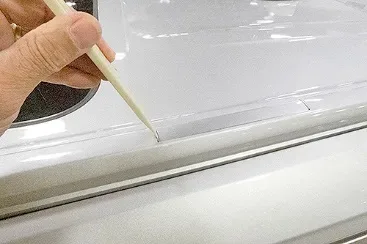

Furthermore, during the repair process, technicians are advised to ensure that the vehicle's paint is not damaged. If paint damage occurs, Nissan paint guidelines must be followed.

Repair Procedure Summary

The repair for the Nissan Rogue water leak involves a multi-step process focusing on the roof rail or roof side molding clips:

Access Mounting Bolts: For vehicles with cross bars, remove all eight cross bar mounting bolts. If cross bars are not mounted, remove the four roof rail covers and then all eight bolts underneath.

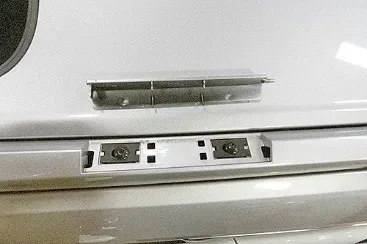

Remove LH Roof Rail/Molding: Carefully remove the left-hand (LH) roof rail or roof side molding. Technicians should refer to the Electronic Service Manual (ESM) for specific removal procedures related to BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY > EXTERIOR > REMOVAL AND INSTALLATION > ROOF RAIL or ROOF SIDE MOLDING.

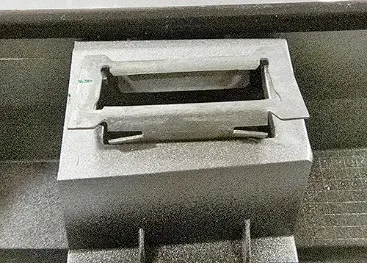

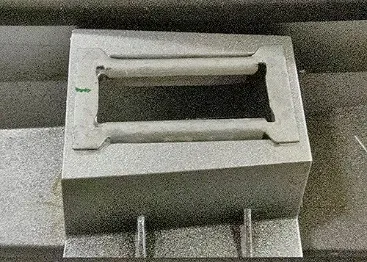

Inspect and Reattach Clips: Remove any roof rail clips that may have detached and reattach them securely to the roof rail. Inspect all remaining clips to ensure they are completely seated.

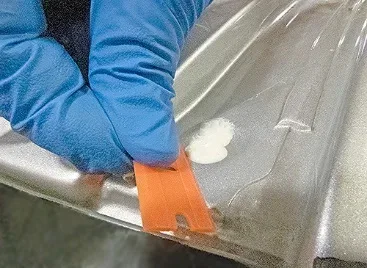

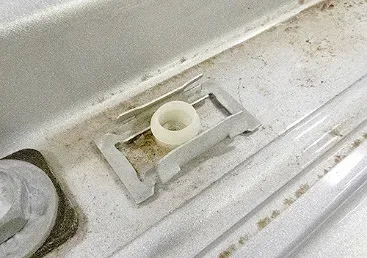

Clean and Remove Old Components: Remove any old sealer and remaining pieces of the roof rail clip from the leading roof rail clip hole. Isopropyl Alcohol should be used to clean any remaining sealer. Then, remove the old roof rail white plastic clip.

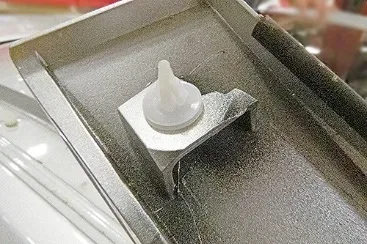

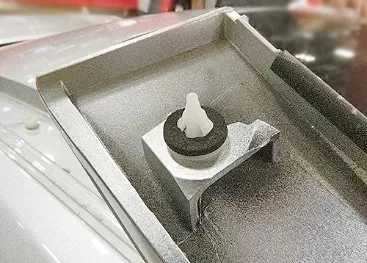

Install New Clip and Sealant: Install a new roof rail clip. Remove the black seal from the new roof rail clip and discard it. Apply a small bead of silicone sealer around the cleaned hole.
Reinstall Components: Reinstall the roof rail or roof side molding in the reverse order of disassembly. For roof rails, torque the cross bar bolts to 9-10 N•m (80-88 in-lbs). Confirm all clips are secured.
Repeat for RH Side: Perform steps 3-11 for the right-hand (RH) side of the vehicle.
Final Reassembly: Reinstall any remaining vehicle components, such as cross bars or roof rail covers, ensuring all remnants of sealer or debris are removed from the vehicle.

Required Tools or Parts

To address the Nissan Rogue water leak, the following parts and materials are required:

Clip: Part Number 73857-6RR0A (Quantity: 2)
Loctite 5900 RTV Sealant: Part Number 999MPLT5900P (One container is sufficient for approximately 10 repairs)
Isopropyl Alcohol: Shop supply

Note that the Loctite 5900 RTV Sealant is not included in any kit and must be billed out under expense code 008.

Warranty / Claims Information

For warranty claims, dealers should submit a Primary Part (PP) type line claim using the following coding:

Description: Install clips and sealer both sides
PFP (Primary Failed Part): Clip (73857-6RR0A)
OP CODE: BX7RAA
SYM: ZE
DIA: 32
FRT: 0.5
Expense Code: 008 (for Sealant), with a maximum amount of $5.89.

Amendment History

This bulletin, NTB21-097A, is a revision of a previous bulletin. The original bulletin, NTB21-097, was published on October 20, 2021. The current version, NTB21-097A, published on May 10, 2022, includes revisions to the APPLIED VEHICLES and PARTS INFORMATION, and adds an EXPENSE CODE.

Source: NHTSA ID: 10218750
