2021-2022 Nissan AWD Transfer Assembly Seal Replacement

Nissan has issued Technical Service Bulletin (TSB) NTB21-094A to inform technicians about a mandatory procedure for certain all-wheel-drive (AWD) vehicles. This bulletin specifies that the transfer assembly drive shaft oil seal and dust cover seal must be replaced whenever the front passenger (right-hand) side drive shaft is removed for any reason.

This update is crucial for maintaining the integrity of the transfer assembly and preventing potential fluid leaks. The TSB applies to 2019-2022 Altima (L34), 2015-2022 Murano (Z52), 2016 Murano Hybrid (Z52H), 2013-2020 Pathfinder (R52), 2014 Pathfinder Hybrid (R52H), 2014-2020 Rogue (T32), 2021-2022 Rogue (T33), 2017-2019 Rogue Hybrid (T32H), and 2017-2022 Rogue Sport (J11) models equipped with AWD. It specifically excludes S35 series Rogue/Rogue Select vehicles.

Important Warnings

Nissan emphasizes several critical points for technicians performing this service:

• DO NOT REPLACE the transfer assembly. This repair does not require the removal of the entire transfer assembly from the vehicle, nor does it require removing the transfer cover from the transfer assembly.
• Care must be taken to avoid leak recurrence and damage to the transfer assembly, as well as the new seals, during the removal and installation process.
• Appropriate seal installers and seal protectors must be used to prevent damage.
• When replacing the drive shaft oil seal and dust seal on 2019-2022 Altimas and 2021-2022 Rogues, it is recommended to remove the drive shaft support bearing bracket for additional clearance.
• The seal lips of the new dust cover seal and drive shaft oil seal must be lubricated before installation to prevent damage.

Repair Procedure Summary

The repair involves a precise sequence of steps to replace the seals:

1. Remove Seals: Using suitable tools, the old dust cover seal and drive shaft oil seal are removed. Both seals are discarded and not reused.
2. Install Drive Shaft Oil Seal: The new drive shaft oil seal is installed onto Seal Installer J-52390. With the help of an assistant, it is then installed into the transfer assembly to a specified depth of 2.0-2.6 mm (0.079-0.102 inches) using Universal Driver Handle J-8092 and Seal Installer J-52390.
3. Install Dust Cover Seal: The new dust cover seal is installed to a specified depth of 0.0-0.6 mm (0.000-0.024 inches) using a suitable tool.

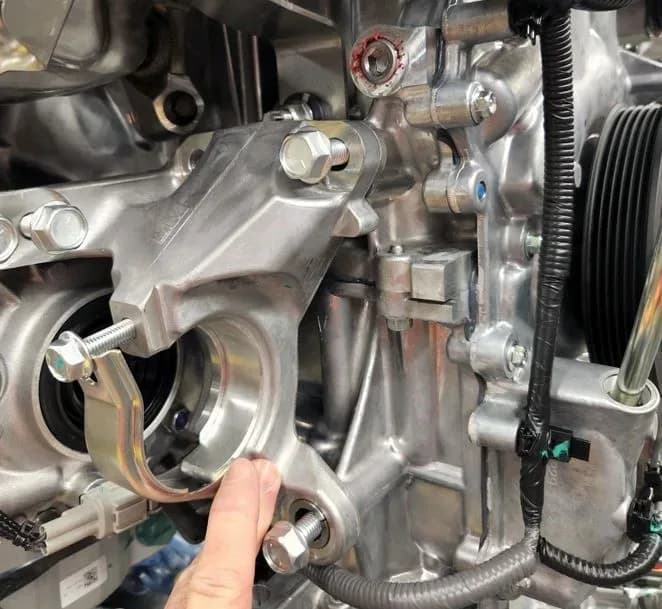

4. Drive Shaft Support Bracket Installation (Specific Models): For 2019-2022 Altimas and 2021-2022 Rogues, specific steps are outlined for installing the drive shaft support bearing bracket to prevent leaks and damage. This involves placing the bracket flat against the engine block and transfer assembly, loosely installing bolts, then finger tightening the top and bottom engine block bolts, followed by the transfer assembly bolts. Finally, all bolts are torqued to 48.0 N·m (35 ft-lb).

This detailed procedure ensures the correct installation and longevity of the new seals, preventing issues like a Nissan Rogue transfer assembly seal leak.

Required Tools or Parts

Special Service Tools are essential for this repair and are available from Tech-Mate online or by phone:

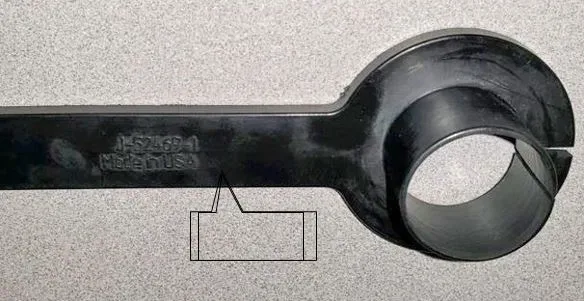

• J-52469-1 Seal Protector

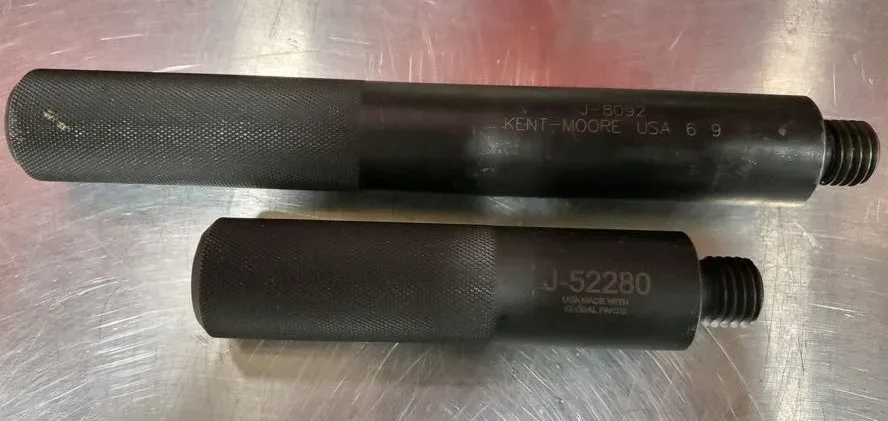

• J-8092 Driver Handle
• J-52280 Driver Handle

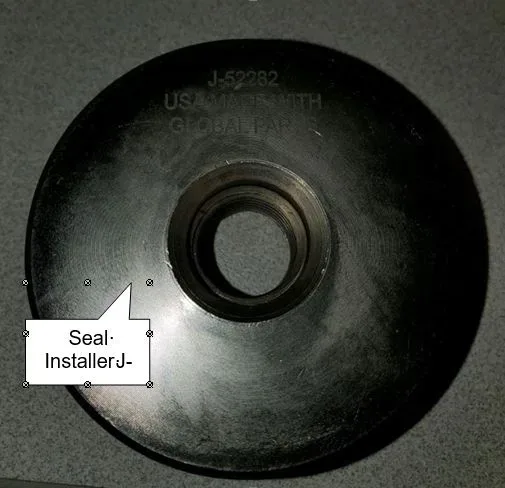

• J-52282 Seal Installer

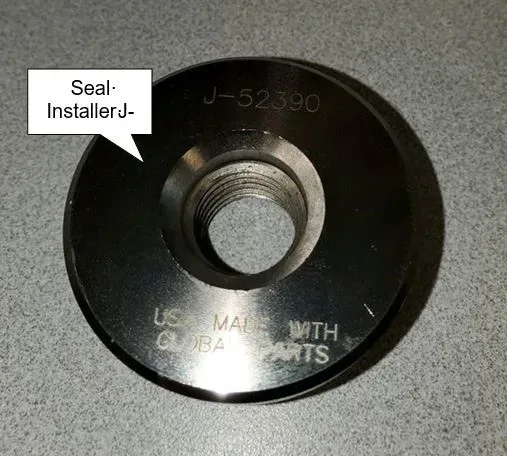

• J-52390 Seal Installer

Replacement parts include various axle nuts, drive pinion oil seals, cotter pins, dust cover seals, gasket-filler plugs, and Nissan Super Hypoid GL-5 80W-90 transfer oil. Specific part numbers vary by model:

DESCRIPTION	MODEL	PART NUMBER	QUANTITY
NUT-HEX (Axle Nut)	Altima	40262-4GA0C	1
	Murano, Murano Hybrid, Pathfinder, Pathfinder Hybrid	40262-2Y00A	1
	Rogue (built before 6-1-2018)	40262-2Y00A	1
	Rogue (built 6-1-2018 or later)	40262-JA000	1
	Rogue Hybrid, Rogue Sport	40262-2Y000	1
SEAL-OIL, DRIVE PINION (Axle Seal)	Altima, Murano, Murano Hybrid, Pathfinder, Pathfinder Hybrid, Rogue, Rogue Hybrid, Rogue Sport	33114-4BA0A	1
PIN-COTTER (Cotter Pin)	Murano, Murano Hybrid, Pathfinder, Pathfinder Hybrid, Rogue (T32), Rogue Hybrid	40073-0L700	1
	Rogue Sport	00921-5402A	1
SEAL-OIL (Dust Cover Seal)	Altima, Murano, Murano Hybrid, Pathfinder, Pathfinder Hybrid, Rogue, Rogue Hybrid, Rogue Sport	33142-4BA0B	1
GASKET-FILLER PLUG (Gasket)	Altima, Murano, Murano Hybrid, Pathfinder, Pathfinder Hybrid, Rogue, Rogue Hybrid, Rogue Sport	11026-1CA0A	1
Genuine Nissan Super Hypoid GL-5 80W-90 (Transfer Oil)	Altima, Murano, Murano Hybrid, Pathfinder, Pathfinder Hybrid, Rogue, Rogue Hybrid, Rogue Sport	999MP-1XGPP0P (1)	as needed

Owner Action

If your 2021-2022 AWD Nissan Altima, Murano, Rogue, or Rogue Sport requires service that involves the removal of the front passenger side drive shaft, it is important to ensure your service center is aware of TSB NTB21-094A. This ensures the correct Nissan Rogue transfer assembly seal replacement procedure is followed, preventing future issues. Consult your authorized Nissan dealer for any repairs or maintenance on your vehicle.

This bulletin, NTB21-094A, was published on June 17, 2022, and supersedes the original bulletin NTB21-094, published on October 25, 2021, with changes throughout the document.

---

NHTSA ID: 10218696
