2023 Kia Multiple Models California Emissions Data Collection

Kia Technical Service Bulletin (TSB) 239 (Rev 1), dated April 19, 2023, provides instructions for dealers to perform a Kia emissions data collection from the Engine Control Unit (ECU) of certain 2023 Kia vehicles. This procedure, internally referred to as DC23, is a requirement from the California Air Resources Board (CARB) to track "in use performance tracking" emissions data.

The bulletin, which supersedes the June 2022 version, emphasizes the importance of accurate data submission to ensure warranty claims are processed without delay and avoid chargebacks. This data collection specifically targets vehicles sold in California.

Important Warnings and What Dealers Should Know

This bulletin has been revised to include additional information, with new or revised sections indicated by a black bar in the margin. Several critical notices are highlighted for dealers:

• Mandatory Procedure: If a vehicle meets the specified criteria, California dealers must perform this data collection whenever an affected vehicle is in the shop and prior to any campaign, maintenance, or repair-related activities.
• Geographic Limitation: This data collection does not apply to vehicles or dealers operating outside of California.
• Chargeback Risk: Data collections initiated after a specific line item is closed on the Dealer Communication System (DCS) are subject to chargeback.
• Data Accuracy: Incomplete or invalid data submittals (e.g., invalid Repair Order number, incomplete VECI label Group number, no mileage reported) are unusable and can lead to warranty claim processing delays or chargebacks. Dealers must carefully review and adhere to the updated process steps.
• Error Conditions: An error screen may appear if the vehicle does not have an open DC23 Data Collection or fails to meet other specified conditions.
• Electronic Submission: Submission of screenshots by KDS Feedback is no longer required for claim payment. The data will be transmitted electronically by KDS.

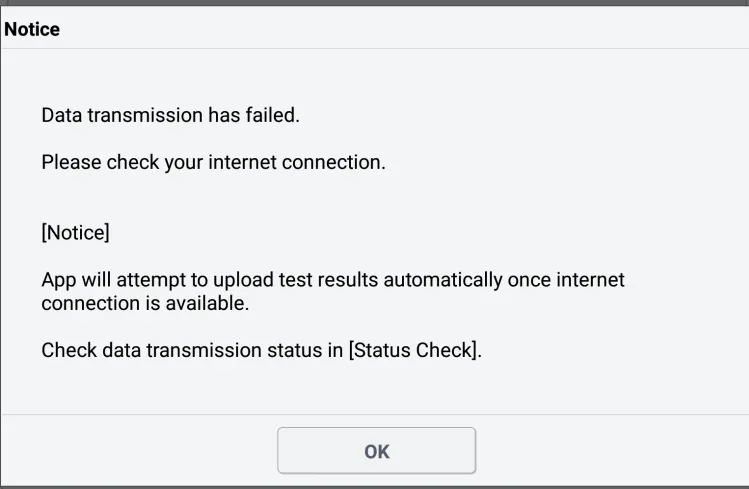

• Transmission Failure: If data transmission fails, the KDS app will attempt to upload test results automatically once an internet connection is available. Dealers can also manually initiate a "Send All Pending" action if the internet connection has been restored.

Conditions for Data Collection

For the Kia emissions data collection procedure to be performed, the vehicle must meet the following criteria:

• Open Data Collection Code: WebDCS must show an open Data Collection code, specifically DC23XXXX (the exact code varies by model, as detailed in the table on page 7 of the TSB).
• Mileage: The vehicle must have more than 3,000 accumulated miles on its odometer.
• Repair History: The vehicle's repair history must not show battery replacement/disconnection/reset or an ECU update within the last 3,000 miles. This is because In Use Monitor Performance Ratio (IUMPR) data would be cleared by such events.
• Malfunction Indicator Lamp (MIL): The vehicle must not have a Malfunction Indicator Lamp (MIL) illuminated.

Data Collection Procedure Summary

The data collection process involves using the Kia Diagnostic System (KDS) and follows these general steps, referencing TSB SST064 for the "Web Based" KDS IUMPR Data Collection procedure:

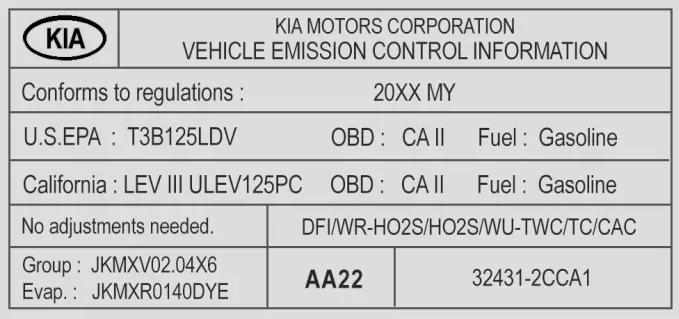

1. Locate VECI Label: Open the engine compartment and find the Vehicle Emission Control Information label on the underside of the hood. Record the 11-digit "Group" number (A) from this label.

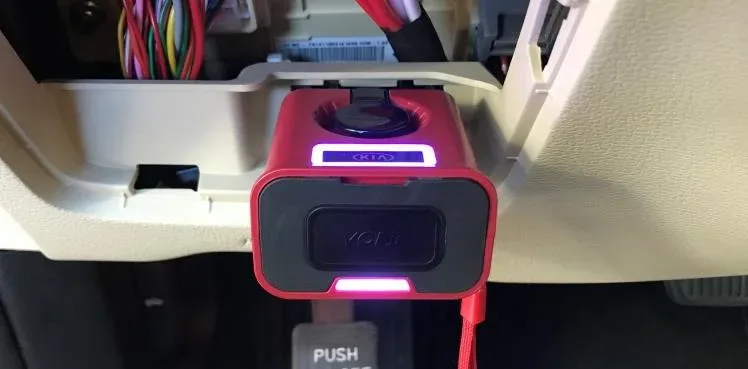

2. Connect VCI-II: Connect the VCI-II interface to the OBD-II connector, typically located under the driver's side of the instrument panel.

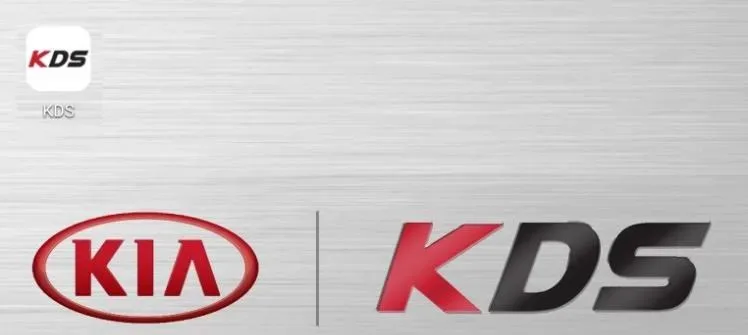

3. Start KDS: With the ignition ON, turn on the KDS tablet and select 'KDS' from the home screen.
4. Vehicle Configuration: Confirm communication with the VCI and configure the vehicle using the 'AUTO VIN' feature.

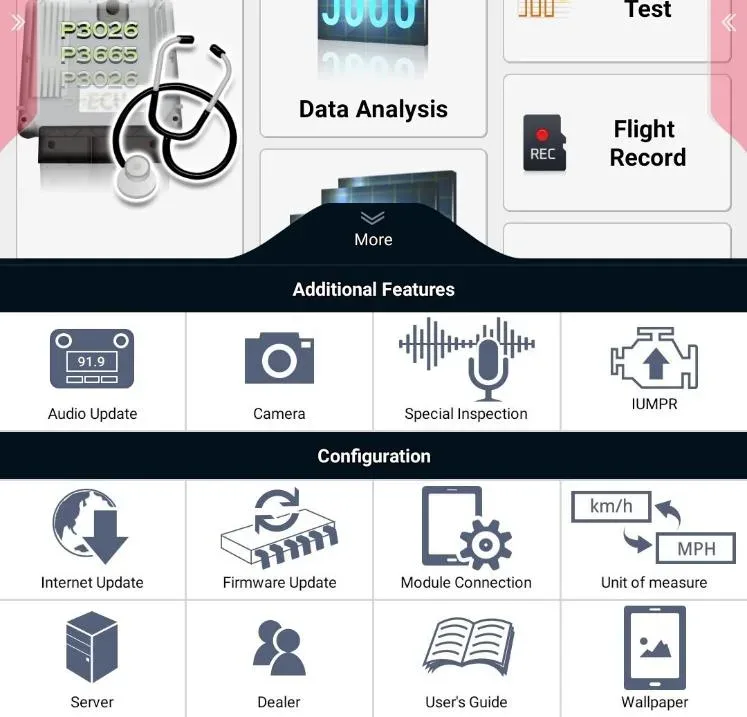

5. Select IUMPR Function: From the 'More' section of the KDS screen, select the 'IUMPR' function (E).

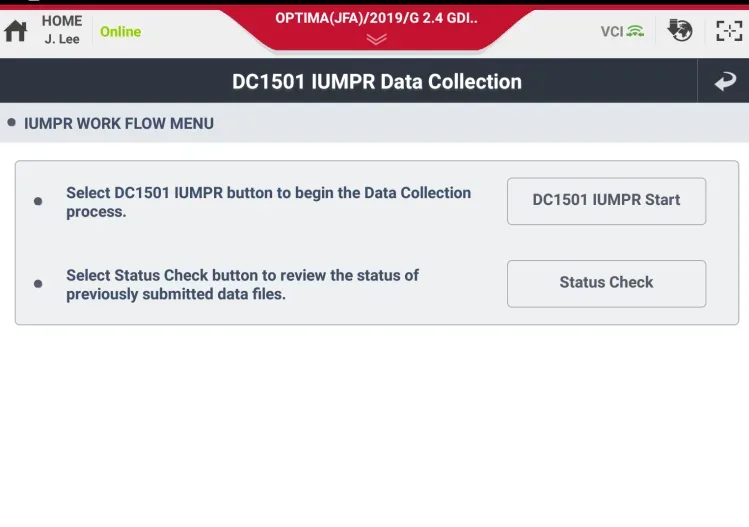

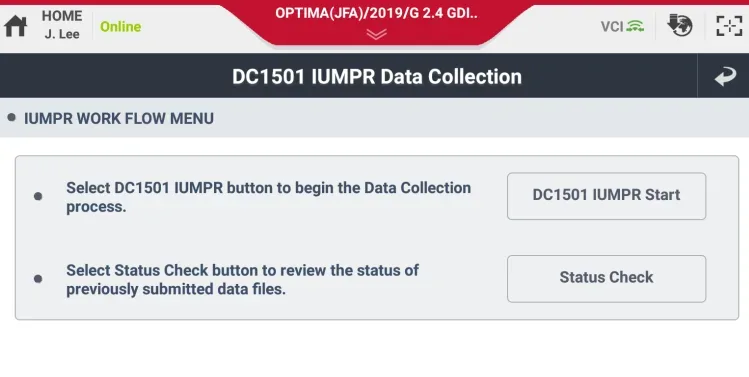

6. Initiate Data Collection: Select 'IUMPR Start' (F) to begin the data collection process. Ensure the KDS is connected to the internet to confirm an open DC23 Data Collection.

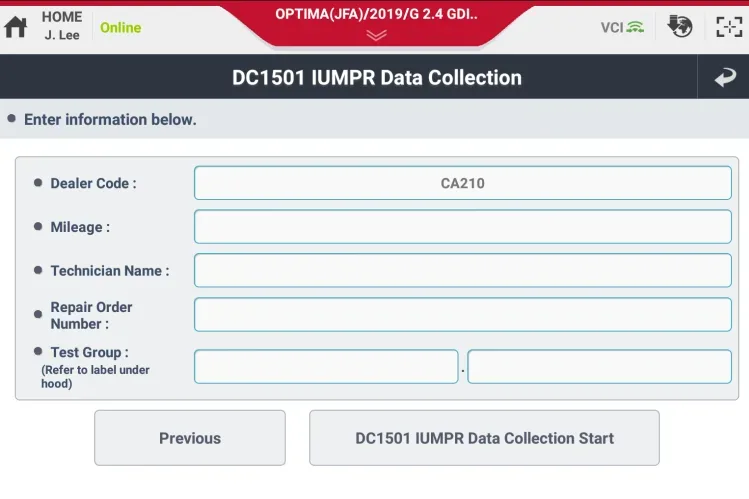

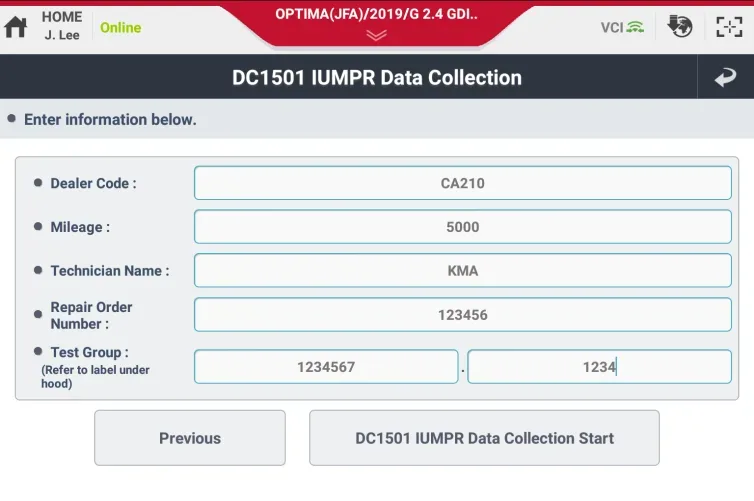

7. Enter Information: Accurately enter applicable information (G) into each field on the IUMPR Data Collection screen, including Dealer Code, Mileage, Technician Name, Repair Order Number, and Test Group (found on the engine underhood emission label).

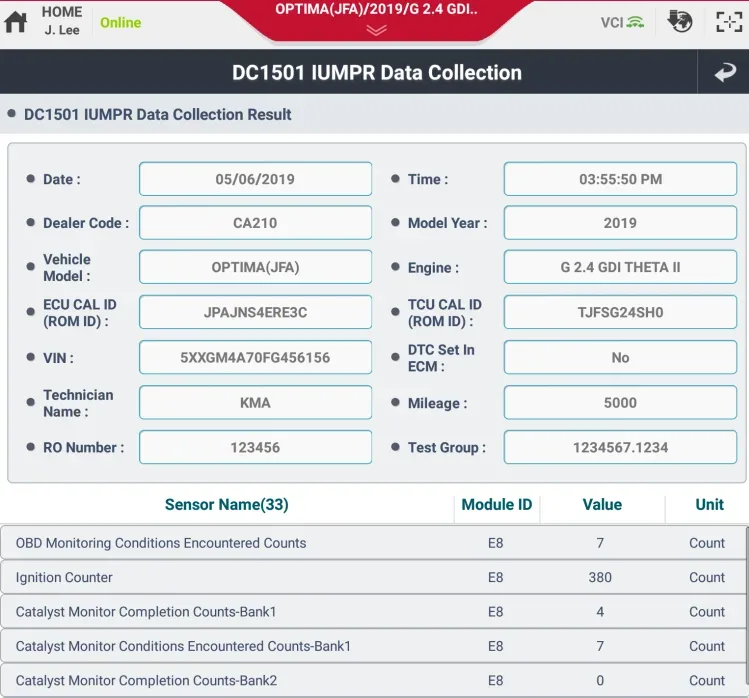

8. Confirm VIN: The following screen confirms the entered information and the first page of collected IUMPR data. Confirm the correct VIN (H) was successfully captured by the initial KDS Auto VIN.

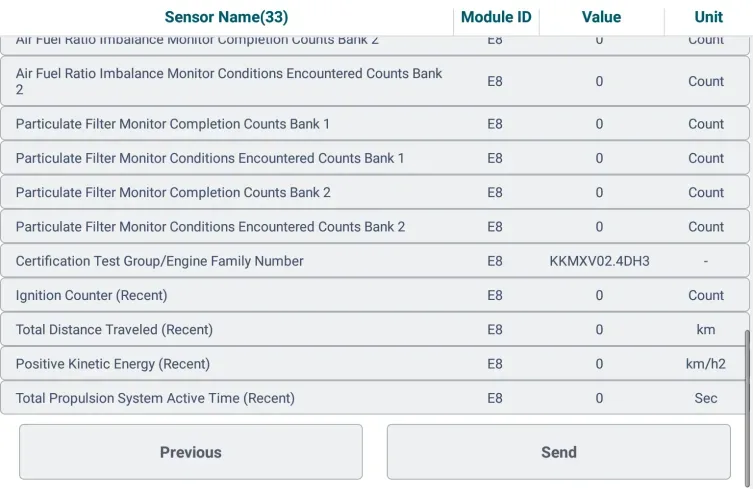

9. Send Data: Scroll to the second page of the data display and select the 'Send' (I) button to transmit the collected data to Kia's server.
10. Print Record: A confirmation screen will appear. Select 'Print' (J) to get a record of the IUMPR data collection to attach to the repair order as evidence.

Checking Data Transmission Status

Dealers can check the status of the data transmission:

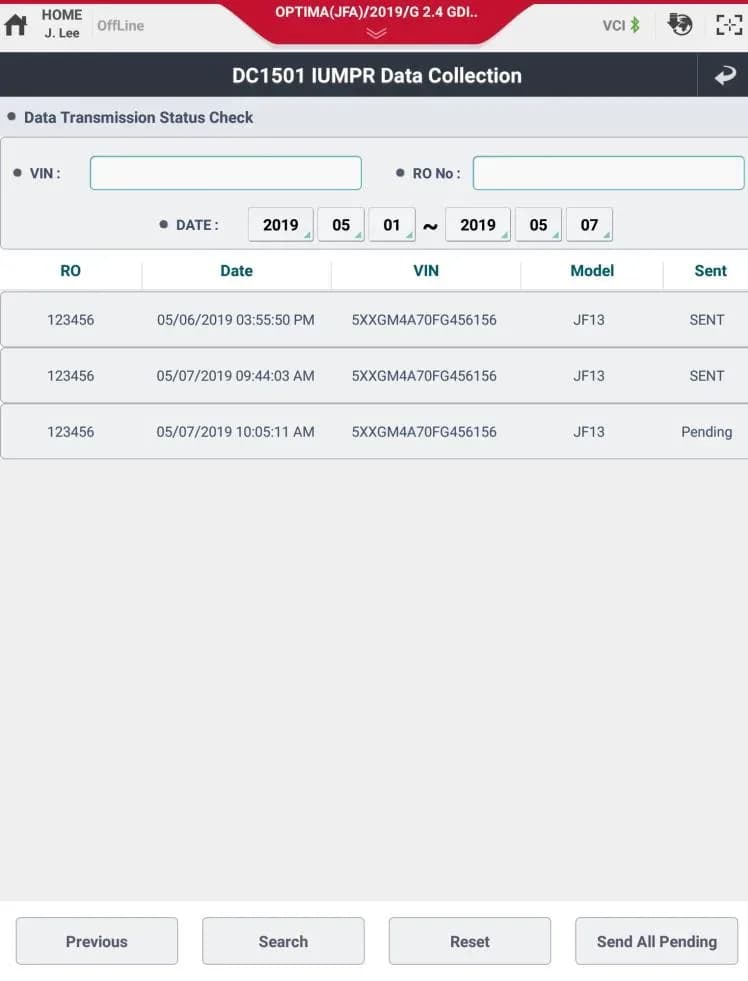

1. Select Status Check: From the DC Data Collection screen, select 'Status Check' (A).

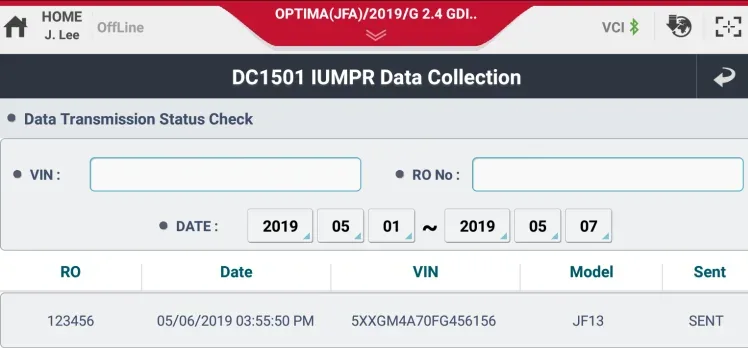

2. Review Status: The Data Transmission Status Check screen will display the status:
   • "Sent" (B) indicates IUMPR data has been successfully sent to Kia's server.
   • "Pending" (C) indicates data was collected and saved in KDS but awaits transmission once an internet connection is established.
3. Search Past Data: A particular VIN, Repair Order number, or Date range (E) can be entered to find past collected data.

Warranty Information

Warranty claims for this Kia emissions data collection procedure should use N Code: N99 and C Code: C99. The labor operation codes vary by model and engine, with a standard labor time of 0.4 hours for many models.

Owner Action

If you own a 2023 Kia model in California, your dealer will perform this mandatory Kia emissions data collection procedure if your vehicle meets the specified criteria when you bring it in for service. There is no specific action required from owners outside of ensuring their vehicle is serviced at an authorized California Kia dealership.

---

Source: NHTSA ID: 10235105
