2025 Jeep Wrangler Power Top Switch Collapsed TSB

Owners of certain 2025 Jeep Wrangler vehicles may encounter an issue where the power top switch collapses into the overhead console. This condition, identified as a manufacturing issue, is detailed in Technical Service Bulletin (TSB) 23-002-26, which has also been released as Rapid Service Update (RSU) 26-029.

This bulletin specifically applies to 2025 (JL) Jeep Wrangler models built on or after June 01, 2025 (MDH 0601XX) and equipped with the Sky One-Touch Power Top (Sales Code STJ). The TSB provides instructions for inspecting the power top switch and, if necessary, replacing the overhead console bezel to resolve the problem.

Symptoms

Owners may observe that "The power top switch collapsed and has been pushed inside the overhead console." While visually concerning, it's important to note that "The switch will still operate the top after being pushed in." This means the functionality of the Sky One-Touch Power Top is generally not immediately affected, but the physical integrity of the switch is compromised.

Diagnosis / Trigger Conditions

To diagnose this issue, a technician will inspect the power top switch by cycling it three times. If the 2025 Jeep Wrangler power top switch is found to be collapsed or pressed into the overhead console, the repair procedure outlined in TSB 23-002-26 should be followed. If the switch does not collapse, an inspection labor operation (23-14-02-9C) is used to close the active RSU.

Applicability of this service action can be verified by checking the vehicle's VIN in the VIP system or the RSU VIN list. However, if a vehicle not on the VIN list exhibits the symptom of a collapsed 2025 Jeep Wrangler power top switch, the repair procedure should still be performed.

Repair Procedure Summary

The repair involves several steps to address the collapsed power top switch:

1. Initial Inspection: Cycle the power top switch three times to confirm it collapses into the overhead console.
2. Battery Disconnect (PHEV Models): For Plug-in Hybrid Electric Vehicle (PHEV) models, the 12-volt battery must be disconnected. Detailed procedures are available in DealerCONNECT's Service Library under 08 - Electrical / 8F - Engine Systems / Battery System / Standard Procedure > 12-volt Battery Disconnect - PHEV.

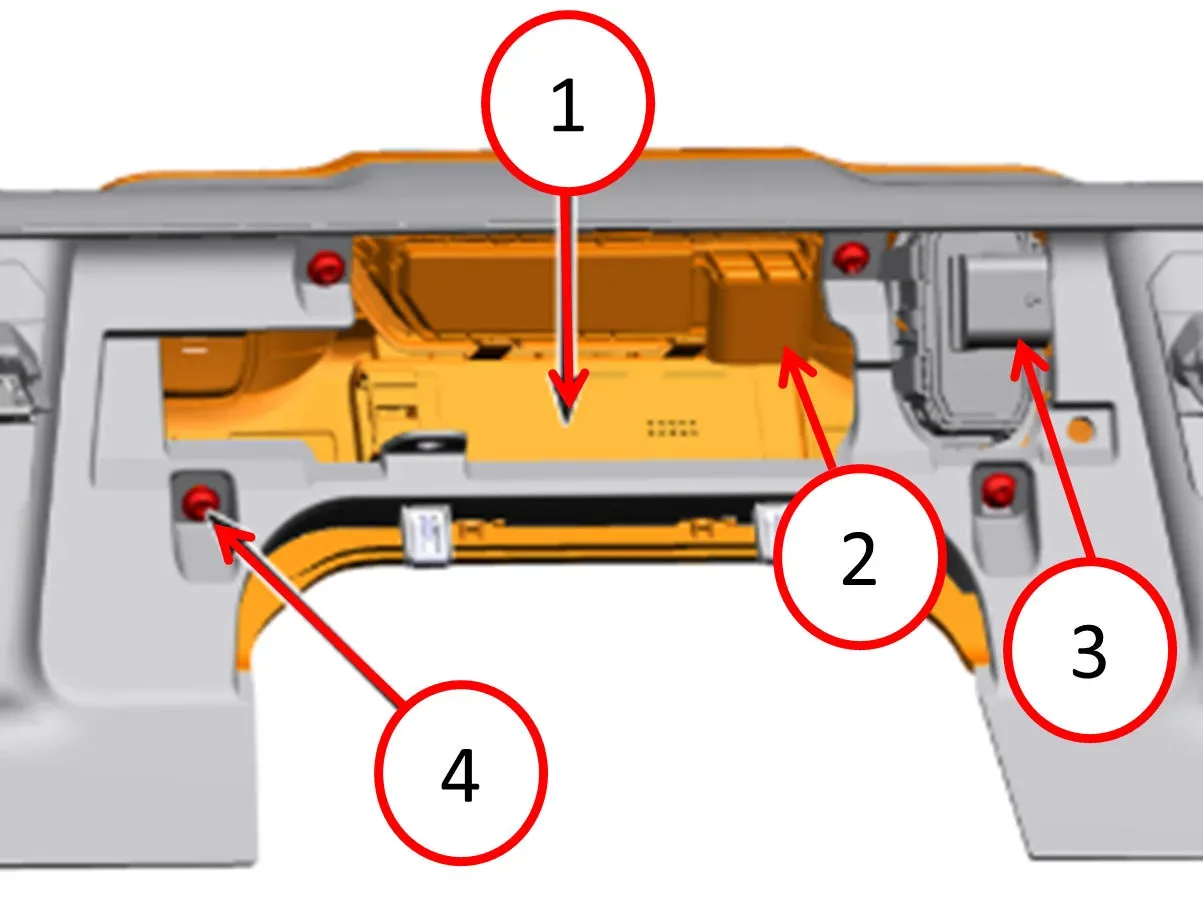

3. Overhead Console Removal: The front header panel is removed, followed by disconnecting all wire harness connectors. Four fasteners are then removed to detach the overhead console assembly.
4. Component Disassembly: The microphone array, air bag control switch, and the power top switch are disengaged from the overhead console.
5. New Bezel Installation: The power top switch, air bag control switch, and microphone array are then installed into the NEW overhead console bezel (part number 7FX93TX7AC).
6. Reassembly: The new overhead console, secured with four fasteners, is installed to the front header panel. All wire harness connectors are reconnected, and the front header panel is reinstalled.
7. Battery Reconnect (PHEV Models): For PHEV vehicles, the 12-volt battery is reconnected, following the detailed procedures in DealerCONNECT's Service Library under 08 - Electrical / 8F - Engine Systems / Battery System / Standard Procedure > 12-volt Battery Connect - PHEV.

Required Parts and Labor

The primary part required for this repair is the overhead console bezel, part number 7FX93TX7AC. The power top switch itself is reused.

Labor operations associated with this TSB include:

• 23-14-02-9C: Console, Overhead - Inspect Power Top Switch Trim Bezel (0.2 Hours)
• 23-14-02-9D: Console, Overhead - Inspect and Replace Power Top Switch Trim Bezel (0.7 Hours)
• 08-00-01-51: 12-Volt Battery Disconnect / Connect - PHEV (0.4 Hours, if applicable)

The failure code for this issue is ZY.

Important Warnings

Owners should be aware that even if the 2025 Jeep Wrangler power top switch has collapsed, "The switch will still operate the top after being pushed in." This means the immediate functionality of the power top is not lost, but the physical defect should still be addressed.

Warranty Information

All repairs performed under TSB 23-002-26 are reimbursable within the provisions of the vehicle's warranty.

NHTSA ID

11028774
