2022-2025 Jeep Compass/Renegade Fuel Injector Leak TSB

Owners of certain 2022-2025 Jeep Compass and Renegade vehicles may experience issues related to a fuel injector leak. This condition can lead to a lit Malfunction Indicator Lamp (MIL) and various diagnostic trouble codes (DTCs). Technical Service Bulletin (TSB) 14-009-25 REV. D outlines the diagnostic and repair procedures for this manufacturing issue.

This bulletin applies to 2022-2025 Jeep Renegade, 2022-2025 Jeep Commander, and 2022-2025 Jeep Compass vehicles built on or before July 31, 2025 (MDH 0731XX). Affected vehicles are equipped with a 1.3L I4 Turbo MAIR DI Engine with ESS E100 (Sales Code EYJ).

Important Warnings

This bulletin, TSB 14-009-25 REV. D, supersedes Technical Service Bulletin (TSB) 14-009-25 REV. C, which was issued on December 18, 2025. Any previous versions should be removed from your files. While the bulletin indicates applicability to North America, it specifically notes that it applies to the South America market. After applying the repair outlined in this TSB, it is not necessary to send DID-I or DID-A data.

Symptoms of a Fuel Injector Leak

Owners of affected vehicles may observe a "Malfunction Indicator Lamp (MIL) illumination" on their dashboard. Beyond the warning light, common symptoms that indicate a potential fuel injector leak include "Unstable idle" and "Abnormal engine noise." These symptoms suggest a problem with the engine's fuel delivery system.

Diagnostic Trouble Codes (DTCs)

If your vehicle is experiencing a fuel injector leak, the Malfunction Indicator Lamp (MIL) will likely be illuminated, and one or more of the following DTCs may be set:

• P0087-00: Fuel Line Pressure Sensor - Bank 1 - Pressure Below Limit.
• P0300-00: Multiple Cylinder Misfire.
• P0301-00: Cylinder 1 Misfire.
• P0302-00: Cylinder 2 Misfire.
• P0303-00: Cylinder 3 Misfire.
• P0304-00: Cylinder 4 Misfire.
• P006C-00: Air Pressure and Temperature Sensor - Correlation.

These codes point to issues with fuel pressure or engine misfires, consistent with a Jeep Compass fuel injector leak.

Diagnosis Process

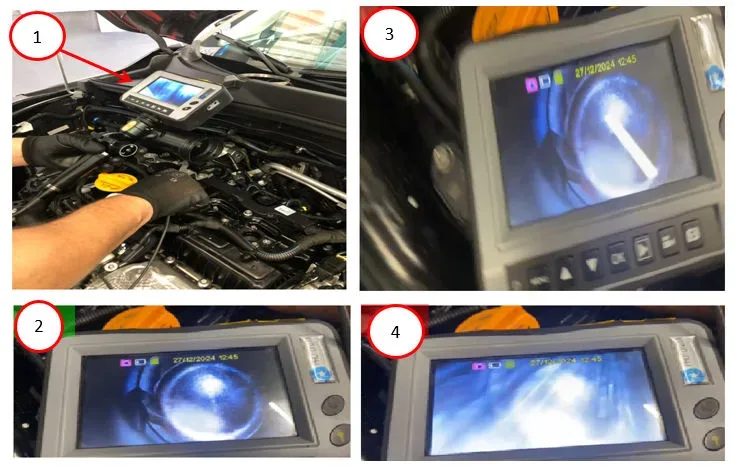

To diagnose a potential fuel injector leak, technicians will use a wiTECH scan tool to verify that all related systems are functioning correctly. If the listed DTCs or symptoms are present, a fuel injector leak must be confirmed using an Endoscope (part number EQ-10353143).

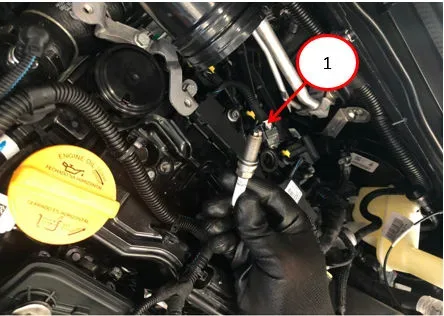

The diagnostic steps involve removing the spark plugs and then inspecting each injector with the Endoscope. During this inspection, a helper will turn the ignition key on (without starting the vehicle) and keep it on for one minute per injector. This process helps to identify any defective injectors. The iSolve 34684 procedure is also applied during this diagnosis.

Repair Procedure Summary

The repair for a Jeep Compass fuel injector leak involves replacing the defective fuel injector(s) and the associated high pressure tube (rail / high pressure pump). The number of injectors replaced will depend on the diagnosis. After the replacement, the diagnostic trouble codes (DTCs) must be cleared from the vehicle's system.

Detailed service procedures for spark plug removal can be found under Service Info> 5510D10 – Velas de ignição – Remoção e Recolocação. For fuel injector and tube replacement, refer to Service Info> 1056F60 - Tubo Coletor de Combustível Único - Completo de Eletroinjetor Remoção/Recolocação.

Required Tools and Parts

Technicians will require specific tools and parts for this repair:

• Scan Tool: wiTECH or equivalent.
• Inspection Tool: Endoscope (Código: EQ-10353143).
• Fuel Injectors: Mopar Part No. 68771508AA (or EMEA 46355952).
• High Pressure Tube: Mopar Part No. 68440665AA (or EMEA 46341585).

Owner Action

If you own a 2022-2025 Jeep Compass or Renegade and experience a "Malfunction Indicator Lamp (MIL) illumination," misfires, unstable idle, or abnormal engine noise, it is recommended to visit an authorized Jeep dealer. The dealer can perform the necessary diagnosis and repair as outlined in TSB 14-009-25 REV. D. This repair is reimbursable within the provisions of your vehicle's warranty.

Source: NHTSA ID: 11026795
