2024-2025 Jeep Coolant Leak From Thermostatic Valve Gasket TSB

Introduction

Jeep has issued Technical Service Bulletin (TSB) 07-002-25 REV. A and Rapid Service Update (RSU) 25-063 to address a common issue of engine coolant leaks. This bulletin, dated May 2, 2025, supersedes a previous version of TSB 07-002-25 from April 15, 2025. It specifically targets certain 2024-2025 Jeep Renegade and Compass models equipped with 1.3L I4 Turbo MAir DI engines.

Symptoms

Owners of affected vehicles may notice a Jeep Compass coolant leak or a similar leak in other models. The primary symptom reported is "Coolant is leaking at the thermostatic valve." This indicates a potential failure of the thermostatic valve gasket, leading to visible coolant loss.

Diagnosis

To diagnose a Jeep Compass coolant leak or a leak in other affected models, technicians will first verify the vehicle's VIN against the Rapid Service Update (RSU) VIN list. If a coolant leak from the thermostatic valve is confirmed, the repair procedure is initiated. For vehicles not on the specific VIN list but exhibiting the symptom, a diagnostic procedure is followed:

• If equipped, remove the under engine protection cover. Detailed service procedures are available in DealerCONNECT/Service Library under "Service Info> 7055B54 - Under Engine Protection - Removal/Replacement."
• Start the vehicle and allow the coolant temperature to reach 90 °C (194 °F).

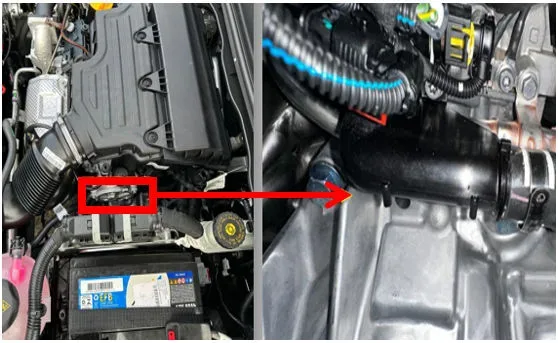

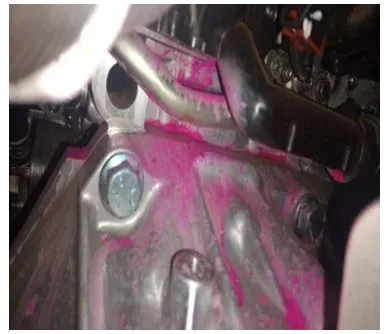

• Inspect the thermostatic valve and its surrounding area for evidence of leaking coolant. Figures in the TSB illustrate the inspection area and examples of a coolant leak.

Repair Procedure Summary

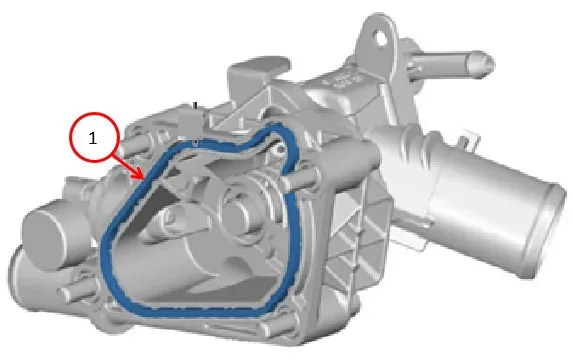

The repair for the Jeep Compass coolant leak involves inspecting and, if necessary, replacing the thermostatic valve gasket. If a leak is confirmed during diagnosis, the technician will proceed with the following steps:

• Remove the existing thermostatic valve.
• Replace the thermostatic valve gasket.
• Refer to detailed service procedures in DealerCONNECT/Service Library under "Service Info> 1088C40 - Thermostatic Valve - Removal/Replacement - Including necessary procedures" for precise instructions.
• If no leak is found after inspection, an Inspection Labor Operation (07-40-10-91) is used to close the active RSU, and the under engine protection cover is reinstalled.

Required Parts and Labor

The repair is reimbursable under warranty provisions. The following parts may be required for the repair:

• Thermostatic Valve Gasket (Part No. 68741584AA or 7098217)
• Radiator Hose Clamp (Part No. 68217783AA or 10860470)
• Hose Clamp (Part No. 68092543AA or 10861170)
• Antifreeze, Coolant, Gallon (Part No. 68163849AB)

Labor operations include:

• 07-40-10-91: Engine Thermostatic Valve Gasket - Inspect (0.2 hours)
• 07-40-10-92: Engine Thermostatic Valve Gasket - Inspect and Replace (1.3 hours)

The failure code associated with this issue is ZY.

Owner Action

If you own a 2024-2025 Jeep Renegade or Compass and suspect a coolant leak, particularly around the thermostatic valve, it is recommended to contact your authorized Jeep dealership. Provide them with your vehicle's VIN to check if it falls under TSB 07-002-25 REV. A or RSU 25-063. The inspection and replacement of the thermostatic valve gasket, if necessary, will be covered under warranty.

Source: NHTSA ID: 11017985
