2024-2025 Jeep Compass Fuel Tank Breather Tube Loose TSB

Stellantis has released Technical Service Bulletin (TSB) 14-002-25 REV. A, dated February 1, 2025, to address a condition where certain 2024-2025 Jeep Compass, Renegade, Commander, and RAM Rampage vehicles may experience difficulty during refueling. This TSB supersedes the previous TSB 14-002-25 issued on January 28, 2025, and includes revisions for build date corrections. This issue is also covered by Rapid Service Update (RSU) 25-012.

This bulletin applies to vehicles built on or after January 8, 2024 (MDH 0108XX) and on or before December 13, 2024 (MDH 1213XX). If your 2024 Jeep Compass manufacturer_communication indicates this issue, it is important to have it inspected.

Symptoms

Owners of affected vehicles may observe the following symptom:

• "Difficult to refuel the vehicle."

This symptom indicates a potential problem with the fuel system, specifically related to the fuel tank breather tube.

Cause

The root cause of the "Difficult to refuel the vehicle" symptom is identified as loose quick connect fittings within the fuel tank breather tube system. These loose connections can impede the proper venting of the fuel tank during refueling, leading to the reported difficulty.

Diagnosis

To diagnose this issue, technicians should first verify if the vehicle's VIN is listed in the VIP system or the RSU VIN list for TSB 14-002-25 REV. A or RSU 25-012. If the VIN is listed, the repair procedure should be performed. Even if a vehicle is not on the VIN list but exhibits the symptom of being "Difficult to refuel the vehicle," the repair procedure should still be followed.

Repair Procedure Summary

The repair involves inspecting and, if necessary, properly connecting the fuel hose quick connects. The high-level steps for addressing this issue are as follows:

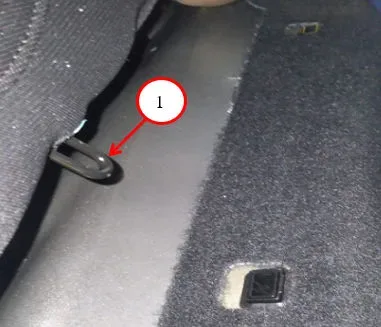

1. Access the Fuel Pump Area: The rear seat cushion must be raised to gain access to the fuel pump. (Refer to Fig. 1 in the TSB for visual guidance).

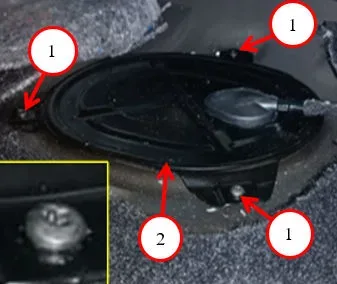

2. Remove Access Cover: Three screws securing the fuel pump access cover need to be removed. (Refer to Fig. 2 in the TSB for screw locations).

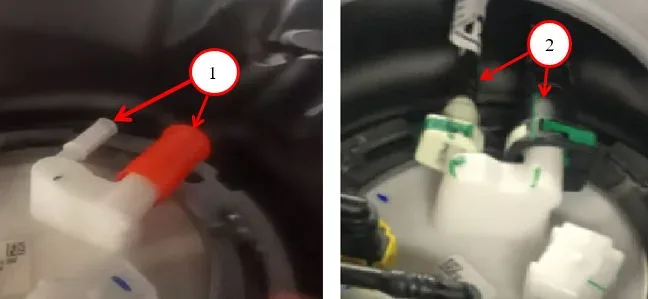

3. Inspect Breather Tube Connections: The fuel breather tube connections to the fuel pump should be carefully inspected. (Refer to Fig. 3 in the TSB, which shows both disconnected and connected tubes).
4. Check Connection Status: Determine if the fuel breather tubes are properly connected to the fuel pump. If they are already connected, the inspection labor operation (14-70-10-9B) should be closed, and the technician can proceed to reassembly.
5. Reconnect Tubes (if necessary): If the tubes are found to be disconnected, the red tamper-proof cover must be removed, and the fuel breather tubes properly connected to the fuel pump. (Refer to Fig. 3 for the connection points).
6. Reassembly: Once the connections are secured, the rear seat cushion should be lowered and both seat cushion locks engaged. (Refer to Fig. 4 in the TSB for seat cushion lock details).

Required Labor Operations

For claims data, the following labor operations are applicable:

• 14-70-10-9B: Fuel Hose - Inspection (0 - Introduction) - 0.2 Hours
• 14-70-10-9C: Fuel Hose - Inspect and Repair (0 - Introduction) - 0.2 Hours

The failure code associated with this service action is ZZ.

Important Warnings

• Market Applicability: For the NA market, this bulletin specifically applies to Mexico only. Owners in other regions should consult their local dealer for applicability.
• Warranty Coverage: All repairs performed under TSB 14-002-25 REV. A are reimbursable within the provisions of your vehicle's warranty.
• Technical Information: This bulletin is provided as technical information for service personnel and is not an authorization for repair without proper diagnosis or VIN verification.

What Owners Should Do

If you own a 2024-2025 Jeep Compass, Renegade, Commander, or RAM Rampage and experience a "Difficult to refuel the vehicle" symptom, you should contact your authorized Stellantis dealer. Provide them with your vehicle's VIN and mention TSB 14-002-25 REV. A or RSU 25-012. The dealer will be able to verify if your vehicle is affected and perform the necessary inspection and repair, which is covered under warranty. Addressing this issue promptly ensures proper vehicle operation and avoids continued refueling difficulties.

---

Source: NHTSA ID: 11013591
