2021-2025 Jeep Compass Rear Seat Belt Will Not Retract TSB

Symptoms

Owners of 2021-2025 Jeep Compass vehicles may encounter a common issue where a "rear seat belt that does not retract or is locked." This can affect one or both rear seat belts, making them difficult or impossible to use. The primary cause identified for this "Jeep Compass seat belt locked" problem is a folded seat belt, which prevents the retraction mechanism from operating correctly.

Diagnosis and Trigger Conditions

If you observe a rear seat belt that is not retracting or is locked, the first step is to inspect the seat belt for any folds. The issue is typically triggered by the seat belt becoming folded or twisted, particularly near the anchor points or where it exits the trim panels. The TSB, identified as 10-001-25, specifically addresses this condition.

Important Warnings

If, after all visible seat belt folds have been eliminated, the seat belt still remains unable to retract, a specific procedure called a "backlock" may be required. This involves using moderate force to pull the belt out at least 20 mm and then releasing it. This action is designed to unlock the retractor mechanism.

Repair Procedure Summary

Technical Service Bulletin 10-001-25 (also referenced as J10 FSAR-TSB-4832) provides a detailed repair procedure to address a "Jeep Compass seat belt locked" or non-retracting condition. The process involves several steps:

1. Initial Inspection: Technicians will first inspect the rear seat belt for any obvious folding conditions, as shown in Figure 1 of the bulletin.
2. Unfolding Attempt: If a fold is found and the belt is unable to retract, an attempt will be made to simply unfold the seat belt.

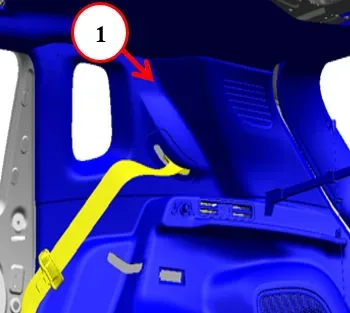

3. Trim Panel Removal (Upper): If the belt remains locked or folded, or if the fold is not easily accessible, the upper rear quarter trim panel may need to be removed. Figure 2 illustrates the location of this panel.

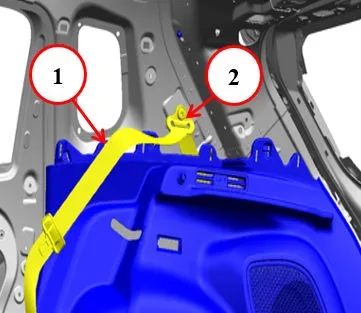

4. Inspection at Turning Loop: The seat belt will then be inspected where it comes out of the turning loop (Figure 3) for any folds.
5. Unfolding at Turning Loop: If a fold is present at the turning loop, it will be carefully unfolded.

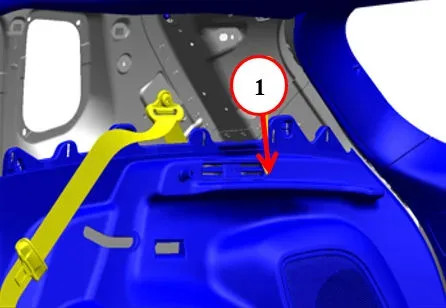

6. Trim Panel Removal (Lower): If the issue persists, the lower rear quarter trim panel may also need to be removed, as depicted in Figure 4.

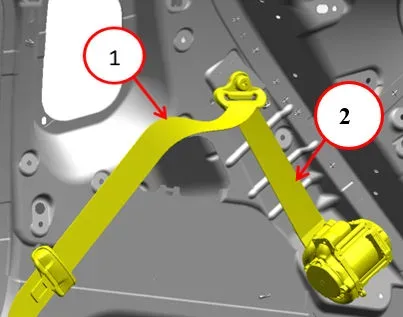

7. Unfolding at Retractor: Finally, the seat belt will be unfolded where it comes out from the retractor and passes through the turning loop (Figure 5).
8. Backlock Procedure: If, after all folds are addressed, the seat belt still does not retract, the
