2021 Hyundai Tucson Emissions Software Update TSB

Hyundai has released Technical Service Bulletin (TSB) 25-01-087H, also known as Service Campaign 9C2, to address a condition in certain vehicles equipped with Theta II engines. This campaign focuses on an Engine Control Module (ECM) software update designed to improve emissions performance.

This bulletin specifically applies to 2019-2020 Santa Fe (TMA), 2019 Sonata (LFA), and 2019-2021 Tucson (TL) vehicles that are equipped with the 2.4L GDI Theta II engine. The primary goal of this update is to correct elevated engine-out emissions.

Why This Matters

Elevated engine-out emissions can indicate that your vehicle is not operating as efficiently or cleanly as intended. While not always immediately noticeable to the driver, this condition can impact environmental compliance and potentially lead to issues during emissions inspections. The Hyundai Tucson emissions software update aims to bring these vehicles back into optimal emissions performance.

Important Warnings for Owners

Hyundai emphasizes several critical points regarding this service campaign:

• Dealer Action Required: "Dealers must perform this service campaign on all affected vehicles prior to customer retail delivery and whenever an affected vehicle is in the shop for any maintenance or repair."
• VCI 2 Tool Status: "VCI 2 can NO longer be ordered but can be used for the updates in this TSB."
• Battery and Tablet Charge: "Ensure the vehicle's battery charge is above 11.0 Volts and the tablet's battery charge is above 30% before performing a software update to avoid the update from failing."
• During Software Update:
  • "Do NOT leave head lamp switch in auto mode" and turn off all accessories.
  • "Do NOT disconnect any cables connected to the vehicle or scan tool during update."
  • "Do NOT start the engine during update."
  • "Do NOT turn OFF the ignition switch during update."
• Photo Imprint: "The VIN/Date/Time/Mileage photo imprint is NOT required for GDS screenshots."

Repair Procedure Summary

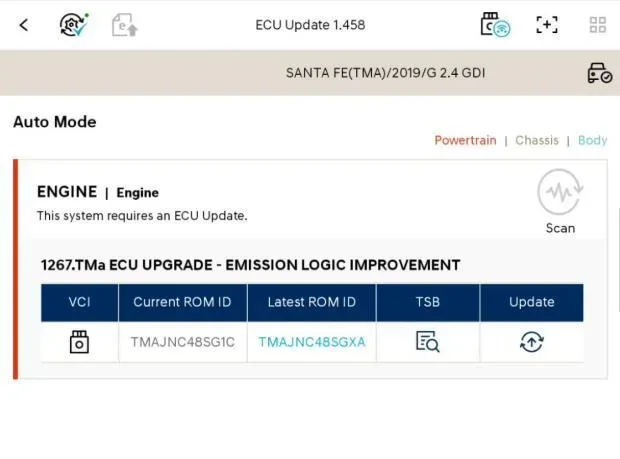

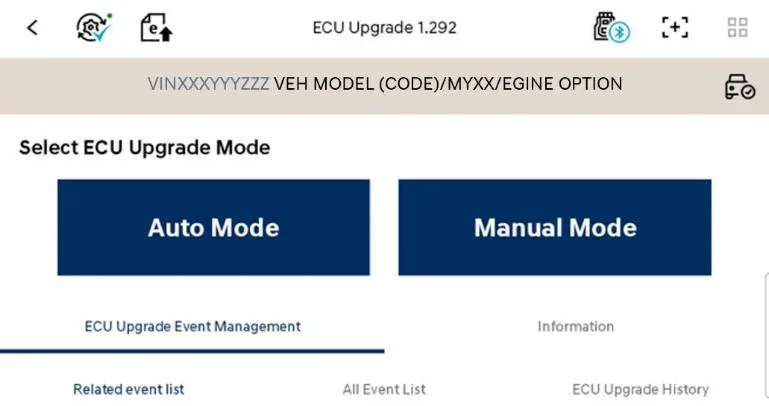

The repair involves updating the Engine Control Module (ECM) software and applying an emissions label. The process is initiated using the GDS (Global Diagnostic System) in Auto Mode. If the update fails in Auto Mode, technicians can switch to Manual Mode using specific passwords provided in the bulletin.

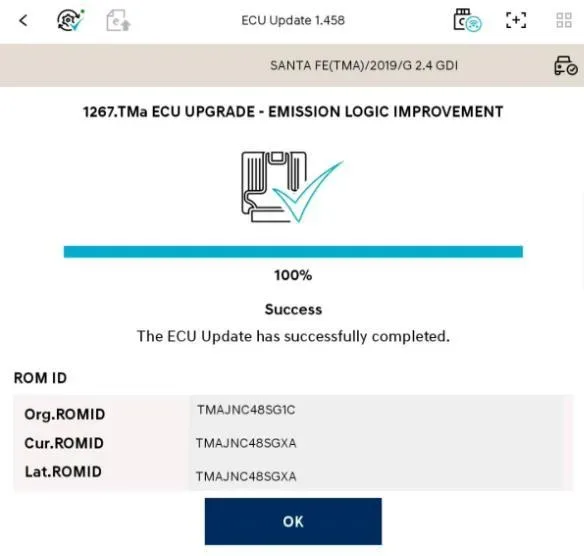

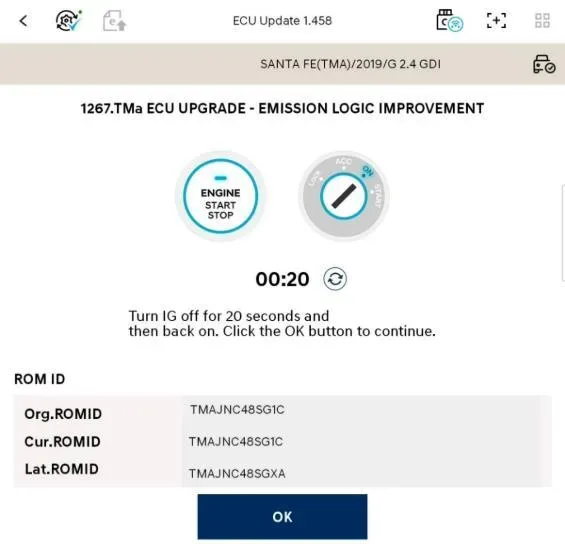

After a successful update, the ignition must be cycled OFF for at least 10 seconds (or up to 30 seconds for some models) to reset the control unit. Technicians are also instructed to perform an All Systems Fault Code search and erase any incidental DTC history that occurred during the update. In cases of update failure, the power connector from the indoor fuse box or the negative (-) 12V battery terminal must be disconnected for at least 5 seconds before retrying.

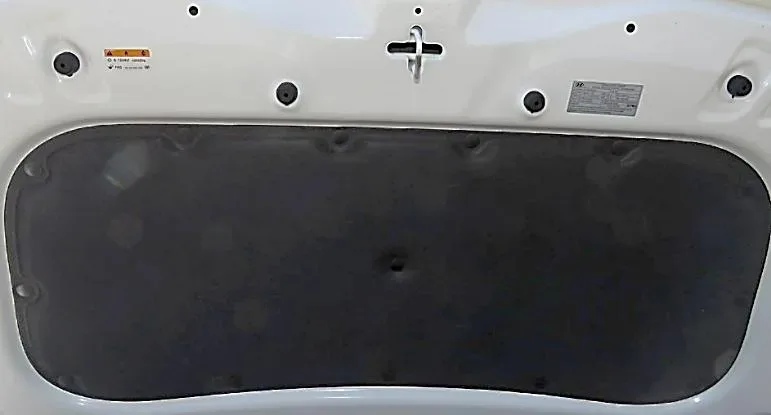

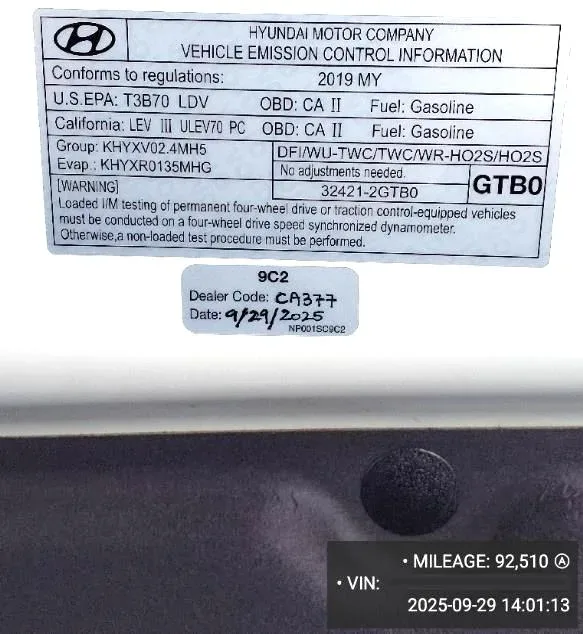

An Emissions Label (part number NP001-SC9C2) is then filled out with the dealer code and date, and applied to the underside of the hood. For vehicles registered in specific states (CA, CO, CT, DE, ME, MD, MA, NJ, NY, OR, PA, RI, VT, WA), a Vehicle Emission Recall - Proof of Correction Card (part number NP050-09006) must also be completed and provided to the owner. This card serves as evidence of the campaign completion for registration renewal in those states.

Required Tools or Parts

To perform the Hyundai Tucson emissions software update, technicians will need:

• Emissions Label: Part Number NP001-SC9C2
• Vehicle Emission Recall - Proof of Correction Card: Part Number NP050-09006 (for specific states)
• Diagnostic Tools:
  • VCI 3 (Tool Number GOVHNNN06)
  • VCI 2 (Tool Number G1XDDMN001) - can still be used for updates, but is no longer orderable.

ROM ID Information

The TSB provides extensive ROM ID information, detailing the current and latest ROM IDs for each model, event number, and ECU part number. For example, for the 2019 Sonata (LFA) with Event 1329 and ECU Part Number 39112-2GGK7, the latest ROM ID is LPAJNS4ERGXA. Similarly, for the 2021 Hyundai Tucson (TL) with Event 1269 and ECU Part Number 39171-2GPB2, the latest ROM ID is TPDLNC4ERGXA. These codes ensure the correct software version is installed for the specific vehicle configuration.

Owner Action

If you own a 2019-2021 Hyundai Tucson, 2019-2020 Santa Fe, or 2019 Sonata equipped with a 2.4L GDI Theta II engine, your vehicle may be subject to this Service Campaign 9C2. Hyundai is performing this service free of charge. Dealers are required to perform this update on all affected vehicles prior to retail delivery and whenever an affected vehicle is in for any maintenance or repair. You can check for open campaigns on your vehicle by accessing the "Vehicle Information" screen via WebDCS at a Hyundai dealership.

If your vehicle is registered in California, Colorado, Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont, or Washington, you will receive a "Vehicle Emission Recall - Proof of Correction Card" upon completion of the service. This card may be required for vehicle registration renewal.

---

Source: NHTSA ID 11025963
