2024 Hyundai Tucson / Santa Cruz Windshield Water Leak TSB

Hyundai has released Technical Service Bulletin (TSB) 23-01-085H-1, also known as Service Campaign 9A6, to address a potential issue with water intrusion in the front passenger cabin of specific 2024 Hyundai Tucson and Santa Cruz models. This bulletin supersedes the previous TSB 23-01-085H to include retail vehicles.

This TSB details a repair procedure to fill a gap in the urethane seal between the vehicle's body and the windshield glass, which is the root cause of the Hyundai Tucson water leak and Santa Cruz water leak.

Important Warnings for Owners

Hyundai emphasizes the importance of this service campaign. Dealers are instructed to perform this repair on all affected vehicles before customer retail delivery. Furthermore, if an affected vehicle is brought in for any maintenance or repair, dealers must check for and complete this service campaign. Owners can inquire with their dealership to confirm if their vehicle has an open campaign by checking the "Vehicle Information" screen via WEBDCS.

Symptoms

Owners of affected 2024 Hyundai Tucson (NX4A) and Santa Cruz (NXT) vehicles may notice water intrusion in the front passenger cabin. This Hyundai Tucson water leak is typically caused by an improper seal of the windshield glass, allowing water to seep into the vehicle's interior.

Repair Procedure Summary

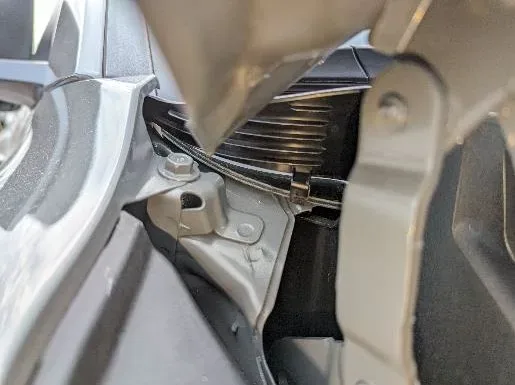

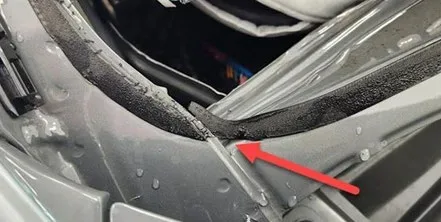

The repair outlined in TSB 23-01-085H-1 involves applying a specialized sealant to the windshield's urethane seal. The process begins by opening the hood and locating the A-pillar body panel seam near the hood hinge on the passenger side. Technicians are advised to perform this repair in the shade or indoors if possible.

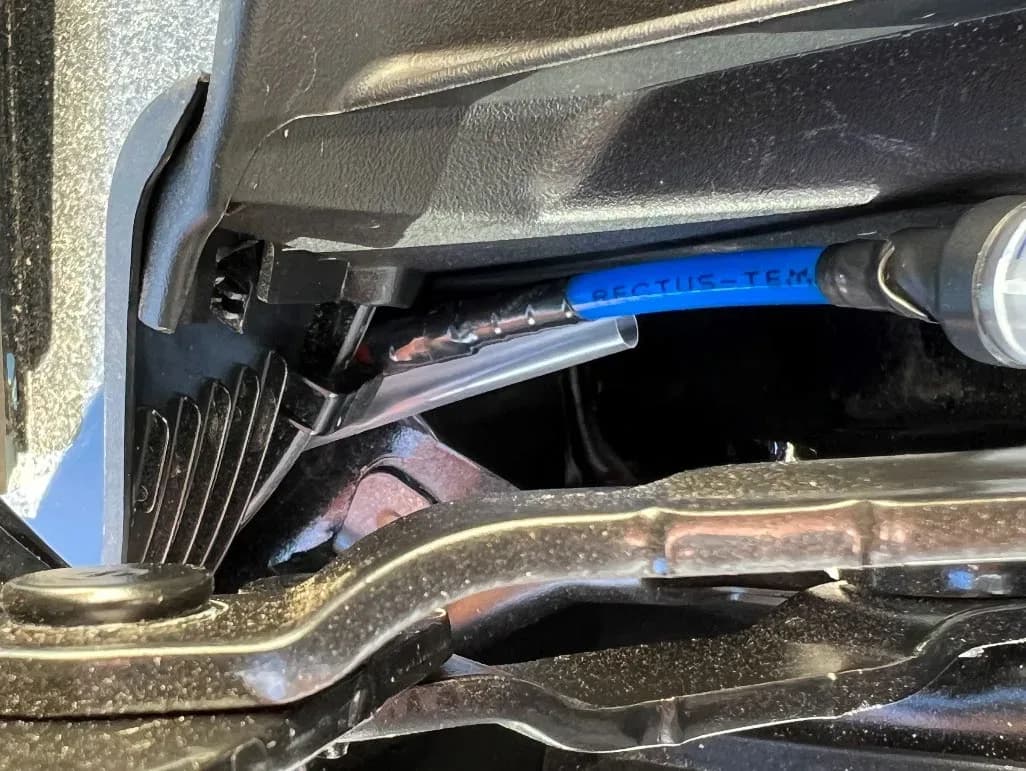

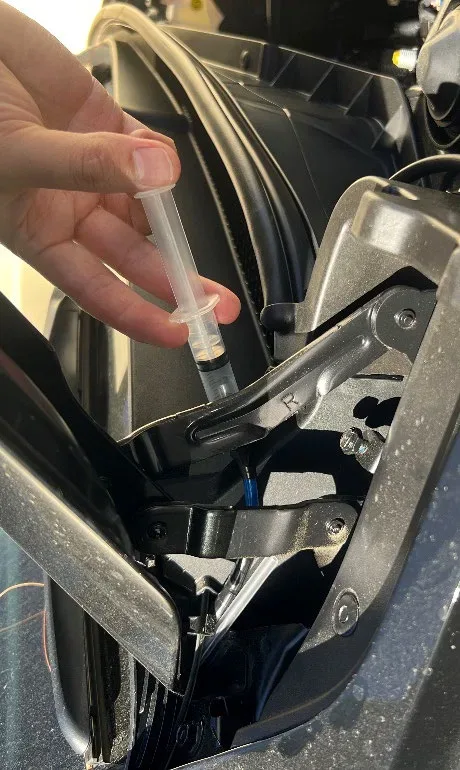

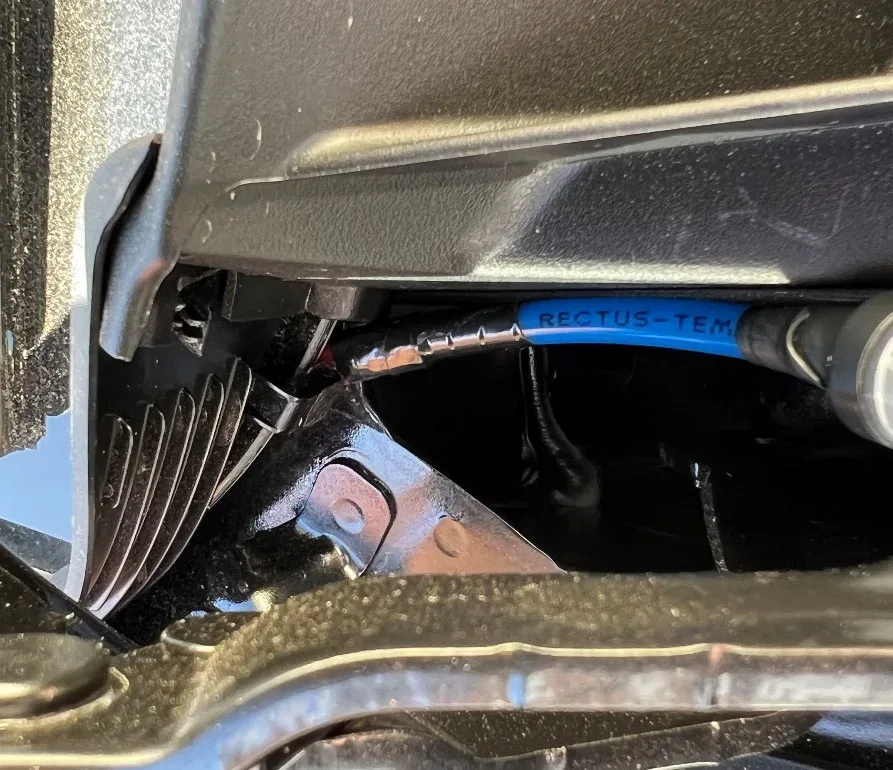

Next, approximately 5 ml of Permatex Windshield and Glass Sealant is loaded into a syringe. The syringe plunger is reinstalled, and sealant is pushed through until it begins to flow. The syringe is then inserted underneath the windshield glass, following the body panel seam to a specified depth. A barrier tube is inserted parallel to the syringe.

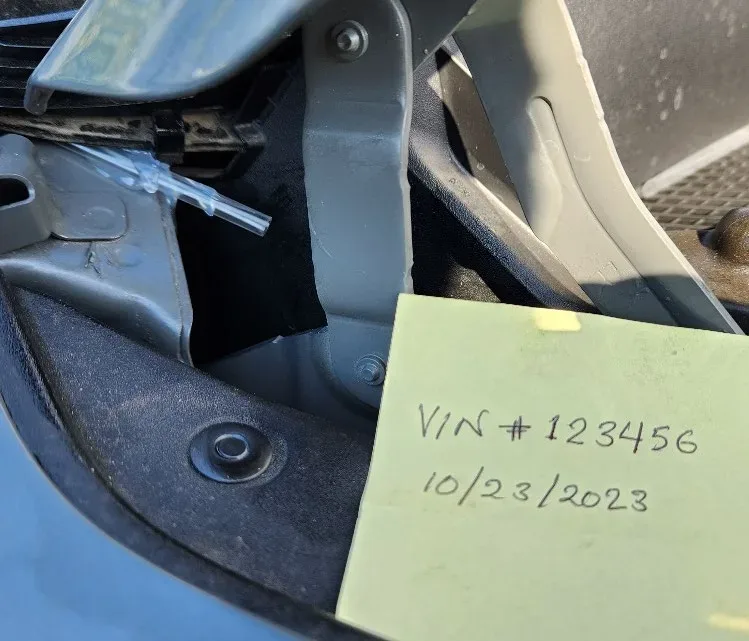

Sealant is injected in 1 ml increments, with a 5-second wait between each injection, until the entire amount has been applied. After injection, the syringe is removed, but the barrier tube remains in place for 10 minutes. The sealant will set in 1 hour and fully cure within 24 hours. Technicians must take repair validation photos, including the last 6 digits of the VIN and the repair date, and upload them.

Required Tools or Parts

To perform the windshield water leak repair, the following parts are specified:

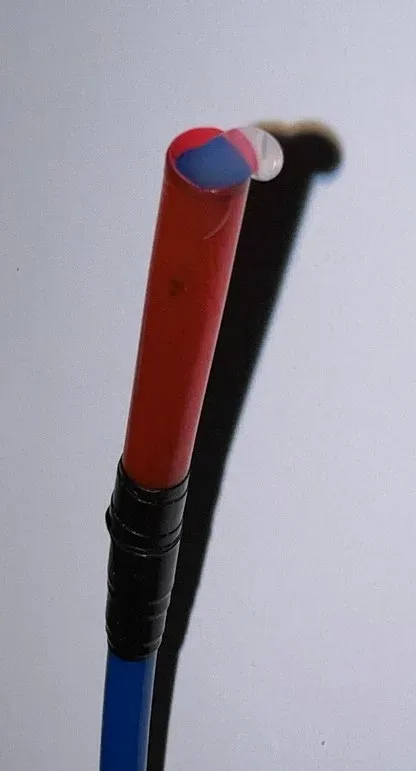

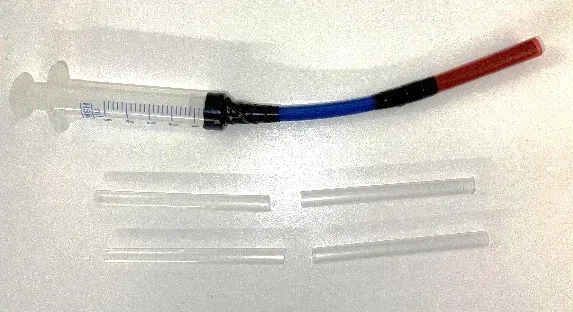

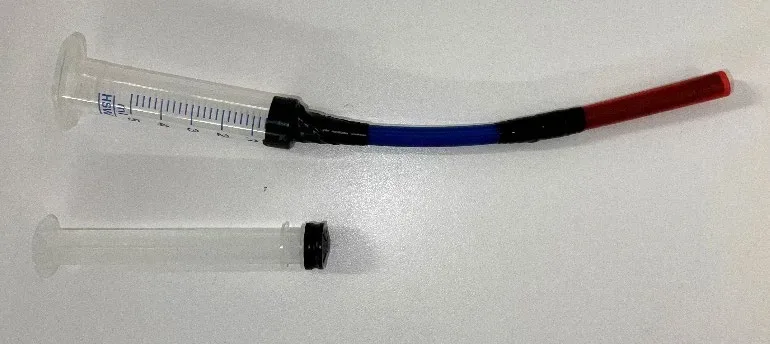

• Syringe Kit: Part Number SVC9A-6SYRINQQH (includes 1 syringe and 4 barrier tubes)

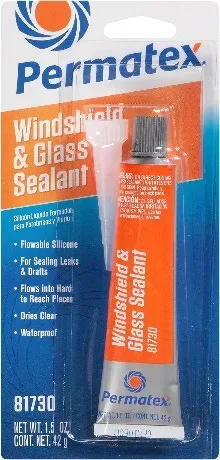

• Permatex Windshield and Glass Sealant: This sealant does not have a Hyundai part number; it is purchased locally or online. One tube can be used for 4-5 vehicles.

Warranty Information

This repair falls under Service Campaign 9A6. Hyundai will reimburse dealers for the cost of the Permatex sealant ($10.00) via sublet under labor operation 30DA33R0. The operation code for the Windshield Water Leak Repair is 30DA33R0, with an estimated time of 0.3 M/H. The casual part number is 86110-CW040, nature code A36, and cause code ZZ7.

Claims must be submitted as a "Campaign" type. If any other part is found to need replacement during this TSB and is under warranty, a separate claim should be submitted. For parts out of warranty, a Prior Approval request for goodwill consideration is required before performing additional work. The TSB also mandates repair validation photos, including VIN, mileage, and repair validation photos, as per Hyundai's Digital Documentation Policy.

What Owners Should Do

If you own a 2024 Hyundai Tucson (NX4A) or Santa Cruz (NXT) and suspect a Hyundai Tucson water leak or water intrusion, contact your authorized Hyundai dealer. They can check if your vehicle is covered by Service Campaign 9A6 (TSB 23-01-085H-1) and perform the necessary repair free of charge.

---

Source: NHTSA ID: 10245586
