2021 Hyundai Elantra Front Bumper Molding Paint Delamination TSB

Owners of certain 2021 Hyundai Elantra and Elantra Hybrid vehicles may notice an issue with the paint on their front bumper moldings. Specifically, the dark chrome front bumper moldings may exhibit paint delamination, which appears as peeling or flaking paint.

Symptoms

The primary symptom of this issue is visible paint delamination on the left, right, or lower dark chrome moldings of the front bumper. This can affect the aesthetic appearance of the vehicle and may worsen over time.

Applicable Vehicles

This TSB applies to certain 2021 model year Hyundai Elantra (CN7) and Elantra Hybrid (CN7 HEV) vehicles. Affected vehicles have VINs starting with "KMH" and were produced between March 2, 2021, and April 29, 2021. The vehicles must also be equipped with dark chrome front bumper moldings.

Repair Procedure Summary

To address the Hyundai Elantra paint delamination, technicians will perform a front bumper molding replacement. The procedure involves several steps:

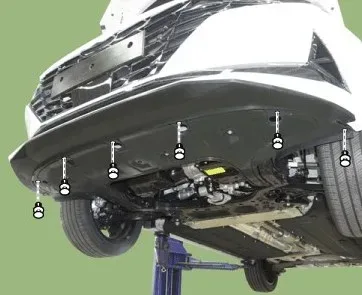

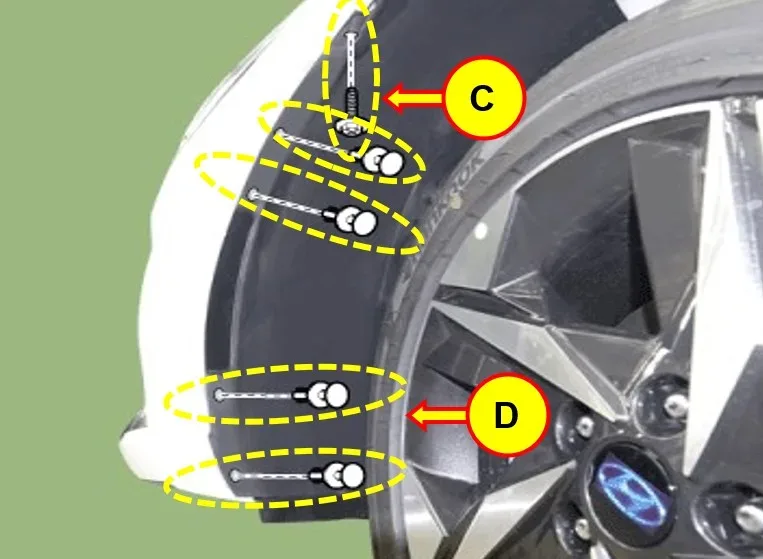

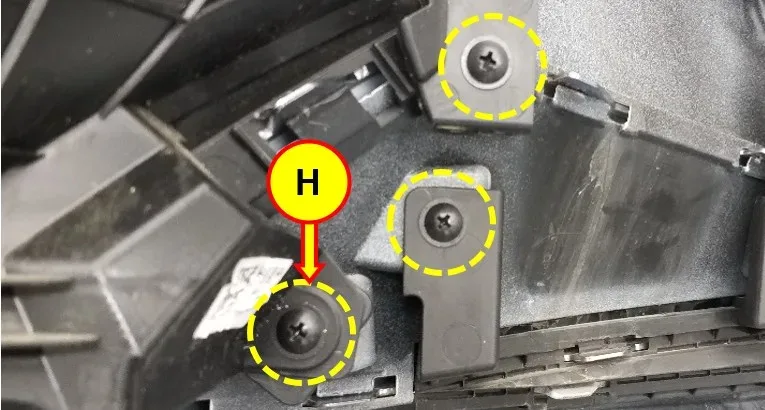

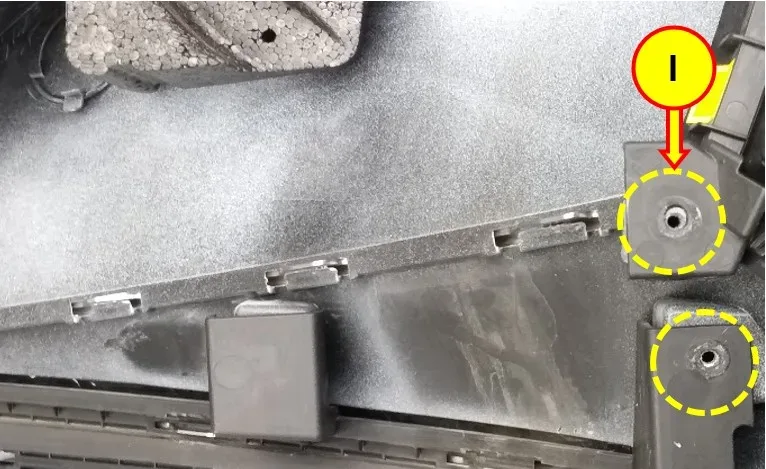

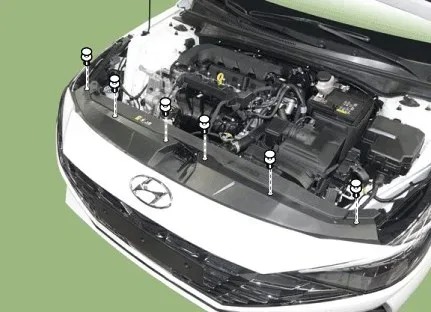

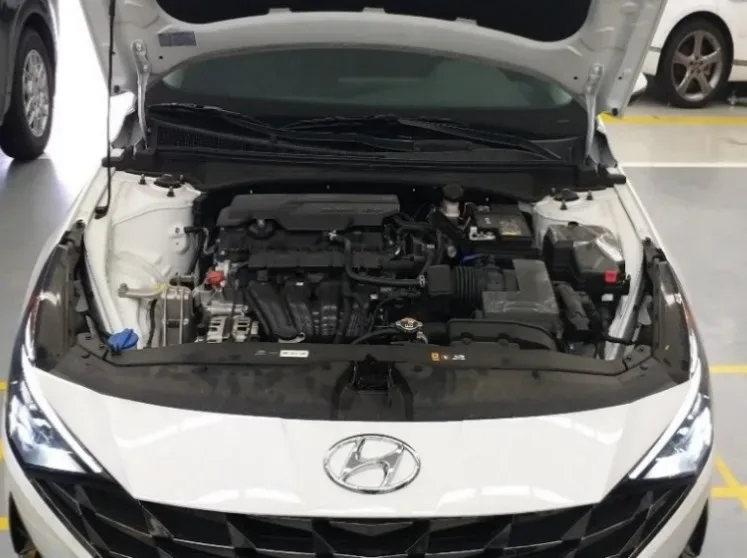

1. Preparation: The vehicle's hood is opened, and the front bumper is prepared for removal by detaching various clips and screws located at the top, bottom, and sides of the bumper, including those securing it to the wheel guards.

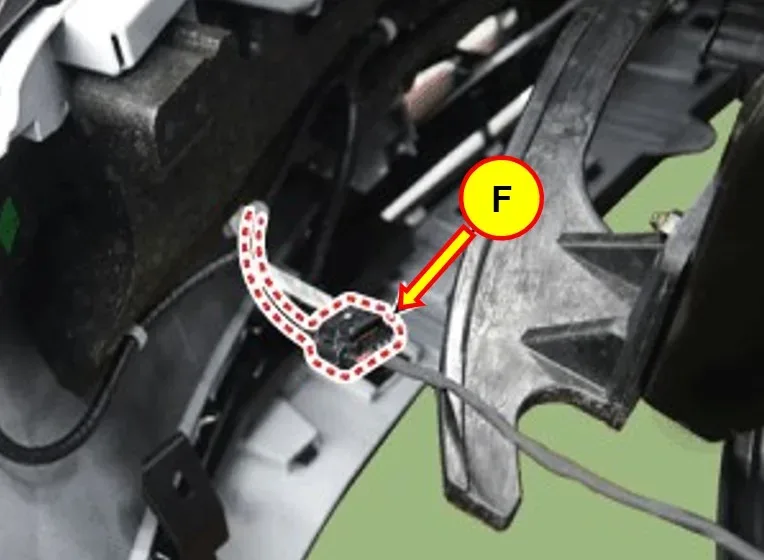

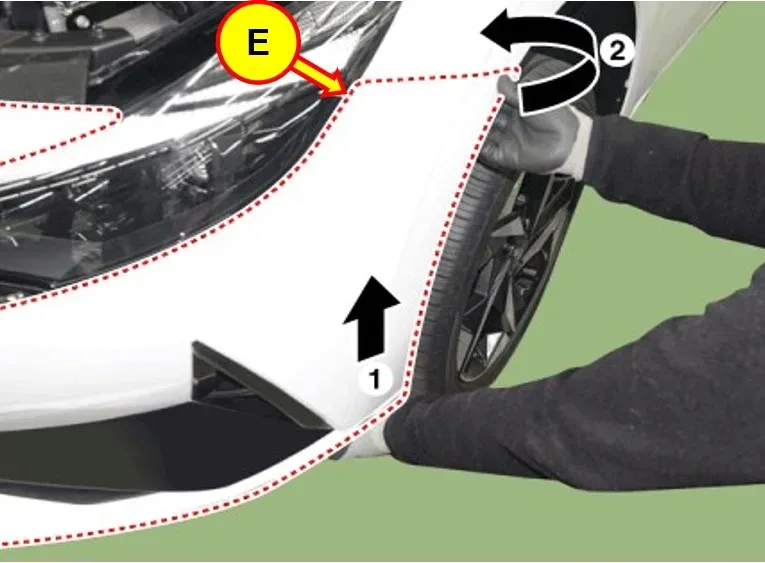

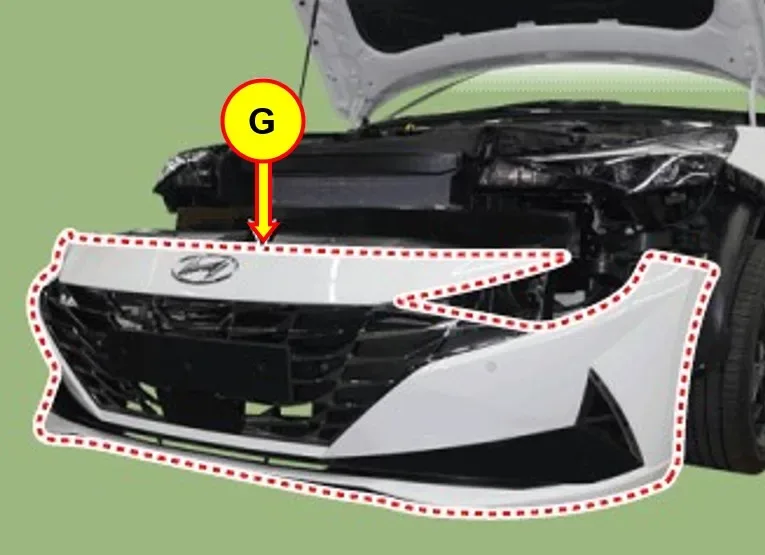

2. Bumper Removal: The entire front bumper assembly is carefully removed from the vehicle. Special care is taken to disconnect the main connector and avoid damaging locking jaws during this process.

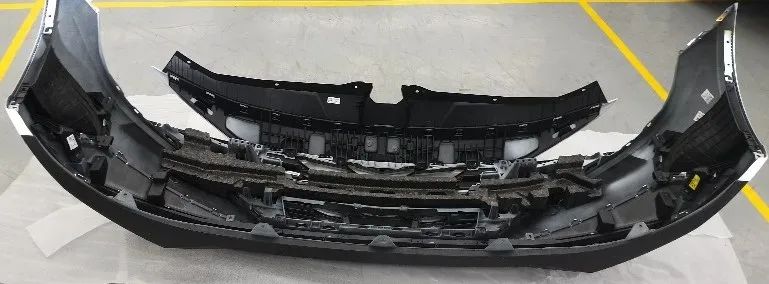

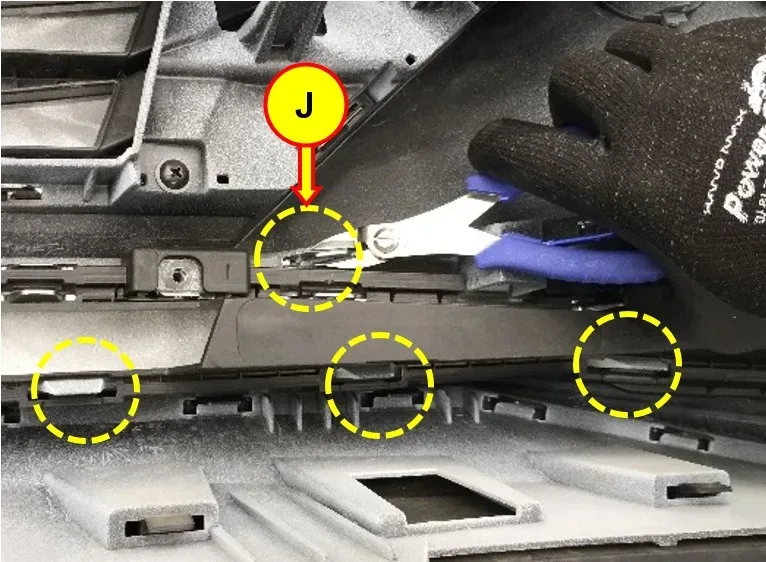

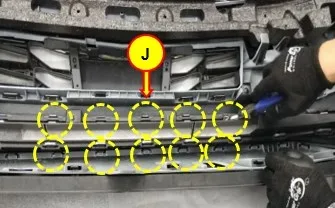

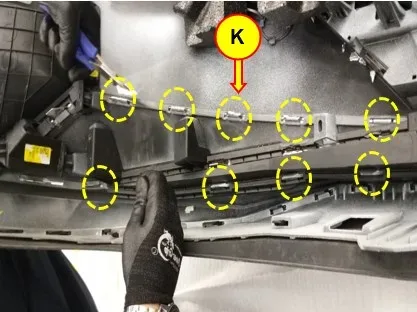

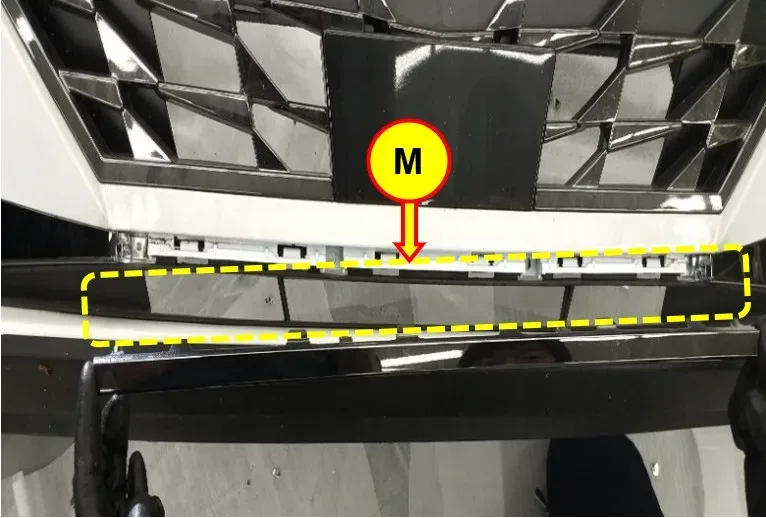

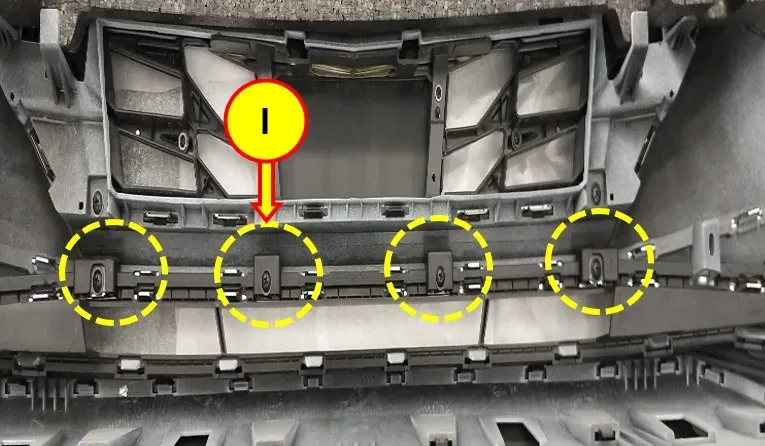

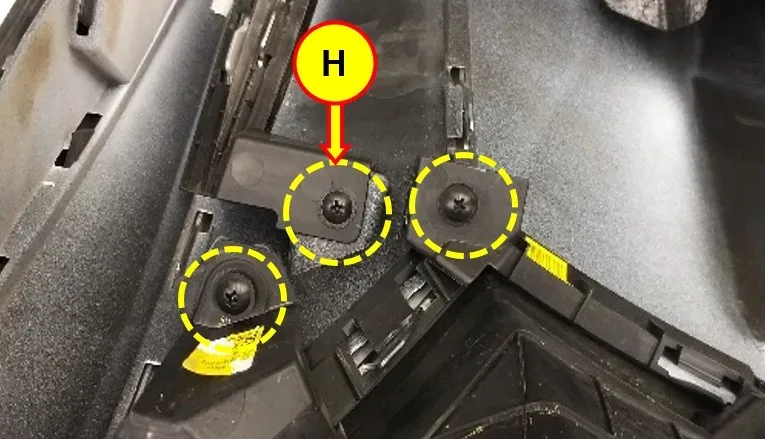

3. Molding Removal: Once the bumper is removed, it is placed face down on a soft surface to prevent scratches. The screws securing the existing side and lower bumper moldings are removed. Using cutting pliers, the locking tabs on the old moldings are cut to facilitate their removal.

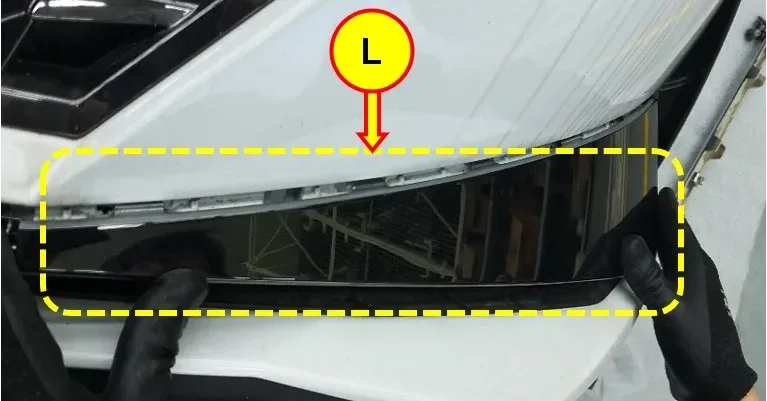

4. New Molding Installation: The new replacement moldings are installed. It is crucial to install the side moldings first, followed by the lower molding, ensuring all new locking tabs are firmly in place.
5. Bumper Reinstallation: The front bumper assembly is then reinstalled in the reverse order of removal, securing all clips and screws.

Required Parts

To perform this repair, the following parts may be required:

• FRONT BUMPER LH MOLDING: Part Number 86595-AA010QQH
• FRONT BUMPER RH MOLDING: Part Number 86596-AA010QQH
• FRONT BUMPER LOWER MOLDING: Part Number 86569-AA010QQH

The causal part for warranty claims is 86595-AA010.

Warranty Information

For eligible 2021 Hyundai Elantra (CN7) and Elantra Hybrid (CN7 HEV) vehicles, the repair operation is titled "FRONT BUMPER MOLDING REPLACEMENT." The estimated operation time is 0.9 hours. The specific OP Codes are 10D188R0 for the Elantra and 10D188R1 for the Elantra Hybrid. The Nature Code is A26, and the Cause Code is ZZ2.

Claims should be submitted via the Campaign Claim Entry Screen. If any part not covered by this TSB requires replacement during the repair, a separate claim should be submitted. For parts out of warranty, a Prior Approval Request for goodwill consideration may be necessary.

Important Warnings

Owners and technicians should be aware of the following advisories during the repair process:

• CAUTION: "Be careful not to damage the locking jaw on the sides of the front bumper."
• NOTICE: "Place the front bumper on a soft surface that will not scratch or damage the paint."
• NOTICE: "New locking tabs are present on the replacement moldings."
• NOTICE: "Install the side moldings first before installing the lower molding. Ensure that all locking tabs are firmly in place."

NHTSA ID: 10207810
