2022 Honda Civic ACC Warning Light with DTC B2A60-96

Honda has released Service Bulletin 22-022, Version 3, dated February 13, 2023, to address issues with the Adaptive Cruise Control (ACC) system in certain 2022 Honda Civic vehicles. This bulletin replaces an earlier version of 22-022 dated July 15, 2022, and also supersedes bulletin 22-008, dated April 28, 2022. The primary concern is the illumination of the "ACC warning light" and malfunctions of the cruise control system, often accompanied by specific diagnostic trouble codes.

Important Warnings for Owners and Technicians

Owners and technicians should be aware of several critical advisories related to this service bulletin:

• Unauthorized Tools: Do not use the MongoosePRO VCI for this service bulletin, as it is not an American Honda-approved device.
• Warranty Coverage: Unnecessary or incorrect repairs resulting from a failure to update the diagnostic and reprogramming software are not covered under warranty.
• During Software Update: Do not disconnect the battery or turn the ignition to OFF during the update process. If this occurs, reboot the i-HDS system and restart the procedure. Additionally, do not operate any other electrical components such as headlights, audio system, brakes, A/C, power windows, or door locks while the update is in progress.
• Technician Labor: Warranty reimbursement for technician labor is not allowed for routine checking or installation of any available software update.
• Wireless Connections: Do not perform control module (CM) updates across any type of wireless connection between the laptop and the interface device. A disrupted wireless connection during a CM update can cause permanent damage to the ECU. Always perform CM updates using a cable connection.
• Post-Update Messages: On vehicles equipped with the 9-inch center display, certain system messages may appear on the screen immediately after the update. These messages are normal and will clear automatically within a few minutes once the ignition is placed in IGII or the run position.

Symptoms

Owners of affected 2022 Honda Civic vehicles may experience the following symptoms:

• The cruise control system is not working.
• All Adaptive Cruise Control (ACC) lights are illuminated on the dashboard.
• The cruise control and adaptive cruise control systems stop functioning while driving.
• A beeping sound is heard if the driver attempts to resume cruise control operation without first cycling the ignition.

Fault Codes / DTCs

Technicians may find the following diagnostic trouble codes (DTCs) stored in the vehicle's system:

Code	Description	Module
B2A60-96	Multipurpose Camera Unit Hardware Malfunction	ACC/CMBS
C0041-14	Brake Switch Signal Circuit Error	ACC/CMBS
Code 244	Yaw Rate Offset Cancel Logic (found in cancel history)	Driver Support Data List

Diagnosis / Trigger Conditions

The issue is primarily caused by software issues within the multipurpose camera system. Diagnosis involves connecting the i-HDS diagnostic tool and checking for the presence of DTC B2A60-96. If this code is found, it should be cleared and rechecked. If the code remains cleared, the repair procedure can proceed. If the DTC persists, further normal troubleshooting is required.

Repair Procedure Summary

The corrective action involves updating the driver support software to the most current version. This is performed using the i-HDS diagnostic system and J2534 Rewrite Software. The process includes:

1. Software Preparation: Ensure all diagnostic and reprogramming software (i-HDS, HDS, J2534 Rewrite) are updated to the specified versions or later.

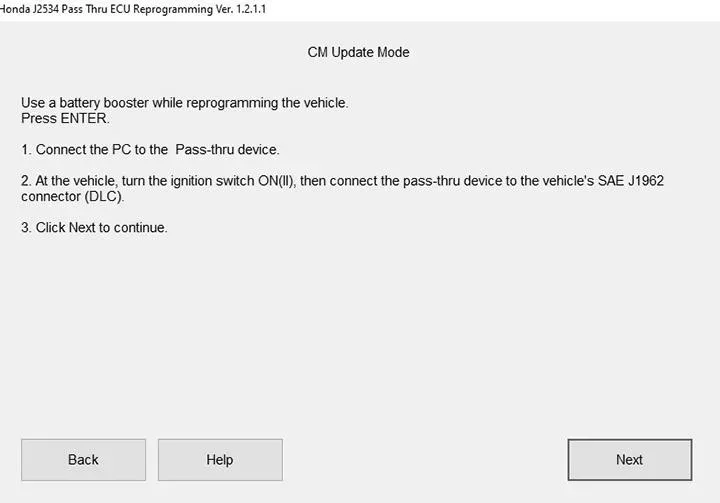

2. Vehicle Connection: Connect the i-HDS to the vehicle and select the J2534 Rewrite function.

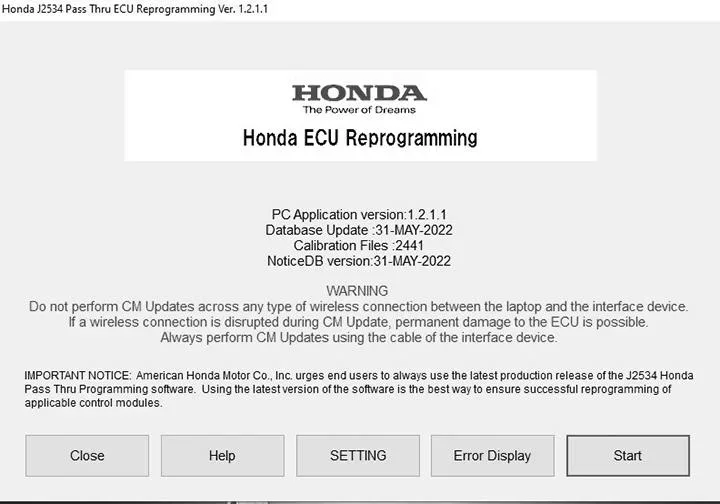

3. Software Update Initiation: Follow the prompts to start the reprogramming process. Do not enter a service bulletin number when prompted; simply select 'Start'.
4. Vehicle Information: Enter the vehicle's VIN and repair order number when requested.
5. Module Selection: Select the ACC/CMBS module for the update.

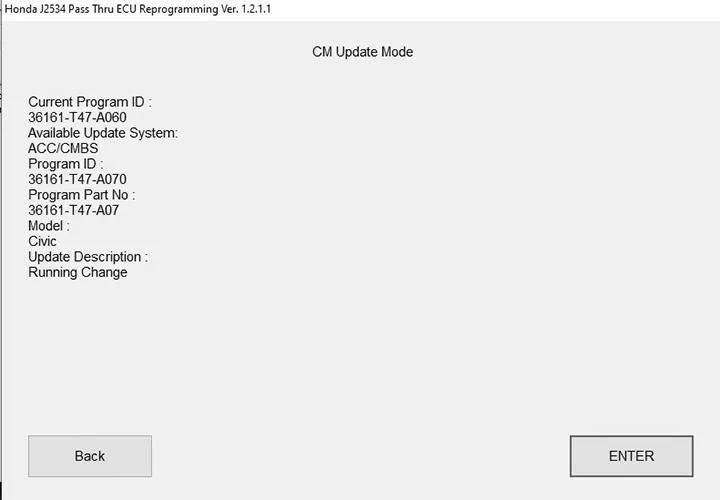

6. Confirmation and Reprogramming: Confirm the update information and select 'ENTER' to begin the reprogramming. The system will display progress, and it is crucial not to interrupt the process.

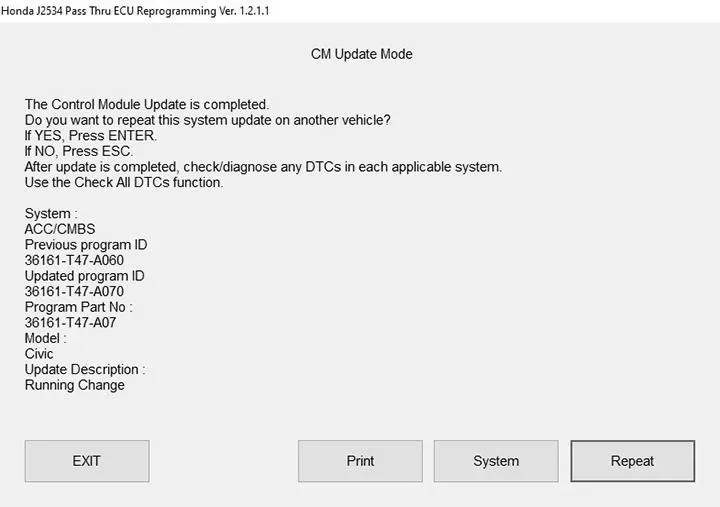

7. Post-Update Checks: Once the module update is complete, perform an ALL DTC Check and clear any codes that may have been set during the update.
8. Ignition Cycles: Place the ignition in IGII and leave it until warning lights extinguish, then turn it off for 15 seconds. Repeat this two additional times.
9. Final Verification: After three ignition cycles, place the ignition in IGII and check for any illuminated Sensing support warning lights. If none, the update is successful. If "ACC warning light" or Sensing support lights illuminate and DTC B2A60-96 or C0041-14 return, continue with normal troubleshooting.

Required Tools or Parts

To perform this software update, specific software versions are required:

• i-HDS Software Version: 1.006.062 or later
• HDS Software Version: 3.104.047 or later
• J2534 Rewrite Software Information:
  • PC Application Version: 1.00.0034
  • Database Update: May 31, 2022 or later
  • NoticeDB Version: May 31, 2022 or later

Specific Program IDs for the ACC/CMBS module update are:

• 2022 Civic Sedan: 36161-T20-A080
• 2022 Civic Hatchback: 36161-T47-A070
• 2022 Civic Si Sedan: 36161-T38-A070

This update is covered under normal warranty conditions, with an operation number of 4815D2 and an estimated flat rate time of 0.2 hours.

NHTSA ID: 10232100
