2025 BMW X5 Upper Oil Pan Screw Delivery Stop

Important Warnings

BMW has issued a critical advisory regarding this Delivery Stop, SIB 11 05 25, to ensure vehicle safety and quality before delivery:

"Do not deliver to a customer, a New, Certified Pre-Owned or Used vehicle subject to a Delivery Stop, until the vehicle is repaired. Do not use or sell replacement equipment/parts subject to a Delivery Stop."

This directive means that no affected vehicle can be sold or delivered to a customer until the necessary repair has been completed by an authorized BMW service center. This Delivery Stop is also flagged as "MOBILE FRIENDLY" and "REMOTE SOFTWARE UPGRADE (RSU) FRIENDLY," indicating the repair process is designed to be efficient.

Situation

BMW AG initiated a Delivery Stop, SIB 11 05 25, effective July 11, 2025, for certain Model Year 2025 - 2026 BMW vehicles. The affected vehicles were produced between April 14, 2025, and June 3, 2025. This Service Information Bulletin (Revision 1) supersedes SI B12 05 25, which was dated July 2025, and includes updates to the title, affected models, situation description, correction, procedure, parts, and claim information.

The root cause of this action is an assembly error during manufacturing, which resulted in the upper oil pan screws of the S68T engine not being torqued correctly. This issue specifically impacts the BMW X5 upper oil pan screws and other models equipped with the S68T engine.

Symptoms

As this is a proactive Delivery Stop addressing a manufacturing defect, owners of the 2025 BMW X5 and other affected models are not expected to experience any direct symptoms related to the incorrectly torqued BMW X5 upper oil pan screws before the repair is performed. The issue is identified and addressed by BMW prior to vehicle delivery to prevent any potential problems or failures in the field.

Repair Procedure Summary

The repair for the incorrectly torqued BMW X5 upper oil pan screws involves a precise procedure to remove, replace, and correctly torque six specific upper oil pan screws. Technicians must utilize Repair Instruction 11 13 020, titled "Remove and Install Lower Oil Pan Section," as a primary guide.

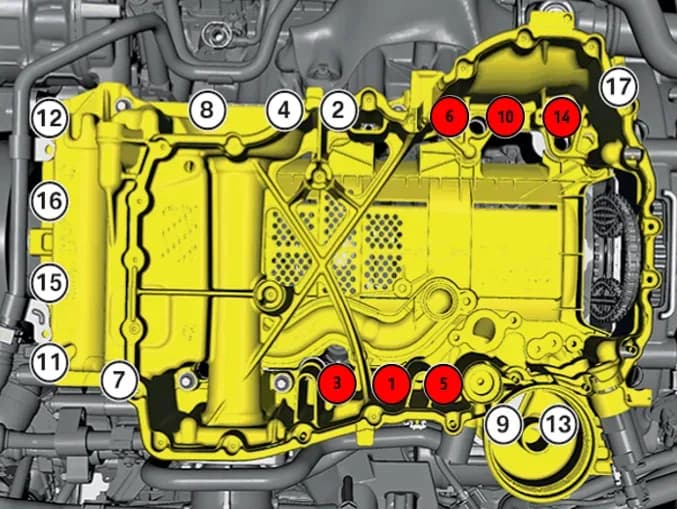

Crucially, the procedure specifies that the upper engine oil pan and the engine oil pump must not be removed from the vehicle. The repair focuses solely on replacing six particular screws, identified by part number 07 11 9 908 428. These screws are located at positions 1, 3, 5, 6, 10, and 14 on the upper oil pan, as highlighted in red in the service bulletin's illustration of the S68T engine. Each of these six screws must be removed and replaced one at a time, in the specified order, after the lower oil pan has been removed. The new screws must then be torqued to a Joining Torque of 10 Nm, followed by an Angle Torque of 90 degrees.

Required Tools or Parts

The primary part for this repair is the specific upper oil pan screw, Part Number 07 11 9 908 428 (Hexagon bolt). The Delivery Stop also necessitates various other components, which are listed in detail within the service bulletin and vary slightly by vehicle series (F95/F96, G70, G90/F96). Examples of additional parts include:

• 07 14 8 869 310: Torx screw, self-locking
• 26 10 7 882 970: Hexagon bolt
• 11 42 5 A34 A34: Oil filter cap with drain plug
• 31 50 8 860 349: Repair kit oil seal on output
• 33 30 6 760 585: Combination nut
• 11 13 9 845 701: Oil sump with seal

For bulk supply materials, specifically engine oil, 0W-30 LL01FE (Liters/One-tenth Liters) is required. The quantity varies, with 10.3/103 units specified. This is referenced under Sublet – Bulk Supply Materials (RC 0011970700) and further detailed in SI B11 01 21.

Claim Information

Reimbursement for this Delivery Stop action is processed via normal claim entry using specific work package information. The Repair Code for this procedure is 0011970700, which covers the "F95 F96 G07 G70 G9x S68T Reworking threaded connection, upper oil sump section."

Several labor operations are defined based on the vehicle's status:

• Work Pkg #1 (Labor Operation 00 78 766): "Renew the 5 hexalobular screws (M6x25) on the upper oil sump section (without resetting the CBS data)." Labor Allowance: 18 FRU (F95, F96); 19 FRU (G07); 43 FRU (G70); 63 FRU (G90); 64 FRU (G99).
• Work Pkg #2 (Labor Operation 00 78 767): "Vehicle was already taken care of through another repair or Technical Campaign." Labor Allowance: 1 FRU.
• Work Pkg #3 (Labor Operation 00 78 219): "Renew the 5 hexalobular screws (M6x25) on the upper oil sump section without resetting the CBS data)." Labor Allowance: 19 FRU (F95, F96); 21 FRU (G07); 45 FRU (G70); 65 FRU (G90); 65 FRU (G99).

Only one flat rate labor operation code can be used for claim submission. When submitting comments, technicians should reference the SIB number, the issue (e.g., "B11 05 25 Replace upper oil pan Torx screws WP 1"), and the work package number.

Sublet costs for bulk supply materials, claimed under Sublet Code 4, are reimbursable up to $220.00. If the vehicle is under an active BMW Maintenance Program and an engine oil service is due or recommended, the engine oil and filter should be changed after replacing the upper oil pan screws. This additional service is claimed via Work Package #1 (00 78 766) and Standard scope labor operation 00 00 105 (Main work, 2 FRU) under Repair Code 85990501MP, along with the applicable BMW Maintenance Program Oil Service Task.

Furthermore, this Service Action qualifies for Alternative Mobility Solution (AMS) expense reimbursement, which can be claimed under Sublet Code 2. Refer to SI B01 29 16 for additional information regarding AMS.

What Owners Should Know

Owners of affected 2025 BMW X5, X6, X7, 7 Series, and M5 vehicles should be aware that their vehicle will not be delivered until this mandatory repair, identified by SIB 11 05 25, is completed. This proactive measure ensures the quality and safety of the vehicle before it reaches the customer. If you have a vehicle on order or are considering purchasing one of these models, it is advisable to confirm with your dealer that this Delivery Stop has been addressed.

---

Source: NHTSA ID: 11021815
