2023 BMW X5 Inverter Supply Line Rerouting Service Action

BMW has released Service Information Bulletin SIB 61 09 24 to address a potential issue with the inverter (EGS-EME) Electrical Machine Electronics Transmission Control supply line in certain 2023 BMW X5 PHEV models. Improper routing of this supply line can lead to damage, triggering warning messages and affecting vehicle operation. This service action aims to inspect and, if necessary, rework the 2023 BMW X5 inverter supply line to prevent these problems.

Symptoms

Owners of affected 2023 BMW X5 vehicles may experience specific indicators of this issue. The primary symptoms include the display of "Check Control Message (CCM) warnings" on the instrument cluster. In more severe cases, the vehicle may slowly coast to a stop during purely electric driving, indicating a critical malfunction related to the inverter supply line.

Important Warnings

Technicians performing this service action are advised of a critical safety warning: "CAUTION: high-voltage cable!" When handling the cable straps, it is essential to follow the specific repair instructions outlined in "Notes for opening and closing cable ties REH-HIN-P-6125-5 - V.10" to ensure safety and prevent damage to the high-voltage system.

Repair Procedure Summary

This service action, identified by Repair Code 0061330800, involves a multi-step process to inspect and, if necessary, rework the 2023 BMW X5 inverter supply line. The procedure begins with removing the rear underbody protection and the stiffening plate, referencing specific repair instructions (REP-REP-P-5147491-G05 - V.6 and REP-REP-P-3111040-G05_B58AWD - V.5).

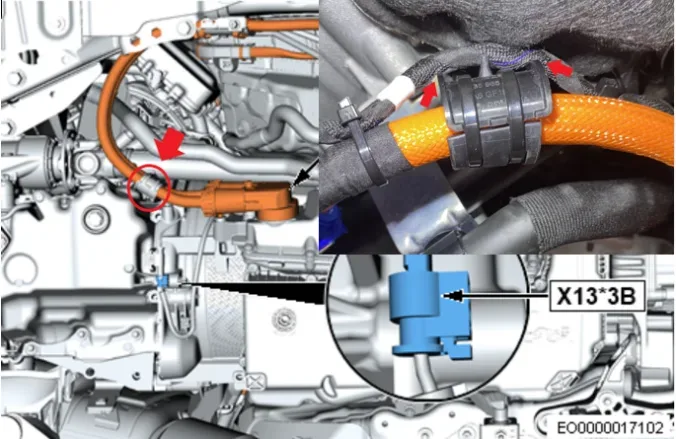

Technicians will then visually inspect the inverter supply line for any damage. The bulletin highlights that improper routing and sharp edges of the High Voltage (HV) cable support bracket can cause damage to the EGS-EME supply line harness. If damage is found, low voltage (LV) supply lines will be repaired according to instructions (REP-REP-RAF0161-6100_KABELBAUM – V.26), and the harness will be covered with fabric adhesive tape (P/N 61 13 6925452).

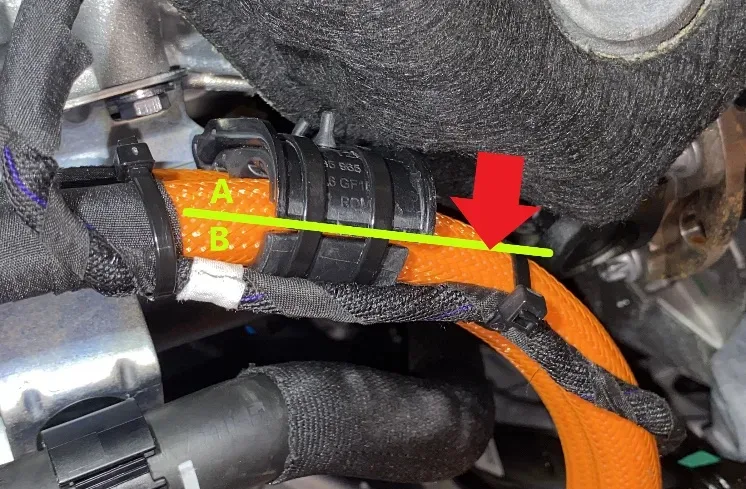

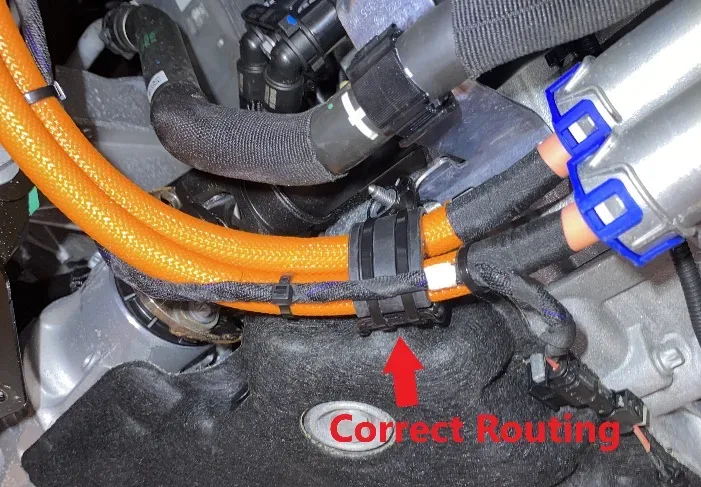

If no damage is present, or after repairs, the harness routing is checked. If the EGS-EME harness is not correctly routed on the (B) side of the HV cable support bracket, existing cable ties are removed, the harness is repositioned, and new cable ties are used to secure it. The procedure concludes with the reinstallation of the stiffening plate and rear underbody protection.

Required Tools or Parts

Several parts may be required for this repair, depending on the extent of the damage found during inspection:

• 07 14 6 886 617: Multi-purpose bolt ASA (Quantity: 8)
• 61 13 8 353 747: Crimp connector (when required) (Quantity: 2)
• 61 13 5 A4F 528: Shrink-fit sleeve (when required) (Quantity: 2)
• 61 13 1 372 391: Cable tie (when required) (Quantity: 3)

Fabric adhesive tape, such as P/N 61 13 6925452, is also required and is invoiced proportionally under Sublet Code 4.

Owner Action

If you own a 2023 BMW X5 PHEV and experience "Check Control Message" warnings or issues with the vehicle stopping during electric driving, it is recommended to contact your authorized BMW dealer. This service action, SIB 61 09 24, is performed under warranty. Vehicles requiring this campaign will show as "Open" when checked by a dealer. The repair is also eligible for Mobile Assistance in qualifying centers. For information on alternative mobility solutions during the repair, refer to SI B01 29 16.

---

NHTSA ID: 10252020
