2021-2025 BMW Groaning Noise From Doors SIB 51 30 19

BMW has released Service Information Bulletin (SIB) SIB 51 30 19 (Revision 4) to address a common issue of a groaning noise originating from the door frames of several 2021-2025 BMW models. This bulletin supersedes the previous SI B51 30 19 dated April 2025, incorporating updated model information.

This technical service bulletin provides diagnostic and repair instructions for technicians to effectively eliminate the BMW door groaning noise, ensuring a quieter and more comfortable driving experience for owners.

Symptoms

Owners may notice "a groaning noise is present from the door frame of any door." This noise is most commonly heard when driving over rough roads or during instances of body flex. The situation may be exacerbated in vehicles that are regularly waxed in the door jamb area.

Cause

The root cause of the BMW door groaning noise has been identified as excessive friction between the window guide and the door opening. This friction creates the audible groaning sound as the vehicle's body flexes or encounters uneven surfaces.

Repair Procedure Summary

To resolve the groaning noise, BMW outlines a specific repair procedure for technicians. This involves checking door adjustment settings and installing anti-friction sliding tape.

1. Door Adjustment Check: Technicians must first check the door adjustment settings using the repair instructions available in ISTA/AIR, which are specific to the vehicle model being serviced.
2. Surface Preparation: The contact surfaces of the window guide on the side frame/trim strip of the affected door must be thoroughly cleaned using a clean cloth and silicone remover concentrate.

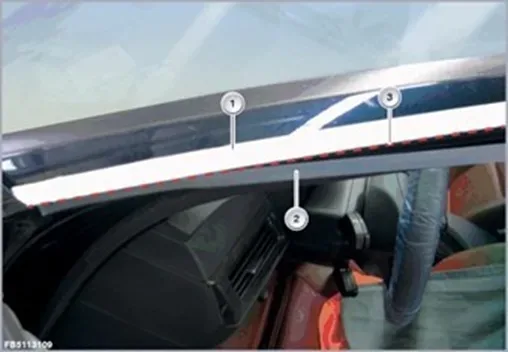

3. Masking: With the door closed, adhesive tape is applied to mask the window guide along the side frame, ensuring that only the contact surface of the window guide is exposed.
4. Heating: A heat gun is carefully used to warm the contact surface of the window guide on the side frame.
5. Tape Application: Low-friction sliding tape is then bonded to the heated contact surface of the window guide along the side frame.
6. Final Steps: The masking adhesive tape is removed after the sliding tape has been securely applied.

Required Tools or Parts

BMW specifies the following materials for this repair:

• 83 12 5 A16 119: Silicone remover concentrate (DN = 250 ml)
• 83 19 9 410 979: Adhesive tape (DN = W=50 mm, L=66 m)
• 83 19 9 407 798: Low-friction adhesive tape (DN = B=15 mm, L=33 m)

These parts are typically supplied as sublet items, meaning the quantity used will be charged accordingly.

Important Warnings

When applying the sliding tape, it is crucial to follow the instructions precisely to ensure maximum adhesion and effectiveness. BMW explicitly states: "The sliding tape must be bonded without any bubbles! Press firmly on the entire tape surface for maximum adhesion."

Owner Action

If you are experiencing a BMW door groaning noise in your 2021-2025 BMW, it is recommended to schedule an appointment with an authorized BMW dealership. This repair is covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks, provided the defect is verified as a material or workmanship issue and not due to previous body repairs. Technicians will refer to SI B01 01 20 or SI B01 07 20 for proper diagnosis documentation and claim procedures.

---

Source: NHTSA ID: 11017506
