2024 BMW X5/X6/X7 Seat Heating and Cooling Issues

BMW has issued Service Information Bulletin SIB 52 01 24 to address customer concerns regarding the performance of seat heating and cooling systems in certain 2024 BMW X5, X6, and X7 models. This bulletin provides comprehensive information for technicians to diagnose and resolve issues where the seat heating and/or cooling does not meet customer expectations.

The bulletin applies to various models including the F95 X5 M Sports Activity Vehicle, F96 X6 M Sports Activity Coupe, G05 X5 Sports Activity Vehicle, G06 X6 Sports Activity Coupe, and G07 X7 Sports Activity Vehicle. Affected vehicles may have specific option codes such as 453 (Front ventilated seats), 494 (Heated front seats), 4NN (5 zone integrated HVAC), and ZLS (Luxury Seating Package).

Symptoms

Owners may notice that their seat heating or cooling system is not functioning effectively, or that the temperature is inconsistent. This could manifest as seats not getting warm enough, not cooling sufficiently, or experiencing varying temperatures across different heated surfaces like the seat bottom, backrest, or side bolsters.

Fault Codes / DTCs

Several diagnostic trouble codes (DTCs) can indicate a problem related to the vehicle's battery state of charge, which can impact seat heating and cooling performance. These include:

Code	Description	Module
030E06	Power management: Reduction or shutdown of individual electrical consumer	Power
8042FC	Function Energy supply limited available (QM functions)	Power
030E0B	Power management: Cancellation emergency recharging	Power

Underlying Causes

Multiple factors can influence the operation of the seat heating and cooling systems, leading to the observed issues with the BMW X5 seat heating cooling. These include:

• Battery State of Charge: Seat heaters and cooling fans are considered low-priority power consumers. If the vehicle's battery voltage is low, these systems may not operate at full capacity or at all until the battery state of charge (SOC) recovers.
• Seat Initialization: If a seat has not been properly initialized, some functions, including seat heating, may be disabled.
• Occupant Presence: For vehicles with SP21 software, the passenger seat will not heat up if the seat occupancy mat does not detect a passenger.
• Software Level: The vehicle's current software level plays a crucial role. For instance, SP21 AURA systems vary the pulse width modulation (PWM) of voltage to heated surfaces to reduce charging system load, and outside versus inside temperature is constantly monitored to adjust PWM.
• Driver Profile: The Driver's profile used to log into the vehicle can also influence how the seats operate.

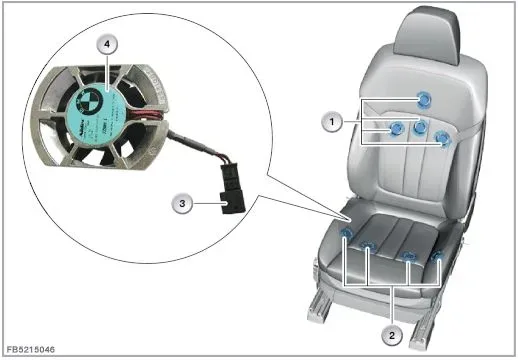

• Cooling Fan Design: Starting with August 2022 production, non-M models with standard seats received a revised cooling fan design. M model vehicles (F95/F96) with option 04MA continued to use fans that blow air onto the body.

Important Warnings for Owners

Owners should be aware of specific conditions that may affect their seat heating and cooling:

• Low Battery State of Charge: "NOTE: The LED or display on the Climate menu may be illuminated, so the customer may expect the heater to get hot but it won't heat until battery voltage recovers." This applies to both seat heating and cooling fans. A weak or aged battery can also affect warm-up times.
• Passenger Seat Heating: "While the vehicle is awake, the passenger seat will not heat up if there is nobody sitting in the seat." This is monitored by the seat occupancy mat in SP21 vehicles.

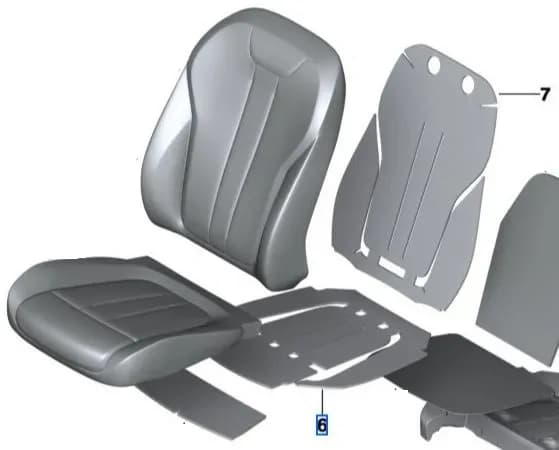

• Temperature Differences: Seat side bolsters are designed to heat to a lower temperature than the seat bottom and backrest.

Diagnosis and Repair Procedure Summary

Diagnosis for the BMW X5 seat heating cooling issue often begins by checking for relevant fault codes and assessing the vehicle's battery health. If a seat is inoperative, especially during a Pre-Delivery Inspection (PDI), the seat initialization procedure should be performed.

The seat initialization procedure can be found in the ISTA diagnostic system by navigating to SERVICE FUNCTIONS > BODY > SEATS > SEAT ADJUSTMENT STANDARDIZATION. This procedure requires the seats to be fully assembled with their leather and foam, and second-row headrests must be in the fully down position to prevent interference.

Software modifications have also influenced seat operation. For G05 and G07 models produced up to August 1, 2019, an update to 7/2019 SW may be necessary, as detailed in Service Action SI B65 19 19. Further details on seat operation and related service bulletins can be found by referencing SI B52 23 19, SI B65 04 22, SI B64 02 23, SI B64 03 23, and SI B52 21 19.

Owner Action

If you are experiencing issues with your 2024 BMW X5 seat heating cooling, or with your X6 or X7 models, it is recommended to schedule an appointment with an authorized BMW dealer. They have the necessary diagnostic tools and technical information, such as SIB 52 01 24, to accurately diagnose the problem and perform any required software updates or seat initialization procedures. Repairs addressing verified defects in materials or workmanship are typically covered under the terms of the BMW New Vehicle Limited Warranty.

NHTSA ID: 10250372
