2024 BMW X5, X7 Ignition Coil Service Action SIB 12 01 24

Why This Matters

BMW has identified that high levels of silicone inside the ignition coils in certain 2024 X5 and X7 Sports Activity Vehicles can lead to premature failure. This issue can impact engine performance and reliability, necessitating a proactive service action to prevent potential problems.

Symptoms of Ignition Coil Failure

While this service action is preventative, a failing ignition coil can lead to various engine performance issues. Owners might experience symptoms such as engine misfires, rough idling, reduced power, or an illuminated engine warning light on the dashboard. If you notice any of these signs in your 2024 BMW X5 or X7, it could be related to the ignition coil issue.

Important Warnings for Owners

BMW's Service Information Bulletin SIB 12 01 24 specifies that this procedure should be performed on all affected vehicles before customer delivery. If a customer has already taken delivery, the service action should be completed the next time the vehicle is in the shop for service.

Vehicles requiring this campaign will show an "Open" status when checked in dealer systems like AIR, AWP, Campaign Summary, or Warranty Vehicle Inquiry. It is very likely that only one ignition coil may be affected in each vehicle, simplifying the repair process.

Diagnosis and Trigger Conditions

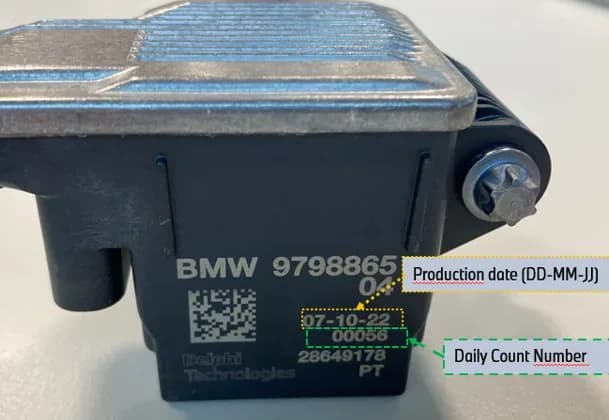

Technicians will inspect the ignition coils by first removing the acoustic cover, following Repair Instruction 11 12 070. They will then record the production date codes and daily count numbers (serial numbers) found on the ignition coils. These numbers are compared against a specific list provided by BMW.

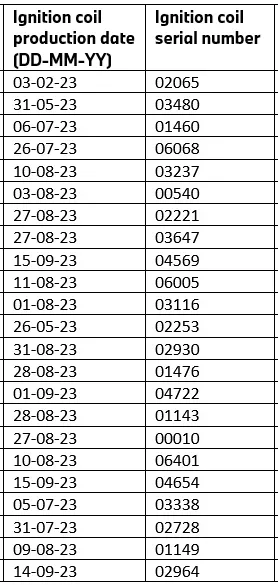

If the combination of the date code and serial number matches any entry in the provided table, that specific ignition coil is deemed affected and requires replacement. If no match is found, the ignition coil does not need to be replaced.

Repair Procedure Summary

For affected ignition coils identified during the inspection, the repair involves replacing the faulty component. The technician will follow Repair Instruction 12 13 511 for "Replacing an ignition coil." After replacement, the acoustic cover is reinstalled according to Repair Instruction 11 12 070.

Finally, if the vehicle's Digital Motor Electronics (DME) system has stored any fault codes related to the ignition coil, a vehicle test will be performed, and the fault memory will be cleared. This ensures that the 2024 BMW X5 ignition coil failure issue is fully addressed and recorded.

Required Parts and Labor

The primary part required for this service action is an Ignition Coil, BMW Part Number 12 13 9 453 463. Only one coil is typically needed per vehicle. Reimbursement for this Service Action is processed using Repair Code 0012160600.

Dealers will use specific labor operation codes for claim submission, depending on the work performed:

• 00 75 820: Check ignition coils and replace one ignition coil (before delivery).
• 00 75 821: Check ignition coils, replace one ignition coil, and clear fault memory (before delivery).
• 00 75 240: Check ignition coils and replace one ignition coil (main work).
• 00 75 241: Check ignition coils, replace one ignition coil, and clear fault memory (main work).

Owner Action

If you own a 2024 BMW X5 or X7, it is recommended to contact your authorized BMW dealer to determine if your vehicle is affected by Service Information Bulletin SIB 12 01 24. Even if you haven't experienced symptoms of a 2024 BMW X5 ignition coil failure, this proactive service ensures the longevity and proper functioning of your vehicle's ignition system. The service action will be performed free of charge.

NHTSA ID: 10249449
