2021-2024 BMW 48V System Belt Slip Fault 21B209

Owners of 2021-2024 BMW vehicles equipped with the B58C/D engine and 48V system may encounter a specific issue identified by the fault code 21B209. This problem, officially termed the "Belt Slip Fault 21B209," can lead to various symptoms including dashboard warnings and physical signs from the engine compartment. This Service Information Bulletin, SIB 12 07 21 (Revision 2), replaces an earlier bulletin dated December 2021 and outlines the diagnostic and repair procedures for this condition.

Symptoms

If your BMW is affected by the BMW 48V system belt slip fault, you may observe one or more of the following:

• A Check Control message (CCM) displaying: "(ID 213): Stop, exercising due care. Voltage supply"
• The "Service Engine Soon light is on" in the instrument cluster.
• Noise emanating from the area of the belt drive.
• An odor from the engine compartment.
• Smoke formation in the area of the belt drive.
• The drive belt appearing damaged or prematurely worn.
• A completely torn drive belt.

Fault Codes / DTCs

The primary diagnostic trouble code (DTC) associated with this issue is:

• 21B209 - Starter alternator / belt for 48V system (OSA_RIEMEN_RISS): Belt between Combustion engine and starter generator torn.

Diagnosis / Trigger Conditions

The root cause of the BMW 48V system belt slip fault is identified as the drive belt slipping. This typically occurs under specific operating conditions, particularly during overrun (when lifting off the throttle) at low engine speeds. Technicians will use the ISTA diagnostic system to perform tests and follow any relevant test plans for the fault code and the 48V system.

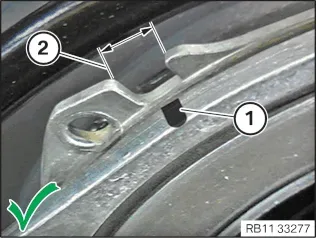

Key diagnostic steps include checking the alignment marks on the belt tensioner, where a black mark (1) should be centered in the adjustment window (2). The drive belt itself will be visually inspected for wear, cuts, missing ribs, or signs of oil contamination. The ribs may also appear narrower or worn thin.

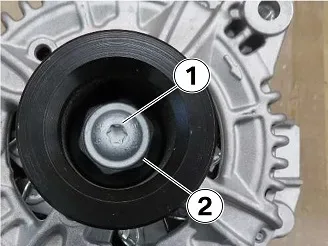

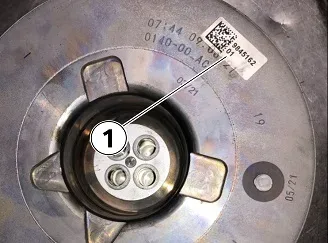

Further inspection involves checking the index number of the crankshaft damper, replacing it if the index number is 01. The starter generator pulley will be inspected for tightness. The retaining screw (1) for the hexagon nut (2) on the SGR drive pulley is also checked; if it's loose or missing, the starter generator must be replaced. If the screw is tight, the pulley grooves are cleaned of debris, and the SGR pulley's free rotation is verified.

The water pump pulley and AC compressor pulley are also inspected for binding, damage, or leaks, with replacement necessary if issues are found.

Repair Procedure Summary

The repair for the BMW 48V system belt slip fault involves a thorough diagnostic process followed by component replacement as needed. After initial diagnosis with ISTA, the procedure focuses on the drive belt and associated components:

1. Belt Tensioner Check: Verify the alignment marks on the belt tensioner are correctly positioned.
2. Drive Belt Inspection & Replacement: The drive belt is removed and visually inspected for damage, wear, or contamination. Regardless of inspection findings, the drive belt will be replaced.
3. Crankshaft Damper Check: Inspect the crankshaft damper's index number. If it is '01', the damper must be replaced.
4. Starter Generator Pulley Inspection: Check the tightness of the starter generator pulley.
5. SGR Drive Pulley Examination: Inspect the retaining screw and hexagon nut on the SGR drive pulley. If the screw is loose or missing, the starter generator is replaced. If tight, the pulley grooves are cleaned, and its free rotation is confirmed.
6. Water Pump and AC Compressor Pulley Checks: Inspect these pulleys for binding or damage, replacing the respective components if issues are identified.

Required Parts

Repairs for this issue may require the following parts. Technicians should confirm specific part numbers using the chassis number in ETK or AIR to account for vehicle-specific equipment and options.

• 11 28 9844643: Ribbed v-belt (6PKx1196 (48V))
• 11 23 9845162: Vibration Damper
• 11 28 7952899: 48V Mechanical belt tensioner

What Owners Should Know

If you experience a Check Control message "(ID 213): Stop, exercising due care. Voltage supply" or the Service Engine Soon light illuminates, it is important to have your vehicle inspected promptly. This issue is covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks. The defect code associated with this repair is 1128026900, described as "Ribbed V-belt, main drive Worn / sheared through."

Your BMW dealership will perform the necessary diagnosis and repairs, which may include replacing the drive belt, vibration damper, or belt tensioner. There is no cost to the owner for repairs performed under warranty.

Owner Action

If your 2021-2024 BMW with a 48V system displays a Check Control message, the Service Engine Soon light, or any of the physical symptoms related to the BMW 48V system belt slip fault, schedule an appointment with your authorized BMW dealer. Provide them with the symptoms you've observed and mention the fault code 21B209 if you have had your vehicle scanned. The dealership will perform the diagnostic and repair procedures outlined in SIB 12 07 21.

---

Source: NHTSA ID: 10245367
