2025 BMW X3, 2 Series Ambient Lighting Malfunction TSB

BMW has released Service Information Bulletin SIB 63 09 25 to address a potential issue with the interior ambient lighting system in certain 2025 BMW X3 and 2 Series Gran Coupe vehicles. This bulletin describes a situation where the ambient lighting strips may not function correctly after the vehicle's software has been updated using ISTA/RSU to version 25-07-5xx or higher.

This repair is categorized as mobile-friendly and remote software upgrade (RSU) friendly, indicating it can be performed efficiently by technicians.

Symptoms

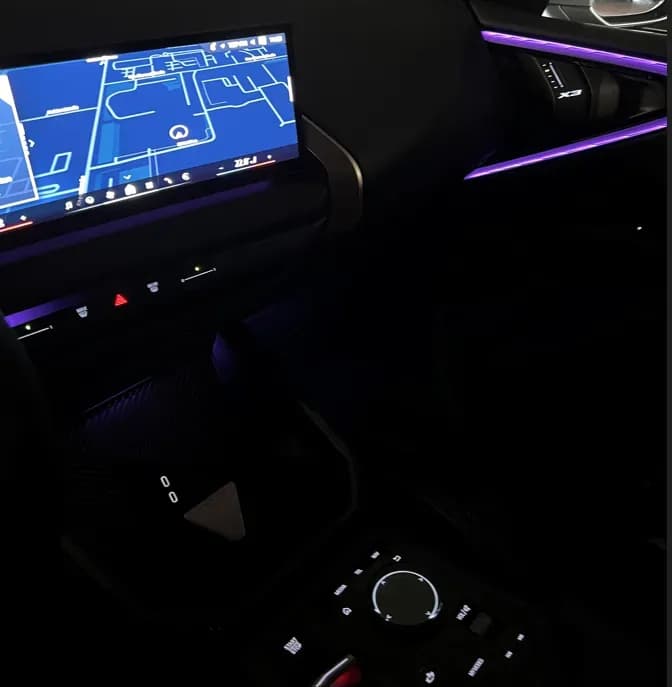

Owners may notice that some of the interior ambient lighting strips fail to function properly. This typically occurs after the vehicle has undergone a software update. The affected lighting includes specific option codes:

• F74 (2 Series Gran Coupe): Vehicles with option code 43U (Illuminated Aluminum Graphite Trim) or 43Z (M Illuminated Aluminum Hexacube Matte Trim).
• G45 (X3 Sports Activity Vehicle): Vehicles with option code 4UR (Ambient Lighting).

If you experience a 2025 BMW X3 ambient lighting malfunction, it's important to have it diagnosed by a qualified technician.

Fault Codes / DTCs

When diagnosing this issue, technicians may find several fault codes related to the ambient lighting system. However, BMW notes that these fault codes may not always be present even if the malfunction is occurring. The possible fault codes include:

• 804A38: Interior lights layering (IL-LIN_3): versioning incorrect: LIN slave 5
• 804A39: Interior lights layering (IL-LIN_3): versioning incorrect: LIN slave 6
• 804A3E: Interior lights layering (IL-LIN_3): versioning incorrect: LIN slave 11
• 804A34: Interior lights layering (IL-LIN_3): versioning incorrect: LIN slave 1
• 804A35: Interior lights layering (IL-LIN_3): versioning incorrect: LIN slave 2
• 804A36: Interior lights layering (IL-LIN_3): versioning incorrect: LIN slave 3
• 804A37: Interior lights layering (IL-LIN_3): versioning incorrect: LIN slave 4
• 804A3A: Interior lights layering (IL-LIN_3): versioning incorrect: LIN slave 7
• 804A47: Interior lights layering (IL-LIN_3): versioning incorrect: LIN slave 8
• 804A48: Interior lights layering (IL-LIN_3): versioning incorrect: LIN slave 9

Cause

The root cause of the ambient lighting malfunction is identified as unfavorable logic within the LED control unit hub. This logic issue prevents the ambient lighting strips from operating as intended after specific software updates.

Repair Procedure Summary

To resolve the 2025 BMW X3 ambient lighting malfunction, technicians will follow a specific procedure outlined in SIB 63 09 25:

1. Verify Customer Concern: The technician will confirm the ambient lighting malfunction. If the vehicle cannot be parked in a low-light area, a piece of cardboard may be used to cover the affected lighting strips to make the issue visible.
2. Power Connection: An approved BMW battery charger or power supply (referencing SI B04 23 10) will be connected to the vehicle to maintain stable voltage during the process.
3. ISTA Connection and Short Test: The vehicle will be connected to the ISTA diagnostic system, and a vehicle short test will be performed.
4. Fault Code Readout: Any existing fault codes will be read from the vehicle's systems.
5. LED Control Unit Hub Encoding: The LED control unit hub will be encoded using ISTA version 4.55.3x (or a later estimated release from mid-September 2025). This involves navigating through the ISTA menu to Vehicle Management, Service Functions, Body, and Lighting, then selecting
