2021-2024 BMW X3/X4 B-Pillar Cracking Sound SIB 41 07 22

BMW has issued Service Information Bulletin (SIB) 41 07 22, Revision 3, to address a specific noise concern in various X3 and X4 models. This bulletin, which replaces SI B41 07 22 dated August 2023, provides a detailed repair procedure for a "cracking" sound originating from the B-pillar.

Symptoms

Owners of affected 2021-2024 BMW X3 and X4 vehicles may experience a "cracking" sound from the top of the B-pillar(s) while driving on normal roads at speeds of 10 mph and above. This specific noise indicates the need for the repair outlined in SIB 41 07 22.

Cause

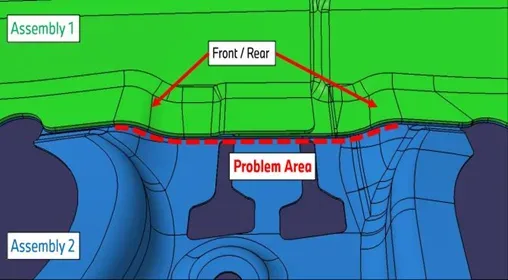

The root cause of the "cracking" sound is identified as the movement of the sheet metal layers within the B-pillar assembly. This movement creates friction, leading to the audible noise.

Repair Procedure Summary

The repair for the BMW X3 B-pillar cracking sound involves a precise drilling and welding process to secure the sheet metal layers. Technicians will follow these steps:

1. Verification and Access: Confirm the cracking sound is present and identify whether it's on the left, right, or both B-pillars. The headliner and B-pillar trim panel must be removed, following specific repair instructions (AIR/ISTA 51 44 001 and 51 43 148).

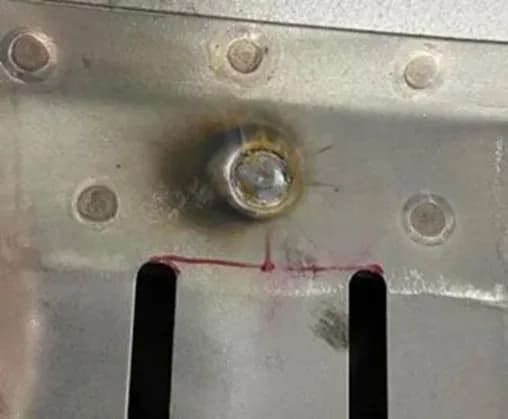

2. Marking for Drilling: Using a permanent marker, a line is drawn across the highest point of the two keyholes in the B-pillar structure. A vertical line, 17 mm in length, is then drawn upward from the center of this line to define the exact drilling position.
3. Drilling: A 6-8 mm diameter hole is drilled through the first three sheet metal layers using a weld spot drill bit.
4. Depth Measurement: The depth of the bore hole is measured to ensure all three sheet metal layers have been correctly penetrated.
5. Preparation for Welding: The paint and corrosion protection around the drilled hole must be carefully sanded off. It is crucial to ensure all four sheet metal layers are completely connected before proceeding to weld.
6. Welding and Sealing: The hole is sealed using a MIG/MAG (metal inert gas/metal active gas) welding process. A prying tool is used to spread the sheets apart around the weld spot area, forcing them together. Cavity spray is then applied to the entire area.
7. Finishing: The welding surface is cleaned and ground to be flat, smooth, and burr-free. The entire area is then sealed with corrosion protection and paint. Note that an exterior quality finish is not required for this internal area.
8. Reassembly and Verification: The vehicle is reassembled, and the repair is verified to ensure the cracking sound is no longer present.

For a visual guide, technicians can refer to the attached video V41 02 22.

Important Warnings

Owners and technicians should be aware of the following critical notes:

• The rework may not be effective if the bore hole is not deep enough.
• Drilling the bore hole too deep could excessively weaken the B-pillar structure and should be avoided.
• Before welding, ensure that all four sheet metal layers are completely connected.
• The paint protection applied to this area does not require an exterior quality finish.

Claim Information

This repair for the BMW X3 B-pillar cracking sound is covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks. The defect code associated with this issue is 4121003900, labeled as "B-pillar Unpleasant noises."

Various labor operations are specified for claiming purposes, including those for removing and installing the headliner and B-pillar trim (51 44 001, 51 44 501), verifying the cracking sound (41 00 009), diagnosis (00 58 500), and the setup, drilling, welding, and finishing work (41 99 000). For detailed claiming procedures, technicians should refer to SI B01 01 20 or B01 07 20.

Required Materials

As needed, materials and small parts such as fluids, lubricants, one-time use screws, nuts, and seals, which are replaced according to ISTA repair instructions/ETK, should be selected from the Electronic Parts Catalog or other approved BMW resources. These items are invoiced separately under the repair Defect Code listed in this bulletin.

---

NHTSA ID: 10253326
