2025 BMW X1/X2/X3 B-Pillar Creaking Noise TSB SIB 51 03 26

Owners of certain 2025 BMW X1, X2, and X3 models may notice an annoying "creaking" noise emanating from the B-pillar trim panels, particularly when driving over rough surfaces. This issue is addressed by BMW Technical Service Bulletin SIB 51 03 26, which provides a detailed procedure for diagnosing and resolving the problem. The bulletin confirms that the root cause of the 2025 BMW X1 creaking noise is loosely fitted clips within the lower B-pillar trim.

Symptoms

The primary symptom described in SIB 51 03 26 is a distinct "creaking" noise heard from the B-pillar trim panels. This noise is most noticeable when the vehicle is driven on uneven or rough road surfaces. If you experience a 2025 BMW X1 creaking noise, this bulletin is relevant.

Cause

According to BMW, the "creaking" noise is caused by the lower B-pillar panel clips being loosely fitted. This lack of secure fit allows for movement and friction between the trim panel and the vehicle's body, resulting in the audible creaking.

Repair Procedure Summary

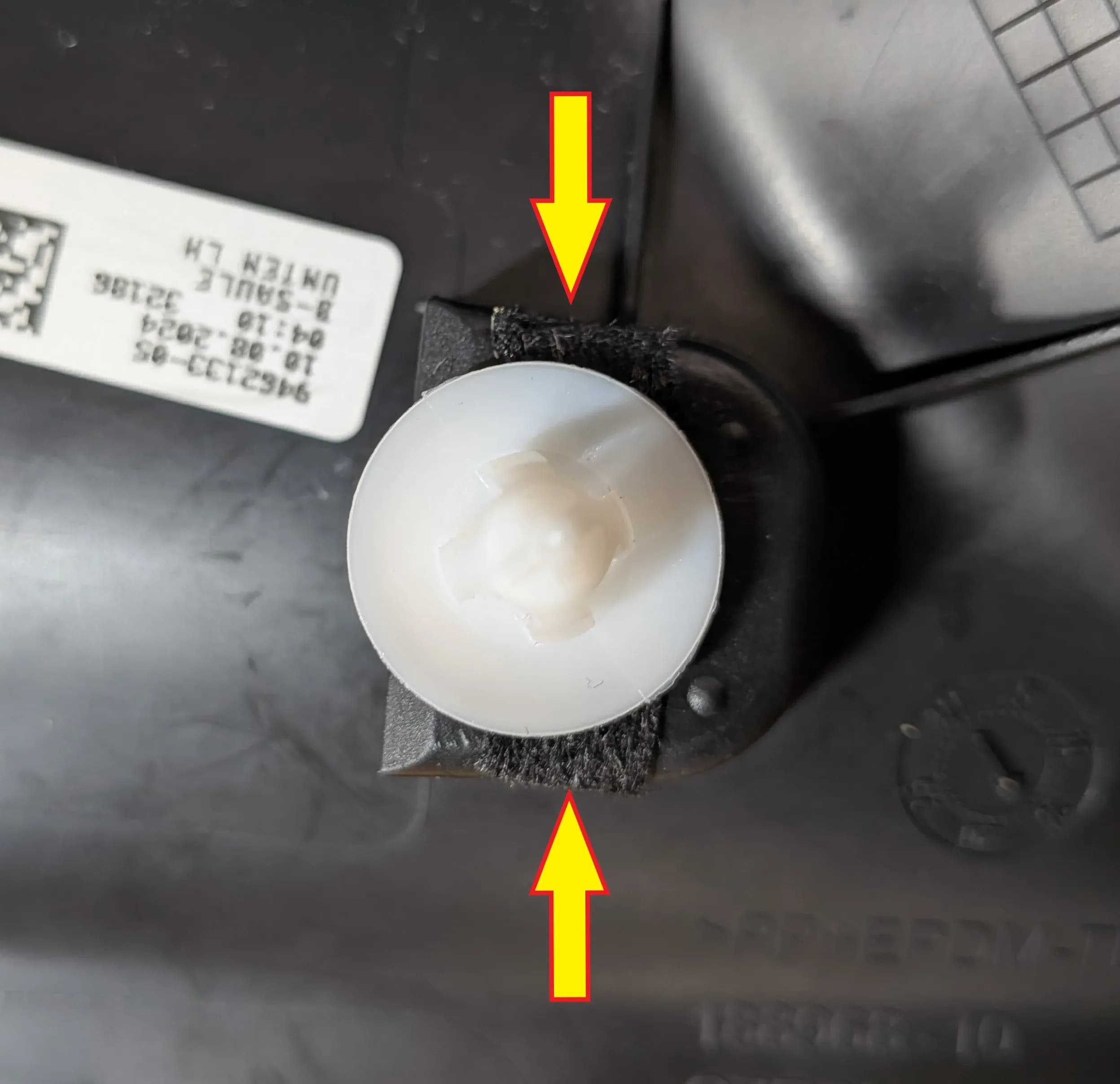

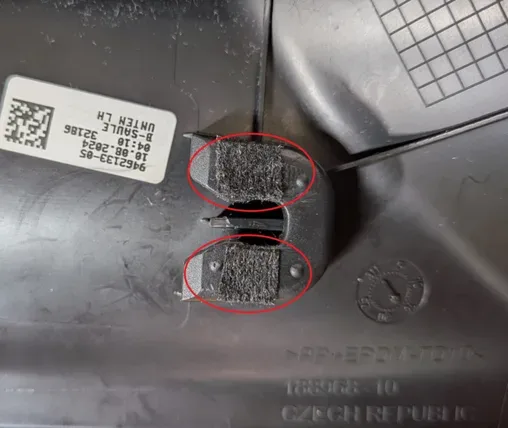

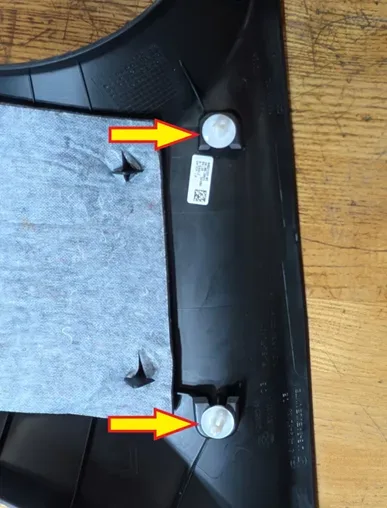

To eliminate the creaking noise, BMW's repair procedure, outlined in SIB 51 03 26, involves securing the B-pillar trim panels. The technician will first need to verify that the noise originates from the lower B-pillar. Following this, the pertinent B-pillar trim panel must be removed, referencing BMW's internal repair instructions (REP 51 43 150). Once the trim is off, the lower white panel clips are removed. Felt tape (Part Number 61 13 5 B70 D27) is then applied to the areas where these clips sit to create a tighter fit and prevent excessive movement. Finally, the trim panel is reinstalled, and the technician will verify that the creaking noise is no longer present. This repair is designed to be mobile-friendly and does not involve remote software updates.

Required Tools or Parts

The primary material required for this repair is adhesive wiring harness wrapping tape, specified by BMW Part Number 61 13 5 B70 D27. This felt tape is applied to the B-pillar trim to secure the clips. The quantity needed will vary depending on the specific application.

Warranty and Claim Information

This repair, identified by Repair Code 5143053900 ("Trim panel (trim), B-pillar, bottom (inner) Unpleasant noises"), is covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks. Owners should not incur any cost for this repair if their vehicle is still under warranty. Dealers will use specific labor operation codes for diagnosis (51 00 001 or 00 58 500) and for repairing one side (51 43 150, 51 43 650, 51 99 000) or both sides (51 43 170, 51 43 670, 51 99 000) of the B-pillar.

Source: NHTSA ID 11028923
