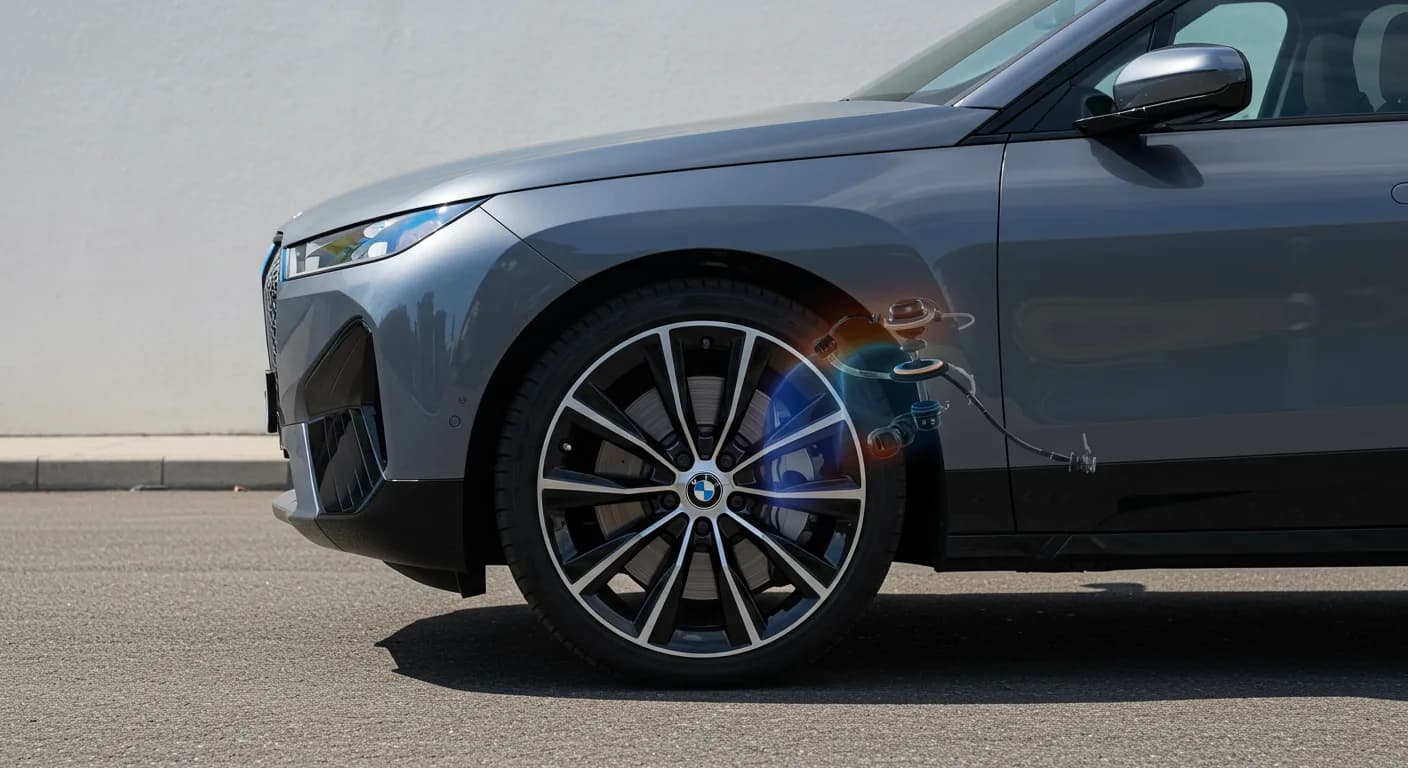

2022 BMW iX Steering Gear Replacement Service Action

Important Warnings for High-Voltage Systems

BMW emphasizes critical safety warnings when working on high-voltage (HV) systems in their vehicles. Repairs involving disconnecting or removing high-voltage battery components must only be performed by properly trained personnel who have completed all applicable HV Technical Training Courses. Unqualified individuals performing such work risk severe injury or damage to the vehicle. Specific safety instructions are detailed in Repair Instruction 61 00, titled "Observe safety instructions when handling electric vehicles."

Before any HV component is disconnected or removed, the HV system must be disabled and secured using the HV Service Disconnect Switch and lock out. This procedure requires a properly trained HV technician with a minimum HV Qualification level, achieved by completing courses such as "ST2324 High Voltage Drivetrain Systems."

For Generation 5 vehicles, specific training is required to diagnose, remove, and service any HV component. Non-HV certified technicians are explicitly NOT allowed to work on the high-voltage system.

Symptoms

Owners of affected 2022 BMW iX vehicles may notice a specific Check Control message displayed on the instrument cluster. This message will read: "Steering behavior. Drive slowly and have this checked by the nearest Service Provider." Concurrently, there will be a noticeable reduction in power steering support, particularly during maneuvering.

Cause of the Issue

The root cause of the reduced power steering support and the warning message in the 2022 BMW iX is a faulty capacitor located within the Electric Power Steering (EPS) gear. This component defect impairs the proper function of the power steering system.

Repair Procedure Summary

The correction for this issue, identified as Service Action SIB 32 01 24, involves replacing the Electric Power Steering (EPS) gear. The procedure follows the guidelines outlined in repair instruction REP32 13 572. After the physical replacement, the vehicle's control units will undergo programming and encoding to update to the required I-level or higher. This process also includes a vehicle test.

Associated work procedures that are included in this service action are:

• Commissioning and initialization of the new electromechanical steering gear.
• Checking wheel alignment using the Kinematics Diagnosis System, which includes measuring ride height without vehicle loading.
• Adjusting the toe-in on the front axle.

Additional work may also be performed, such as adjusting the rear axle or renewing eccentric screws, and activating integral active steering (HSR) if applicable.

Required Parts

The following parts may be required for the 2022 BMW iX steering gear replacement:

• 32 10 5 B35 7F4: Steering gear, electric EPS
• 07 11 9 905 400: Hexagon bolt with washer (M6x25-ZNNIV SI)
• 07 14 6 898 283: Hex bolt (12x1.5x70 ZNS3)
• 32 30 6 778 609: Torx bolt (M8x33)
• 31 30 6 865 951: Torx screw with collar (M12x1.75x50)
• 32 13 6 751 292: Hose clamp (D= 67.8 – 71.0)
• 33 30 6 787 062: Combination nut (M14x1.5-10ZNNIV)
• 31 11 6 899 302: Multi-purpose bolt (10x45 ZNS3)
• 61 27 9 487 465: Screw (12x1.5x100 10.9)
• 37 10 6 789 678: Hex nut with flange (M12x1.5-10-ZNS3)
• 83 23 2 208 093: Grease FB-1 (sublet as needed)

Owner Action

If you own a 2022 BMW iX and experience the described symptoms of reduced power steering or the warning message, it is recommended to contact your authorized BMW service provider. This is a Service Action, and vehicles requiring this campaign will show an "Open" status when checked by a dealer. The repair code for this action is 0032540300.

BMW states that this repair is "MOBILE FRIENDLY," indicating it can be performed efficiently. If your vehicle is currently at a dealership, the procedure should be completed before customer delivery. If you have already taken delivery, the repair will be performed during your next service visit if the campaign status is remedy available.

Important Notes for Technicians

Technicians performing this 2022 BMW iX steering gear replacement must be aware of the specific training requirements for high-voltage systems. As of January 2023, the HV component portion of the "ST2205 Generation 5 High-voltage class" has been merged into "ST2324 High Voltage Drivetrain Systems." Other relevant training courses include "ST2006 – SP44 HV Battery" and "ST1825 – Alternative Drive Part 2."

Reimbursement for this Service Action will be via normal claim entry using the applicable work package information. The flat rate labor operation codes include 00 75 895, 00 75 897, 00 75 304, 00 75 305, and 00 75 968.

---

Source: NHTSA ID: 11000504
